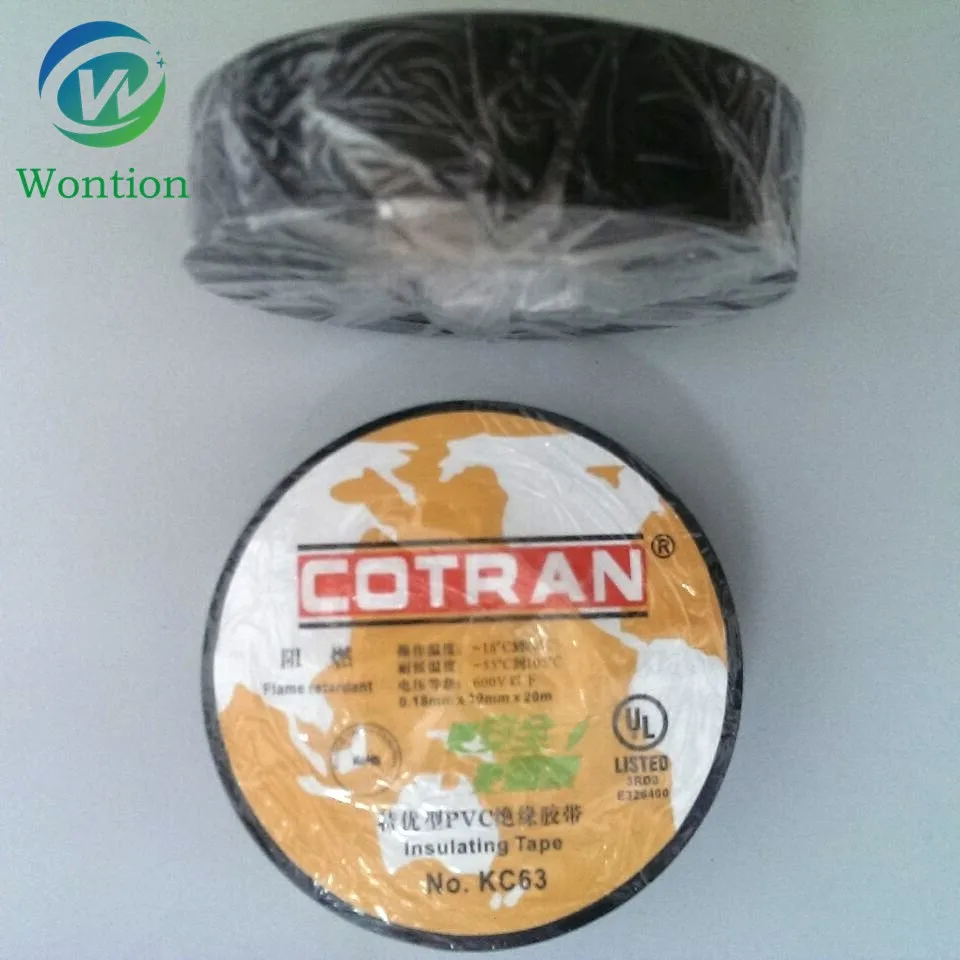

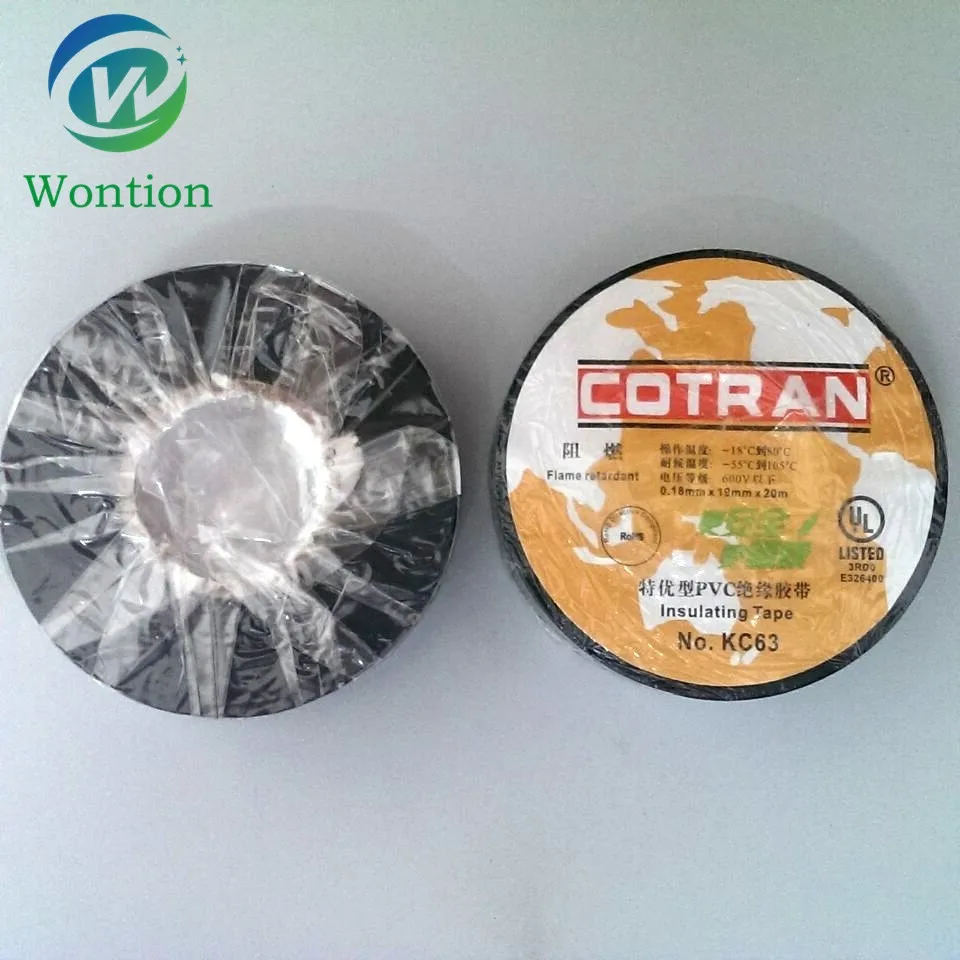

KC63 PVC insulation tape/high quality PVC tape

Product Overview

Description

KC63 PVC insulation tape/high quality PVC tape



1.Cotran PVC insulation tape,Model KC63:

KC63 model electrical adhesive tape is an excellent, economical and practical PVC insulation tape. It has good wear resistance, moisture resistance, acid and alkali resistance and resistance to environmental changes (including ultraviolet light). The sheath used to tie wires and cables is suitable for indoor or outdoor main insulation of all wires and cable joints under voltage grade 600V. The sheath used for repairing high voltage cable joints is used for identifying and marking electrical insulated wires and cables below 600V.



2.Feature:

roduct Name	KC63 pvc insulation tape
Property	Value	Test Method/Reference
Thickness	0.18mm	ASTM D 1000
Tensile Strength	57.2N/19mm	ASTM D 1000
Elongation	272%	ASTM D 1000
Adhesion to Steel	5.5N/19mm	ASTM D 1000
Flammability	Pass	UL510
Temperature Rating  Maximum	105℃	UL510
Temperature Rating  Minimum	80℃	UL510
Dielectric Strength	53.2kV/mm	ASTM D 4325
Dielectric Constant	4.41	ASTM D 4325
Insulation Resistance	5.26x10^12	ASTM D 1000



3.Pictures:



4.Packing way:

5.Company show:



6.Certificate:



 7.Contact information online always:
