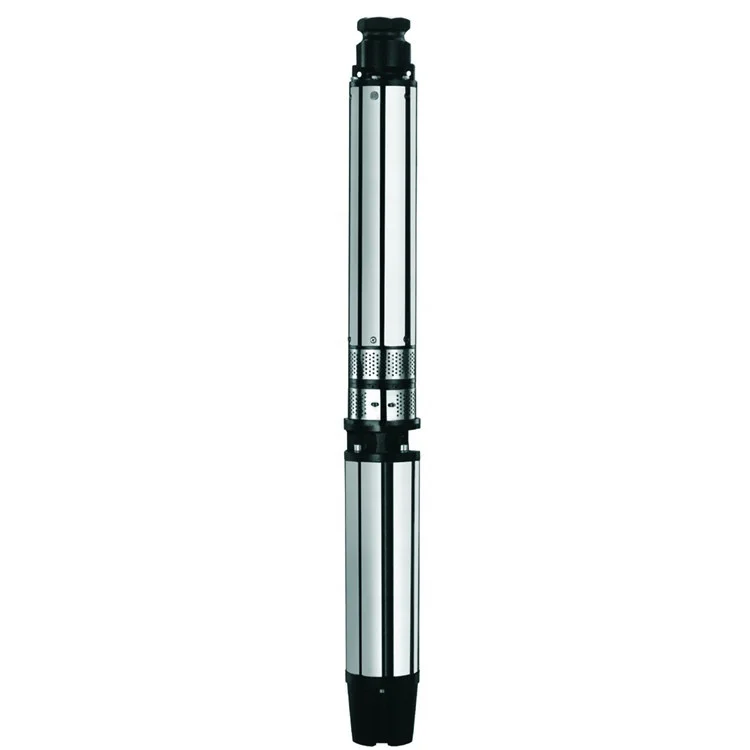

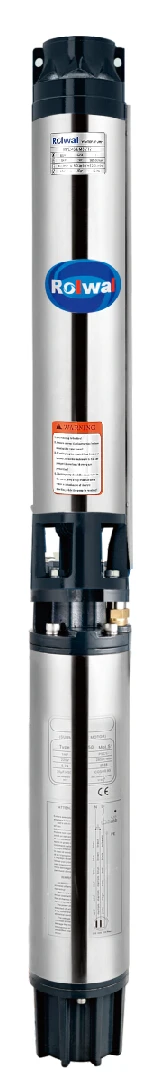

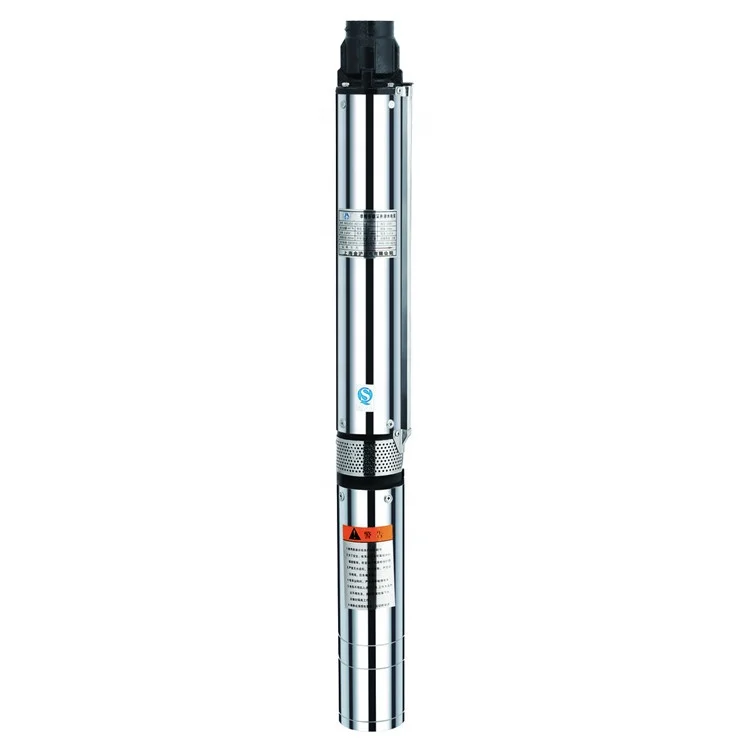

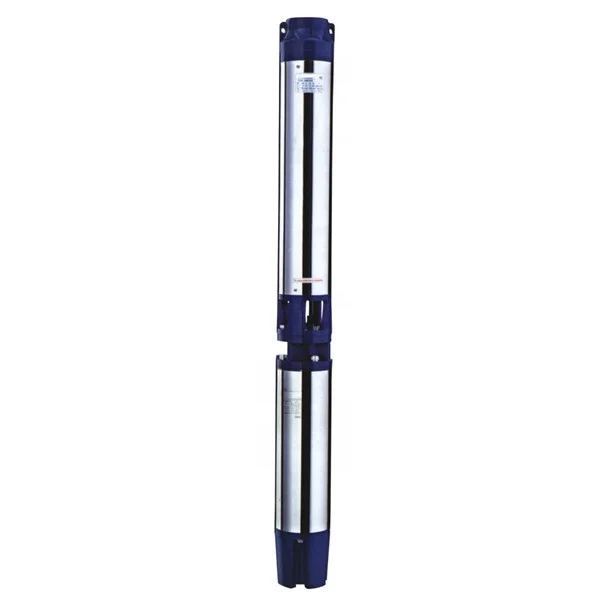

High Quality 5SR Three Phase 2HP Borehole Submersible Pumps 5 inch Deep Well Water Pumps

Share on (62200550928):


Price:

Quantity:


Product Overview

Description



Product Description





Applications

For water supply from wells or reservoirs.

For domestic use,for civil and industrial applications.

For garden use and irrigation.



Operating conditions


Maximum fluid temperature up to +35℃.

Maximum sand content:0.25%.

Maximum immersion:100m.

Maximum well diameter:5″.

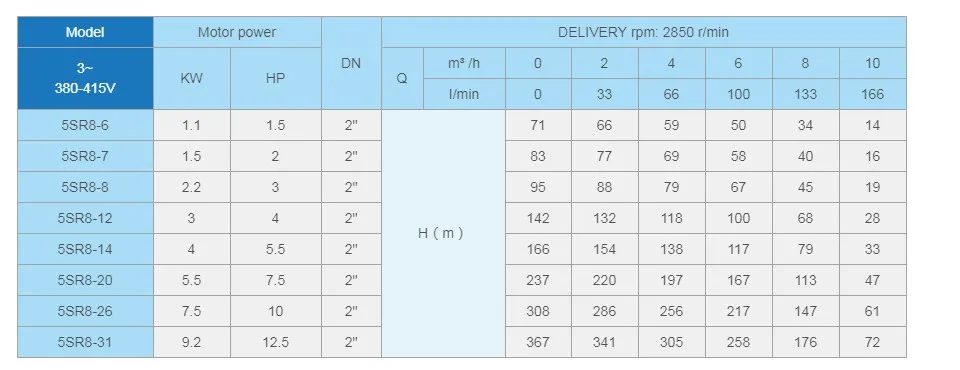

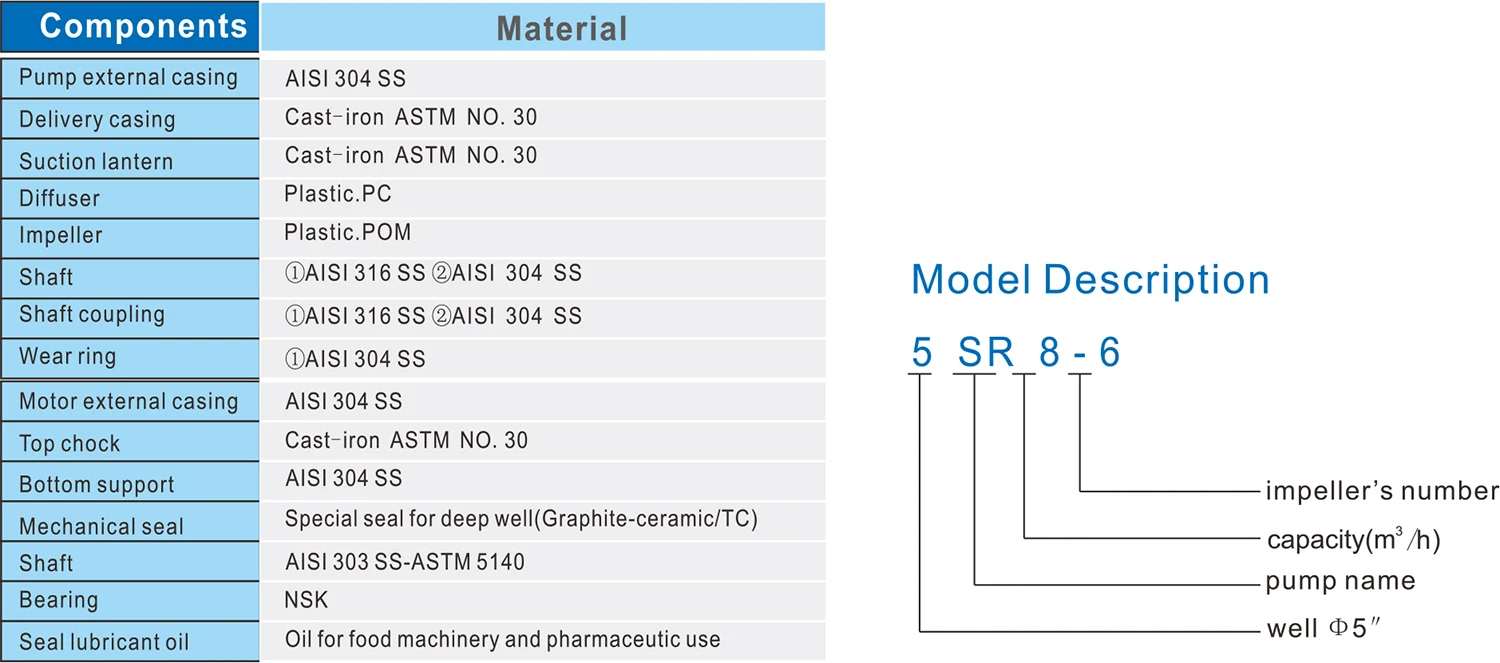

Motor and Pump


Rewindable motor or Full obturated screen motor

Three-phase:380V-415V/50Hz

Single-phase:220V-240V/50Hz

Equip with start control box or digital auto-control box

Pumps are designed by casing stressed

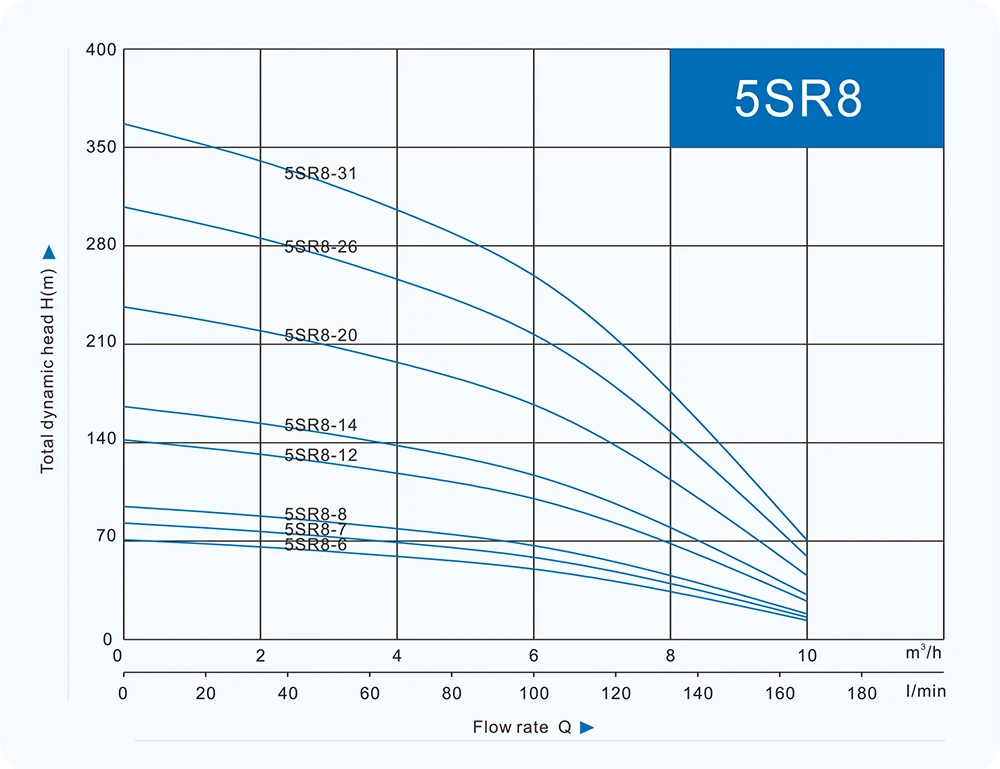

Curve tolerance according to ISO 9906



Options on request


Special mechanical seal

Other voltages or frequency 60 Hz

Single phase motor with built-in capacitor



Warranty: 1 year

(according to our general sales conditions)

























Packaging & Shipping


Export standard carton with Plastic bag or Foam.


Delivery Time & Port:30-40 days/Fob Ningbo port or Shanghai port









delivery




















Company Information


lewei company





Zhejiang lewei pumps industry co, ltd founded in 1990, located in the Chinese pump town----daxi, near the 104 national highway, closed by the air port, traffics very conveniency
Our company is a professional manufactory and exporter of water pumps and welding machines, own the import  and export authority
We have the professional team for design, produce and sales. Have complete equipment: production line, nc  machine, machining center, test center and otheradvance equipments, synchronining with the international
standards. Have all kinds of goods, passed ISO9001 and CE certificates, and we are researching, developing innovating new productions continuously Have established exporttrade relation ships with many countries, the goods sales to Middle East, Southeast Asia, Europ, Africa, South American and etc. Our target: excellent quality, hearted service to our old and new customers. run to the world

















FAQ


1) How can I place order?


 A: You can contact us by email about your order details, or place order on line.

2) How can I pay you?
 A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using.

3) What's the order procedure?
 A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.

4)How do you take care when your clients received defective products?
 A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.

5)How do you check all the goods in the production line?
 A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
