5-87813178-b Excavator Engine Liner Kit for ISUZU 6WG1 4HK1 6HK1 4JB1
US $100.00-$250.00
High Quality Diesel engine 4 Cylinder 4 Stroke F4L912 Deutz Engine
- Category: Machinery Engines & Parts >>>
- Supplier: Shijiazhuang,Hovor,Diesel,Engine,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Basis on high reliability,low trouble ,long lifetime and easy operation .FL912/913 series air cooling engines, can run well with a normal technical maintenance. The arrangement of keeping points of air cooling engines is integrated so it is easy to approach for convenient keeping .It is easy and convenience to check and dismantle and exchange because of one cylinder one cover and a mass structure ,in case no need to dismantle oil pan to change the piston ,liner ,etc.
SPECIFICATIONS FOR DEUTZ F4L912 ENGINE | ||||||
Engine | Engine model:F4L912 | Kw/rpm | 32/1500 | |||
No. of cylinders: 4 | Kw/rpm | 51/2500 | ||||
Displacement: | L | 3.77 | ||||
Main performance parameters | Bore/Stroke | mm | 100/120 | |||
Air-intake way | Naturally Intake | |||||
Cooling System and stock | Air-cooled | 4-stock | ||||
Main Features
1) Because of high temperature of cylinder wall of air-cooling diesel engine and fast rising temperature, the acidity erosion and friction are avoided do the most extent
2) Fine adapt ability: reliable in dry,hot cold weather and in poor water quality condition as well as in highland area
and low pollution requested working environment3)Small seize,light weight ,low fuel consumption,long service time
Detailed Images
Machine Parts

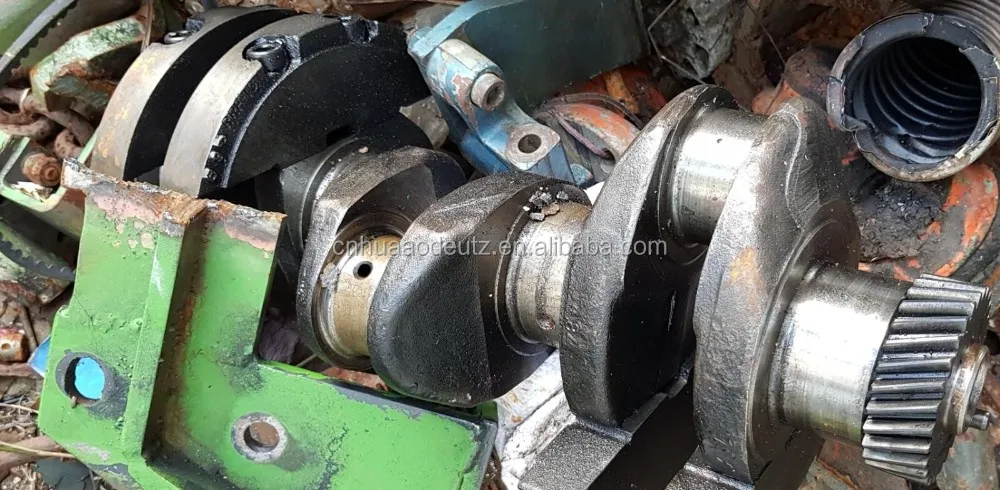

Name: Crankshaft
Material: Forged Steel/Cast Iron
*CAccurately cast or precisely forged, crankshafts translate the linear movement of the engine´s pistons into the required circular motion. DEUTZ crankshafts are perfectly balanced and allow for smooth engine operation, benefiting both material and environment.
Main Features
Name: Cylinder Liner /Piston assy
Material: Gray cast iron
*A DEUTZ assembly is a parts kit comprised of the piston, piston rings and pin as well as the corresponding cylinder liner.
*DEUTZ specially honed liners ensure minimal friction and oil loss, resulting in reduced consumption of fuel and lube oil.
Machine Parts
Name: Cylinder Head
*High-precision flow geometry within the inlet and exhaust ports allow for optimized charge cycles, resulting in high efficiency and low fuel consumption.
*Perfect fit of all valve train components ensures reliable and efficient engine operation.
Cylinder heads are subject to a special cleaning procedure after processing – making sure that no residual dirt or metal chips can compromise the engine.
Main Features
Name: Crankcase
Material:Cast Iron
*Perfect balance ensures optimum engine performance
Application Domain
FL912 series engines are widely used in special vehicles ,contrsution machines, pertoleum equipments and generating sets
Our Company
Shijiazhuang Hovor Diesel Engine Co.,Ltd
Started in 1993, Shijiazhuang Hover Diesel Engine Co.,Ltd mainly manufacture and distribute diesel engines and spare parts, main products include complete diesel engines, generator sets and engine spare parts. The company can produce the diesel generator sets with power from 3kw to 2000kw .And we have the complete range of engine spare parts, including but not limited to pistons, piston rings, cylinder liners, connecting rods, crankshafts, camshafts, engine bearings, cylinder blocks, cylinder heads, engine valves, cylinder head gaskets, air compressors, turbochargers, water pumps, oil nozzles, oil seals, oil pumps, fuel pumps etc. The spare parts cover the brand of DEUTZ, CUMMINS, VOLVO, DACHAI, WEICHAI, MWM and TBD series parts etc. We can serve high end customers and
provide both original and high-quality domestic parts to customers.
Sincerely welcome friends from all over the world to visit us and achieve win-win development.
provide both original and high-quality domestic parts to customers.
Sincerely welcome friends from all over the world to visit us and achieve win-win development.
