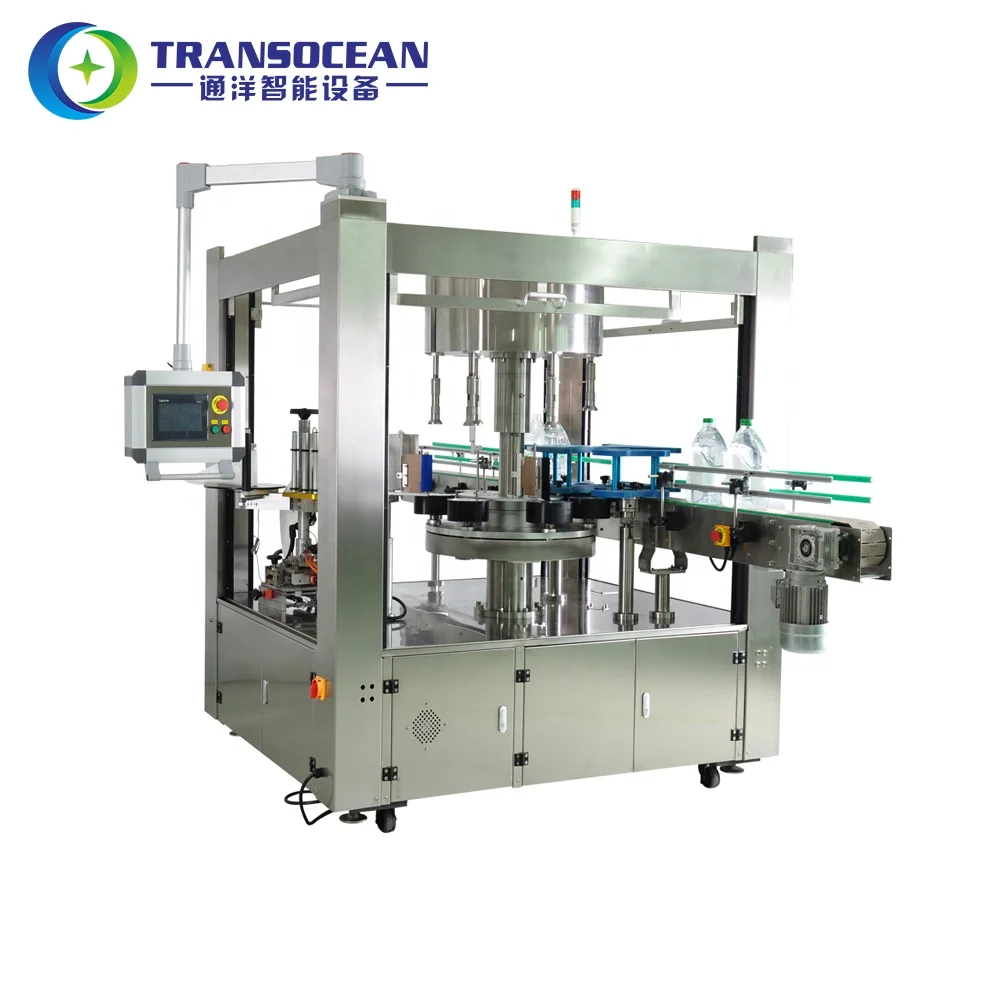

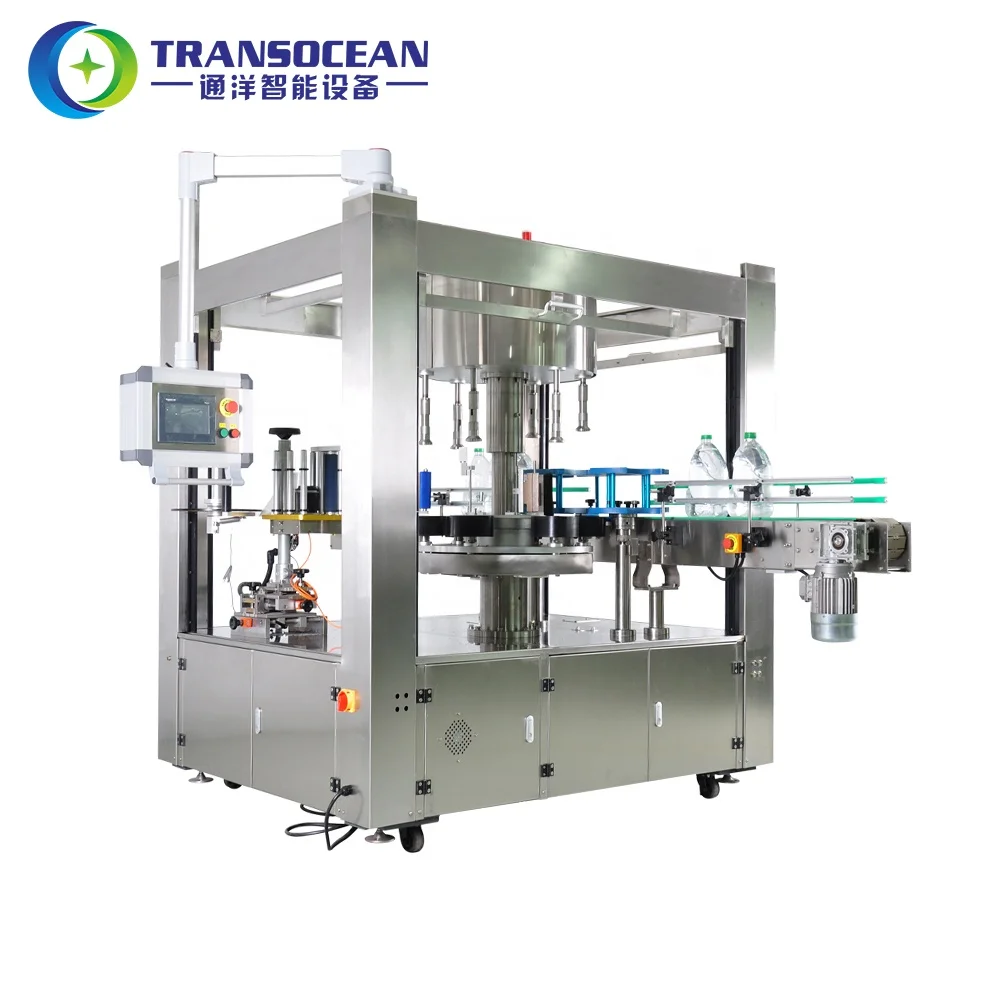

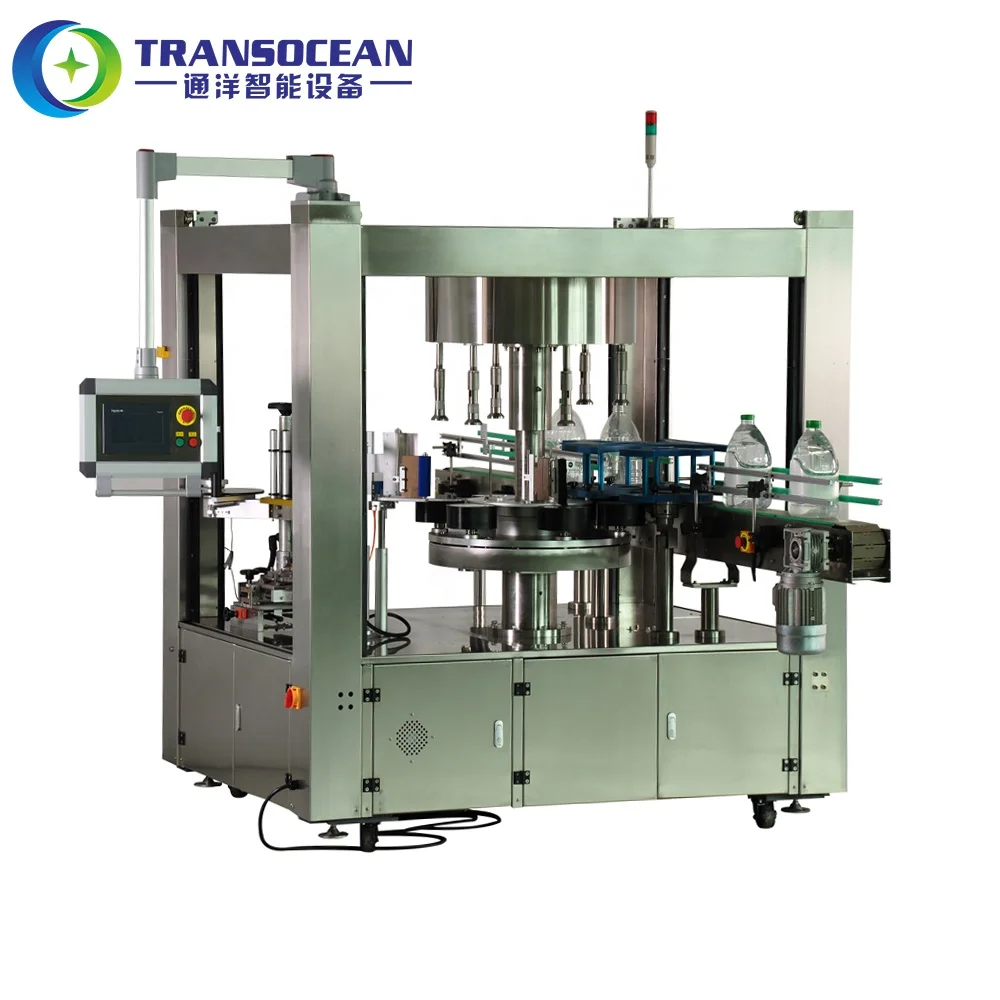

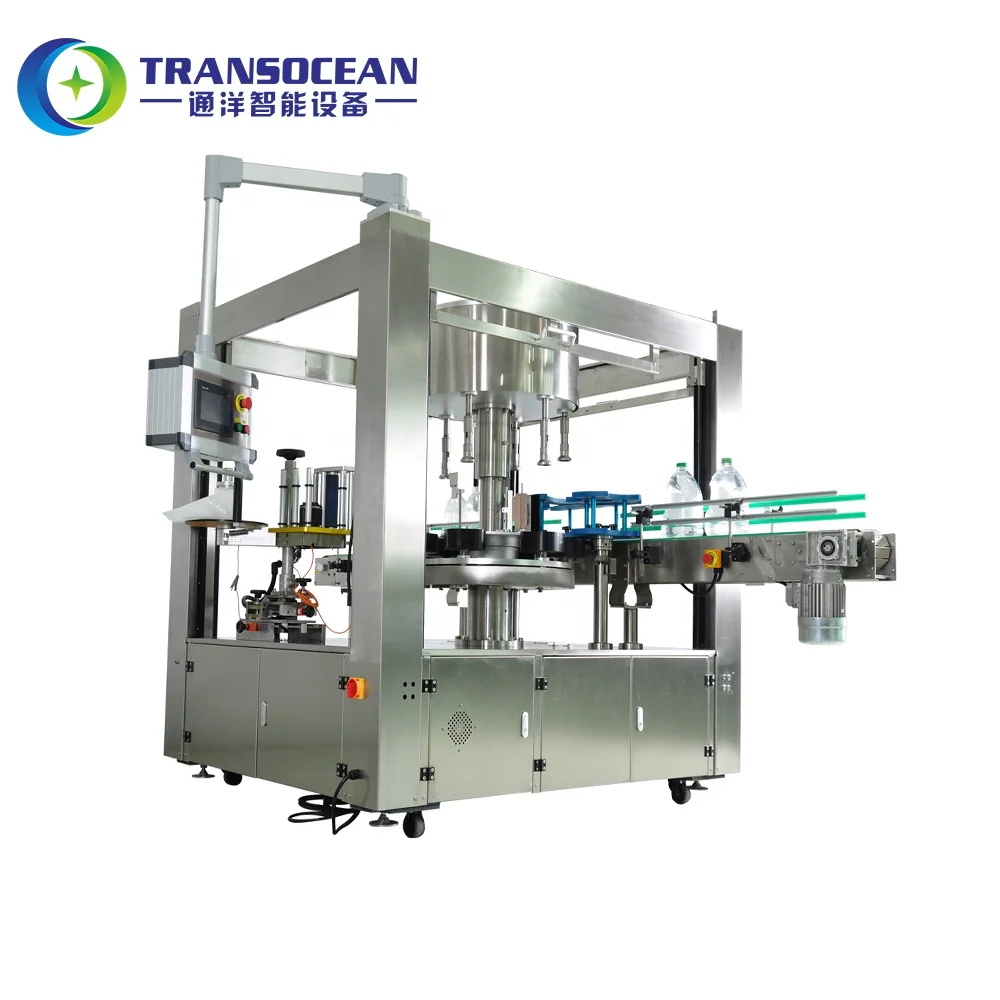

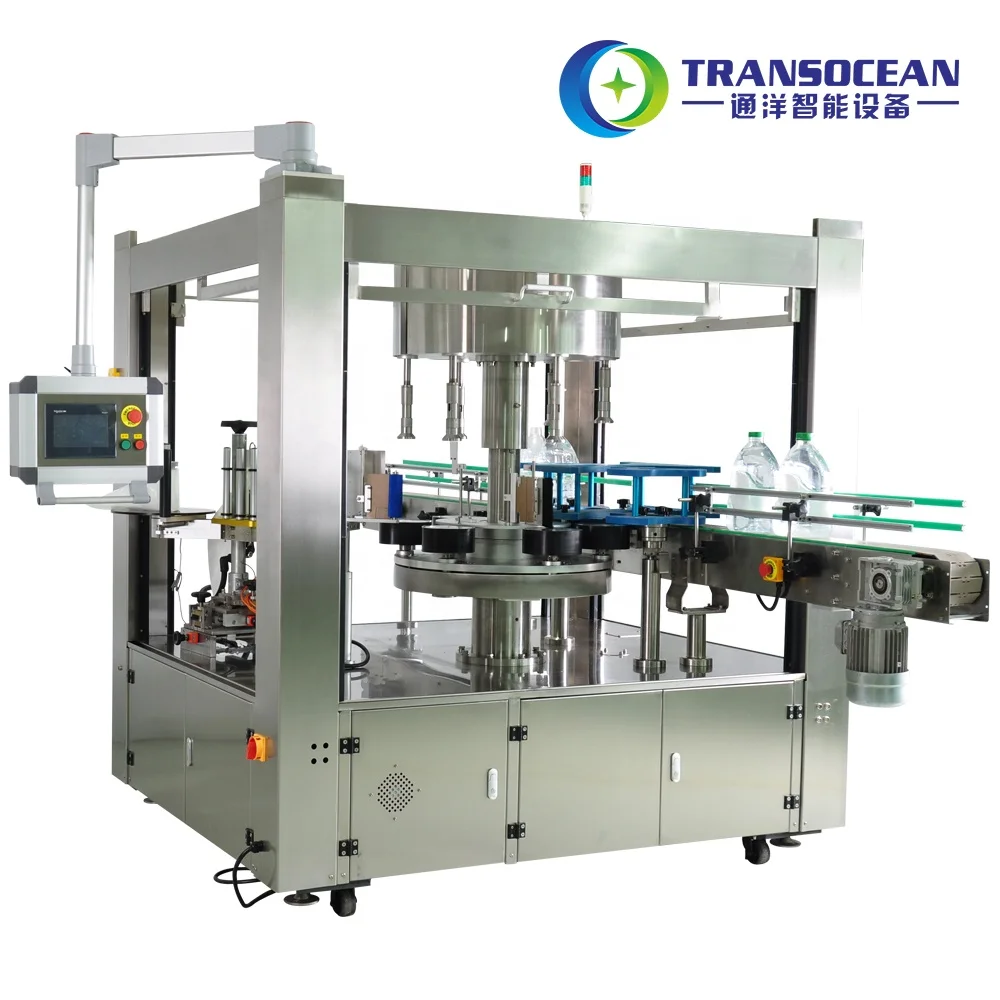

Rotary flat plastic sunflower oil bottle labeling machine
- Category: >>>
- Supplier: Guangzhou Transocean Advanced Equipment Co. Ltd.
Share on (62200764203):
Product Overview
Description
TYBF-06041R Rotary flat plastic sunflower oil bottle labeling machine
Product Application

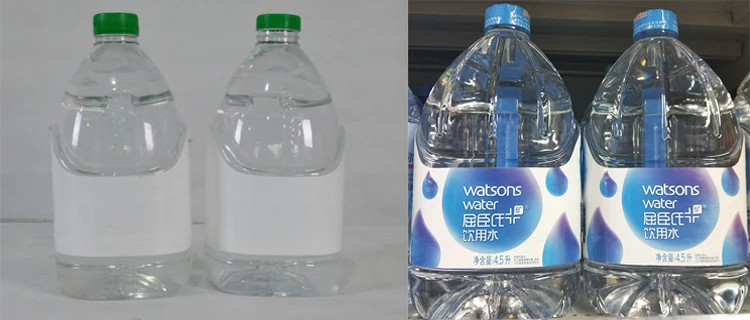

1.Suitable for the square bottle with 3 surface surround labeling.
2.Suitable for hot melt glue labeling machine in the industry of beverages, mineral water etc.
3.Adopts for Japanese SANYO imported servo motor and Siemens PLC control simple operation, stability running.
4.Adopts for screw and star wheel cooperate, ensure high speed operation, products smooth and stable.
5.Adopts CAM mechanical rotating positioning, using the advantage of the bottle itself to find anchor point, greatly improve stability and accuracy.
6.Out of the station can be adjusted 3 d space, especially suitable for taper type bottle, and easy to adjust different size of the product.
7. Can connector wit h filling line production, greatly increased speed and saving cost.
SPECIFICATIONS | ||||||
Label material | Adhesive&sticker | Labeling production size | L: 20-500mm W: 10-200mm (Can be customized) | |||
Available model and speed | 4000-36000 BPH | Labeling accuracy | ±1mm | |||
Max width of label | 200mm(Can be customized) | Max length of label | 500mm | |||
label outside diameter | ¢350mm | labels inside diameter(paper core) | ¢76mm | |||
Max out label speed | 100m/min | Conveyor belt | L:3500mm W: 100mm H: 1100mm ±30mm | |||
Conveyor speed | 30m/min | Speed adjustment method | Uninterrupted-adjust rate | |||
Power consumption (W) | 4500 | Air consumption(Mpa) | 5-6 | |||
power supply | Three phase 380V 50Hz According to local voltage in different countries, can add voltage transformer after customer told us about the local voltage. | Occupied floor area | 3000*2500*2000mm(Can be customized) | |||

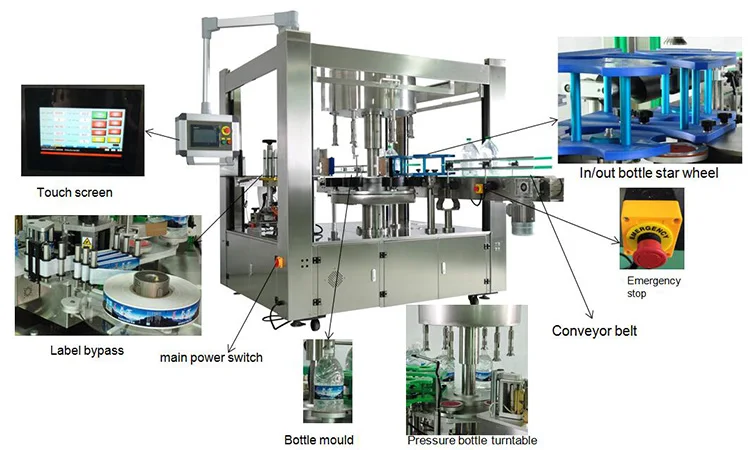

Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

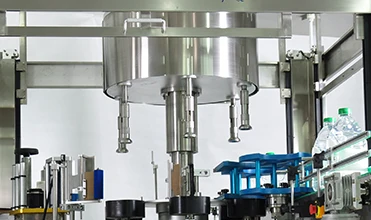

benefits of top and bottom compression
The rotary type of mold position labeling way can make sure the accuracy and stability of label sealing.

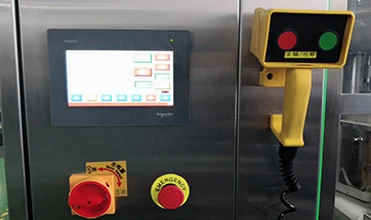

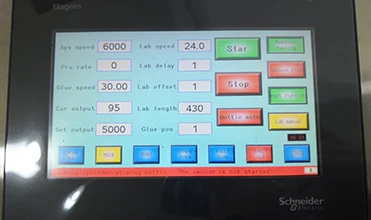

Touch screen in English
Imported PLC control system, colorful touch screen, easy operation, intuitionist and efficient, with auto warning protection function to minimize loss. Multiple language for choice.

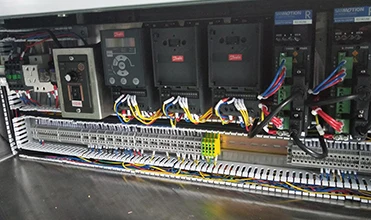

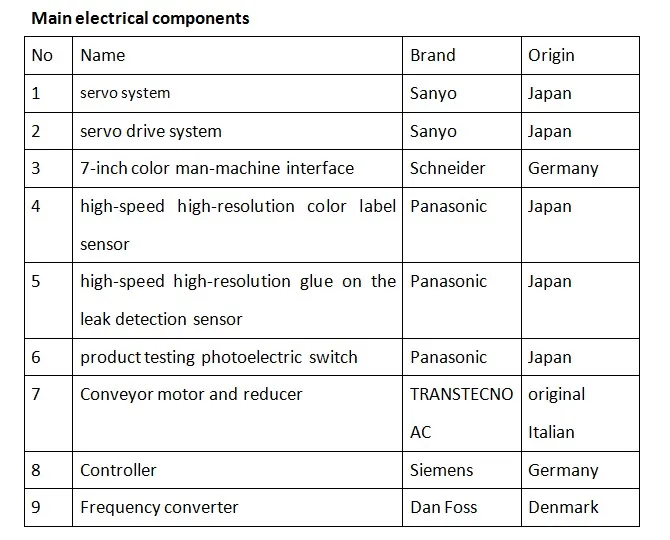

imported electrical components
German Siemens and other World Brand imported electrical components to ensure the long-term stability and reliability of the machine;

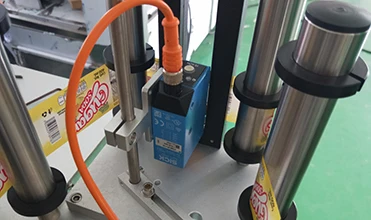

import label sensor
Use German color code detection label sensor, raise precise of label feeding.

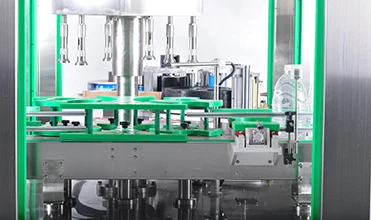

In/out of the bottle star wheel
In/out of the bottle star wheel, the spacing of the bottles can be separated, the bottle can be smoothly inserted/exited, and the labeling efficiency can be improved to smoothly complete the labeling.

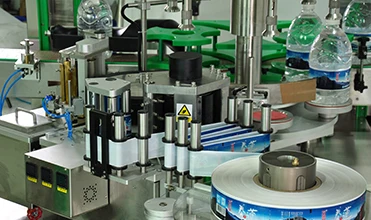

label feeding system
Using German high-speed servomotor and controller for label feeding system to make sure high-speed of accuracy and stable label cutting and feeding .
emergency stop switch
Mobile emergency stop switch for quick and easy operation

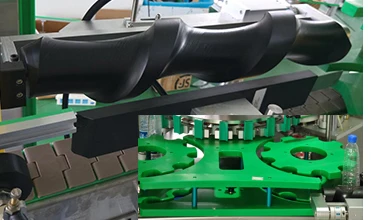

screw and star wheel cooperate in and out bottles
Adopts for screw and star wheel cooperate in and out bottles, ensure high speed operation, products smooth and stable.
Remark
1. Customer should provide us bottle sample for do bottle mold.
For each set of machinery, we will provide a complete set of molds for free. If there are many styles of bottles, we can make the appropriate mold according to the specific size of the bottle. the price is calculated separately, when replacing the bottle, we only need to remove the first set of molds and replace the second set of molds. On the machine, Just fine.
2. available model and speed, Please consult the salesman for the specific price.
6 pcs bottle molds TYBF-06041R 4000 BPH
8 pcs bottle molds TYBF-08061R 6000 BPH
12 pcs bottle molds TYBF-12091R 9000 BPH
16 pcs bottle molds TYBF-16151R 15000 BPH
20 pcs bottle molds TYBFH-2024R 24000 BPH
24 pcs bottle molds TYBFH-2436R 36000 BPH
More use
This item is an additional feature added.Price calculated separately.

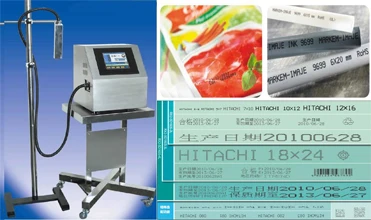

Inkjet printer
The code content usually be :MFD(manufacture date),EXD(expiry date) and BATCH(batch lot)
Thermal transfer Printer
The code content usually be :MFD(manufacture date),EXD(expiry date) and BATCH(batch lot)
Bar code
Data field
Pattern: JPG, BMP, GIF, PNG format
Rotary printing: 0°, 90°, 180°, 270°
Mirror printing
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Payment term
L/C at sight, T/T, alibaba trade assurance(BOLETO, Mastercard, Visa, e-Checking, PAYLATER). 40% deposit, 60% balance pay before send out the good or see the scan bill of lading.
Shipping:
Upon receipt of payment , delivery date will be in 15-60 days,
By Air, by Sea or by Express (DHL etc),
Shipment cost will depend on the destination, shipment way and the weight of the goods.
Quality service
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Core tamp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Core tamp has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
Packaging | ||
Size | 3060*1390*1200mm 1520*1960*2200 | |
Weight | 2.5T | |
Packaging Details | 1) Deduct & Cleaning 2) Lubricate Drive Parts 3) Divide Machine Into Modules 4) Wrap Modules With Plastic Film 5) Packing Modules Into Plywood Cases 6)mark Shipping Mark In The Cases if Any Special Requirements, We Will Pack It As Requested. | |
Packaging spare parts
The accessories are individually wrapped in a soft film to prevent damage.
