1500 3000W 400v to 220v step down transformer

Features

l  Π type input filter

l  High Output current and power

l  Design for high reliability, long lifetime

l  Wide range of power, easy to upgrade

l  Easy installation

l  Full load efficiency up to 90%

Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.

Input Characteristic

 Voltage range

300VDC (Normal Rated Value): 200 ~ 400 VDC

550VDC (Normal Rated Value): 450 ~ 750 VDC

Output Characteristic

l  Voltage set-point accuracy ……………… ±2%

l  Line Regulation (Main) ……….........……… ±0.5%

l  Load regulation (Main) ………........…..........±0.5%

l  Output Current Limited ................................. 120% (Typ)

l  Output current …………………………………5-100A for optional

l  Output voltage …………………………………12-48V

l  Power ……………………………………………1500-3000W

General Characteristic

l  Switching frequency …………………… 160-200 KHz

l  Isolation resistance ……………………  200 MΩ

l   Isolation voltage

u  Input-output: >1500 VDC

u  Input-case: >1050 VDC

u  Output-case: >500 VDC

l   Environmental Characteristic

u  Substrate Working Temperature ………Industry: -25-+85℃
                                   Military I: -40-+85℃

                                   Military II: -55-+85℃

u  Storage temperature …………………… Industry: -45~ +105℃

                                   Military: -55-+105℃

 Protection features

Input undervoltage protection         Output overcurrent protection

Output over voltage protection        Output short circuit protection

Over temperature protection

Models

Our service

1.Your inquiry will be reply within 24hours

2.Well-trained and experienced staffs to answer all your inquiries in English

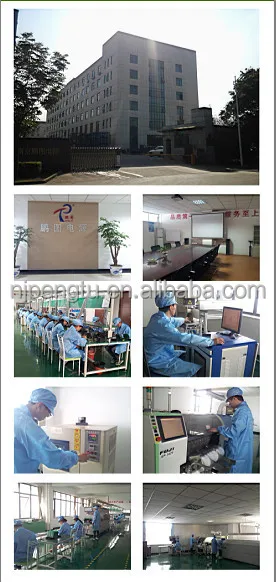

3.We have strictly management on the production and quality control
