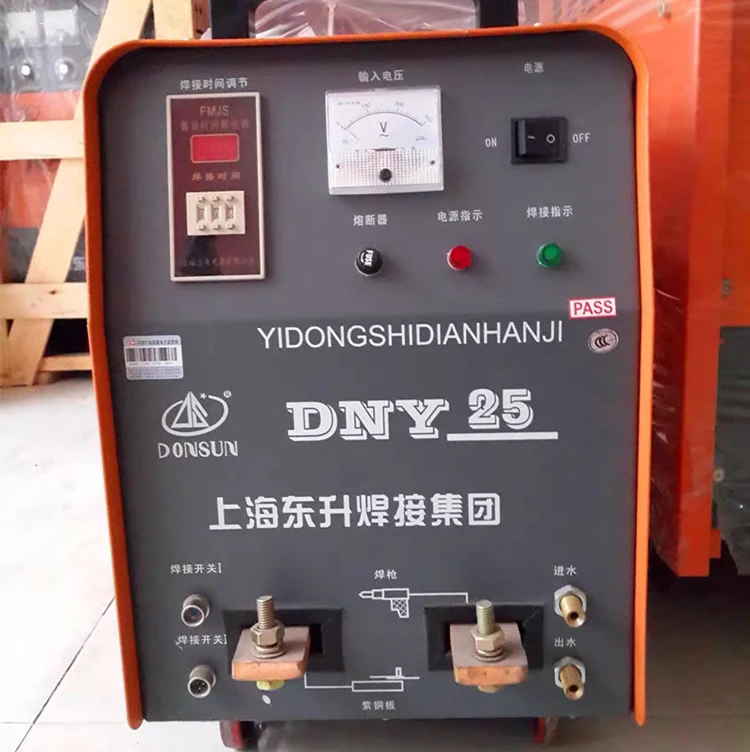

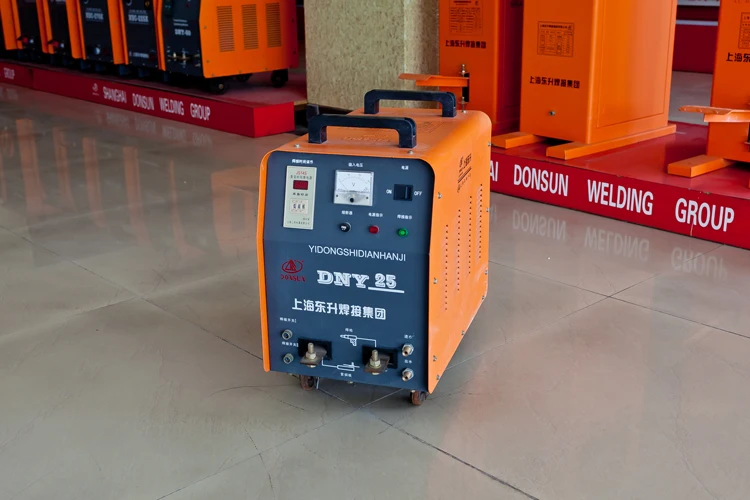

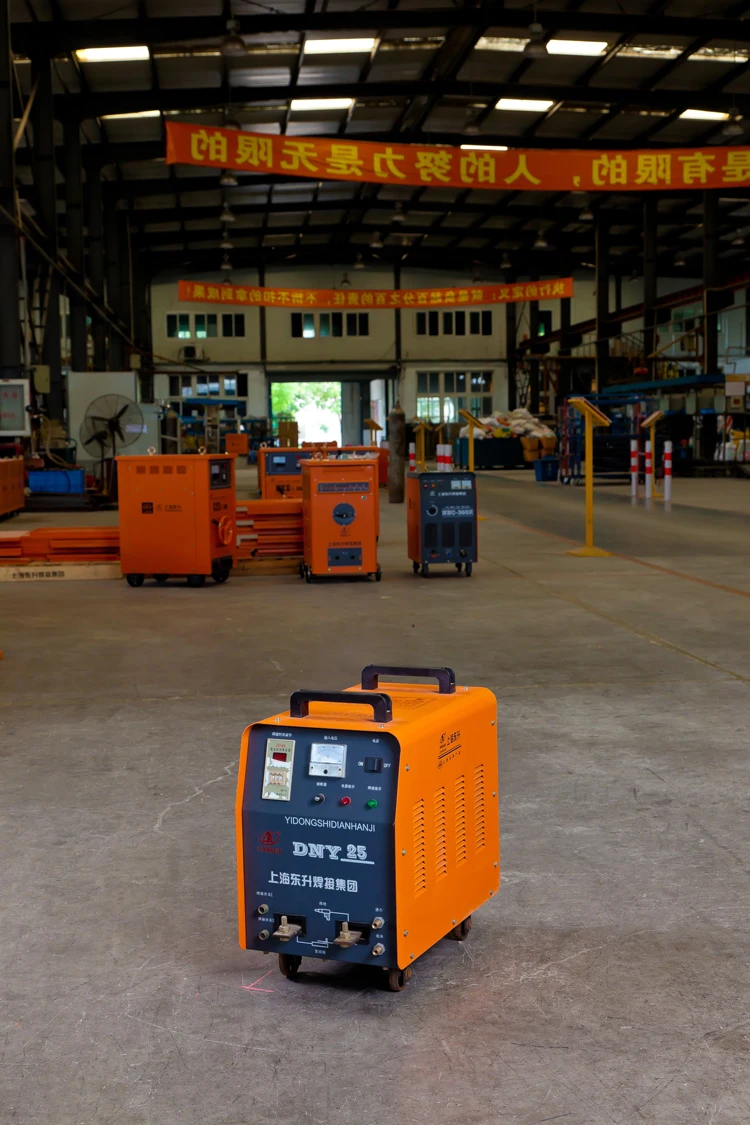

DNY 25, Portable resistance spot welder, spotter
- Category: >>>
- Supplier: Shanghai Donsun Welding Equipment Co. Ltd.
Share on (62200872083):
Product Overview
Description
Product Description
Features:
Extra functions
“Hot Start”function for easier arc striking;
“Arc Force”to prevent electrode sticking to the piece;smoother welding and deeper penetration;
Built-in Anti-Sticking device to prevent overload and ease the electrode removal from the workpiece.
Weight
Extremely low weight and versatility.
Protections
Fully protected against over-voltage undervoltage and over-heat.
Generator friendly
Designed to work with diesel generators and to avoid failures due to its voltage spikes.
| Model/Parameters | DNY 25 |
| power supply voltage(V) | 1Phase 380V |
| Fre.(HZ) | 50 |
| Rated Input Power (KW) | 25 |
| Rated Primary Current(A) | 66 |
| Rated Duty Cycle | 25% |
| Open Circuit Voltage(V) | 7.6-12.7 |
| Adjustable Step Number | 4 |
| Weld Time Adjust (s/cyc) | 0~9.99 |
| Secondary cable length(m) | 2 |
| Welding Thickness(mm) | (0.2~1)-(0.5-3) |
| Main transformer cooling mode | Air cooling |
| Electrode cooling mode | water cooling |
| Dimension(mm) | 500*310*560mm |
| Weight(KG) | 95 |
spot welder
