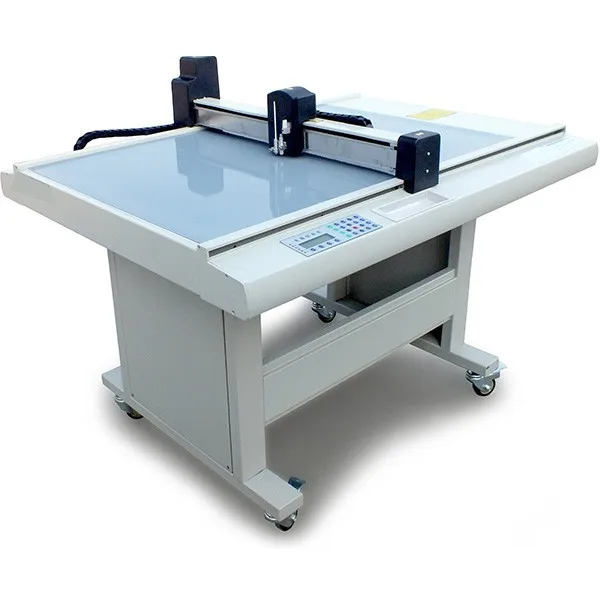

Maxwell DCH30 cnc corrugated board carton sample cutting machine
Maxwell DCH30 cnc corrugated board carton sample cutting machine

Maxwell DCH30 cnc corrugated board carton sample cutting machine

Share on (62200901395):


Price:

Quantity:


Product Overview

Description


Product Description

Maxwell DCH30 series laser position paper box cutting machine is also designed with the function of laser positioning, making the product particularly suitable for cutting the printed PVC board and cardboard.


Accurate positioning is realized through perfect matching between the laser and the preprinted mark on the printed material.


Machine features

High accuracy and simple operation

Save cost for cutting mould, this paper box cutter supports convenient adjustment and fast speed, helping user to win orders easily.

Dual tool head: press roll and special knife

It supports material cutting and creasing at one stroke.
Low maintenance cost
Simple operation, accurate positioning

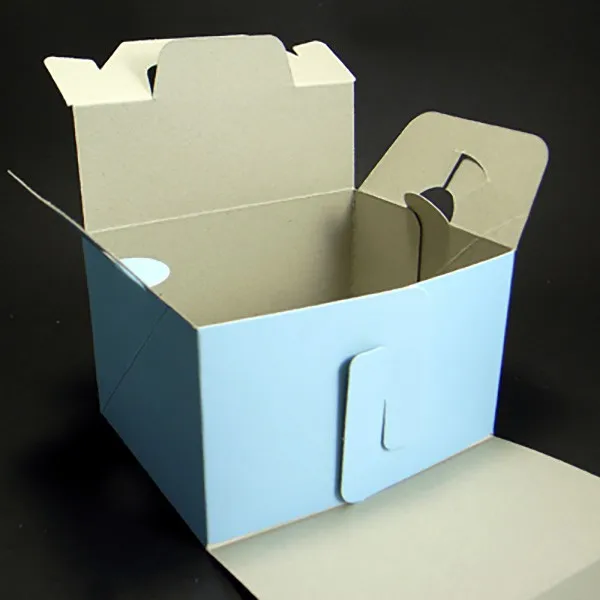

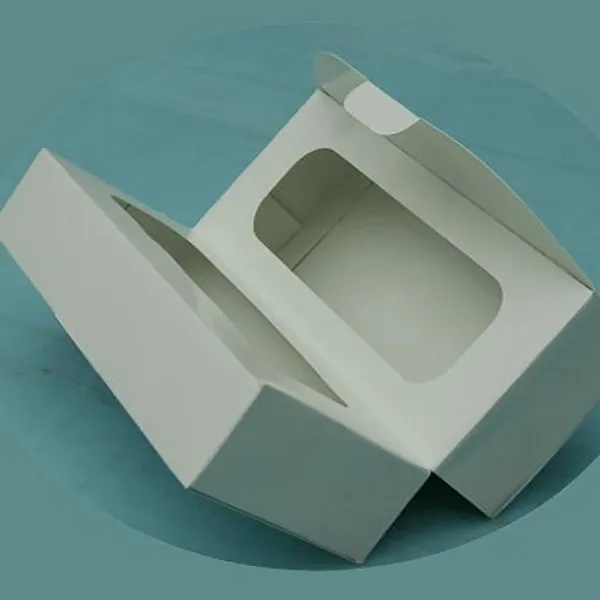

Application

This product also called box sample maker, PVC box sample maker, sample maker, Ads cutting machine and so on, according to the different cutting material and application.

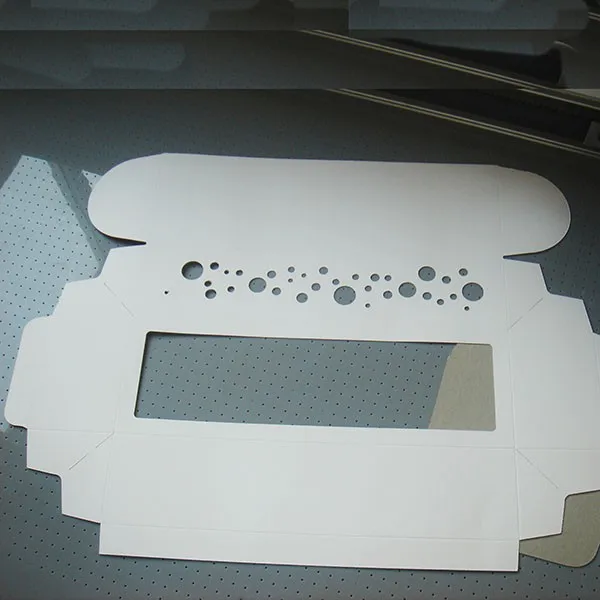

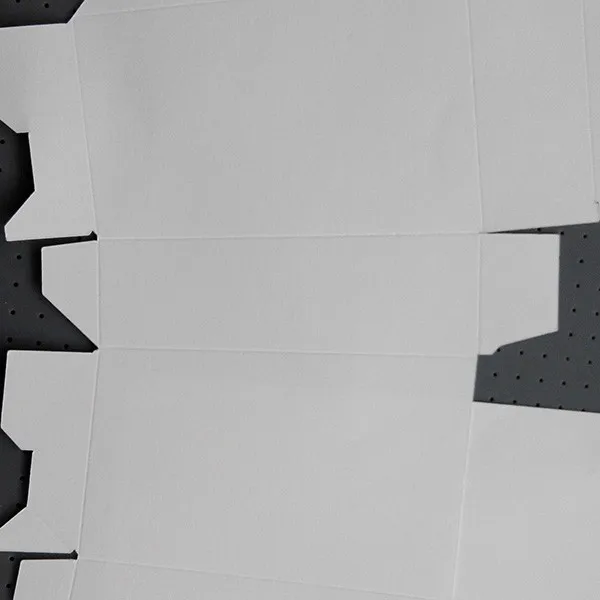

Materials can cut

card paper, foam, thin PVC, grey board etc.

Machine parameters
\t
Model
\t
DCH300906
\t
DCH301209
\t
DCH301512
\t
Effective cutting area
\t
900*600mm
\t
1200*900mm
\t
1500*1200mm
\t
Driver
\t
step motor
\t
step motor
\t
step motor
\t
Configuration
\t
Pen, special knife, creasing tool, laser position
\t
Way of fixing paper way
\t
Vacuum absorbing
\t
vacuum absorbing
\t
vacuum absorbing
\t
Driving material
\t
Import steel belt
\t
import steel belt
\t
simport steel belt
\t
Cut materials
\t
Red hard paper,plastic board,white board,kraft paper,thin PVC
\t
Cutting way
\t
Drawing by pen,half cutting,whole cutting
\t
Cutting thickness
\t
0.5-2mm
\t
0.5-2mm
\t
0.5-2mm
\t
Cutting precision
\t
≤0.1mm
\t
≤0.1mm
\t
≤0.1mm
\t
Max speed
\t
1000mm/s
\t
1000mm/s
\t
1000mm/s
\t
Working time and character
\t
Continuous work, operating computer and cutting at the same time, linear high-speed transmission for data.
\t
Transmitting port
\t
International standards: parallel port/RSC232 serial port
\t
Numerical control board
\t
LTD, all-English operating menu
\t
Voltage
\t
AC 220V±10% 50Hz
\t
Occupy dimension(L*W*H)
\t
1335*1065*1080mm
\t
1635*1365*1080mm
\t
1935*1665*1080mm
\t
Fuse standard
\t
5A
\t
5A
\t
5A
Machine tools

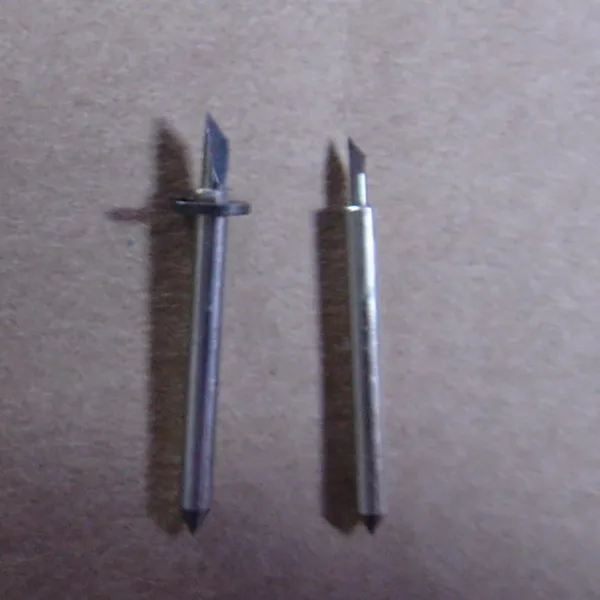

Special blade

Special Blade ( Free knife)  cut the materials within 2mm

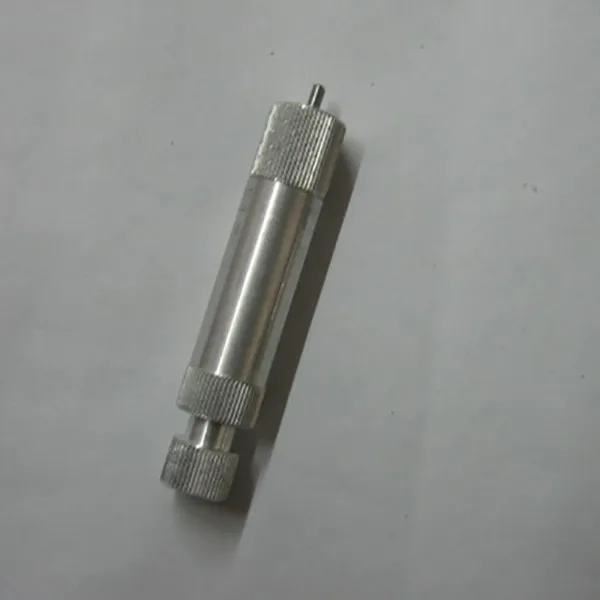

Creasing tool

Scoring on the materials within 2mm

Our service

Professional international sales for your inquiry

Professional english speaking engineer for your installation and training

professional decuments person for your customs clearance documments

7*24 hours on line fast communication service
