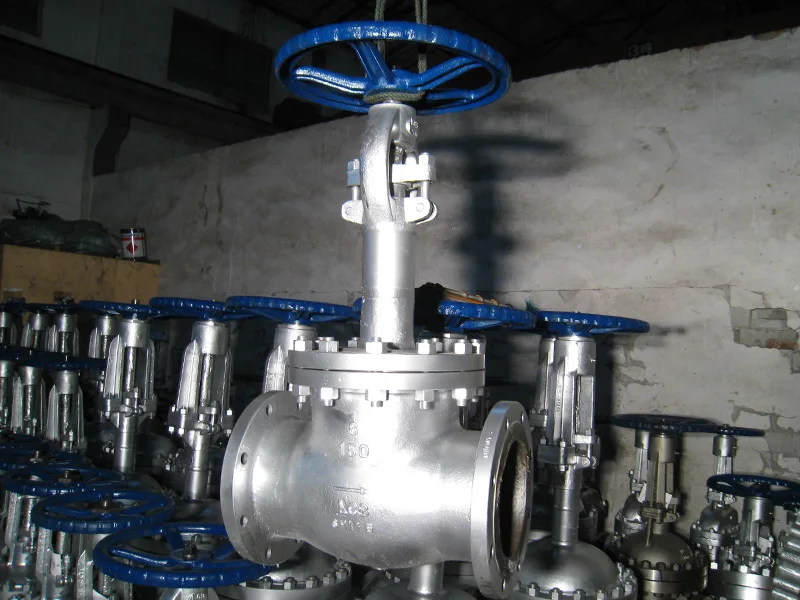

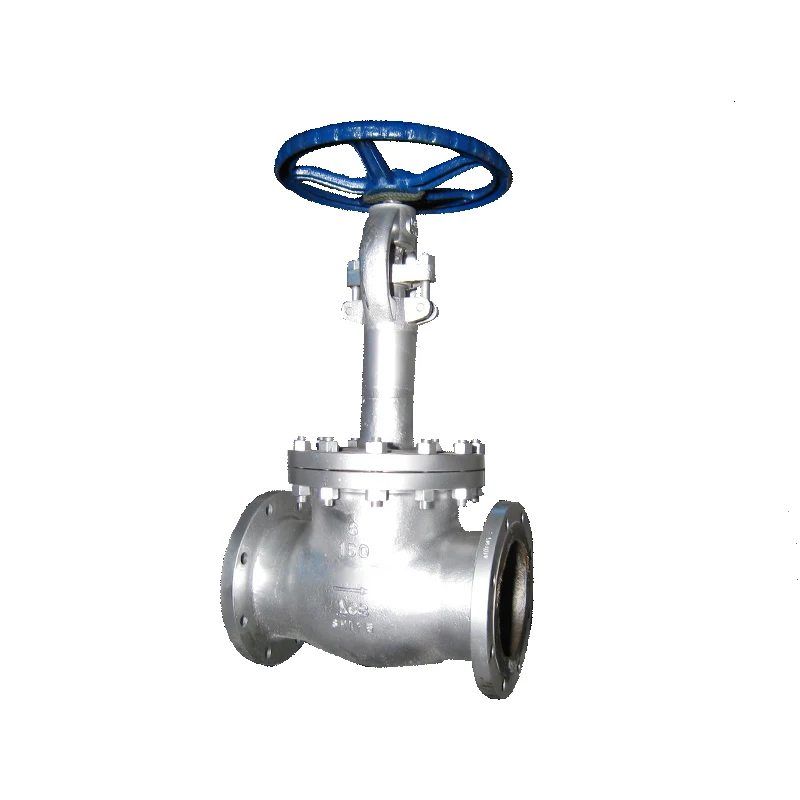

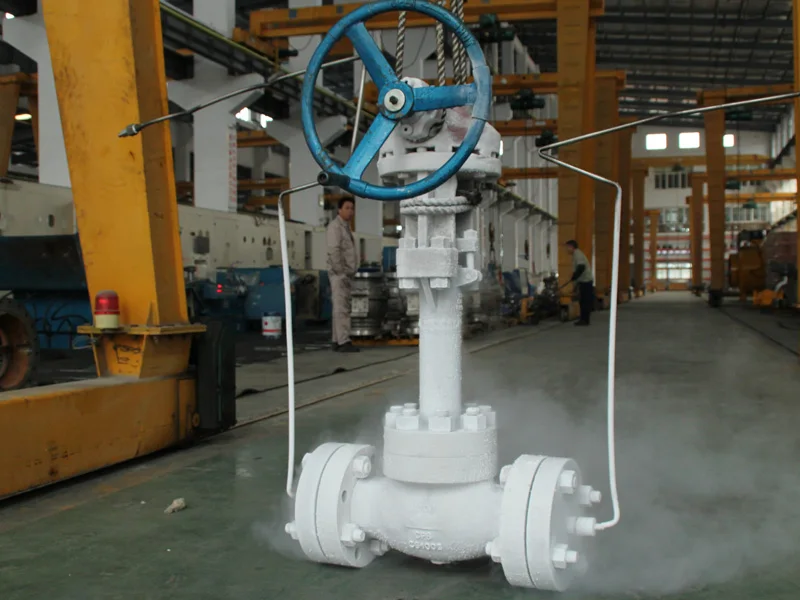

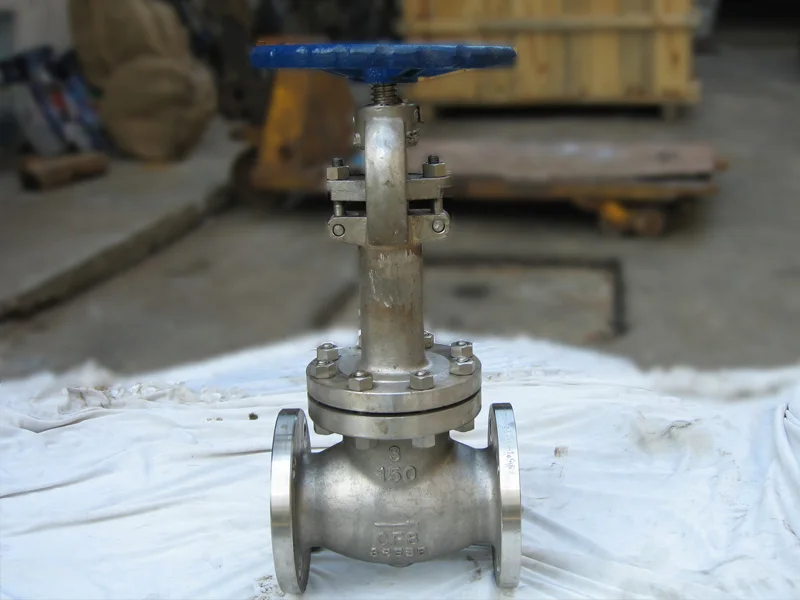

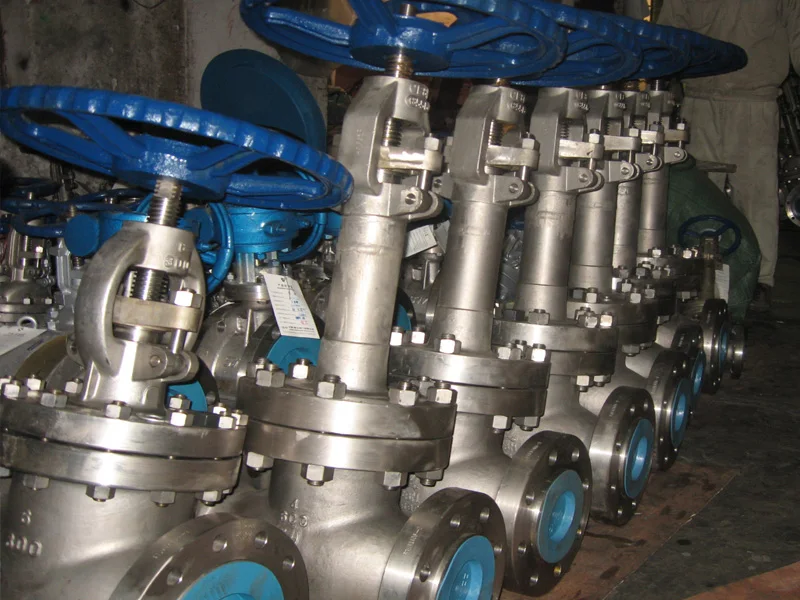

WZLD Stainless steel Cryogenic Globe Valve

Product Overview

Description

Feature:
Bellow sealed, Swivel Plug disc, rising stem & yoke, bolted bonnet, welded seat or integral seat, zero stem leakage etc.



Technical Data
Type	Cryogenic Globe Valve
Size	1/2"~12"		Body material	Carbon steel,Stainless steel
Rating	150lb-900lb		Trim	Per API600
Temperature	Low		Operation	Handwheel, Gear, Electric, Manual, Pneumatic, Hydraulic



Design Standard
Design standard		BS1873,BS5352,API602,ASME B16.34
Flange connection dimesion		ASME B16.5, DIN2501
Butt welding connection dimension		ASME B16.25
Face-to-face dimension		ASME B16.10,  EN558,DIN3202,Manufacturer standard.
Socket  welding connection dimension(SW)		ASME B16.11
Threaded end dimension(NPT)		ASME B1.20.1
Pressure-Temperature Rating		ASME B16.34
Test		API 598, BS6755, ISO 15848(Low fugitive emission test)

 Application: Oil&Gas precessing, Refinery, Chemical, Petrochemical, Power plant, etc.





To make a fast&successful offer to you(valued customers) , we need follow information.

• Design standard.


• Connection standard .


• Size.


• QTY


• Body material .


• Trim (Material for inside parts).


• Connection type.


• Medium.


• Temperature.


• Ambient temperature range . Corrosion considerations.


• Application Descripetion.


• Painting color. etc
