2020 Hot Sale Complete Mango Lemon Fruit Juice Production Plant
- Category: >>>
- Supplier: Zhangjiagang Alps Machine Co. Ltd.
Share on (62201126490):
Product Overview
Description
Product Description
Fruit Juice / Tea Drinks Bottle Filling Machine
*We supply complete solution for the juice , tea drinks , energy drinks filling production line ,including Water treatment system / Syrup melting system / Blending & mixing system / Homogenizer & sterilizer system / HFSC storage system / indegredient dosing system / Washing filling capping machine / Code sprayer / Pasteurizer tunnel / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system and so on

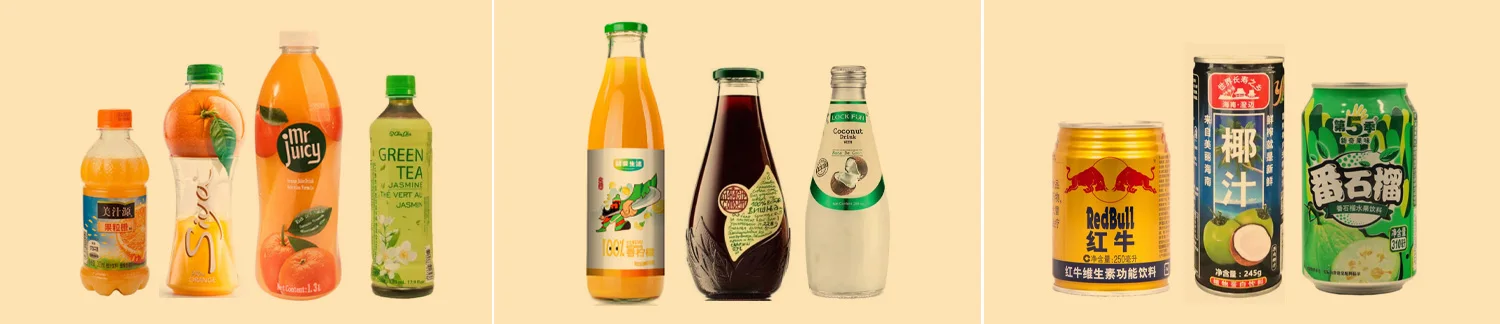

PET Plastic Bottle
Glass Bottle
Aluminu Can / Tin Can
Technical parameter : Juice Hot Filling Line | ||||||||||||
Model | RCGF14-12-5 | RCGF16-16-5 | RCGF24-24-8 | RCGF32-32-8 | RCGF40-40-12 | RGF60-60-15 | ||||||
Capacity(for 500ml) | 2000 | 4000 | 8000-10000 | 12000-15000 | 16000-18000 | 24000 | ||||||
Suitable bottle shapes | PET circular or square | |||||||||||
Bottle diameter(mm) | Dia50-Dia115mm | |||||||||||
Bottle height (mm) | 160-320mm | |||||||||||
Filling type | Overflow filinig type /Hot filling | |||||||||||
Function | Rinsing filling capping | |||||||||||
Rinsing pressure | >0.06Mpa <0.2Mpa | |||||||||||
Application | Juice / Tea drinks / Milk Beverage | |||||||||||
Total power (KW) | 4.4kw | 4.4kw | 4.4kw | 5.2kw | 6.2kw | 7.8kw | ||||||
Overall dimensions | 2.3*1.9m | 2.5*1.9m | 2.8*2.15m | 3.1*2.5m | 3.8*2.8m | 4.5*3.3m | ||||||
Height | 2.3m | 2.5m | 2.5m | 2.5m | 2.5m | 2.6m | ||||||
Weight(kg) | 3500kg | 5200kg | 7000kg | 9500kg | 10500kg | 12000kg | ||||||
Detailed Images

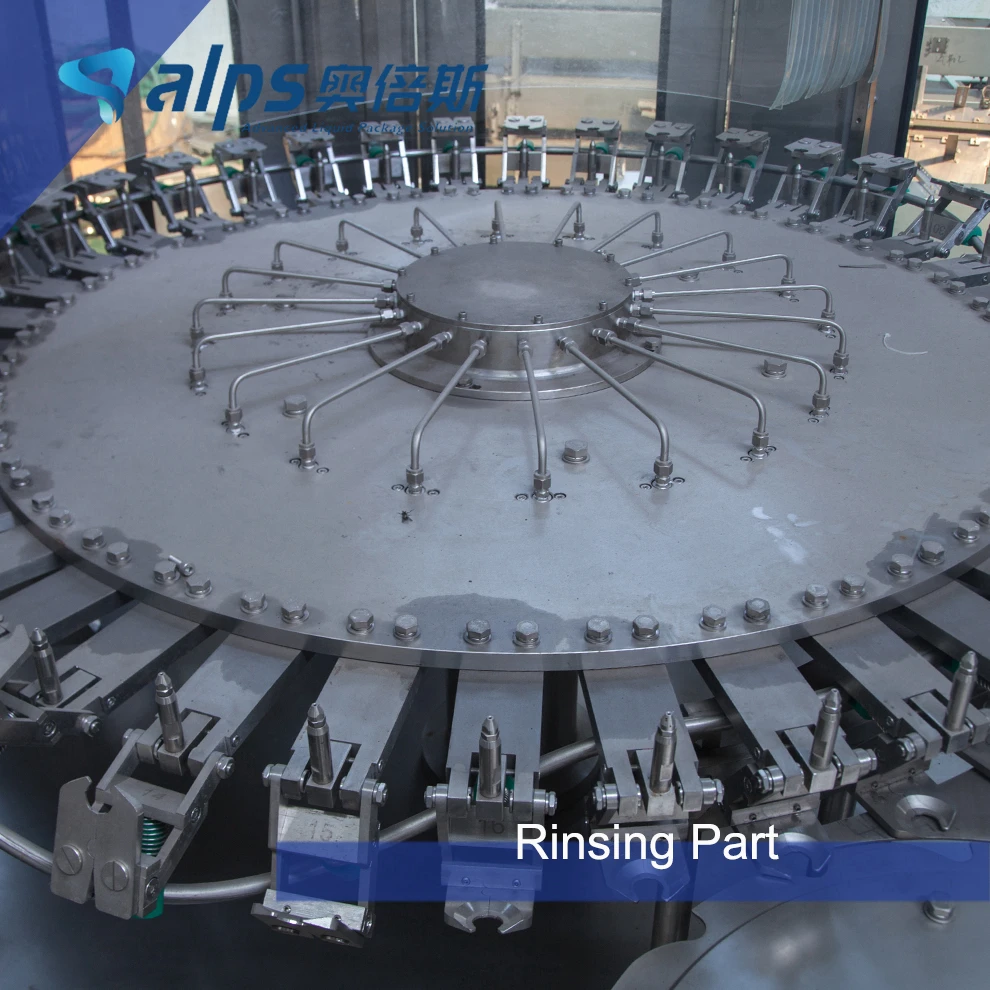

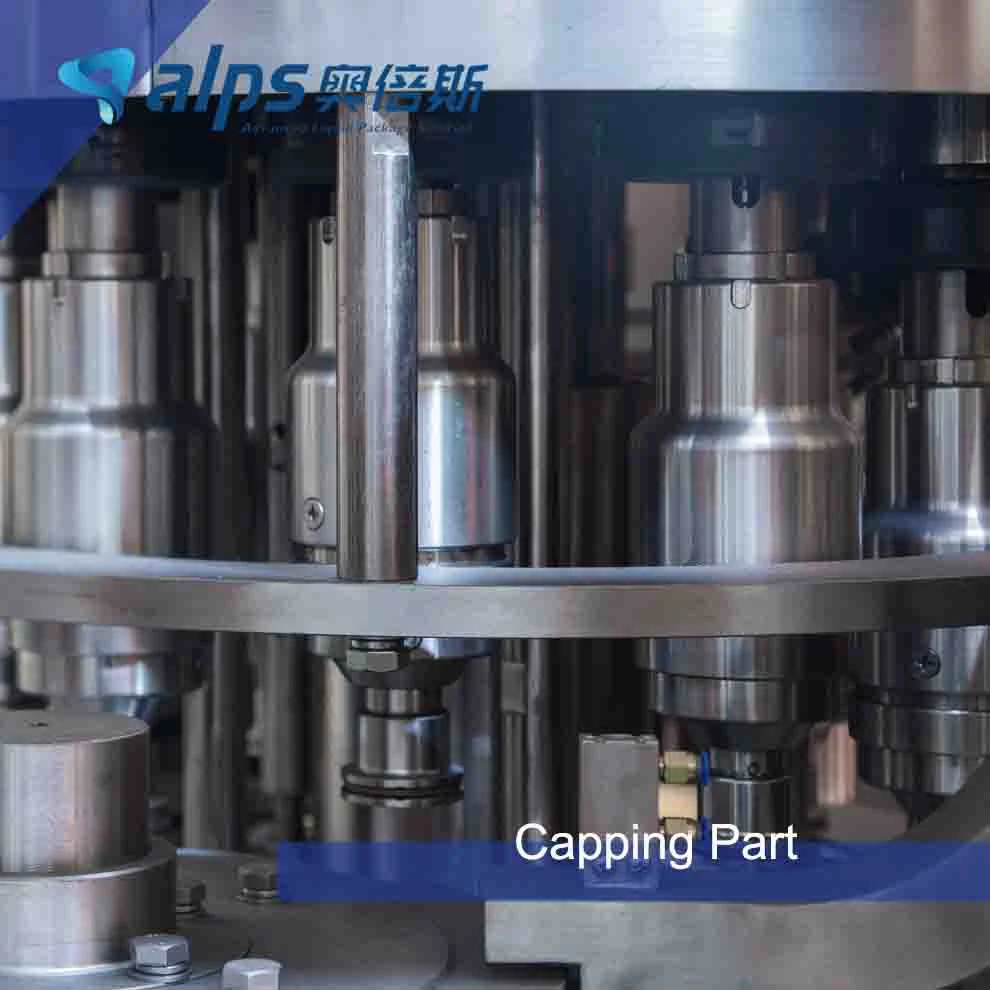

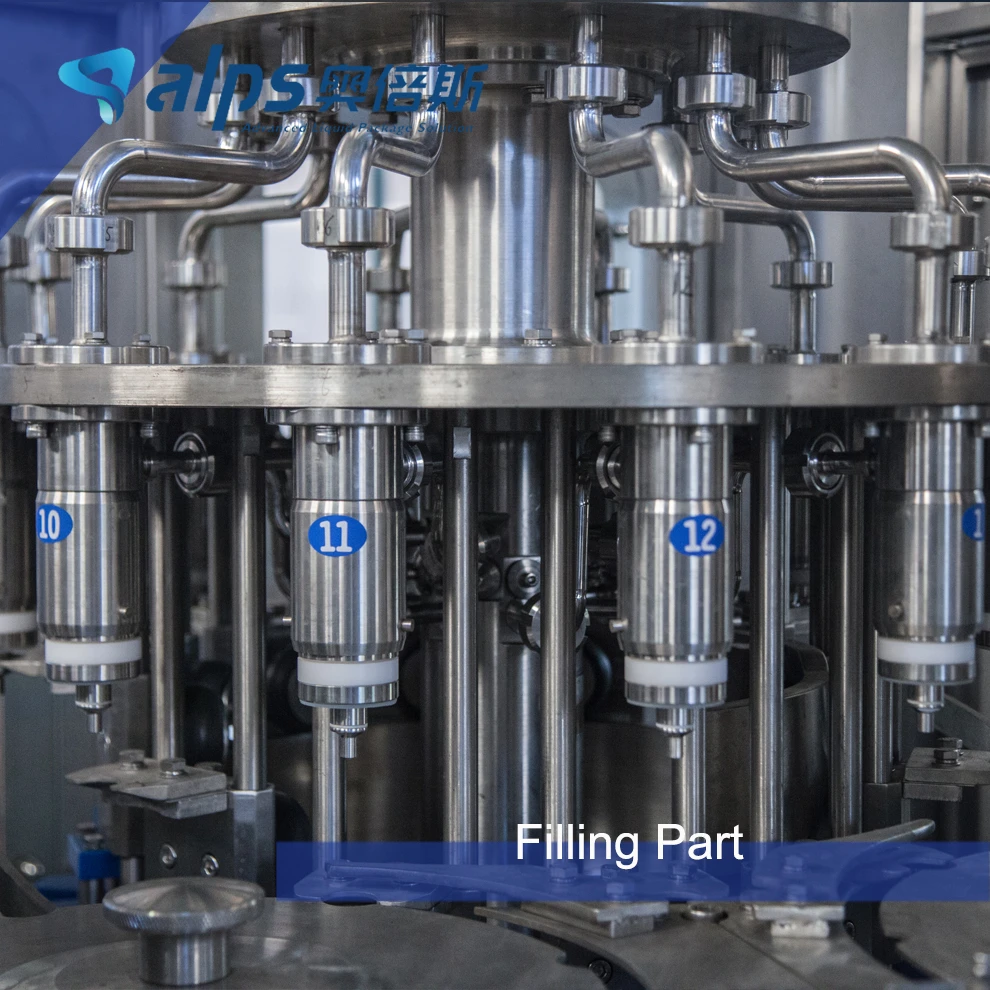

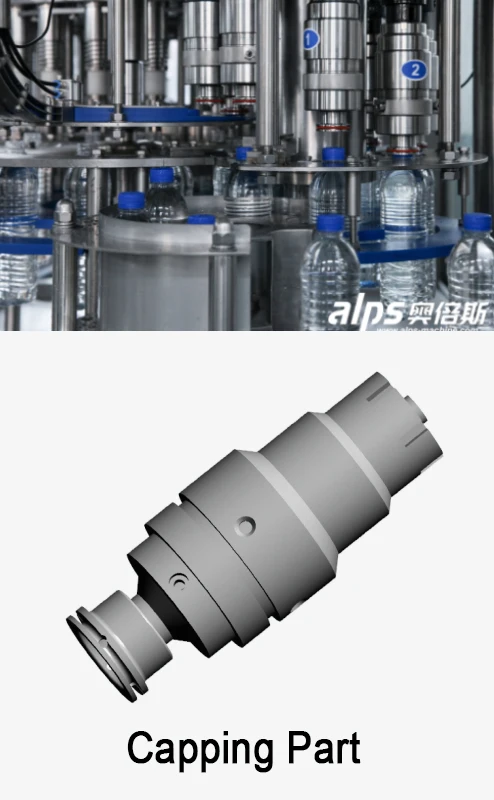

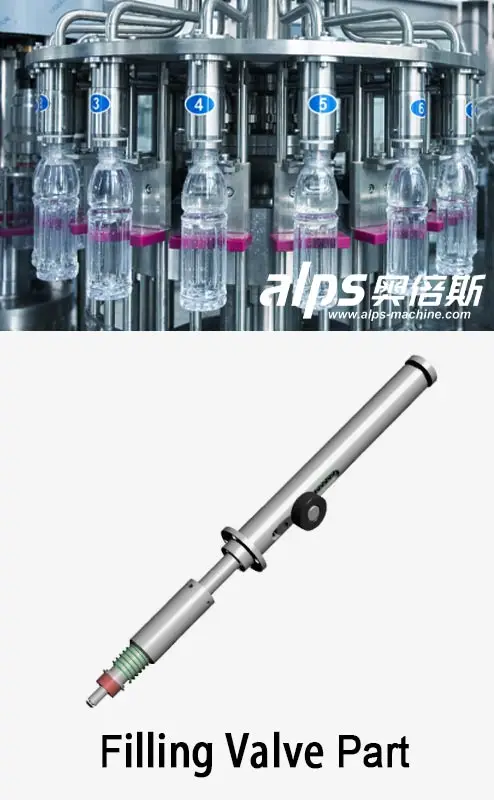

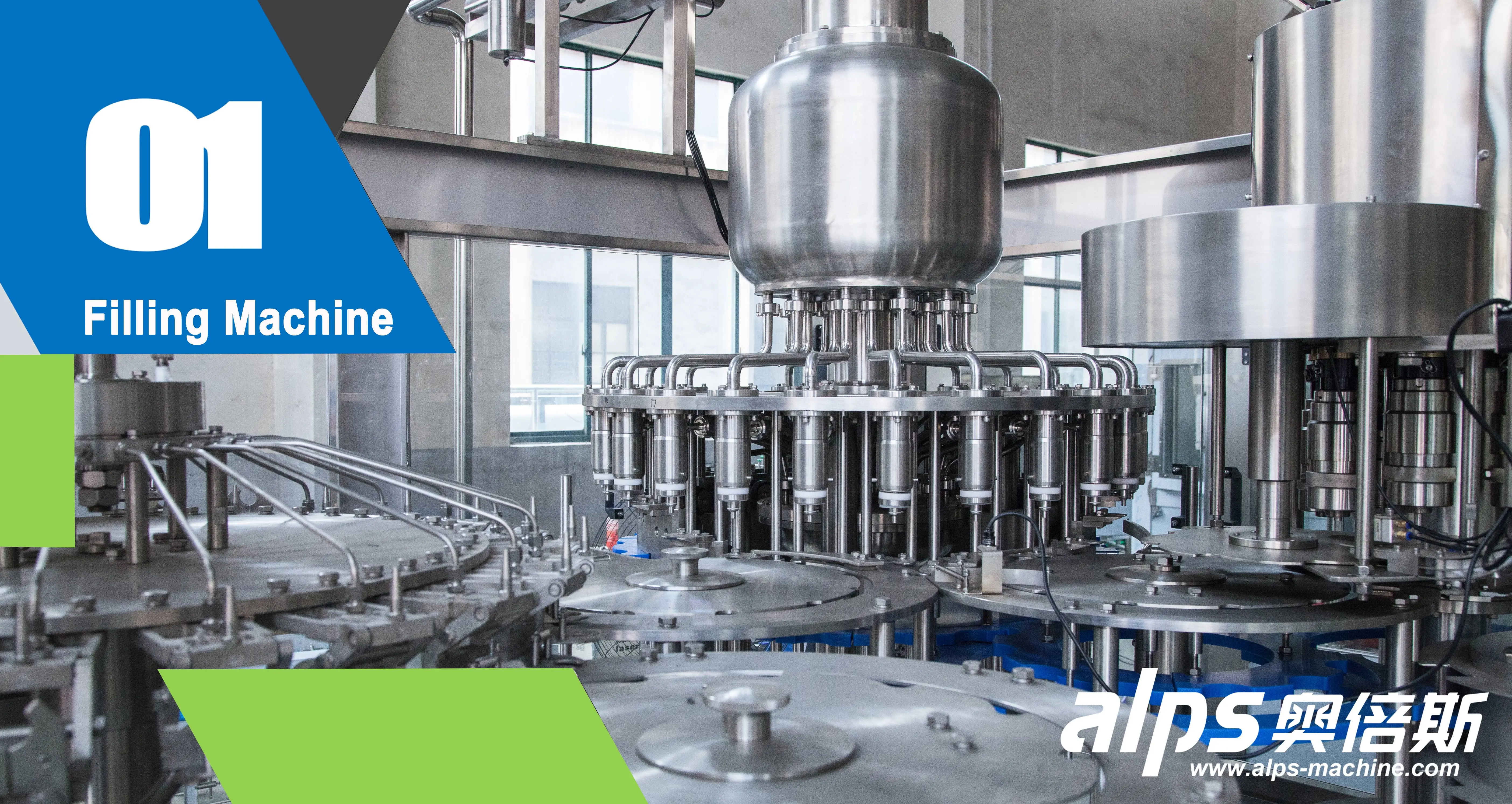

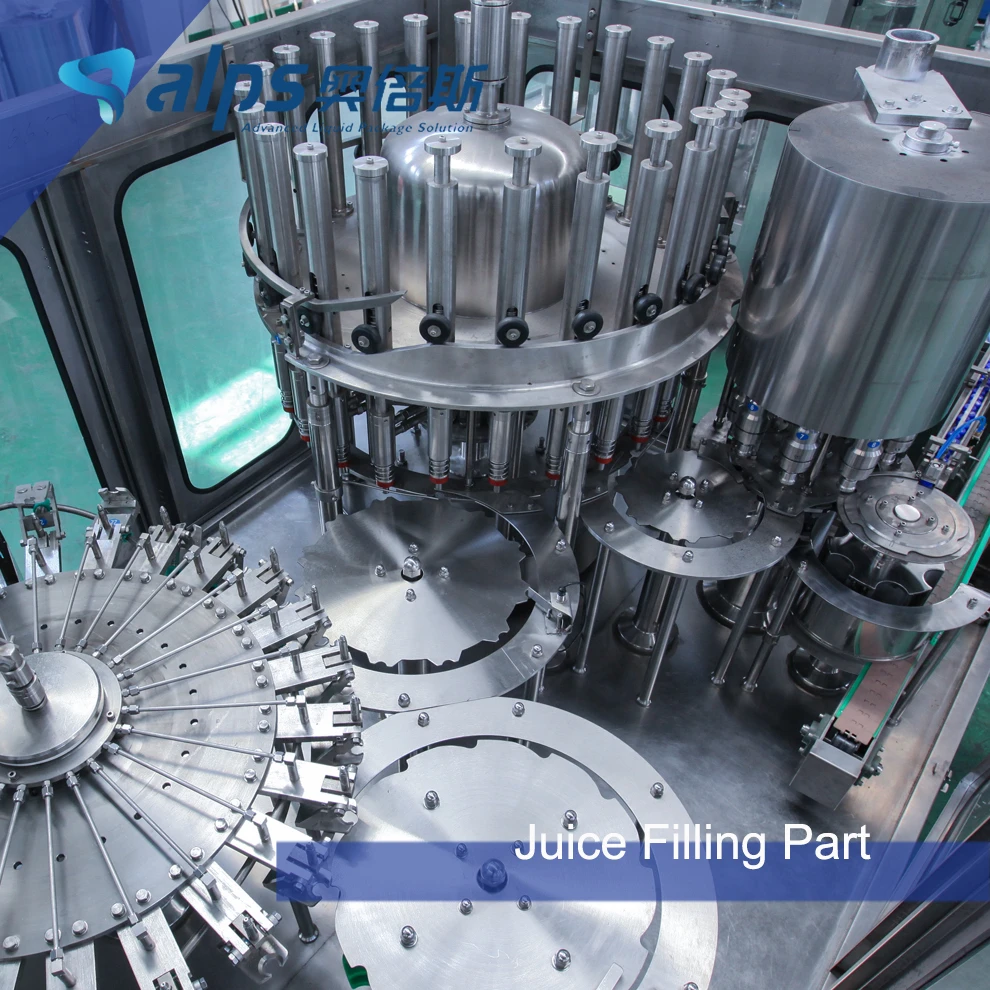

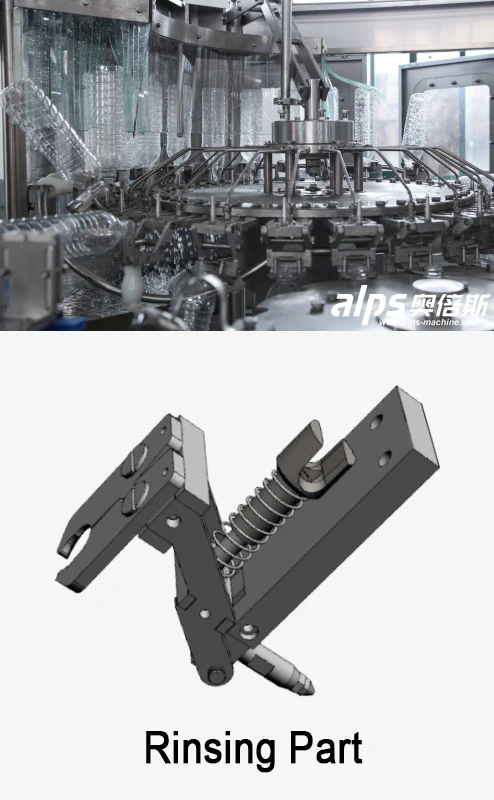

Automatic Juice Washing Filling Capping 3in1 Machine (Monoblock Type)
This machine is specially designed for the filling of juice / Tea drinks / Energy Drinks / Milk Beverage in PET bottle and glass bottles ,it is an integrated equipment for bottle washing ,filling and capping function
Complete Line Solution
Water Treatment System
According to customer's water source analysis report and the final water standard required ,we will suggest customer to choose the suitable water treatment plants.help to reduce the material consumption and maitenance cost .
Juice Processing System
We supplied different Juice processing system design according customer product request ,including syrup melting system , beveage blending system , homogenizer & sterilizer ,HFSC storage system, ingredient dosing system ,hot water system ,Cip cleaning system and so on ..
Labeling Machine
According to customer request and market demand ,we provide the better solution for the final product package design,
We have various kinds of options .like PVC sleeve label ,BOPP hot glue label,Adhesive stick label,Cold glue paper label .
We have various kinds of options .like PVC sleeve label ,BOPP hot glue label,Adhesive stick label,Cold glue paper label .
Bottle Packging System
We supply the different bottle package deisgn , Film package ,Carton box wrapper ,Film with tray package and so on ..
Bottle Blowing System
We supply the Complete Bottle Blowing System ,start from PET preform injection molding machine ,and Bottle blowing machine ,including air compressor system and water cooling system .
Turnkey Project

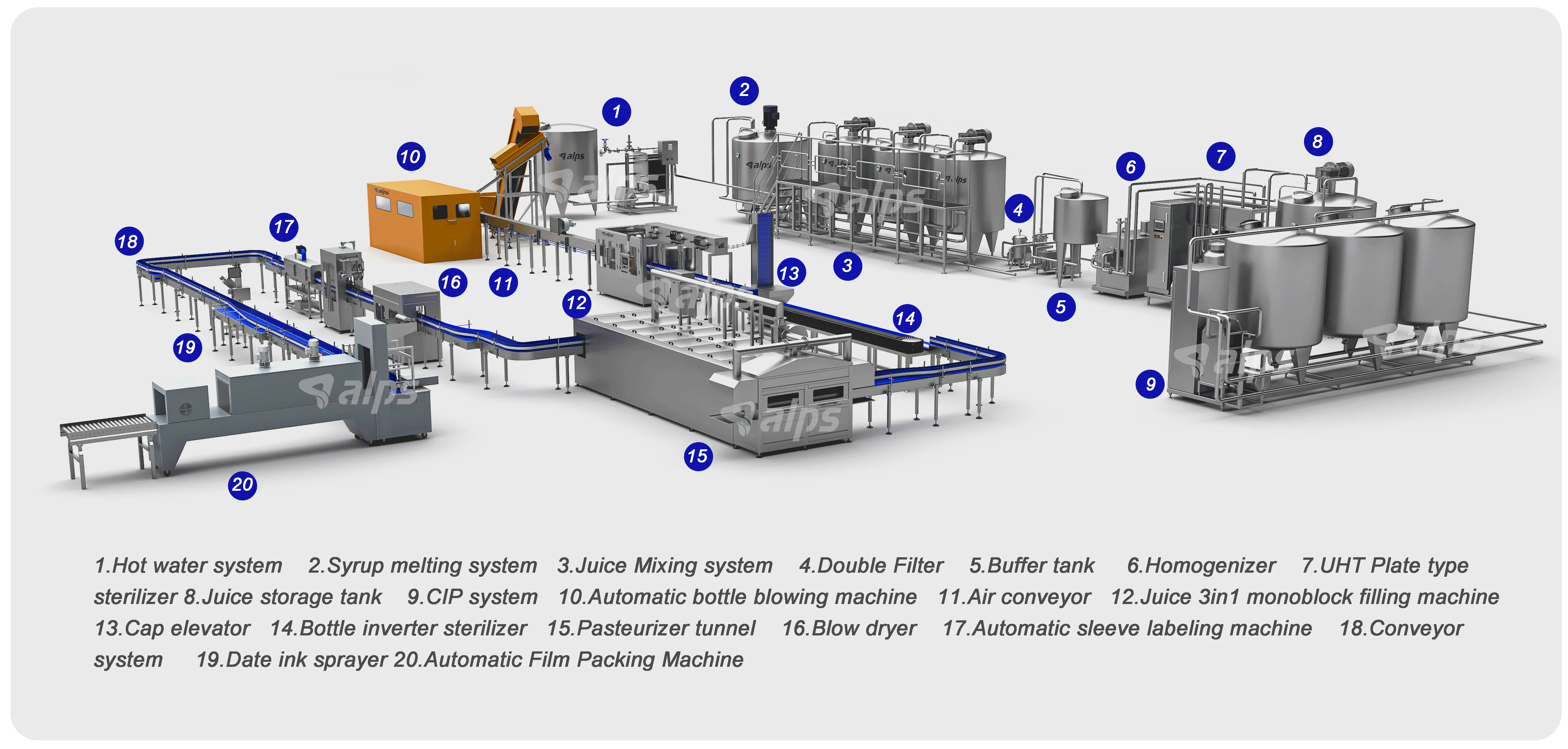

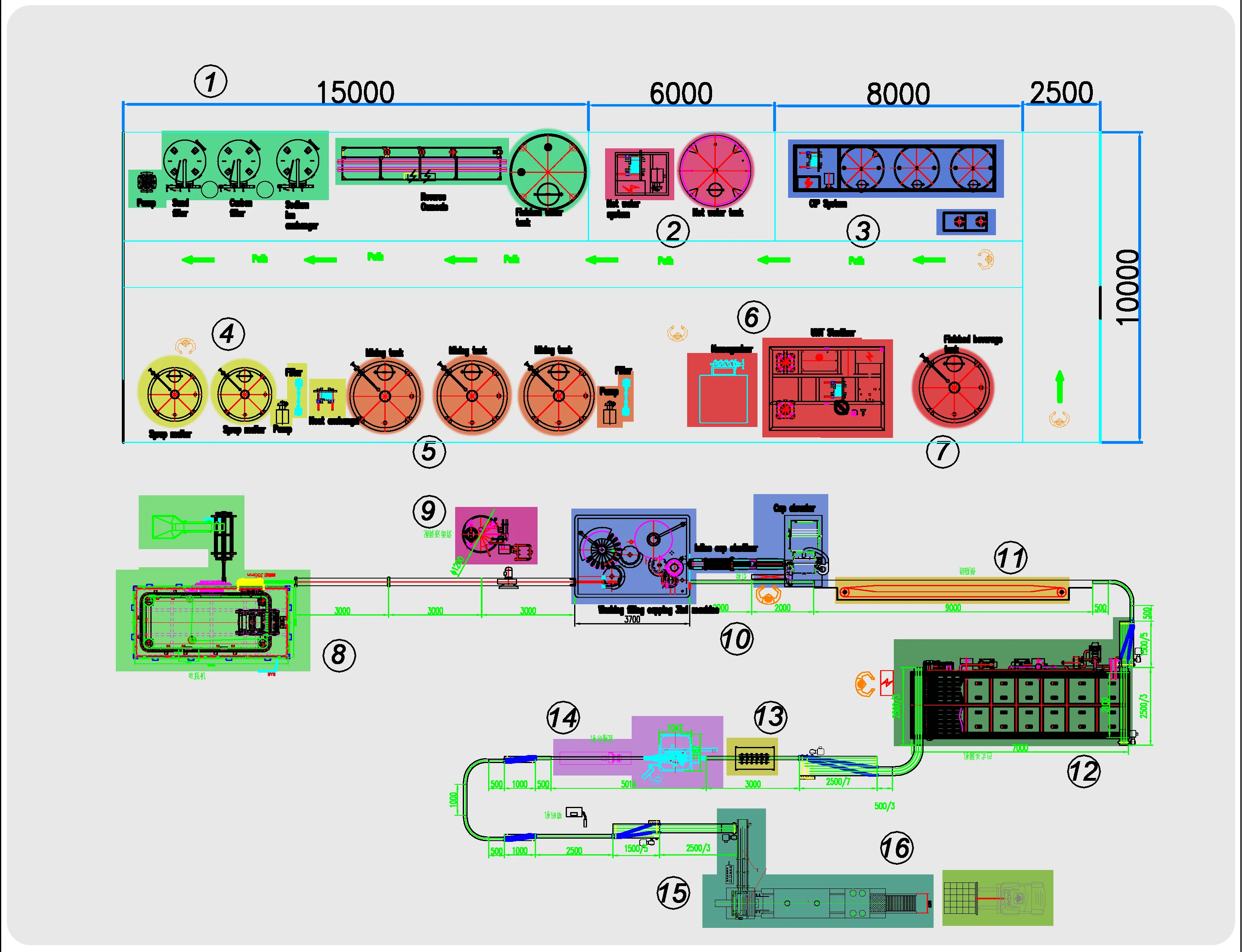

Flow Chart :Complete Juice Filling Line Project
Juice Production Line Flow Chart
1.Water treatment system ; 2. Hot water system. 3. CIP cleaning system 4. Syrup melting system 5. Blending system
6. Homogenizer & UHT sterilizer system 7. Beverage storage tank 8. PET bottle blowing machine 9. High position& vacuum degassing system 10. Washing filling cappnig 3in1 machine 11.Bottle inverter sterilizer 12.Pasterurizer tunnel 13.Blow dryer 14. Automatic labeling machine 15. Automatic PE film shrink wrapping machine 16. Finished products
Factory Buidling (Steel Strucuture )
Company Profile
ZHANGJIAGANG ALPS MACHINE is
*Standardized workshop of total 12,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
