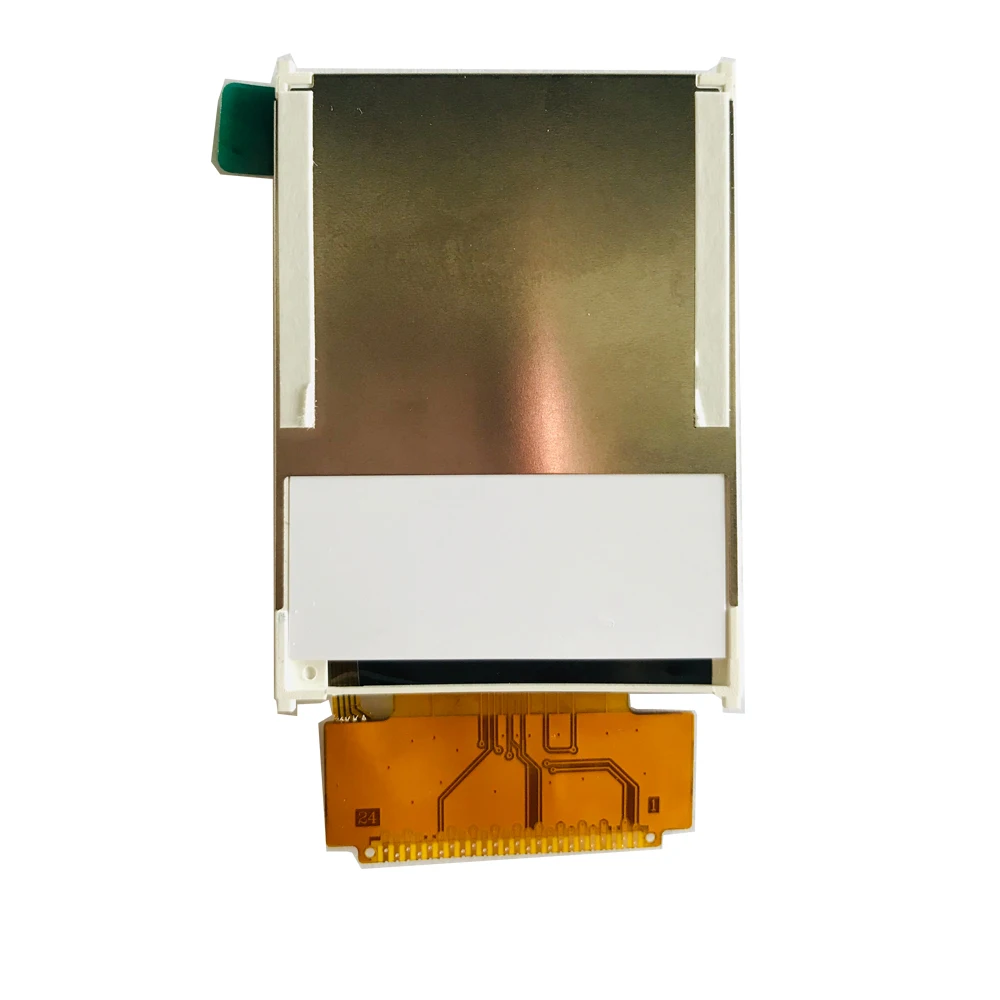

2.2inch 176x220 TFT GC9203 TN TFT LCD Display Module
- Category: >>>
- Supplier: Dongguan Shineworld Innovations Co. Limited
Share on (62201131248):
Product Overview
Description
Product Description
2.2inch 176x220 TFT GC9203 TN TFT LCD Display Module | ||
Diagonal Screen Size | 2.2 inch | |
Number of Pixels | 176(RGB)x220 | |
Module Construction | TFT | |

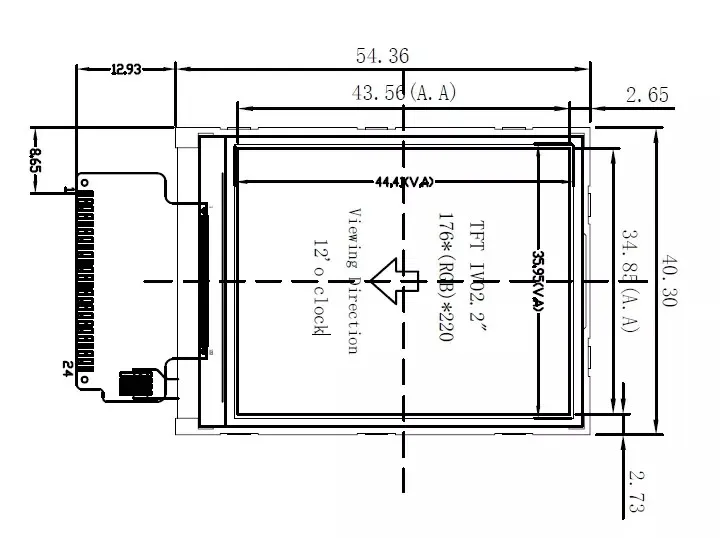

Panel Size | 41.7x56.16x2.3mm | |
Active Area | 34.85x43.56mm | |
Pins | 24 | |
Drive IC | GC9203 | |
Interface | 4-wire SPI | |
Assembly | Soldering | |
Temperature Range | ||||
Item | Min. | Max. | ||
Operating Temperature (°C) | -20 | 70 | ||
Storage Temperature (°C) | -30 | 80 | ||
