Best price 1GE 1FE CATV WIFI GPON Epon Onu XPON ONT for FTTH
- Category: >>>
- Supplier: SHENZHEN WOLCK NETWORK PRODUCT CO. LIMITED
Share on (62201138831):
Product Overview
Description
2LAN 1GE 1FE WIFI XPON ONU
1GE+1FE+WiFi+CATV dual mode ONU meets telecom operators FTTO (office), FTTD(Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design an GPON/GEPON Gigabit Ethernet products. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of EPON Equipment from China Telecom. Dual mode ONU can detect and exchange PON mode automatically.
Compatible with Huawei/ZTE OLT
Web Management
SMART OLT Configure WAN
Tr069 Management
Technical Support
Packing

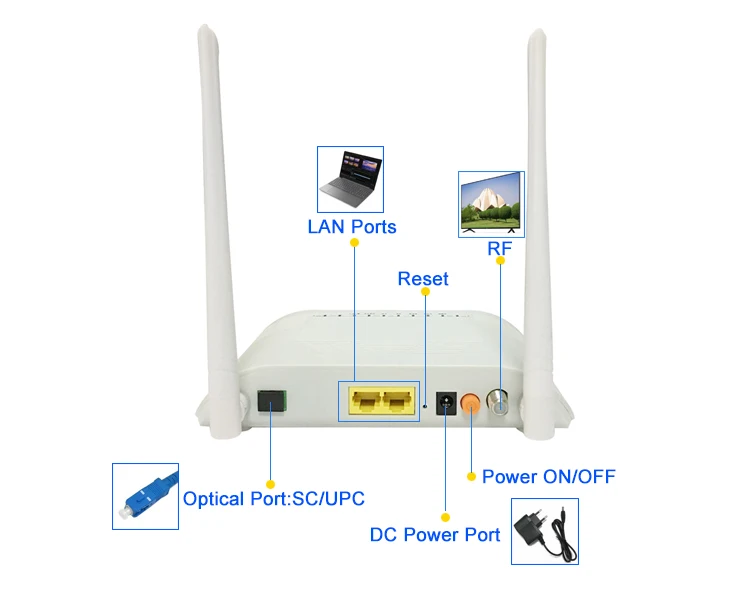

Technical item | 1GE+1FE+WiFi+CATV | Parameter | |||||
1 WDM, SC/APC connector or 1 PON SC/UPC+CATV SC/APC connector, single/double fiber. GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps. | 1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate：2.488Gbps Upstream Data Rate：1.244Gbps SC/PC single mode fiber 28dB Link loss and 20KM distance with 1:128 | ||||||
PON Tx1310nm,Rx 1490nm, CATV 1550nm. | 4*10/100/1000M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance | ||||||
1x 10/100/1000Mbps Auto-negotiation Ethernet interfaces. 1x10/100Mbps Auto-negotiation Ethernet interfaces. | 12V DC Power supply | ||||||

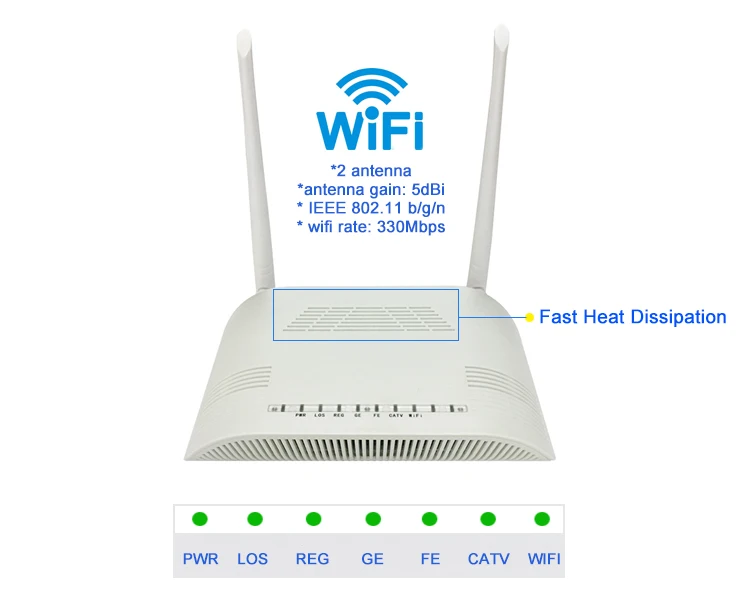

Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R, 2 external antenna. | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: 0.5～5dBm Rx Sensitivity: -28dBm Saturation Optical Power: -8dBm | ||||||
SCTE type F | PON Throughput: Downstream 2.488Gbit/ s; Upstream 1.244Gbit/s Ethernet: 1000Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms | ||||||
7, For Status of POWER、LOS、PON、LAN、WiFi、CATV. | Standard compliant OMCI interface as defined by ITU-T G.984.4 Support TR069 and WEB management | ||||||
Temperature: -5℃～55℃ Humidity: 10%～90%（non-condensing） | Status monitor, Configuration management, Alarm management, Log management | ||||||
Storing condition | Temperature :-30℃～60℃ Humidity :10%～90%（non-condensing） | ||||||
Power supply | DC 12V/1A | ||||||
Power consumption | ≤7W | ||||||
Dimension | 185mm×120mm×34mm（L×W×H） | ||||||
Net weight | 0.3Kg | ||||||
Packaging | 1pcs in one small box,20pcs in one carton,carton size: 54*35*32cm,GW: 10.2kgs | ||||||
Shenzhen Wolck Network Porducts Co.,Ltd. is located in Shenzhen city which is one of the first-tier cities in China. Wolck company is a high-tech enterprise specializing in the development of technology and equipment for EPON/GPON/CATV equipments.Production and equipments detailed can be shown online, and all products will be passed the test before shipment.
Wolck company not only offer equipments but also offer technical support and best service for after-sales. Wolck company also is Quality Guarantee Enterprise, got the ISO9000 cetificate, and offer cetificates such as CE, CO, FORM-E/F/M etc.
