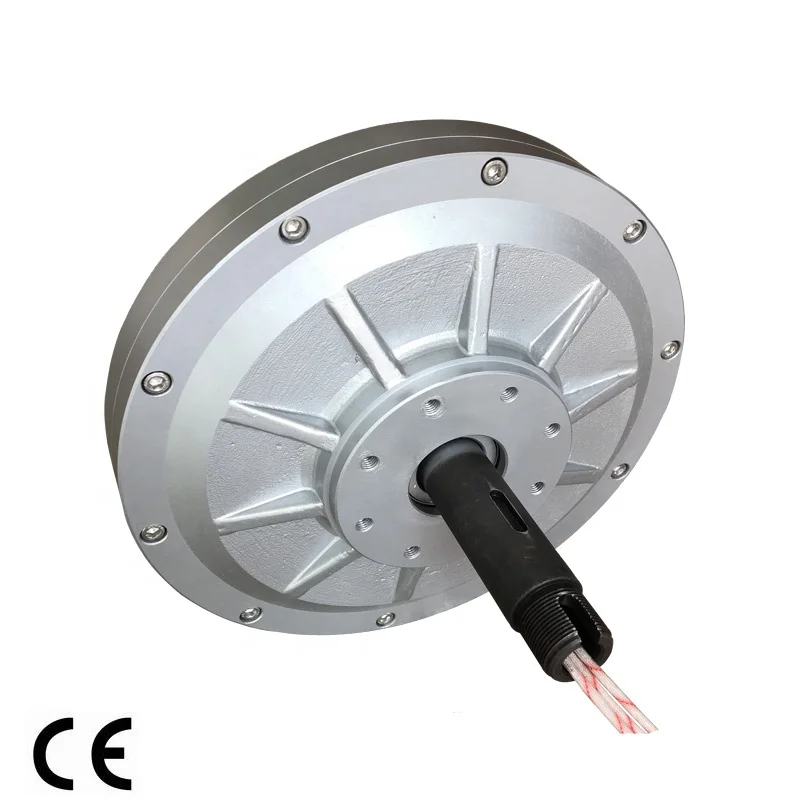

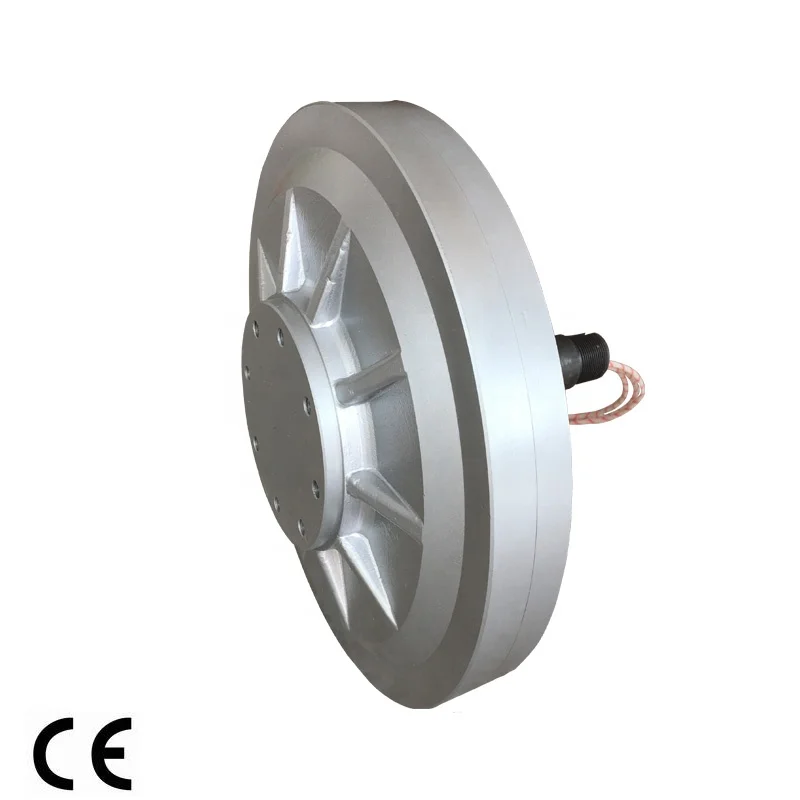

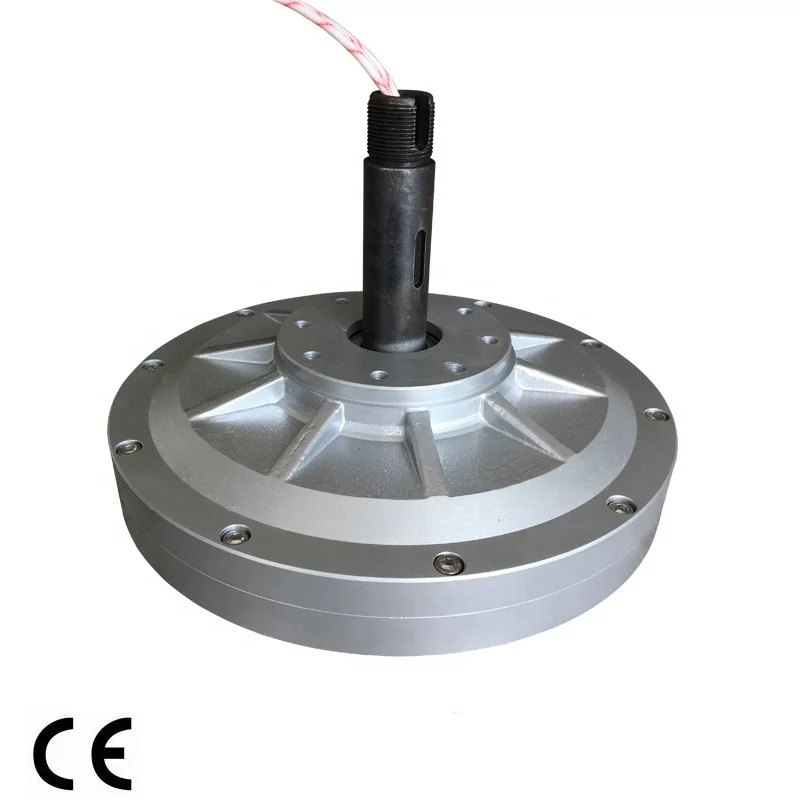

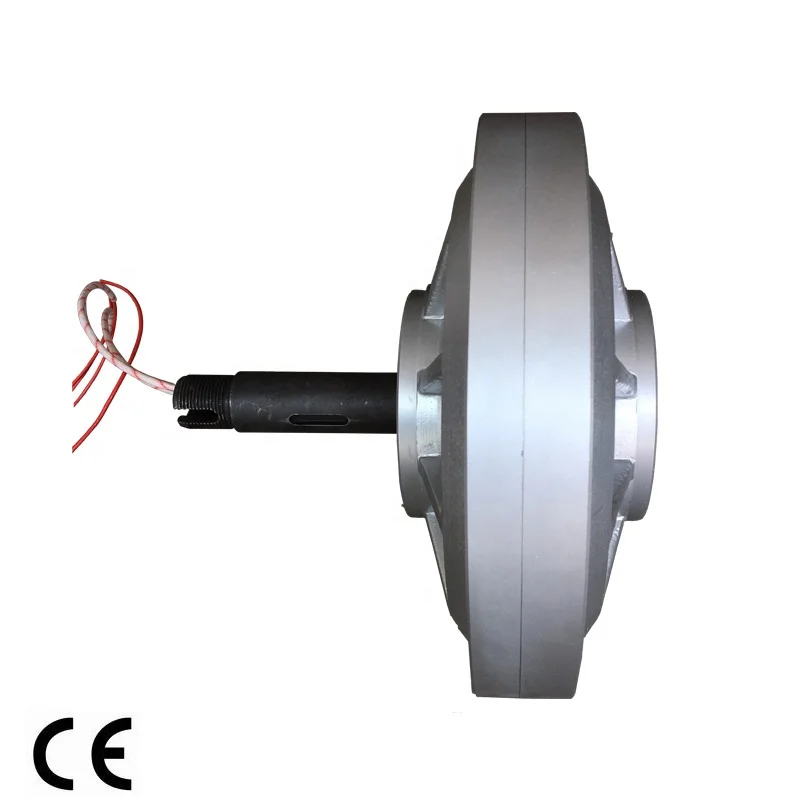

TGET550 3KW 100R Coreless low RPM PM generator/Vertical Wind Generator, three phase permanent magnet alternator

Product Overview

Description



TGET550-3kW-100R-220VAC design for 1-3kw vertical axis wind turbine; gasoline generators; hydroelectric generator.









Our disc coreless PMG have advantage in lowRated speed, Low starting wind speed, Small volume, Energy Small, Light weight, Compact structure, High efficiency etc.



1. Coreless, anhysteresis, slotless, have low starting torque.



2. No iron loss, have high efficiency



3. Adopt unique coreless precision winding technology design precision coil



4. Adopt the rare earth permanent magnet, which is multiple, mean gap, high power density and high output power.



5. Low speed direct driving, no torque fluctuations



6. Compact structure, high ratio of power to volume



7. No iron loss, low calorific value, small temperature rise



8. Simple structure, easy to install



9. The brushless structure, free maintenance

















































1 year warranty for PMG generator.



We provide free maintenance during warranty if our products have problem; Will always give good warm after sales service to clients in time.
