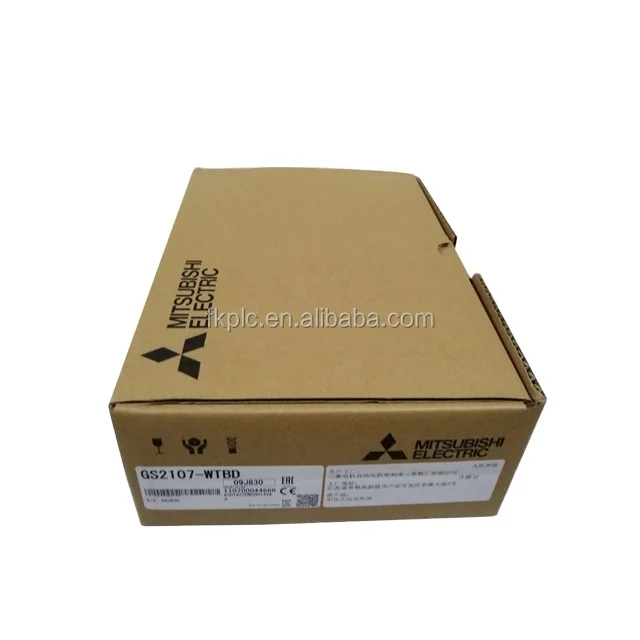

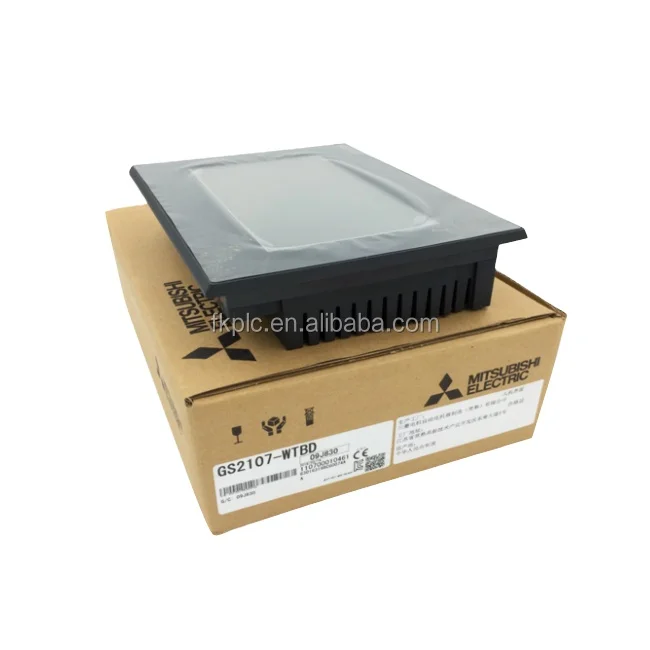

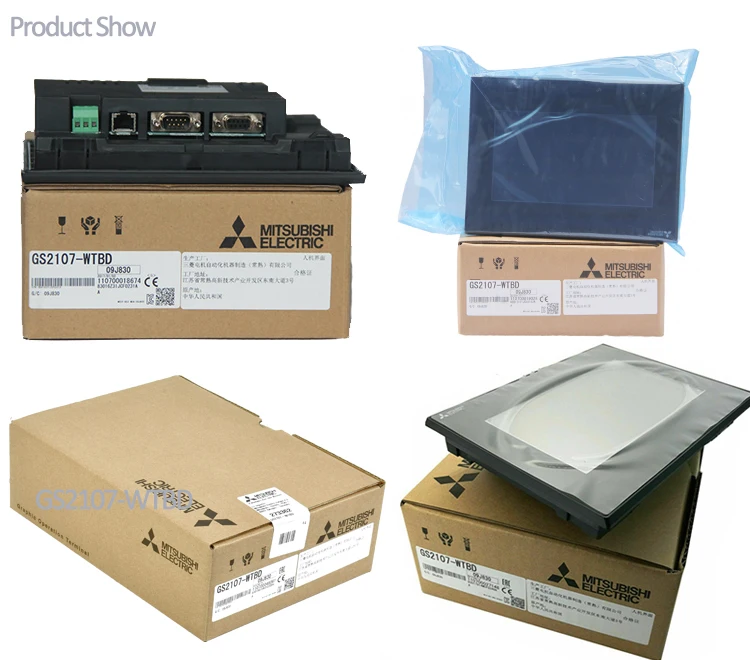

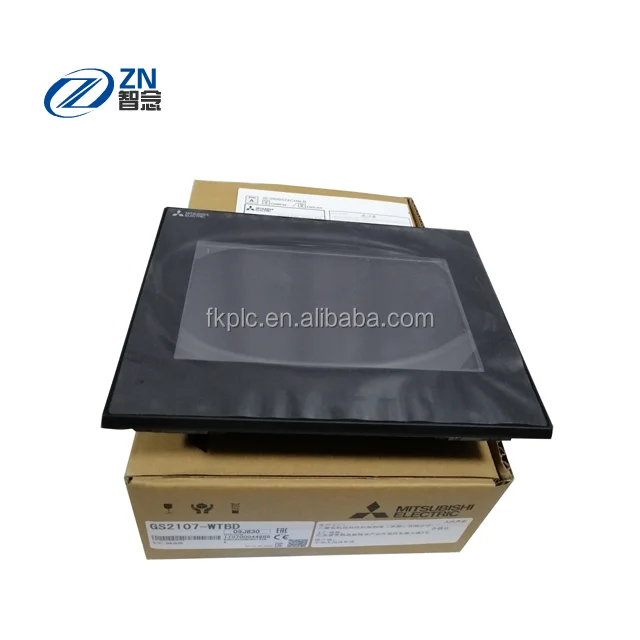

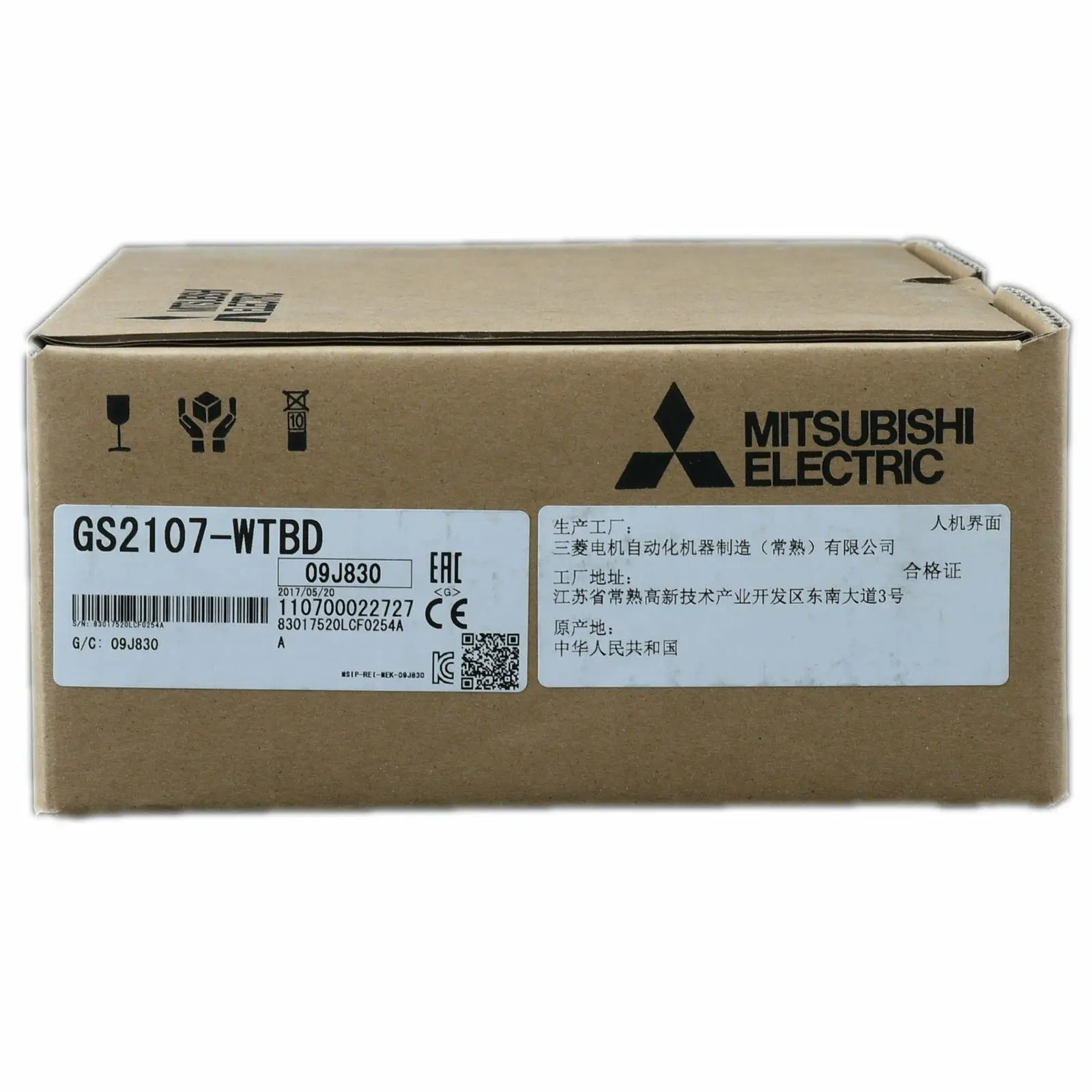

Hot Sale Industrial Automation MITSUBISHI HMI GS2107-WTBD Touch Screen
Product Description
With a good performance level and advanced functions the GOT Simple HMIs provide features that will help to reduce downtime, enable fast recovery from simple errors, increase availability and boost production efficiency. More than simply displaying data, the GOT Simple series delivers genuine perspective on the automation process and provide a platform to solve typical production demands in an economically way. They are easy to use, highly reliable and provide excellent serviceability.
TechnIcal Parameter
| Type | GS2110-WTBD | GS2107-WTBD | |
|---|---|---|---|
| Display section | Display device | TFT color LCD | |
| Screen size | 10" | 7" | |
| Resolution | dots | 800x480 | |
| Display size (WxH) | mm | 222x132.5 (horizontal format) | 154x85.9 (horizontal format) |
| Number of characters | Freely definable | ||
| Display color | 65536 colors | ||
| Backlight | LED (not replaceable), Backlight off/screen saving time can be set. | ||
| Touch panel | Type | Analog resistive film | |
| Key size | Minimum 2x2 dots (per key) | ||
| Simultaneous press | Simultaneous press prohibited (only 1 point can be pressed) | ||
| Life | 1 million times (operating force 0.98 N or less) | ||
| Memory | C drive | Flash memory (internal) (9 MB), for storing project data, OS | |
| Life (no. of writings) 100,000 times | |||
| Built-in interface | RS422 | 1 ch, Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-Sub 9pin (female); Application: For communication with controllers Terminating resistor: 330 Ω fixed | |
| RS232 | 1 ch, Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-Sub 9pin (male); Application: For communication with controllers and a barcode reader, for connecting a personal computer (Project data read/write, FA transparent function) | ||
| Ethernet | Data transfer method: 100BASE-TX, 10BASE-T, 1 ch, Connector shape: RJ-45 (modular jack); Application: For communication with controllers, for connecting a personal computer (Project data read/write, FA transparent function) | ||
| USB | USB (Full Speed 12 Mbps), 1 ch, Connector shape: Mini-B; Application: For connecting a personal computer (Project data read/write, FA transparent function) | ||
| SD card | 1 ch, Supported memory card: SDHC memory card, SD memory card; Application: Project data read/write, logging data save | ||
| Buzzer output | Single tone (LONG/SHORT/OFF adjustable) | ||
| Protective structure | IP65F (Only the front part of the panel) | ||
| External dimensions (WxHxD) | mm | 272x214x56 | 206x155x50 |
| Weight | Approx. 1.3 (excl. mounting brackets) | Approx. 0.9 (excl. mounting brackets) | |
| Compatible software package | GT Works3, version 1.105K or later* (English version) | ||
* Installation of GS Installer is required.
Company Information
Changsha Zhinian Automation Equipment Co., Ltd., has been a reliable retailer specializing in famousbrand industrial automation products for more than a decade. With its headquarter located in Changsha, the capital city of Hunan province, we set up branches and warehouse in Dongguan city in Guangdong province for sake of convenient delivery.
Our company mainly deal with advanced automation products which are sounding brand 100% original new, such as Programmable Logic Controllers , Human Machine Interface, Servo motor,Sensor,Encoder, Inverter, Servo drive, Battery, Cable ,Relay Switch of Mitsubishi, Omron, Proface,Fuji,Siemens and so on.
We are fully responsible to all of our products and strictly control the product quality. We focus on befor-e after sales service, consult, quality guarantee, training base on customer benefit and satisfy.
Packaging & Shipping
Main Products

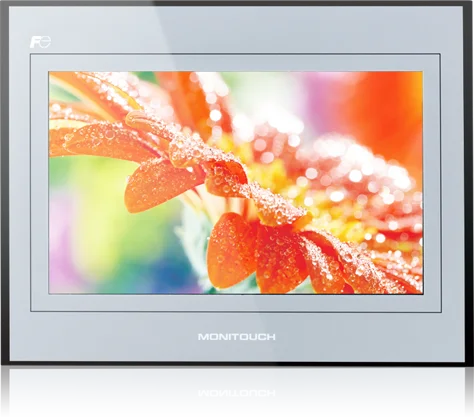

PROFACE HMI FUJI HMI

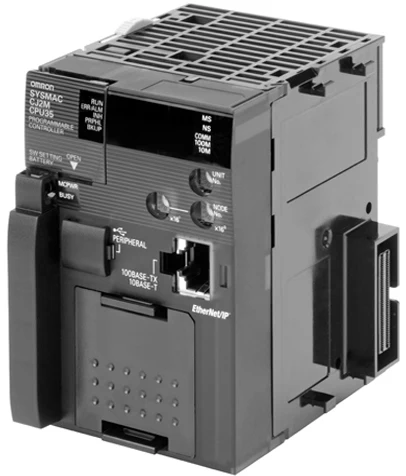

OMRON CP1H CJ2M CJ1W CS1W
