Product Overview
Description
Factory Price 5dbi Ac Xpon Onu Epon Gpon Ont
WK-3804AWC XPON ONU is fiber to the home multi service access XPON ONU. It’s based on the mature, stable, high cost performance G/EPON technology and has gigabit Ethernet switching, WDM and HFC technology. WK-3804AWC has a higher bandwidth, higher reliability, easy management and good quality of service (QoS) guarantee with technical performance of equipment meet the ITU G. 984 requirements and have good compatibility with third party manufacturers OLT.
Compatible with Huawei/ZTE OLT
Web Management
SMART OLT Configure WAN
Tr069 Management
Technical Support

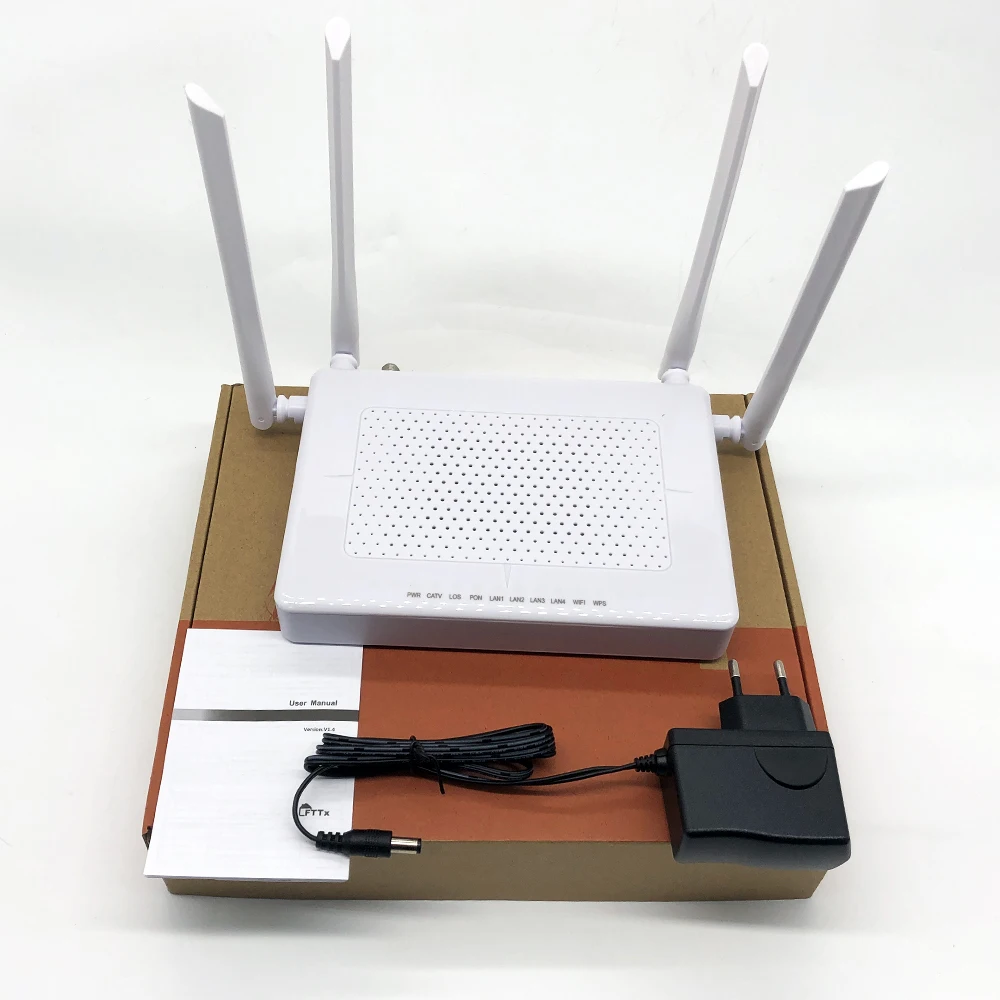

Packing

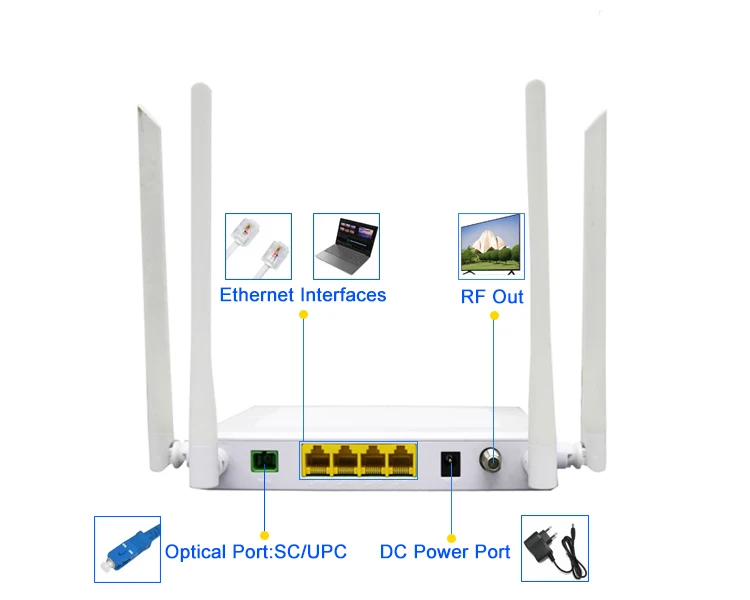

Item | Parameter | ||||||
PON Interface | 1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate：2.488Gbps Upstream Data Rate：1.244Gbps SC/PC single mode fiber 28dB Link loss and 20KM distance with 1:128 | ||||||
CATV Interface | 1 RF output F-Type Connector | ||||||
Ethernet Interface | 4*10/100/1000M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance | ||||||
Power Interface | 12V DC Power supply | ||||||
PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: 0.5～5dBm Rx Sensitivity: -28dBm Saturation Optical Power: -8dBm | ||||||
Data Transmission Parameter | PON Throughput: Downstream 2.488Gbit/s; Upstream 1.244Gbit/s Ethernet: 1000Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms | ||||||
Management Mode | Standard compliant OMCI interface as defined by ITU-T G.984.4 Support TR069 and WEB management | ||||||
Management Function | Status monitor, Configuration management, Alarm management, Log management | ||||||
Packaging | 20pcs in one carton GW: 12.5kg Size: 54*28*49cm | ||||||
Shenzhen Wolck Network Porducts Co.,Ltd. is located in Shenzhen city which is one of the first-tier cities in China. Wolck company is a high-tech enterprise specializing in the development of technology and equipment for EPON/GPON/CATV equipments.Production and equipments detailed can be shown online, and all products will be passed the test before shipment.
Wolck company not only offer equipments but also offer technical support and best service for after-sales. Wolck company also is Quality Guarantee Enterprise, got the ISO9000 cetificate, and offer cetificates such as CE, CO, FORM-E/F/M etc.
