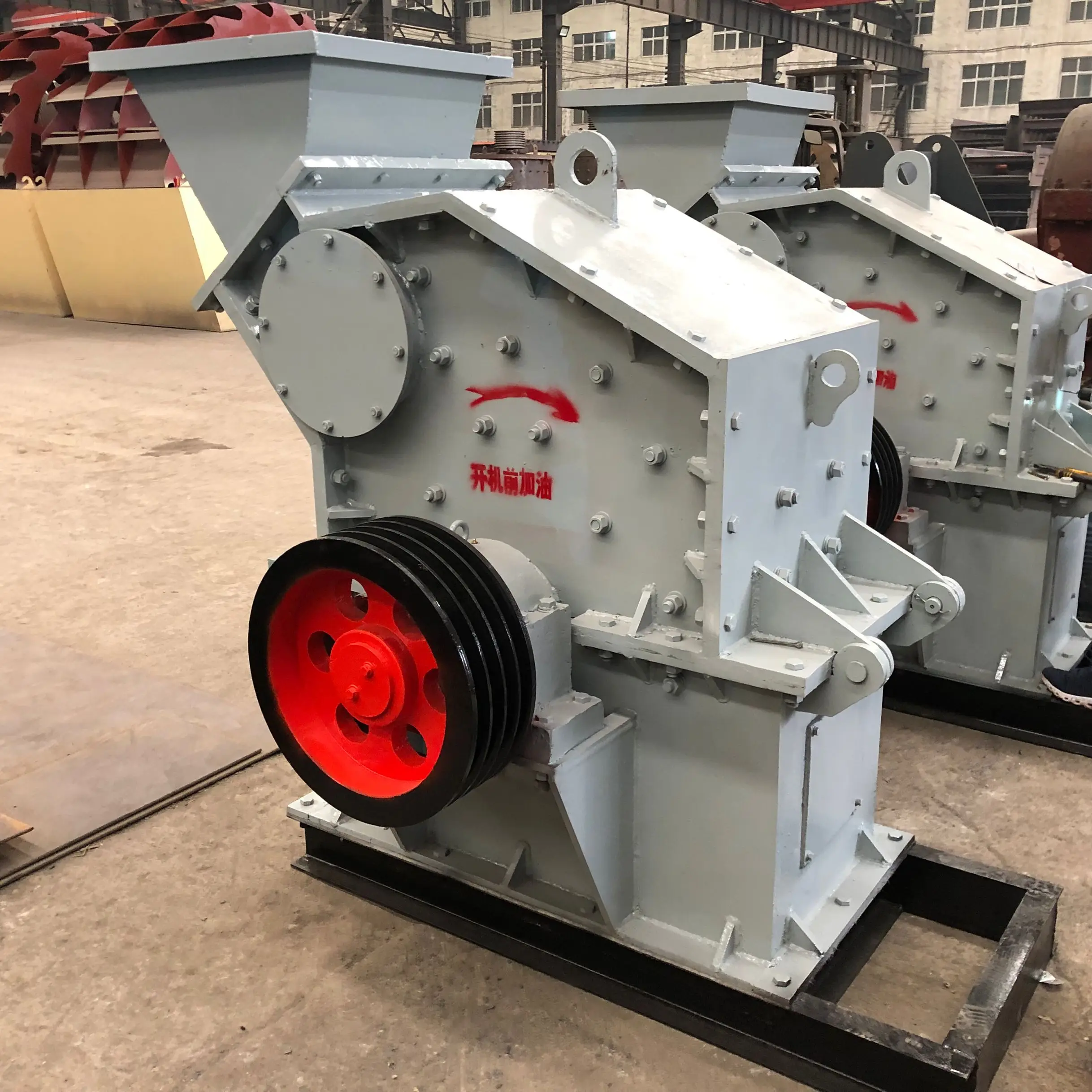

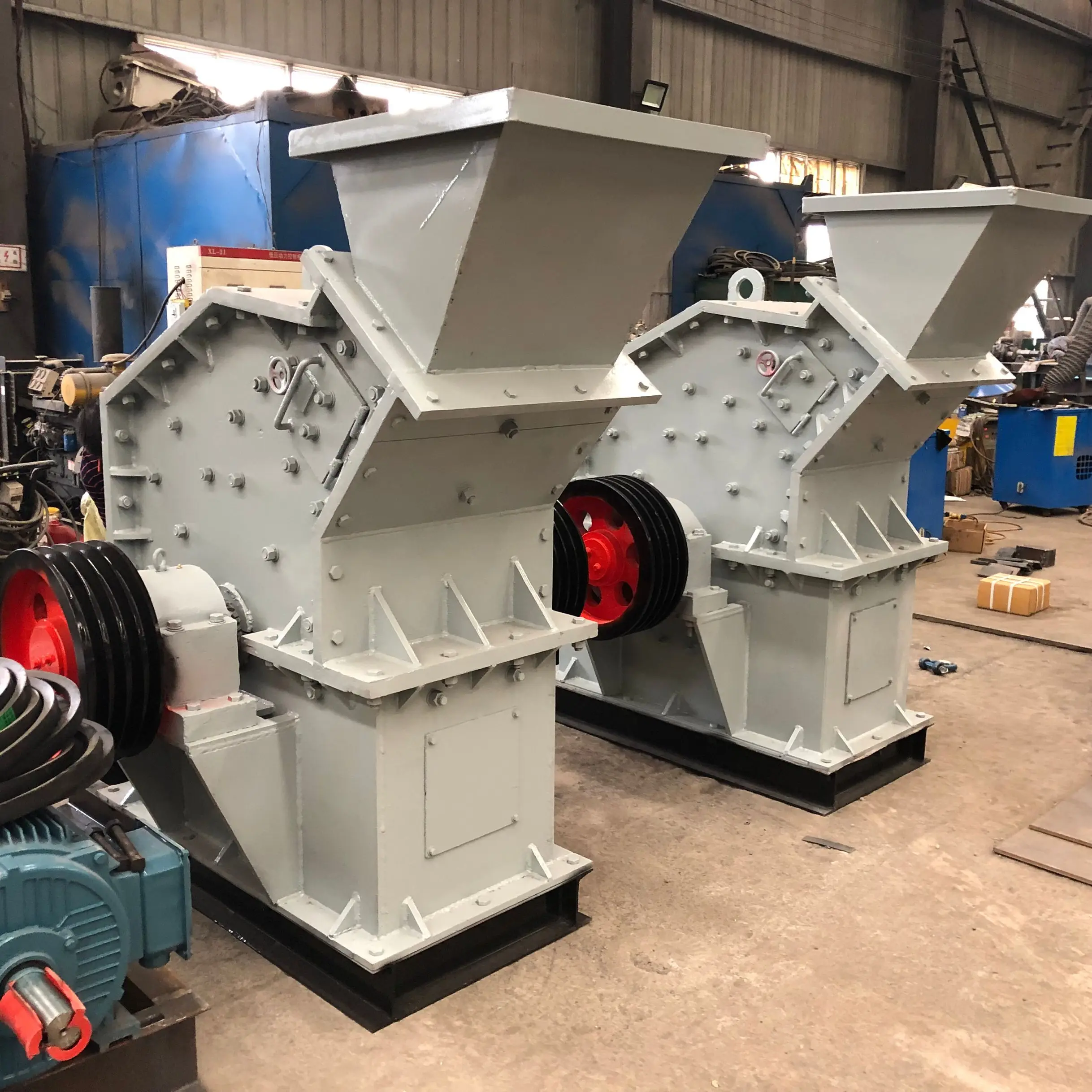

New Design Hydraulic open box sand making machine

Product Overview

Description

Hydraulic open-box sand making machine



Hydraulic open-box sandmaking machine is improved on the basis of our company's star product "river pebble sandmaking machine". It takes two or three workers an hour or two to dismantle the back cover of the traditional sandmaking machine because there is no hydraulic booster system. The appearance of hydraulic open-cover sandmaking machine solves this problem. One key opens the back cover and produces 30 tons at a time. The back cover can be opened in one minute by the hydraulic open cover sand machine. After opening the cap, it is not only convenient to replace the hammer head, side plate and roof, but also can solve the blocking problem more quickly.
Hydraulic open-box sandmaker advantages: 1. One key switch back cover, the whole process only takes 5 minutes, less switch back cover time than traditional equipment about 3-4 hours, save time and labor; 2. Fear of plugging? Five minutes after opening the cap, the plugging material is directly handled. The whole process takes only 10 minutes.



Common Model Sand Making Machine :

PXJ super-fineness energy saving Third Generation Sand Making Machine  is also called new sand making machine, it’s. widely used in the chemical industry, construction, coal mining,  refractory material and so on, Further crushing the medium hard materials, such as gypsum, talcum, limestone, cement, clay, Calcite, granite, river gravel , basalt and so on.

Sand Making Machine Featutres :
Small material size, uniform granularity, big producing capacity, long-life hammer, supporting small power, and change three for two broken broken, process simplification, simple structure, easy maintenance, and the smooth running characteristics. Equipment investment lower than the same size of the traditional technique and equipment 35% -50%, higher than the same scale output efficiency of traditional technique and equipment 35% -50% (limestone as an example: One product size ≤ 5 mm accounting for 85 percent). Long-term maintenance costs run less than the same size of the traditional technique and equipment 35% -50%.



Sand Making Machine Main technical parameters:

model	Feeder Opening mm	Feeding Size mm	Output size mm	Output size mm	Capacity t/h			Motor (kw)
					Clinker	limestone	Siliceous sand
800×400	400×185	120	≤5	5-20	20-30	30-45	35-45	22-37
800×600	500×250	180	≤5	5-20	35-40	40-55	45-55	37-45
800×800	550×330	180	≤5	5-20	35-45	60-65	55-65	37-45
1010×1010	1000×350	180	≤5	5-20	45-55	60-75	65-75	45-55
1200×1000	1200×400	180	≤5	5-20	80-110	80-100	80-100	90-110
1200×1200	1200×450	180	≤5	5-20	100-110	90-100	90-120	110-132
1400×1400	1500×500	190	≤5	5-20	100-150	100-150	120-150	160
1600×1600	1600×550	190	≤5	5-20	170-210	190-250	190-250	250
1800×1800	1800×800	190	≤5	5-20	250-270	280-310	280-310	280





Our sand making machine :
