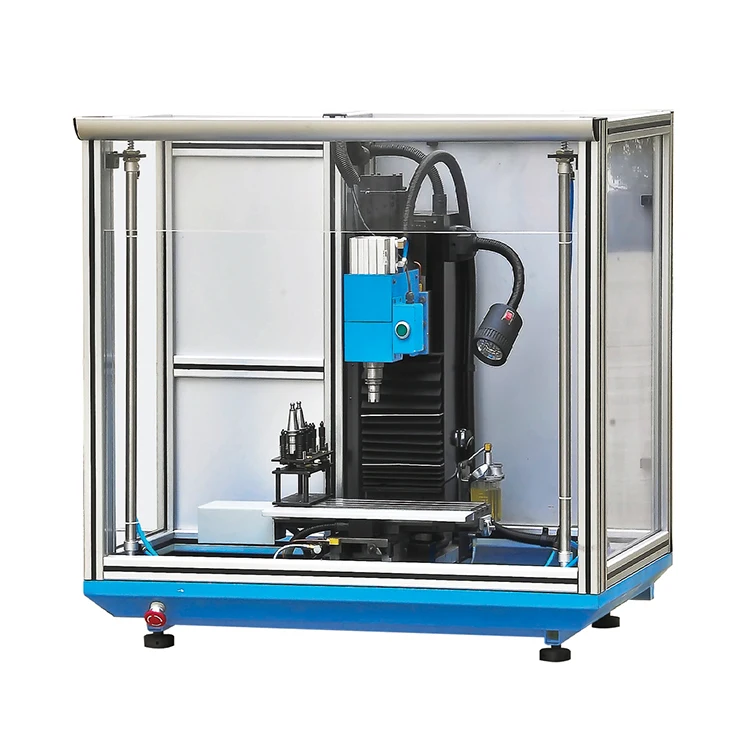

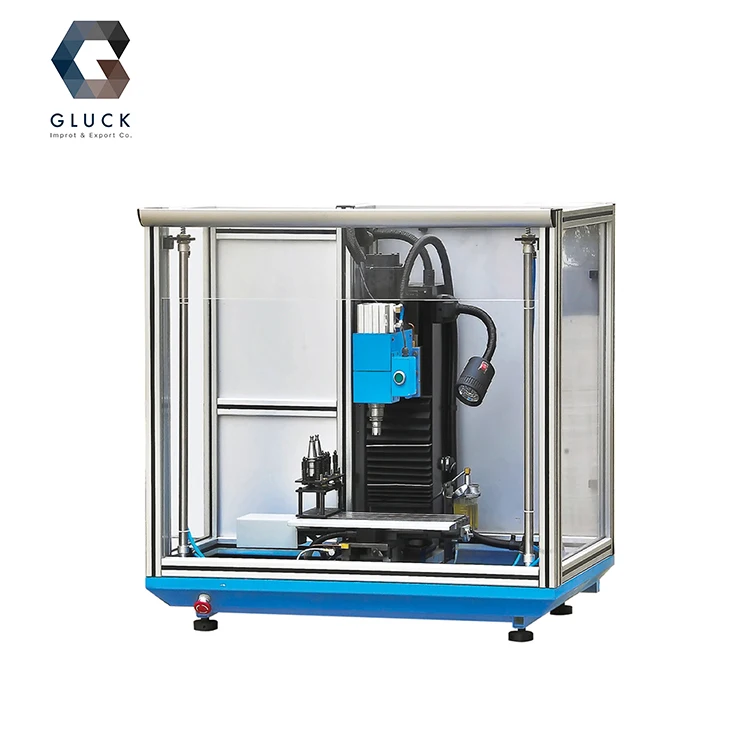

iKX1 SIEG Gluck Automatic mini educational cheap cnc milling machine 3 axis
- Category: >>>
- Supplier: Liuzhou Gluck Imp& Exp Co. Ltd.
Share on (62201371750):
Product Overview
Description
Product Overview
Irregular workpieces for different materials;
4 station tool magazine;
1000W brushless motor;
Powerful, high torque;
IKX1 CNC MILLING CENTER | ||||
TABLE | Table size | 400×145mm | ||
T slot | 3×12×40 | |||
Max. load | 20kg | |||
TRAVEL | X travel | 260mm | ||
Y travel | 152mm | |||
Z travel | 180mm | |||
Spindle nose to table | 60-240mm | |||
Spindle center to column | 200mm | |||
SPINDLE | Spindle taper | ISO20 | ||
Spindle motor | 1000w | |||
Spindle speed | 5000r/min | |||
FEED | Rapid feed | 2000mm/min | ||
Power of X/Y | 1.35N/m | |||
Power of Z | 3.1N/m | |||
Tool number | 4 | |||
TOOL CHANGER | Max.tool diameter | 10mm | ||
Max.tool length | 110mm | |||
Max.tool weight | 0.5Kg | |||
Time of tool changing | 10s | |||
Positioning accuracy | ±0.015mm | |||
ACCURACY | Repeatability accuracy | ±0.01mm | ||
Pneumatic supply | 0.6 MPa | |||
OTHERS | Power | 230V/110V | ||
Weight（NW/GW） | 280/340kg | |||
Dimension | 1040×860×940/1170×960×1100mm | |||
CNC MILLING CENTER with high cost performance
-Blow of ring
-Pneumatic door
-One key type lubrication system;

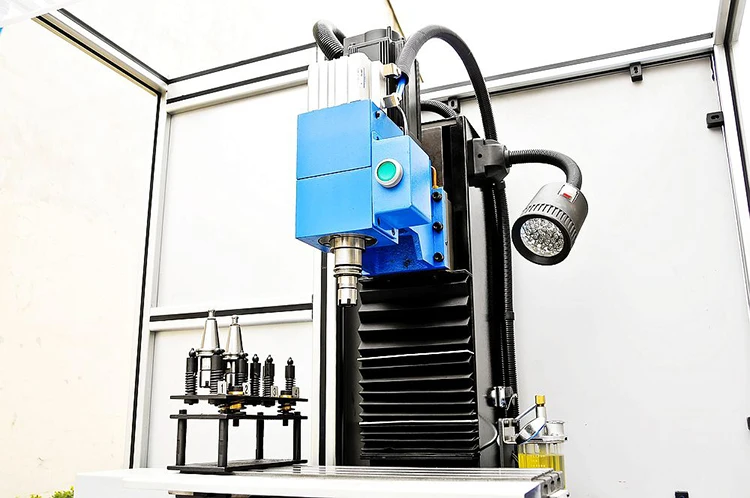

-LED working light;

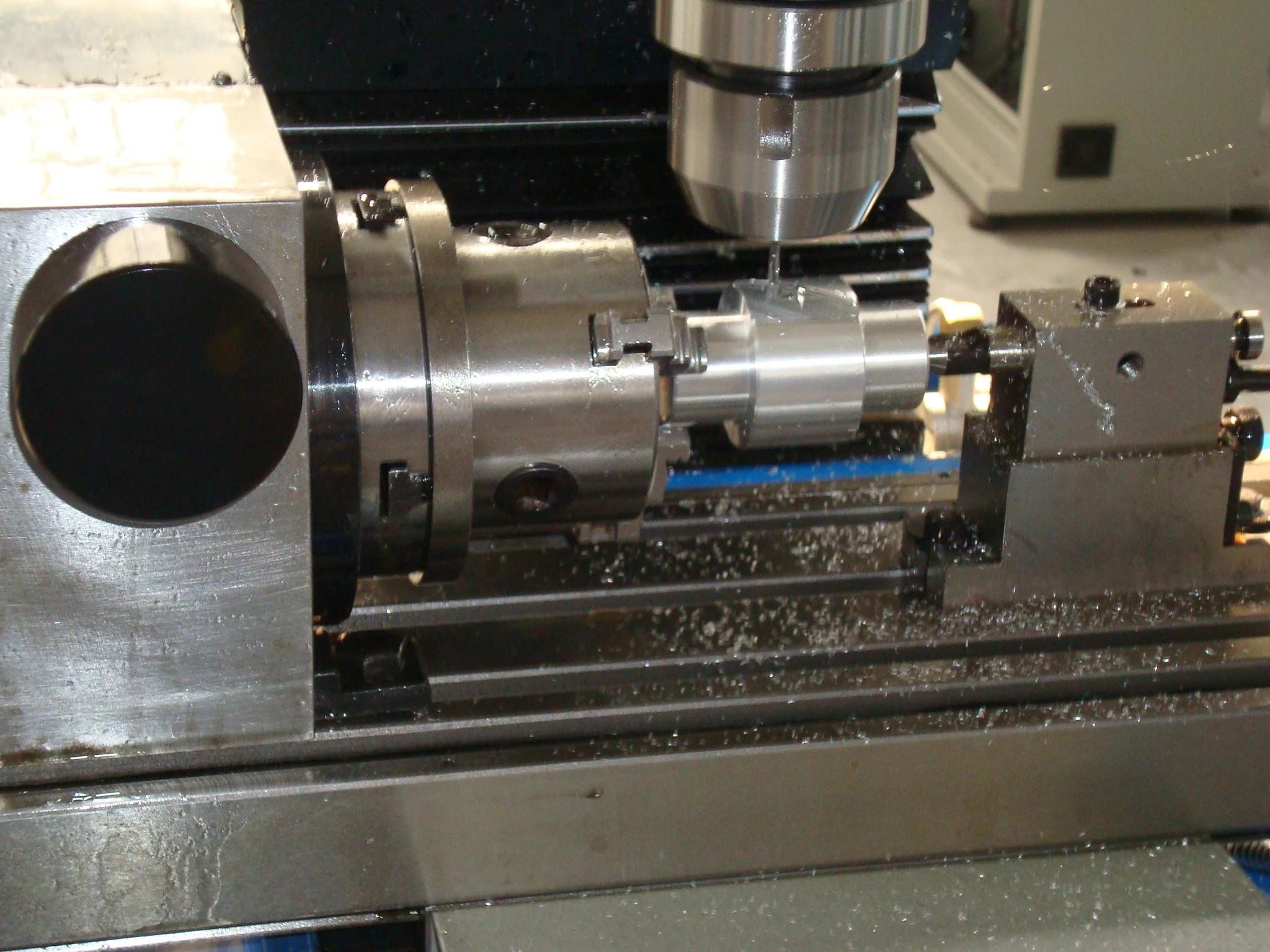

-4th axis (optional)
-Cooling system (optional)
-Hand wheel (optional)

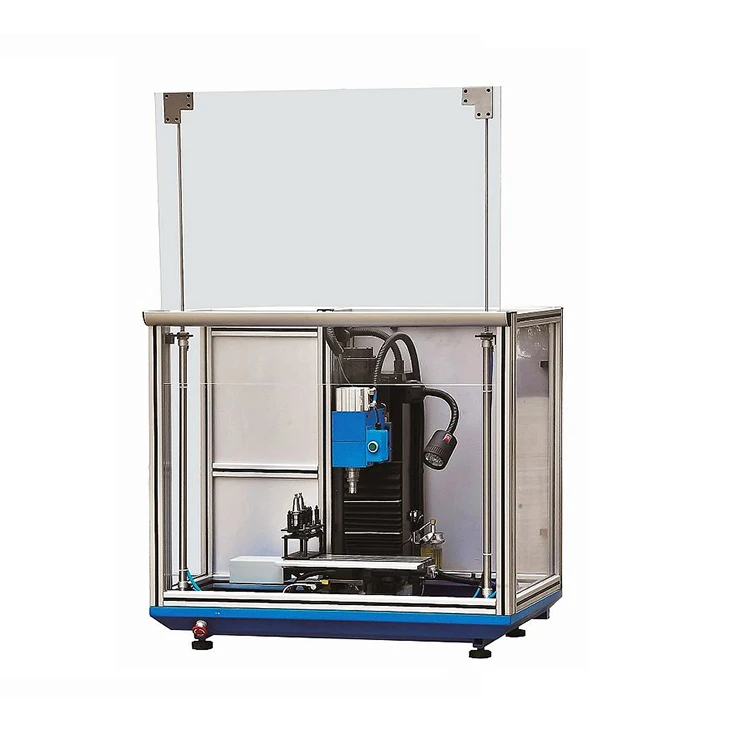

-Transparent cover (Optional)
PRODUCT CONFIGURATION
Hand wheel

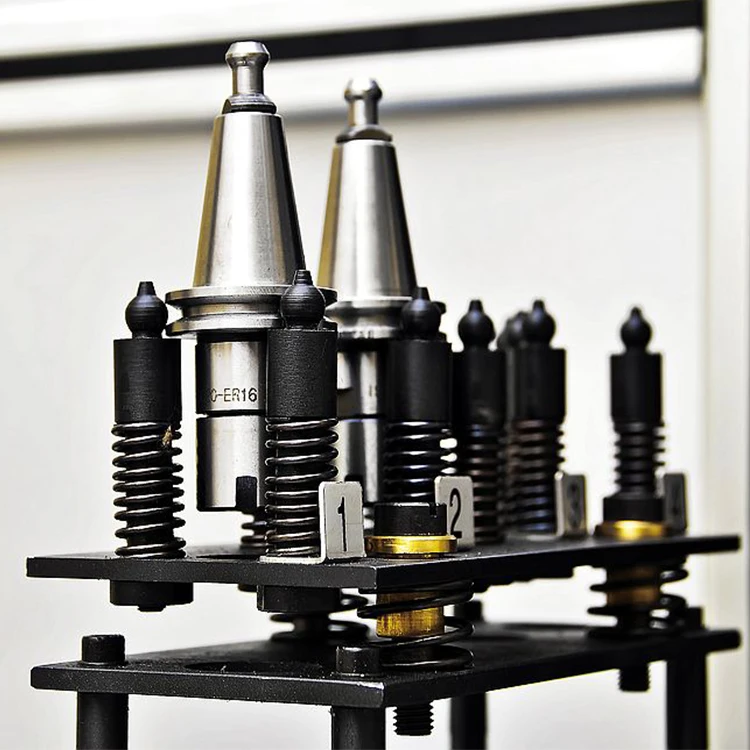

4 station ATC
ISO20/ER16 spindle tapar
SIEG system

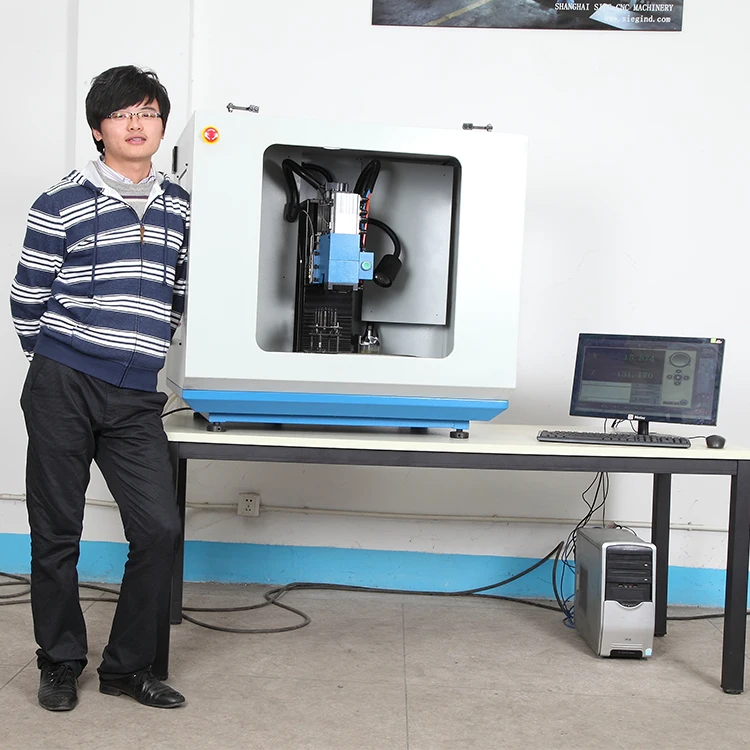

A PC-based control system. A software (in CD) was supplied with machine, loaded into your computer, connecting PC to machine via LAN.
SIEMENS system
SIEMENS system is popular in the world, and it's closer to the industrial use. There is a cost-effective version
SIEMENS 808D ADVANCE, not only with practical function, but also could save more money for you.
SIEMENS 808D ADVANCE, not only with practical function, but also could save more money for you.
