Unframed e1 to fiber modem
- Category: >>>
- Supplier: Hangzhou Fctel Technology Co. Ltd.
Share on (62201374101):
Product Overview
Description
Product

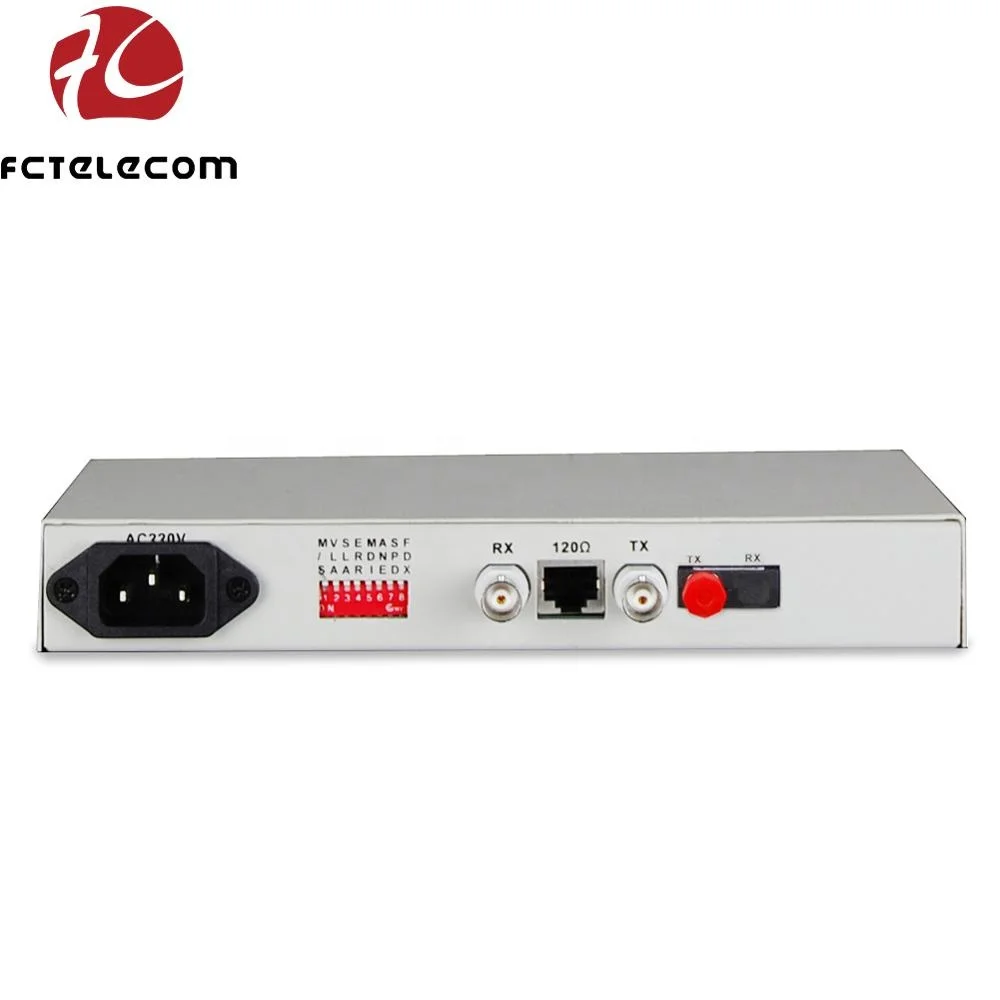

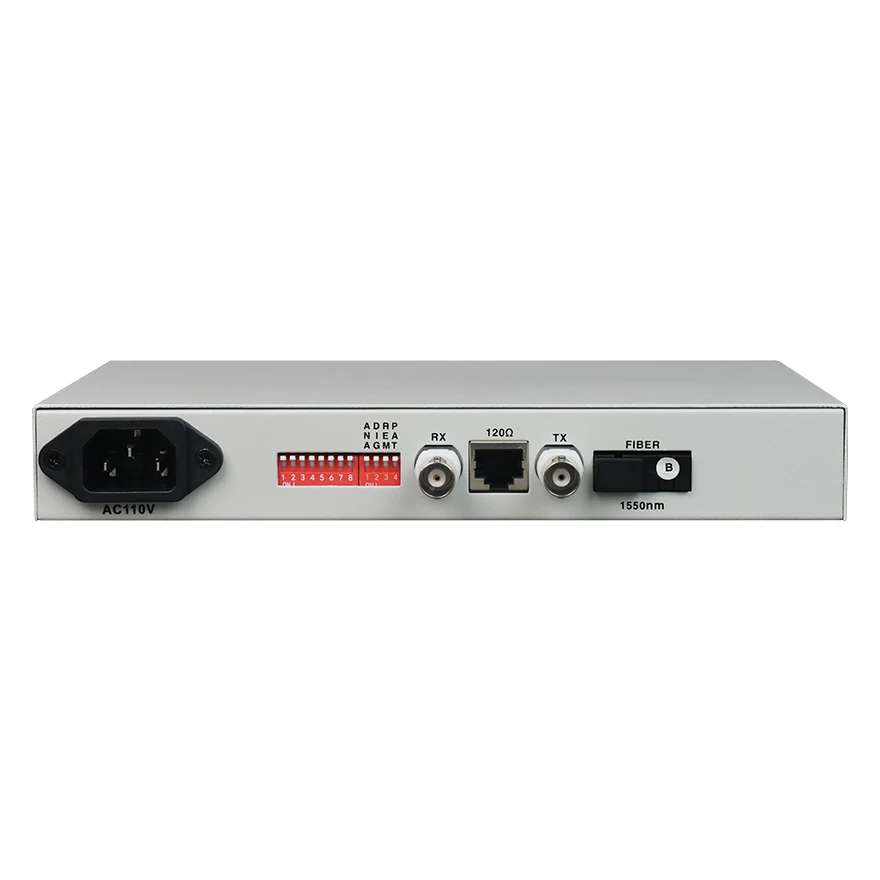

Unframed e1 to fiber modem
We have Strong R&D team, Providing customization.
For optional function, Pls state your requirement when in order.
Description
This interface converter is based on FPGA, providing one unframed E1 interface and one Ethernet interface to achieve 10/100Base-FX Ethernet data transmission on the E1 channel. It is a high performance, self-learning Ethernet bridge. This device is the extension device of Ethernet, using network (PDH/SDH/Microwave) that provide E1 channel to achieve local and remote Ethernet interconnecting with serial interfaces at a lower cost. The device has inter-set loop test function to facilitate the project launching and daily maintenance.
E1 Interface | Ethernet interface (100BASE-FX) | ||
Interface Standard | comply with protocol ITU-T G.703 | Interface rate | 10/100 Mbps, half/full duplex auto-negotiation |
Interface Rate | 64Kbps±50ppm | Interface Standard | Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) |
E1 Impedance | 75Ω (unbalance), 120Ω (balance); | MAC Address Capability | 4096 |
Jitter tolerance | In accord with protocol G.742 and G.823 | Connector | RJ45, support Auto-MDIX |
Allowed Attenuation | 0~6dBm |
Our Company
Certifications
Packing&Delivery
Order Information
Name | Description |
E1 fiber modem | Unframed E1 transmission on fiber |
