URayTech 9 Channels HDMI Video Wall Controller 3x3 for TV Splicing
- Category: >>>
- Supplier: Shenzhen Uray Technology Co. Ltd.
Share on (62201410199):
Product Overview
Description

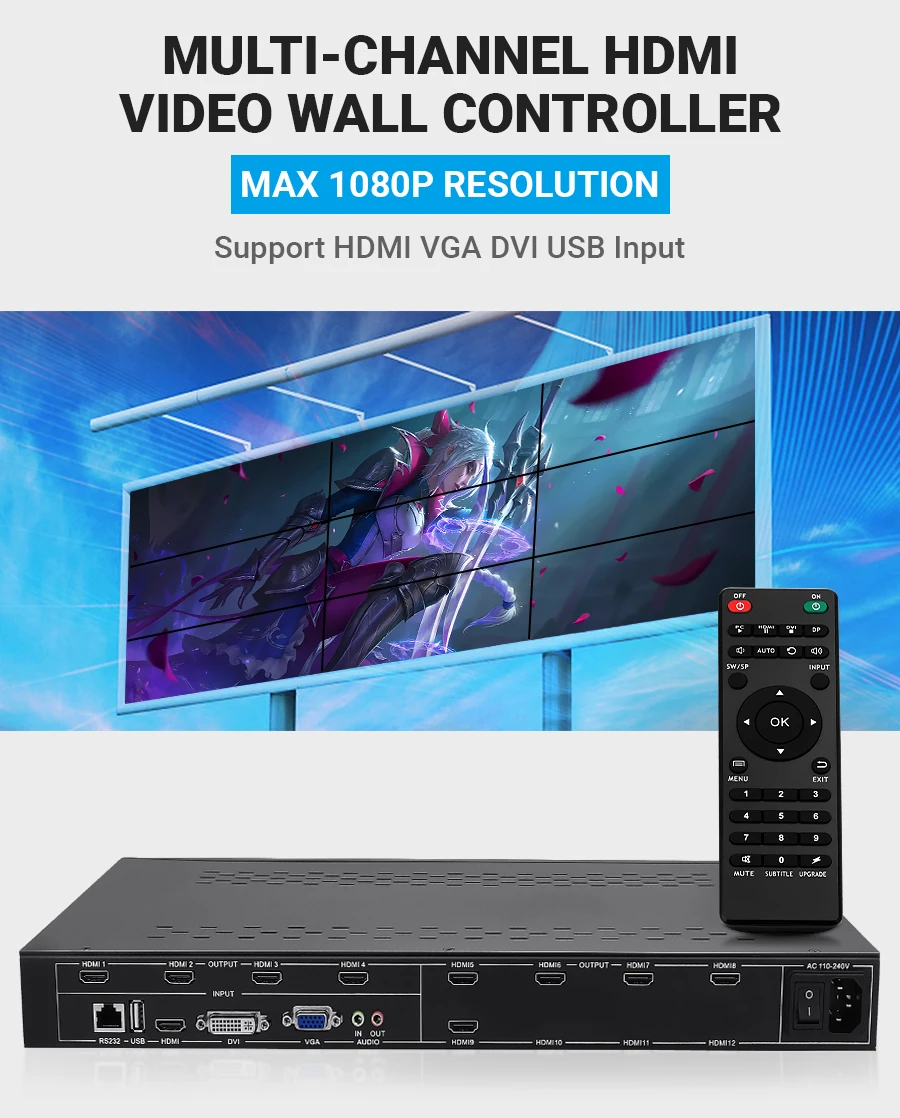

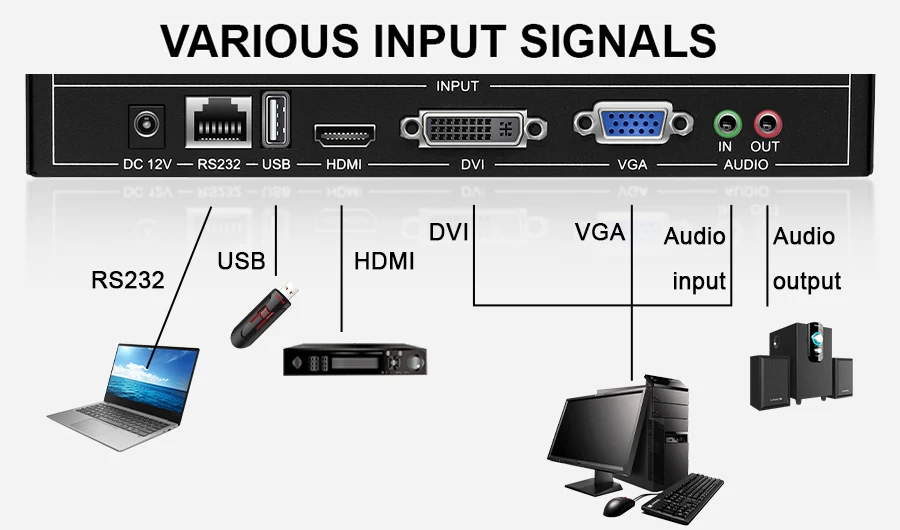

• Various Input Signal

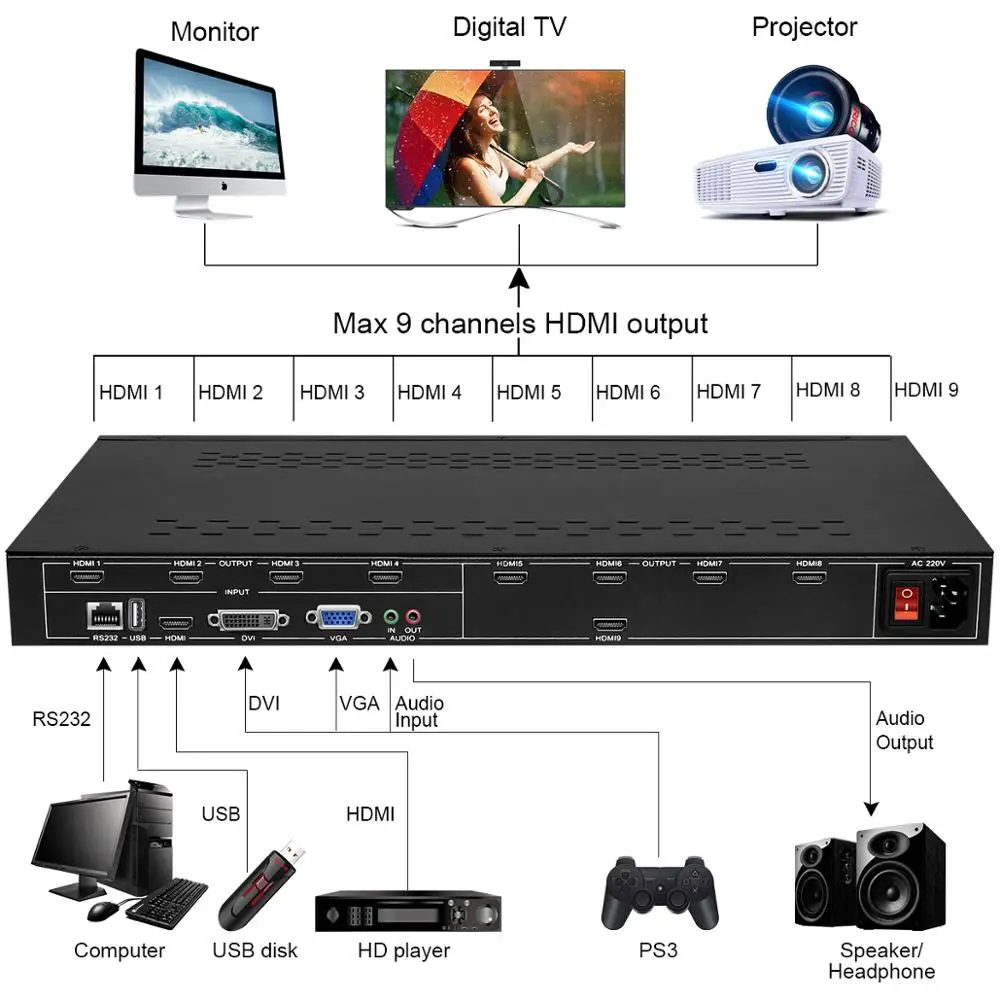

URayTech video wall controller(Model No. UVWC-9) supports HDMI(audio build-in), VGA, DVI, USB input, 9 channels HDMI(audio build-in) output simultaneously. All input video signal can be switched, controlled and displayed output to HDMI displays, audio signal can be synchronized with video.

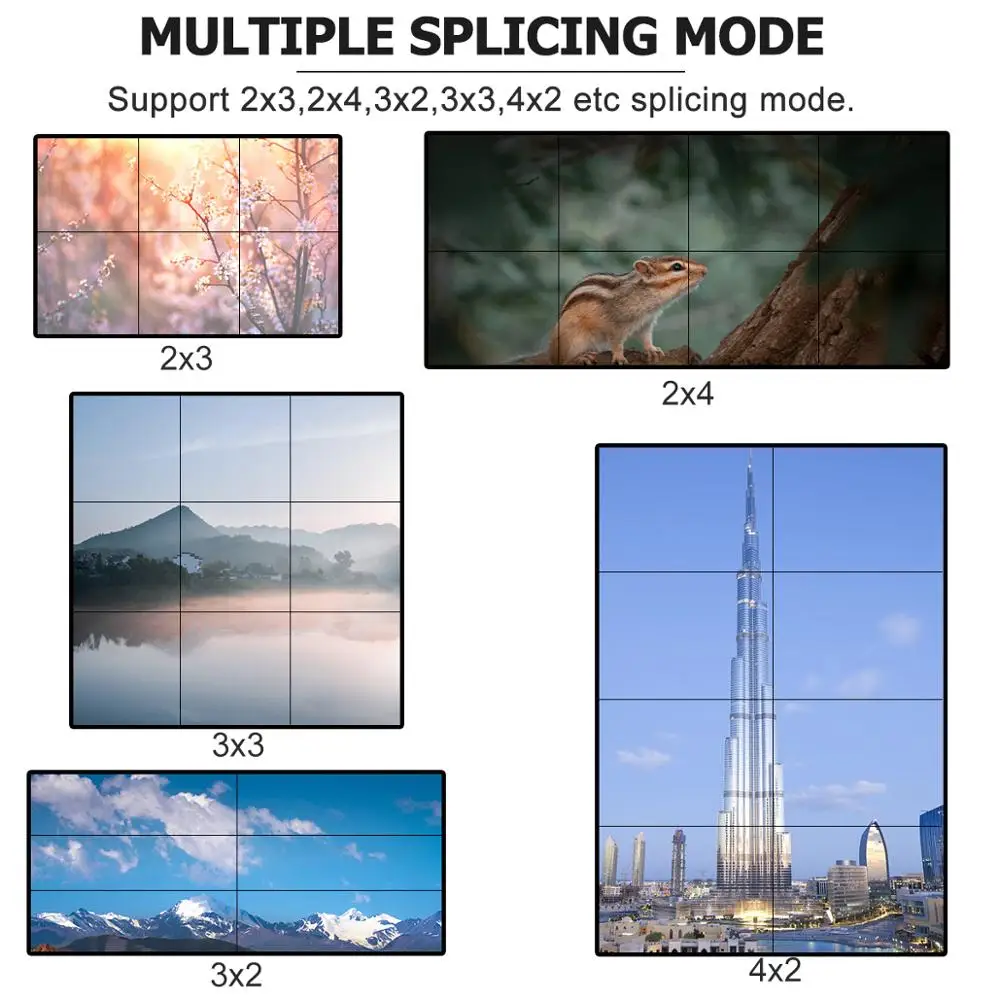

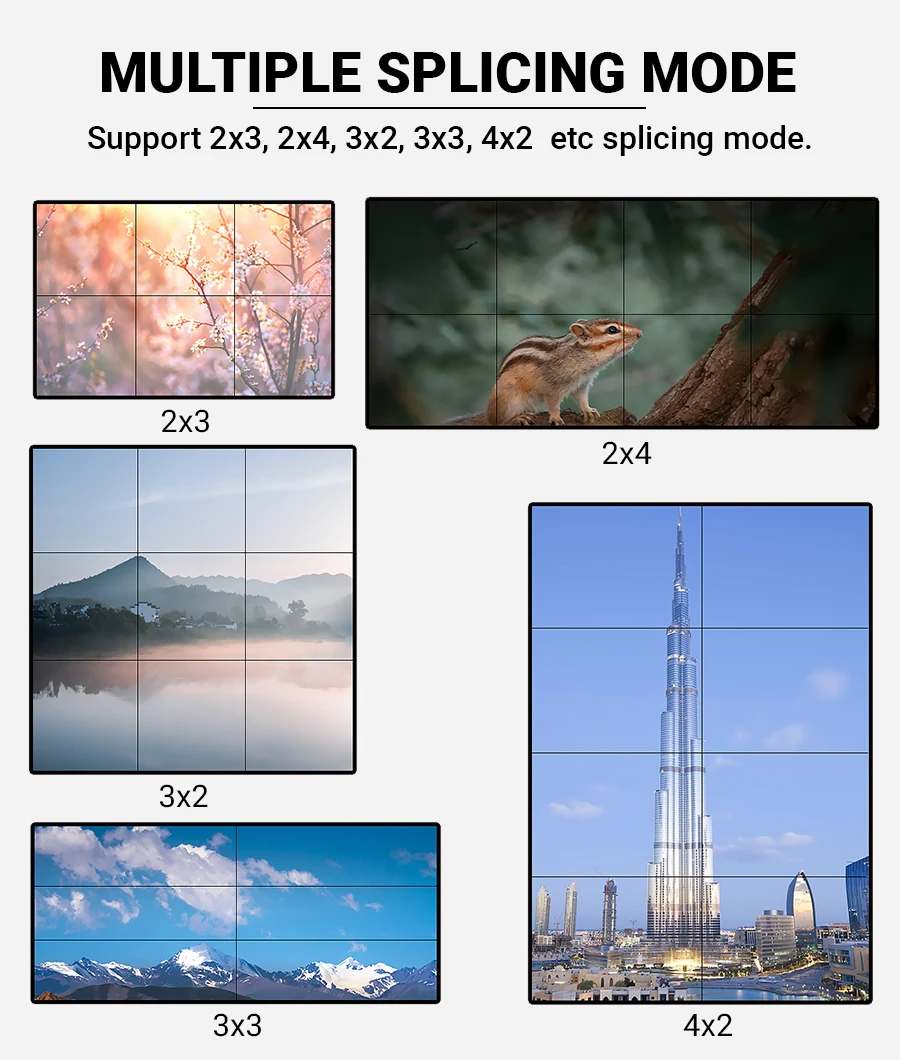

• Multiple Splicing Mode

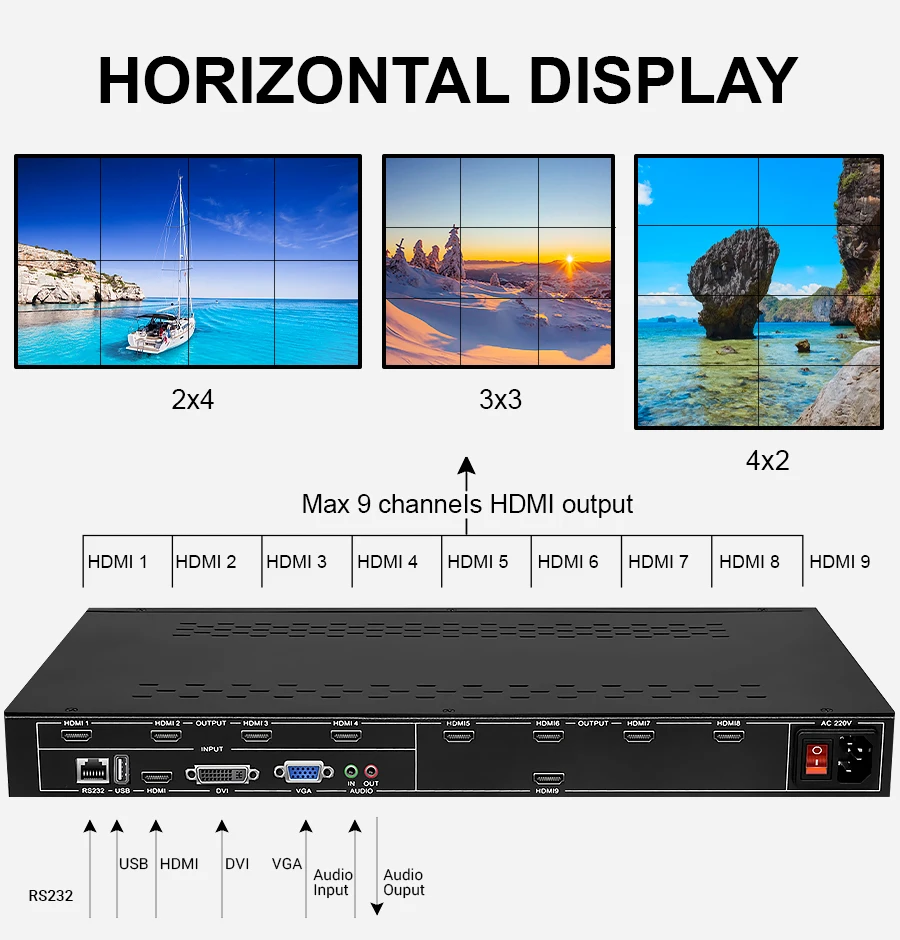

It supports 9 HDMI outputs to TV walls, and the output video splicing mode can be customized, such as 2x3, 2x4, 3x2, 3x3, 4x2 etc.

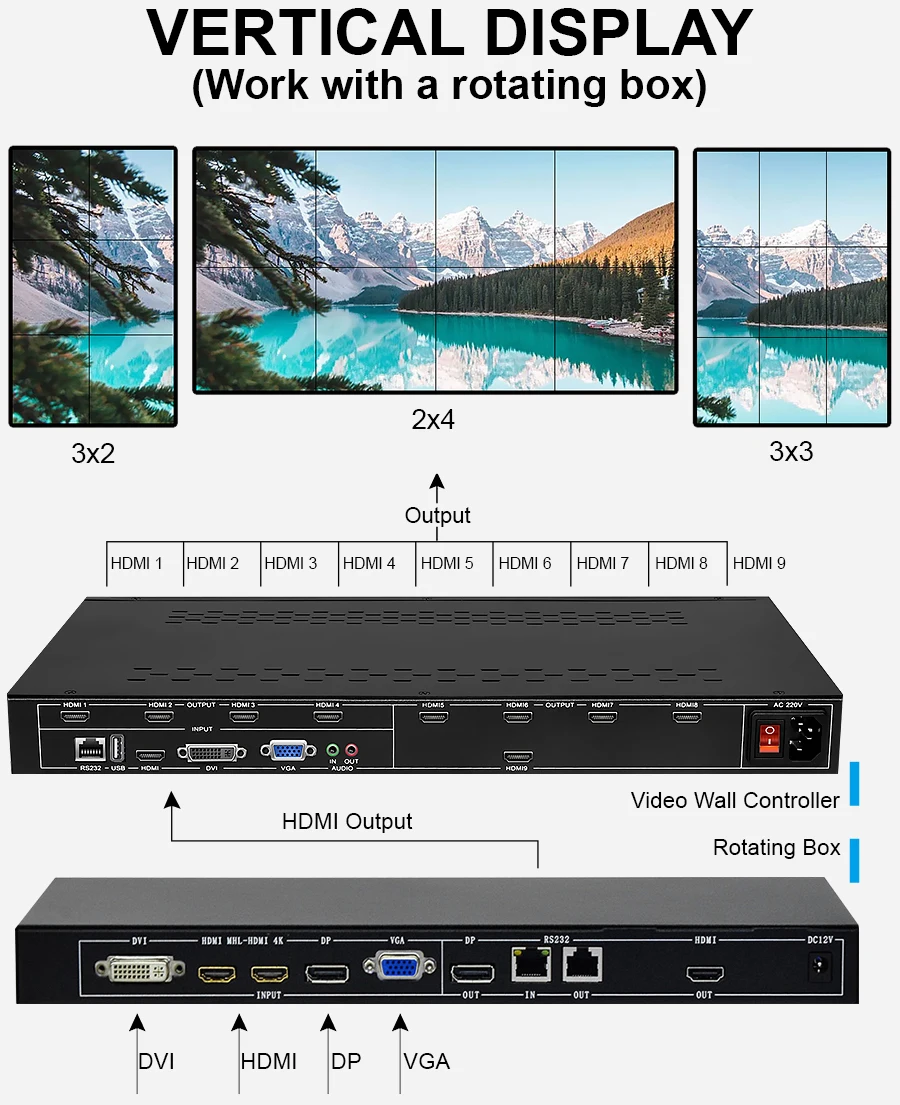

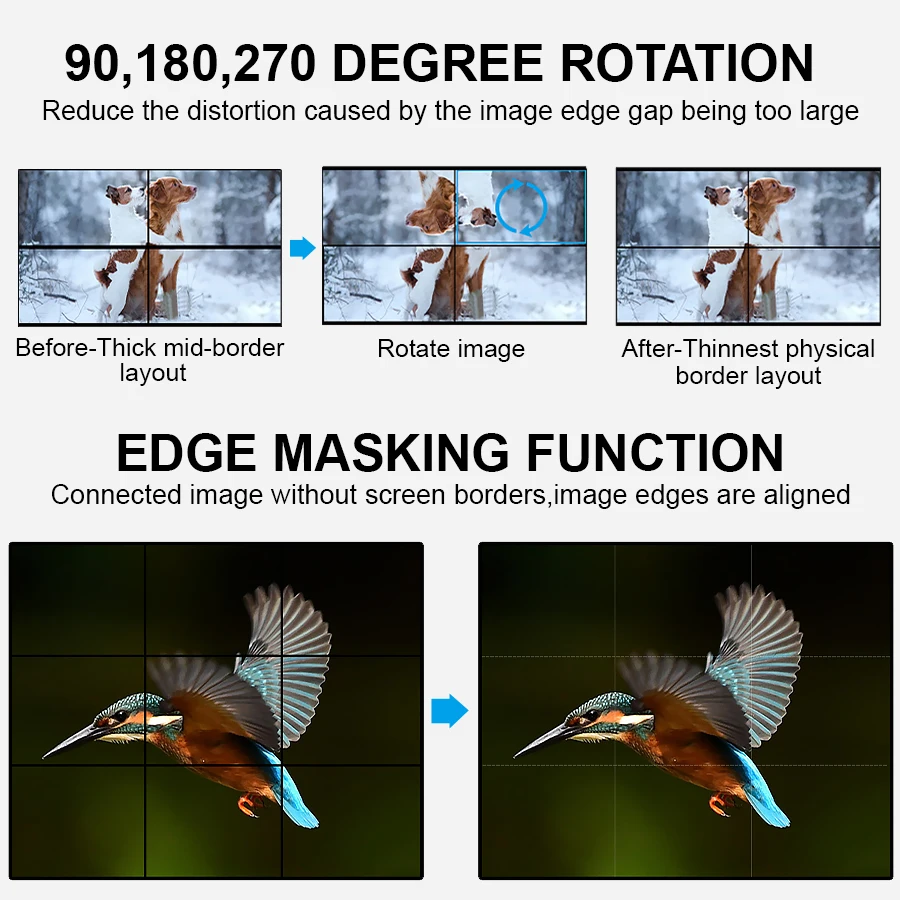

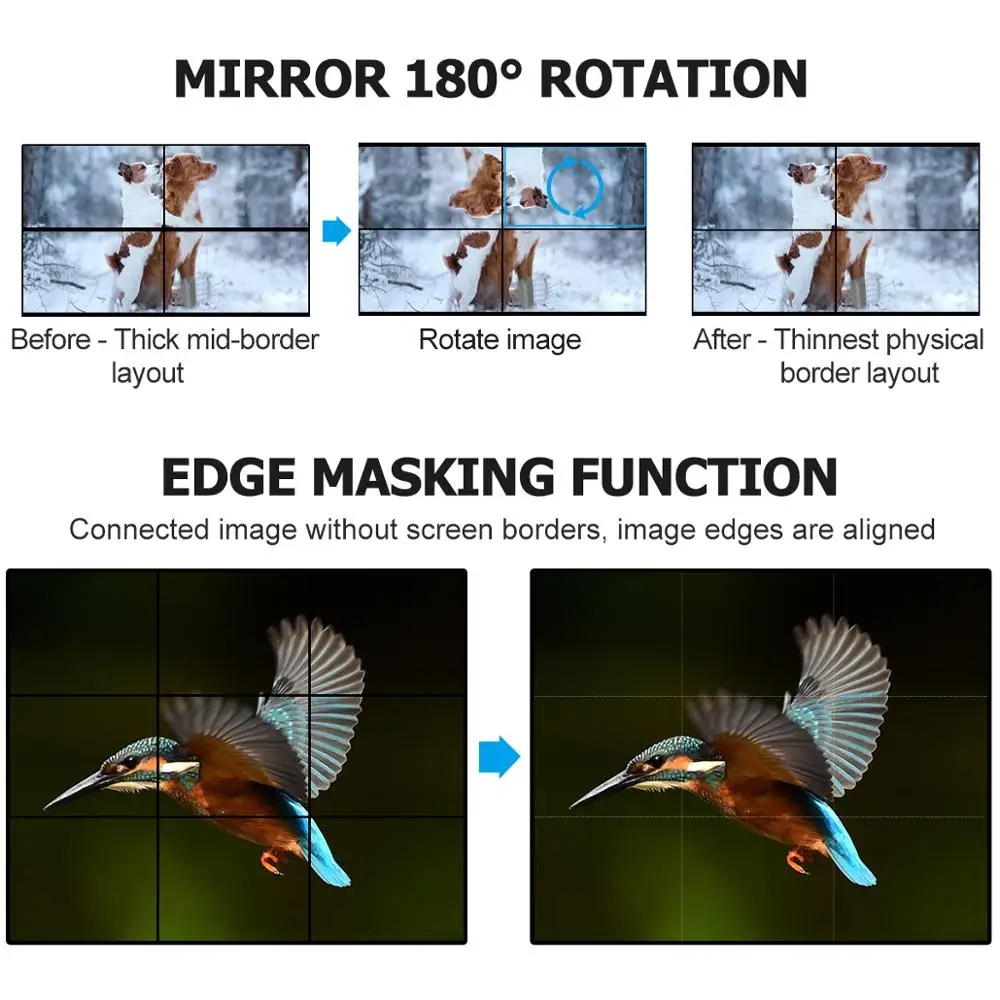

• Rotation /Edge Masking Function
Because of the physical border gap of display, the image will appear pull-apart on visually and feel very unnatural. Through the rotation function and edge mask processing, the image will be without deformation or stretching, and more natural and realistic.

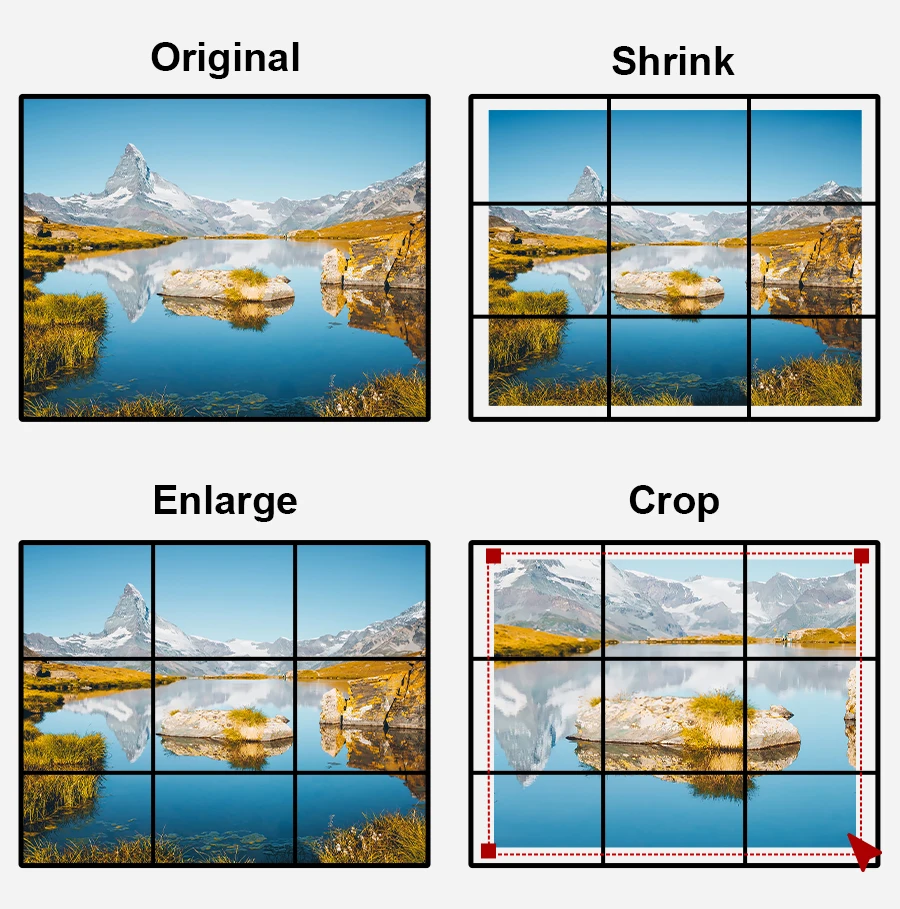

• Shrink /Enlarge /Crop Function

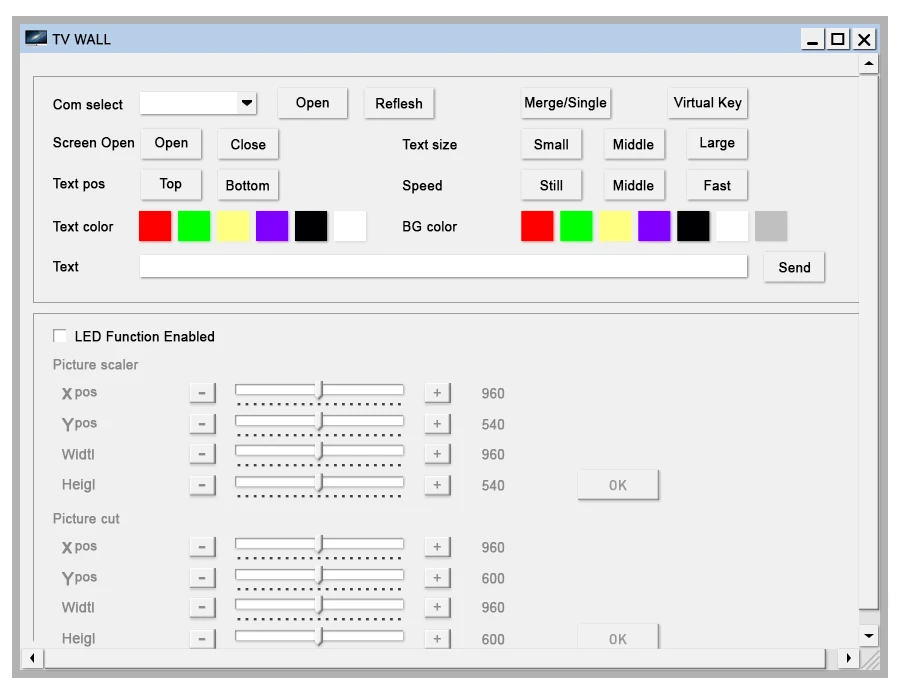

• Scrolling captions function
You can adjust the scrolling position, scrolling speed, caption size, caption color, background color etc.

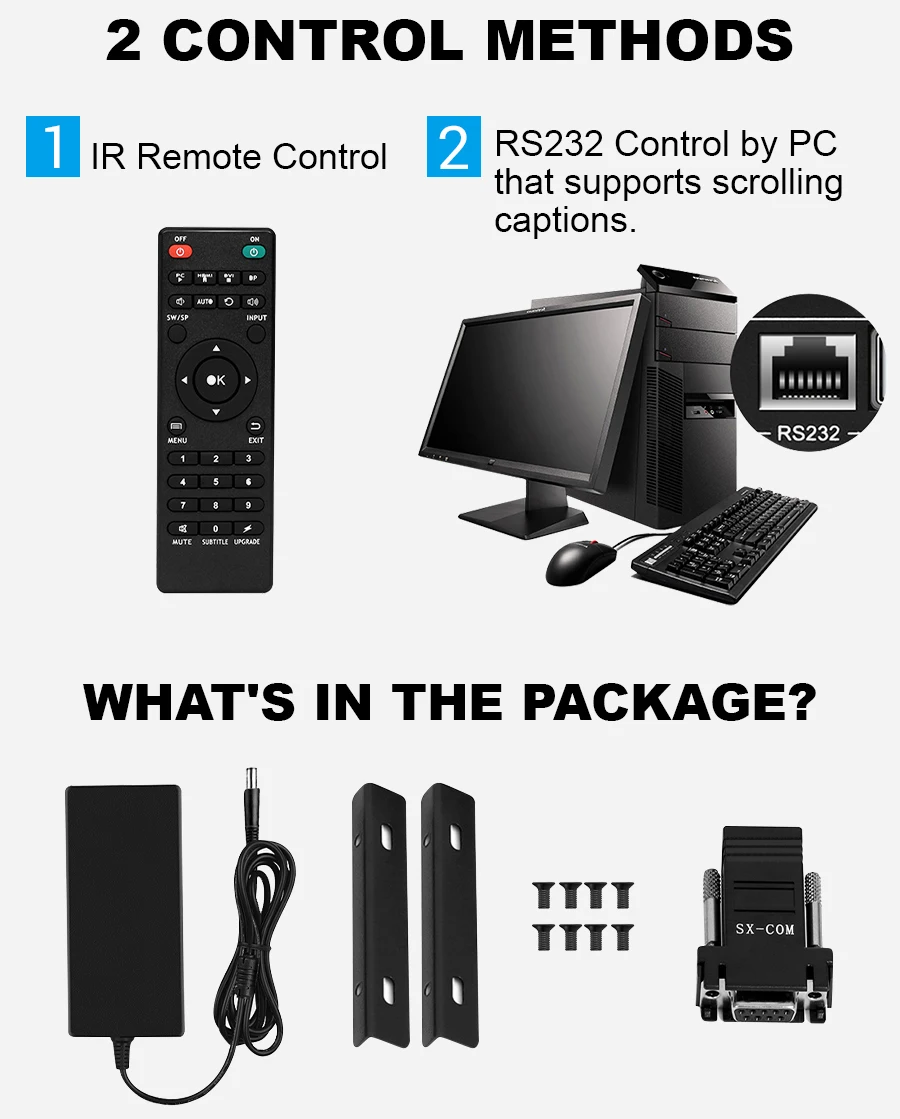

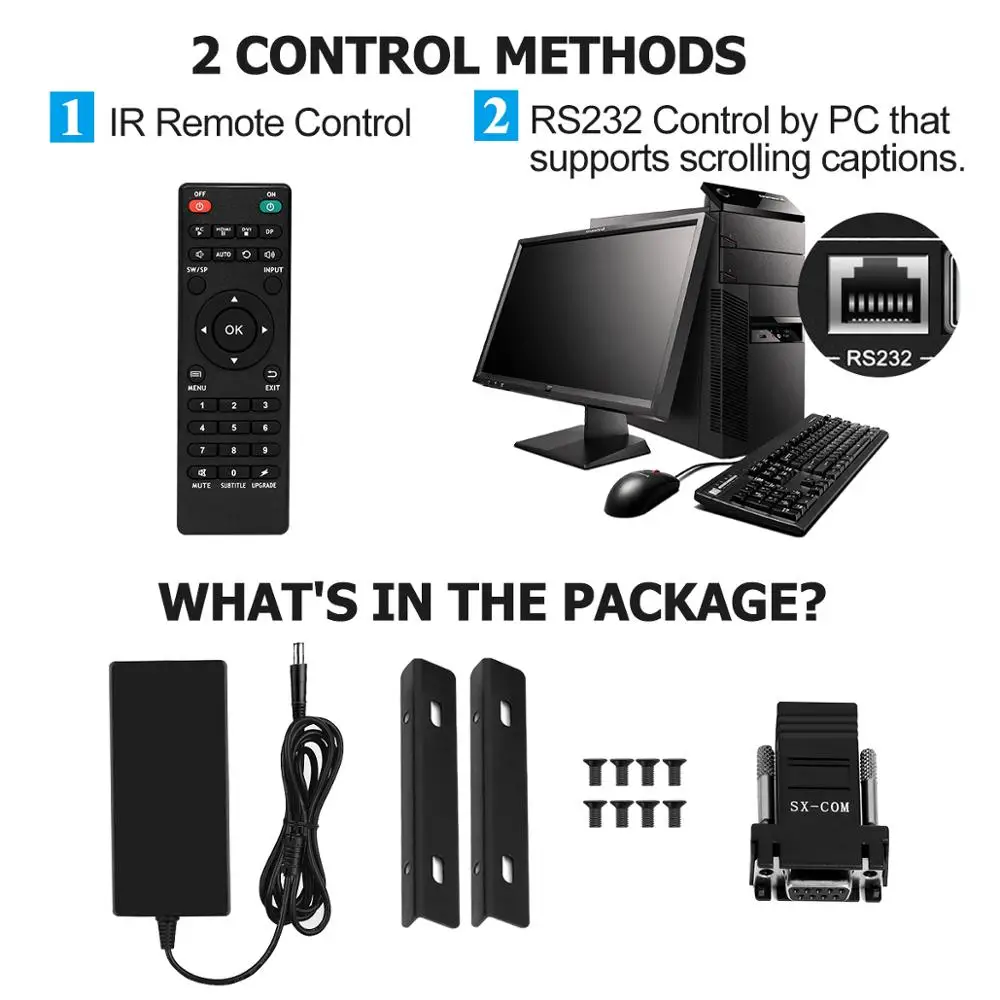

• Multiple Control Mode

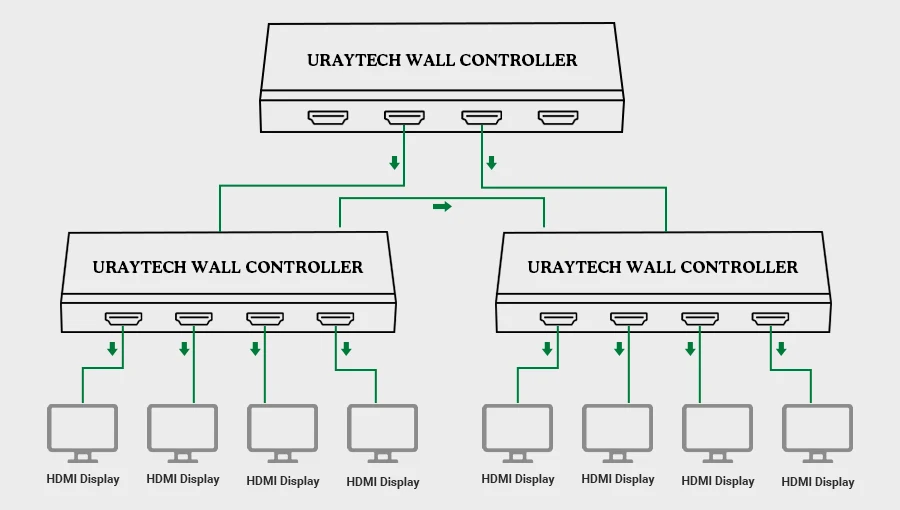

• Support Cascade Function
Model No. | UVWC-9 |
Input | |
HDMI | Support HDCP, audio is embedded, max support 1920x1080 |
VGA | HD15 interface, support from 640x480 to 1920x1080 |
DVI | DVI-I(24+5), max support 1920x1080 |
USB | USB2.0, support play video and audio and image and txt document, support pause, fast forward, program list etc |
Audio | 3.5mm Jack, audio and video signal synchronization switch |
Output | |
HDMI | 9 channels HDMI(audio build-in) output simultaneously |
External Audio | 3.5mm jack, audio and video signal is synchronous |
General | |
Control | IR remote control, RS232 |
Splicing Patterns | Nine splicing |
Power | DC 12V /3A, 50W power dissipation |
Baud Rate | Baud rate 9600, data bits: 8, stop bits: 1, no parity bit |
Size | 483x300x50(mm) |
Net Weight | 2kg |
Temperature & Humidity | -20℃~70℃(Temperature), 10%~90%(Humidity) |
• If you have problem of making payment, please contact us.
• If you are worried about customhouse charge, please contact us.
• If you need to print your logo on the device, please contact us.
• If you require any files regarding to the product(user manual, new firmware etc), please contact us.
• If you require discount for bulk order(>5pcs), please contact us.
• If you have questions before buying, please contact us.
• If you meet the technical problems after buying, please contact us.
• If you want to test this device before buying, please contact us.
