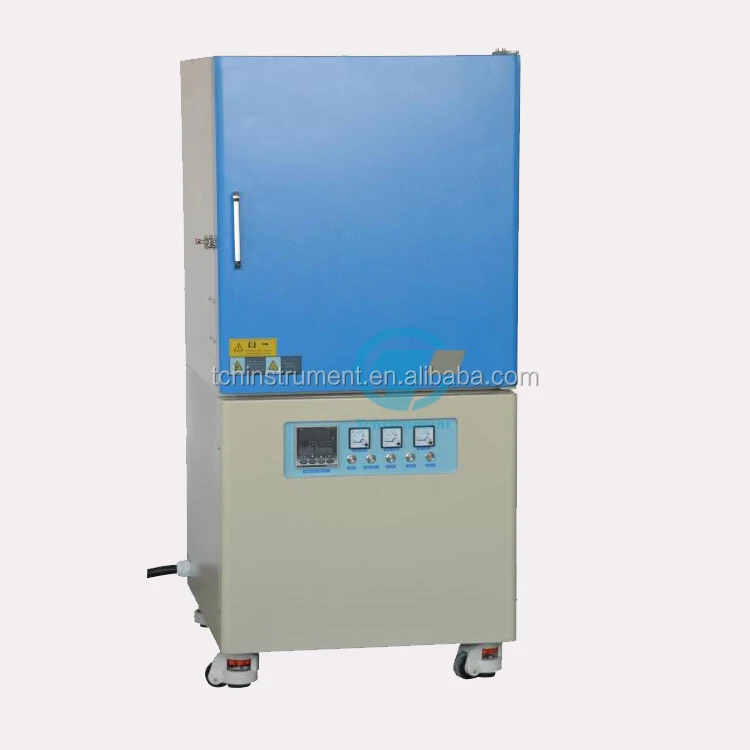

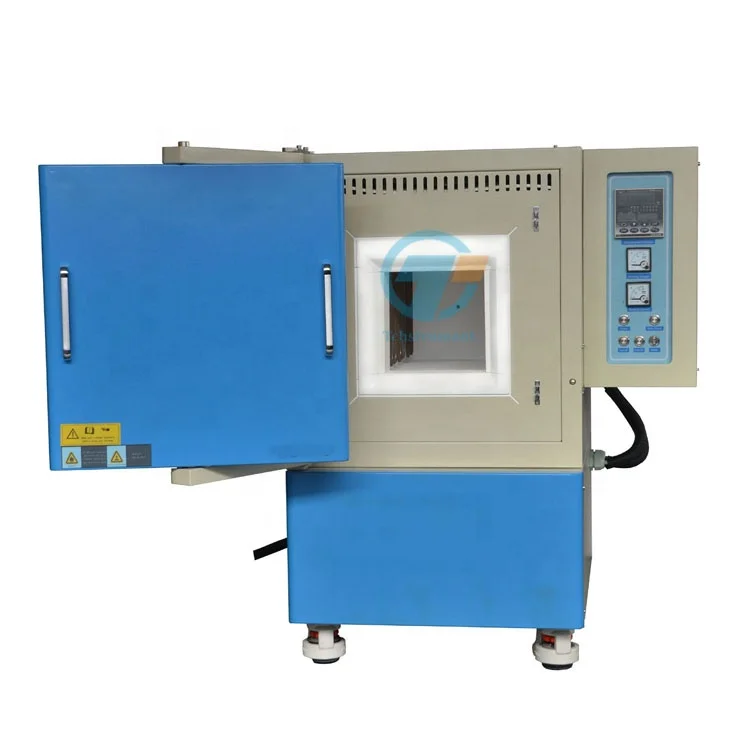

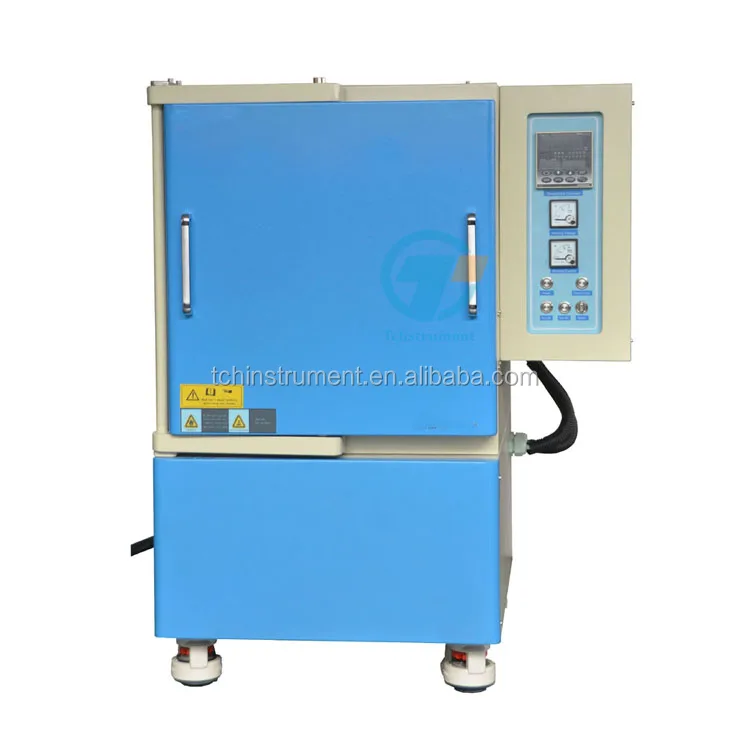

1700c high temperature ceramics sintering muffle furnace with large chamber

Model

TCH-KF1700-I

TCH-KF1700-II

TCH-KF1700-III

TCH-KF1700-IV

TCH-KF1700-V

Power

3 KW

5 KW

7KW

9 KW

13KW

Chamber Dimension

(DXWXH)

160X150X150mm

200X200X200mm

300X200X200mm

300X250X250mm

400X300X300mm

Voltage

220V

220V

220V

380V

380V

single phase

heating elements

1800 type MoSi2 rods

temp. controller

1,30-stage program temperature control can only be adjusted by PID.

2, with over-temperature protection, even-protected over-temperature or break-off, the electric furnace heating circuit is automatically cut off, (when the electric furnace temperature exceeds 1720 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3, with 485 communication interface (standard when purchasing software)

4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5, the meter has the function of temperature self-tuning

heating rate

≤30 ℃/ Min

suggest heating rate

15℃/ Min

chamber material

1800 type alumina polycrystalline fiber (more than 95% alumina content) imported from Japan

temperatrue accuracy

+/- 1 ℃

Max. temp.

1700 ℃

working temp.

1650 ℃

surface temp.

≤45 ℃

Thermocouple

B

SCR

106/16E

wrranty

1 year
