3 20Tons/day Hot sales used engine oil refinery plant of thin film evaporator

 Luoyang Ninca Environmental Technology Co.,Ltd is located in High-Tech Zone, Luoyang City, Henan China. there is a yong group technical department which is maily doing the design for waste engine oil distillation plant to base oil and diesel, Crude oil refinery plant and waste tyre&plastic pyrolysis to low-sulphur diesel .

1), waste tyre&plastic pyrolysis machine
2),PLC control system from waste engine oil/mineral oil/tire oil/plastic oil to diesel, base oil distillation machine
3),Crude oil refinery machine.

Product Description

Waste engine oil Distillation plant to base oil .

Raw material can be processed: waste engine oil, Used Hydraulic oil, Waste transformer oil , Bunker oil , Ocean Vessel Oil
End product can be got : base oil , light oil, heavy oil, waste gas which can be re-used during the process
Daily processing capacity : 3-200Tons/day
Working Model : 3-10Tons with distillation reactor system +thin film evaporator system
20-200Tons with distillation tower in PLC system

Model	Capacity	Power	Catalyst
Ninca-5BD	5Ton	45KW/H	1.5Tons
Ninca-10BD	10Ton	45KW/H	1.5Tons
Ninca-20BD	20Ton	45KW/H	3Tons
Ninca-30BD	30Ton	60KW/H	3Tons
Ninca-50BD	50Ton	80KW/H	5Tons
Ninca-100BD	100Ton	140KW/H	8Tons
Ninca-200BD	200Ton	250KW/H	20tons

process flow chart

Base oil process flow chart .

Process: waste water removal---Light oil separation---Heavy oil separation---Base oil separation---Refinery---Filter
Main technology:
Vacuum system
24Hours continuous running
PLC control system

Tube furnace and Thermal oil furnace heating system

Profit analysis  30Tons waste engine oil
Input	Unit	Price	Total
waste engine oil	30Tons	300$/ton	9000$
Power	60KW*24*0.6	0.12$/KWH	103.68$
Labours	4 as 2 shifts	50$/people	200$
Catalyst		10$/Ton	30$
Fuel	Heavy oil or light oil as fuel
Total			9600$
Output	Unit	Price	Total
Base oil	70%*30Tons	650$	13650$
Heavy oil	10%*30Tons	100$/Ton	300$
Light oil
Profit per day			4350$

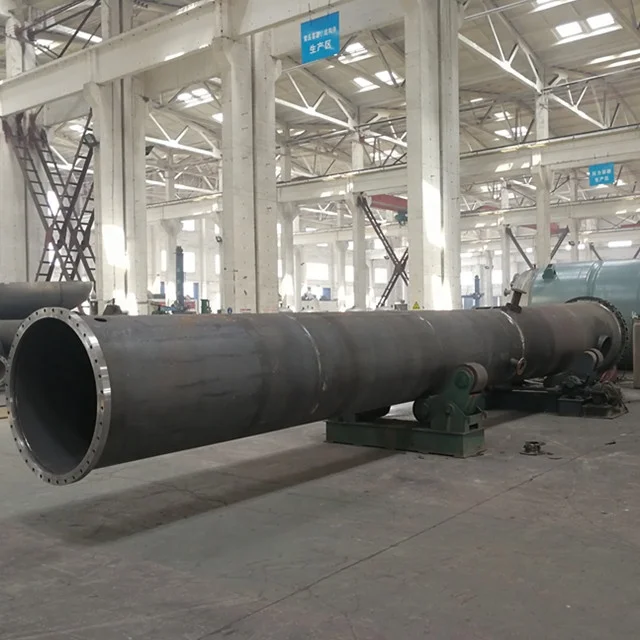

Manufacturing

American Client

UK Client

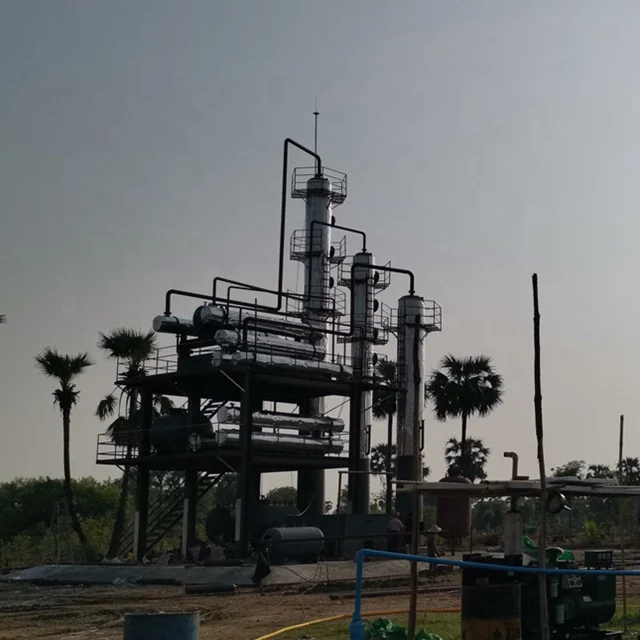

Myanmar Client

Detailed Images

3Tons waste oil recycling plant

200Tons waste oil recycling plant

20Tons waste oil recycling plant

50Tons crude oil refinery plant

150Tons crude oil refinery plant

50Tons waste oil recycling plant

Packing & Delivery

End product
