WZ45-16 backhoe loaders are mainly used for municipal, building, water conservancy, road, water, electricity, garden and other departments, engaged in agricultural construction, pipe laying, cable laying, landscaping and other jobs.
A. Xichai 33kw engine. Yunnei, Xinchai Euro3 Euro4 Option
B. Hydraulic pilot control joystick
C. 23.5/70-16 Larger tire
Specification

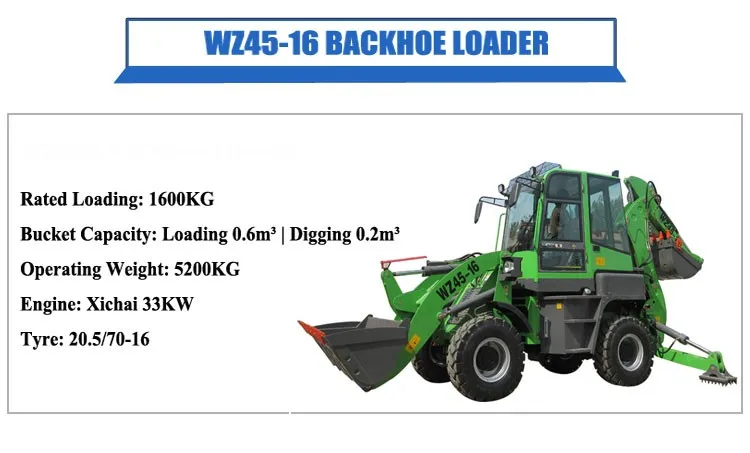

SPECIFICATIONS OF WZ45-16 BACKHOE LOADER
Engine
Standard
|Option
XiChai 4DW91, Xinchai A498BT1
(Euro III Emission)
Power
Kw/rpm
33/2300, 36.8/2400
Operating Weight
kg
5200
Rated Loading
kg
1600
Loading Bucket Capacity
m³
0.6-0.8
Backhoe Bucket Capacity
m³
0.3
Min. Turning Radius
mm
4800
Max. Speed
Km/h
28
Min. Ground Clerance
mm
270
Max. Climbing Ability
°
25
Max. Raise Height
mm
3700
Max. Dumping Height
mm
2700
Min. Dumping Distance
mm
1000
Max. Digging Depth
mm
3400
Max. Digging Height
mm
5000
Type of tyre
23.5/70-16
1) Excellent performance. Four wheel driving improves mobility in poor condition. Hydraulic torque converter, delivers smooth speed and shift. Optimized structure and hydraulics adopt provides greater lifting power and breakout force.
2) The driving cab is according with ergonomic, wide vision,low noise, muti-functional joystick realizes easy operation.
3) Brake system is air over oil disc braking, which ensures effective and more safe.
4) Great Versatility. Easy and quick attachment changing, increased ability to match the correct tools.
5) Simple and reliable. Tilting cab is convenient for daily maintenance. Wing-spread support legs increases the stability and safety.
