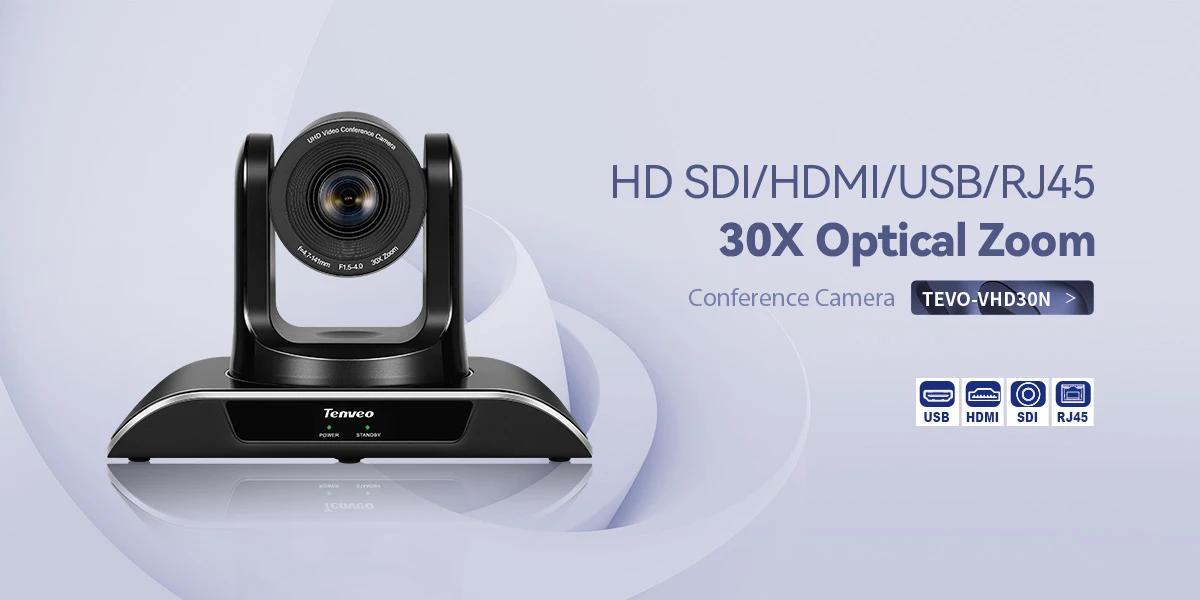

TEVO VHD30N 30x оптический зум PTZ IP видео конференц связи IP камера с DVI 3G SDI порт для прямые трансляции
- Category: Conference System >>>
- Supplier: Sz,Tenveo,Video,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
Product Model | TEVO-VHD30N PTZ video conferencing IP camera |
Image Sensor | 1/2.8''SONY CMOS |
Effective Pixel | 2.38 mega pixel |
Horizontal Resolution | 1080p-60/30/25, 1080i-60/50,720p-30/25 |
Signal Standard | NTCS/PAL |

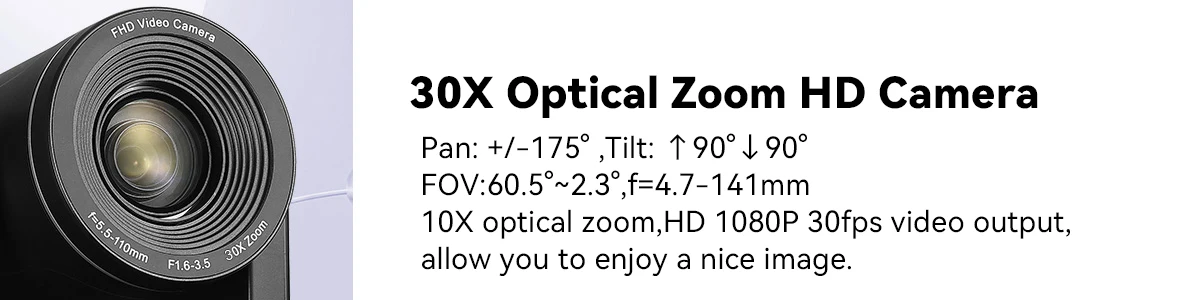

Zoom | 30x zoom |
FOV | 58.6° |
Gain Control | Auto/Manual |
SNR Ratio | ≥50dB |
Preset Position | IR remote supports 10 presets, PELCO Control Protocol supports 64 presets |
Pan/Tilt Movement Range | 350°（±175°）0.1°/s～100°/s |
Control Terminal | RS-232, RS-485 |
Control Protocol | VISCA/Pelco-D/Pelco-P;Baud Rate:9600/4800/38400/2400 |
Video Compression Format | MJPEG/YUY2/H.264 |
Control Interface | RS-232,RS485 |
Preset Number | User can set up to 64 presets (IR remote 10 presets) |
Operation Systems | Windows 7, Windows 8.1, Windows 10,Windows 11; Android, Mac OS™ 10.10 or higher, Linux (Require to su |
Input Voltage | DC 12V |
Input Current | 1.0A(Max.) |
Accessories | 1xCamera; 1xUSB Cable;1xPower Adapter; 1xWall Mount; 1xManual |
Size | 247*165*171mm/285*217*197mm((before / after packing) |

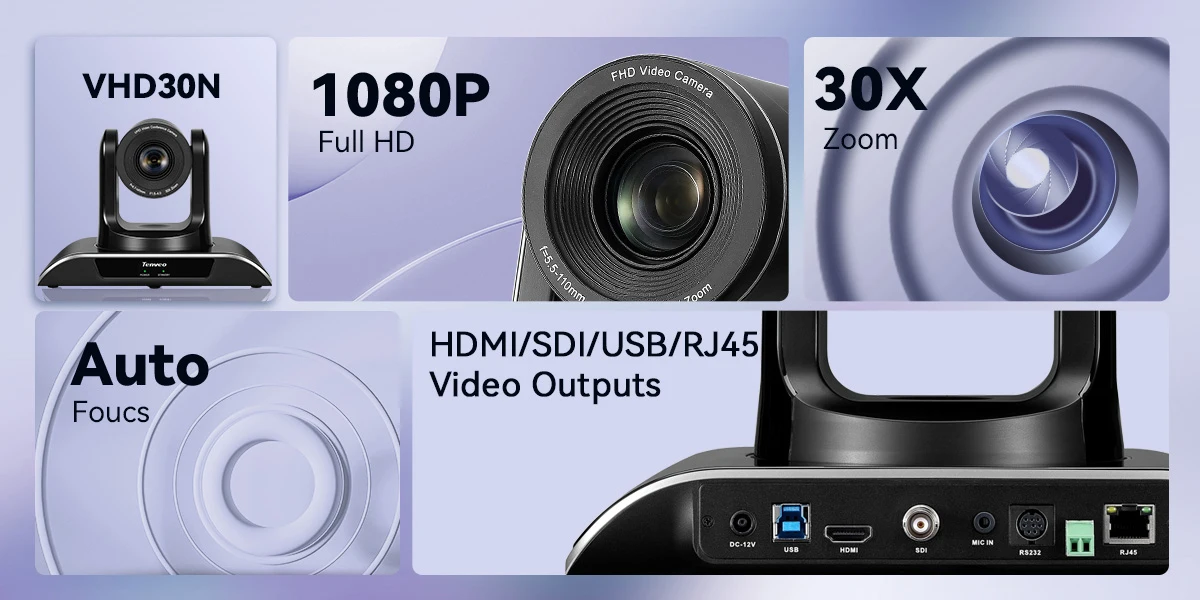

Details Images

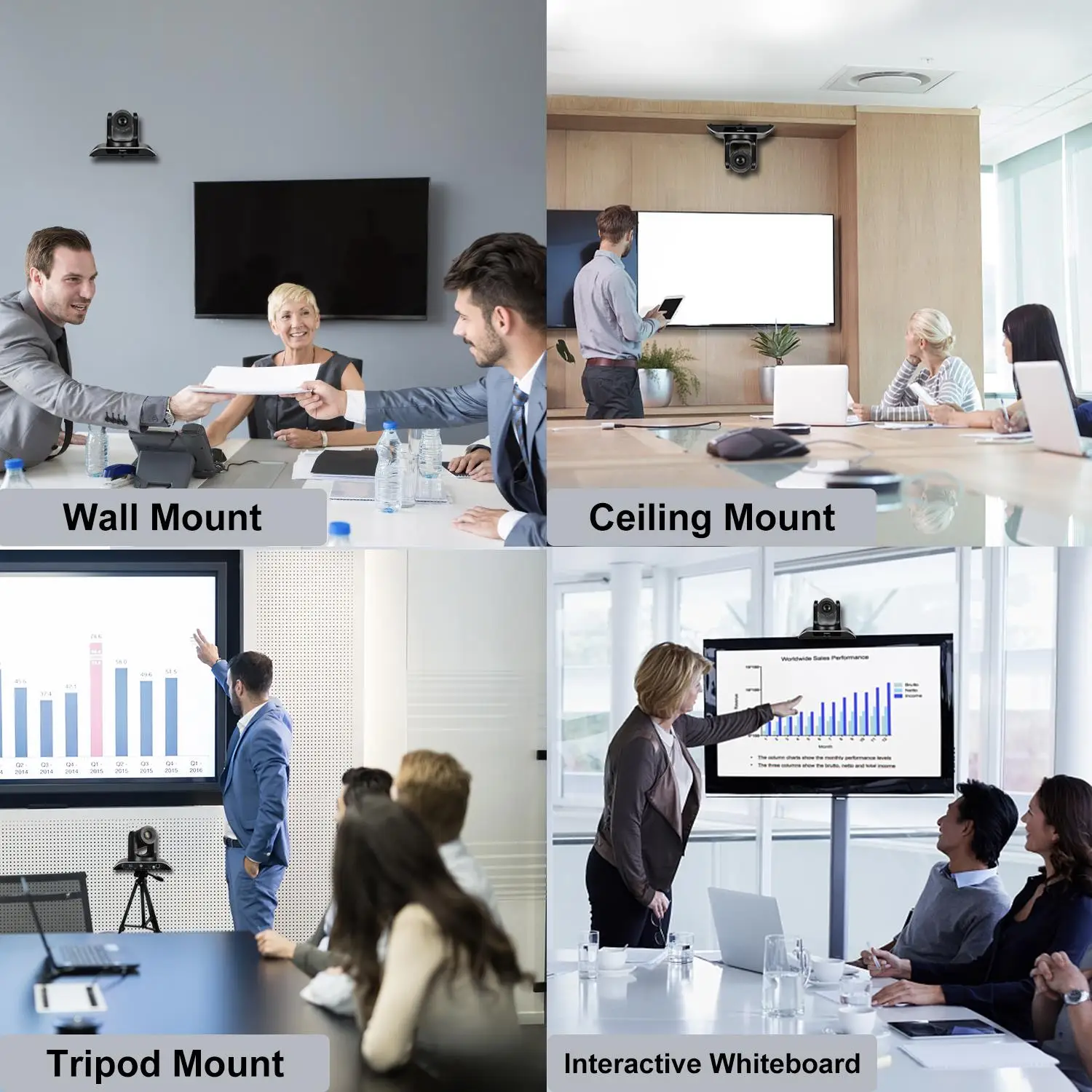

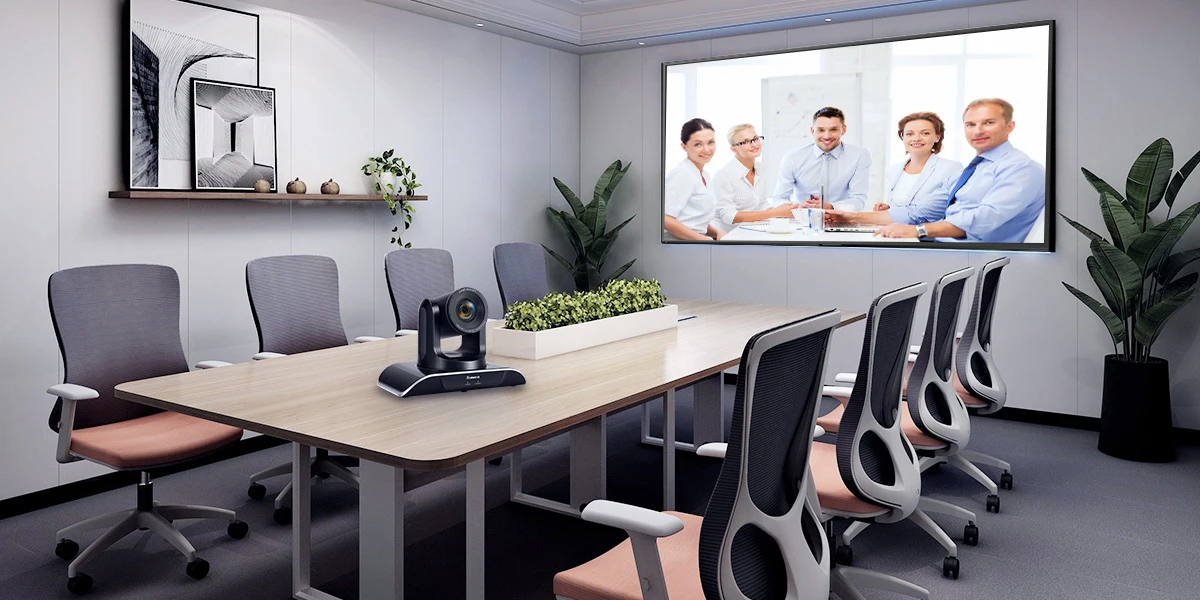

TEVO-VHD30N video conference camera can be used for video conferencing, online education, live streaming, tele-medicine, church and digital court;

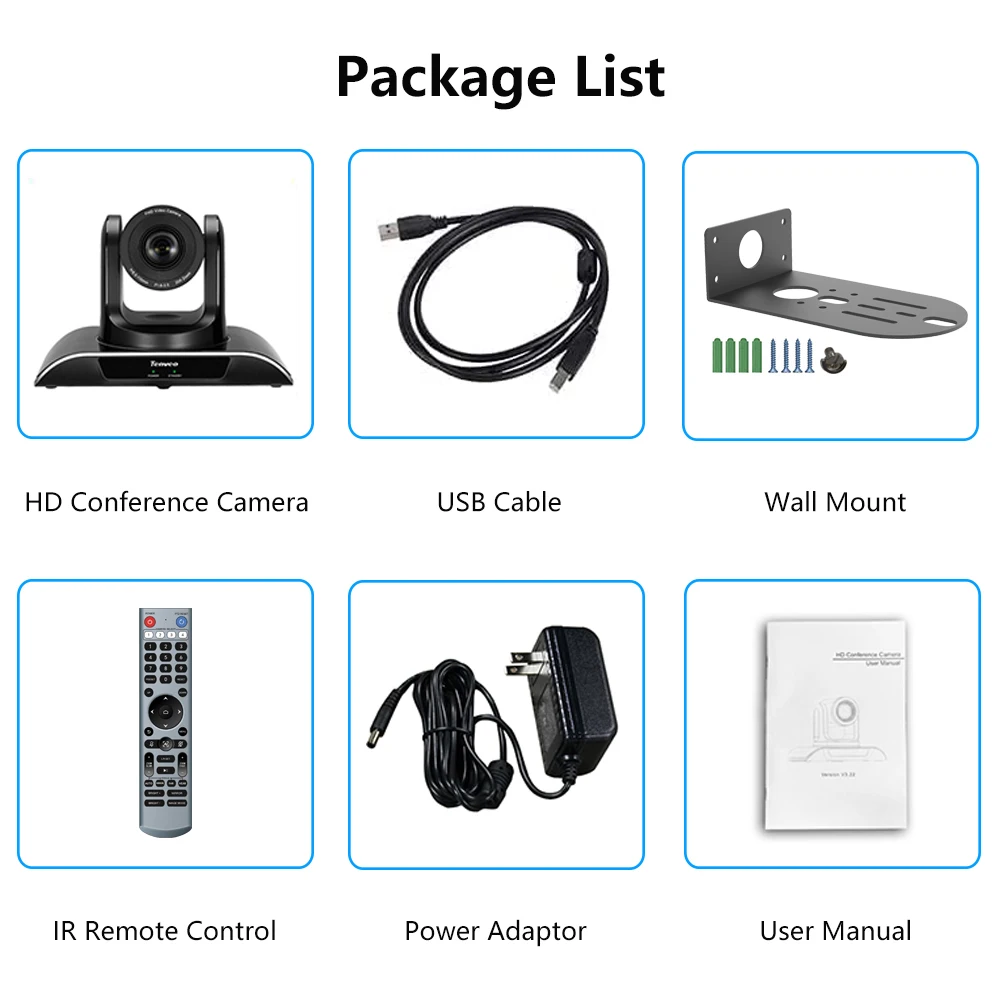

What's in box?
The VHD30N ptz conference camera carton, which included 1 pcs of 30x zoom ptz camera, 1 pcs of IR remote control, 1 pcs of USB cable, 1 pcs of User's manual, 1 pcs of wall mount, and 1 pcs of power adapter.
Recommend Products
3x/10x Video& Audio Conference Kits
UHD Series PTZ Camera
VL PoE PTZ Camera
Meeting Go 360° Conference Camera
EPTZ Webcam
with 3 Preset Positions
4K ePTZ all-in-one Webcam
Daisy Chain Speakerphone
5m pick-up range
A3000 Series Speakerphone
5m pick-up range
M3 Series Speakerphone
5m pick-up range.
Our Certificates

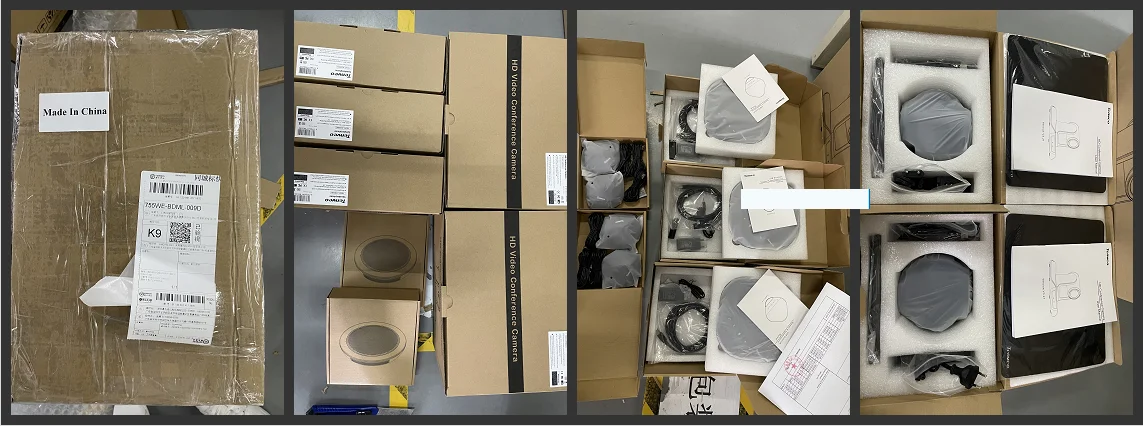

Packing & Delivery
Packing & Delivery:
1.Delivery:
For sample orders, we have products in stock; same day shipping when we get the order;
For purchase order, we will ship within 3-7 working days;
2.Packaging:
Foam packaging inside; standard carton packaging outside.
For sample orders, we have products in stock; same day shipping when we get the order;
For purchase order, we will ship within 3-7 working days;
2.Packaging:
Foam packaging inside; standard carton packaging outside.
Company Profile
We, TENVEO is focusing on developing and implicating the technology of video conferencing products,SD,HD PTZ video conference camera and omni-directional conference microphone speakers.We are professional and we have good reputation in product development, production, sales and after service. We can design produce and sale directly in order to ensure the most competitive price and excellent quality under control.All of our products are compliant with CE,FCC and ROHS standards. We have established a sound sales & service network.Offices has been set up in Shenzhen, Hongkong, Beijing, Guangzhou, Xi'an,etc.We also successfully sold our products to many foreign countries. We are sincerely to make any meeting better and easier! Welcome your OEM/ODM orders.
WHAT WE DO?
TENVEO, which is a professional Audio &Video integration and conference solution supplier, was founded in 2011. TENVEO has more than 10 years OEM/ODM/JDM experience, been focusing on Full HD, Ultra HD video camera and audio devices covering HD video conferencing PTZ camera, HD Webcam, All-in-one camera, speakerphone, etc.
TENVEO, which is a professional Audio &Video integration and conference solution supplier, was founded in 2011. TENVEO has more than 10 years OEM/ODM/JDM experience, been focusing on Full HD, Ultra HD video camera and audio devices covering HD video conferencing PTZ camera, HD Webcam, All-in-one camera, speakerphone, etc.
FAQ
01. What kind of camera and microphone should l use?
Most laptops and monitors come with built-in cameras and microphones-these work great for Tenveo software. For meeting room spaces, we have video conferencing cameras and speakerphones that are specifically designed for small huddle rooms, conference and boardrooms, and large auditorium spaces. You can check our service guide for more information on different meeting room systems.
02. ls it easy to operate?
Yes, Setting up a conference room with TENVEO doesn't require a technology degree - just connect the camera to a TV and the internet, give it power and pair it to your account to start making calls. There simply isn't a more powerful or easier-to-use video conferencing solution available.
03. Can i bring more than one person into a call at the same time?
Yes.We currently offer group calling for up to 500 different participants, which could be 500 people dialing in from their
laptops, pad or mobile phones,500 different video conferencing systems full of people or some mix of individuals and video conferencing systems depending on your preferences, there are some different layout options for how you want to view those larger group calls.
04. What is the resolution of your cameras?
We have 1920x1080p@60fps progressively output, and 1080p@30fps also 720p@30fps.
05. What is the Video Connector?
There are USB 2.0, HDMI HD-SDI, and USB Video output.
06. What is the zoom of your video conference cameras?
Support fixed focus, 3x 10X, 20X,30X optical zoom.
07. How to control this Camera?
There are RS232, RS485 PTZ Control, and also support VISCA PELCO-P, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.
Most laptops and monitors come with built-in cameras and microphones-these work great for Tenveo software. For meeting room spaces, we have video conferencing cameras and speakerphones that are specifically designed for small huddle rooms, conference and boardrooms, and large auditorium spaces. You can check our service guide for more information on different meeting room systems.
02. ls it easy to operate?
Yes, Setting up a conference room with TENVEO doesn't require a technology degree - just connect the camera to a TV and the internet, give it power and pair it to your account to start making calls. There simply isn't a more powerful or easier-to-use video conferencing solution available.
03. Can i bring more than one person into a call at the same time?
Yes.We currently offer group calling for up to 500 different participants, which could be 500 people dialing in from their
laptops, pad or mobile phones,500 different video conferencing systems full of people or some mix of individuals and video conferencing systems depending on your preferences, there are some different layout options for how you want to view those larger group calls.
04. What is the resolution of your cameras?
We have 1920x1080p@60fps progressively output, and 1080p@30fps also 720p@30fps.
05. What is the Video Connector?
There are USB 2.0, HDMI HD-SDI, and USB Video output.
06. What is the zoom of your video conference cameras?
Support fixed focus, 3x 10X, 20X,30X optical zoom.
07. How to control this Camera?
There are RS232, RS485 PTZ Control, and also support VISCA PELCO-P, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.
