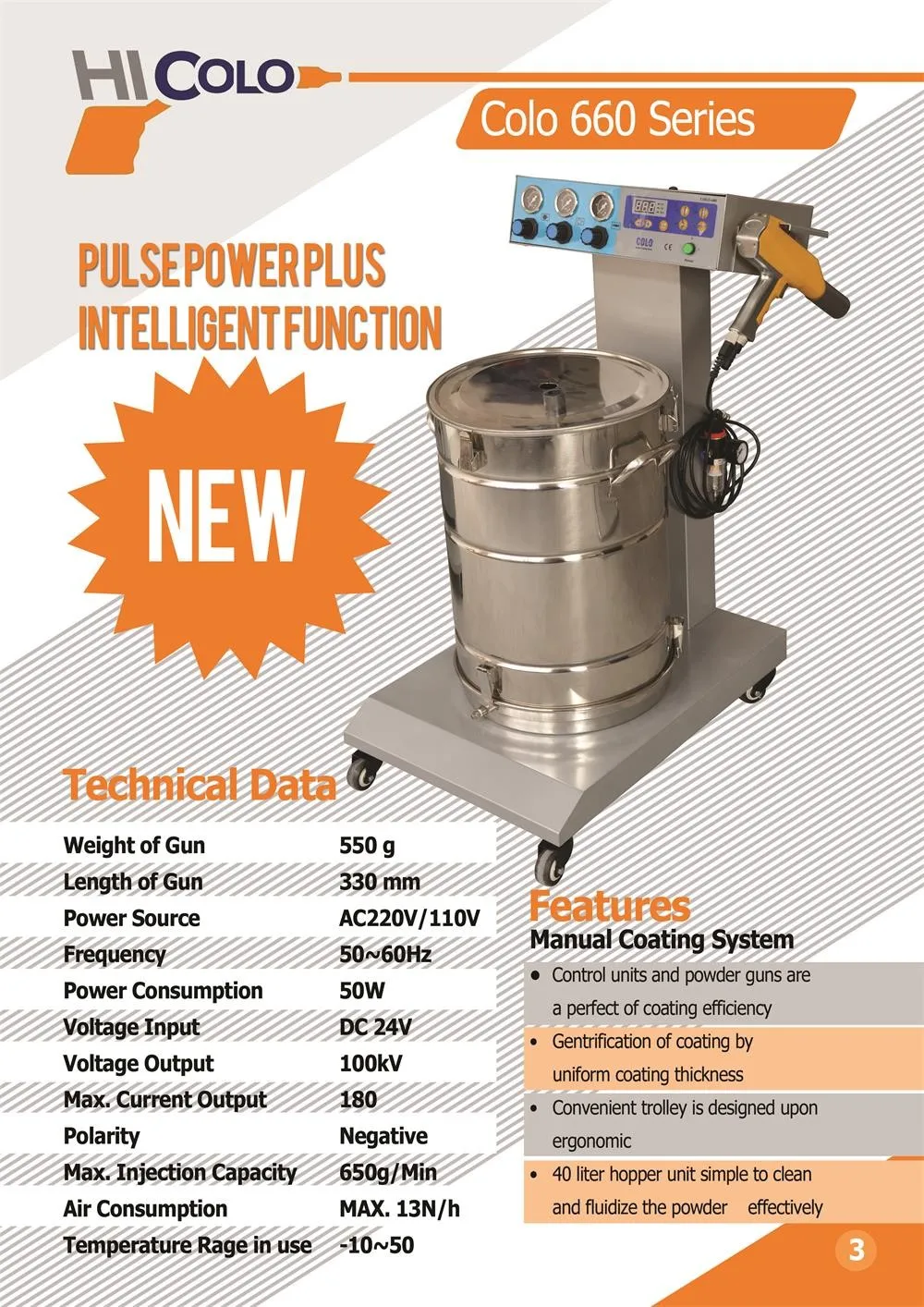

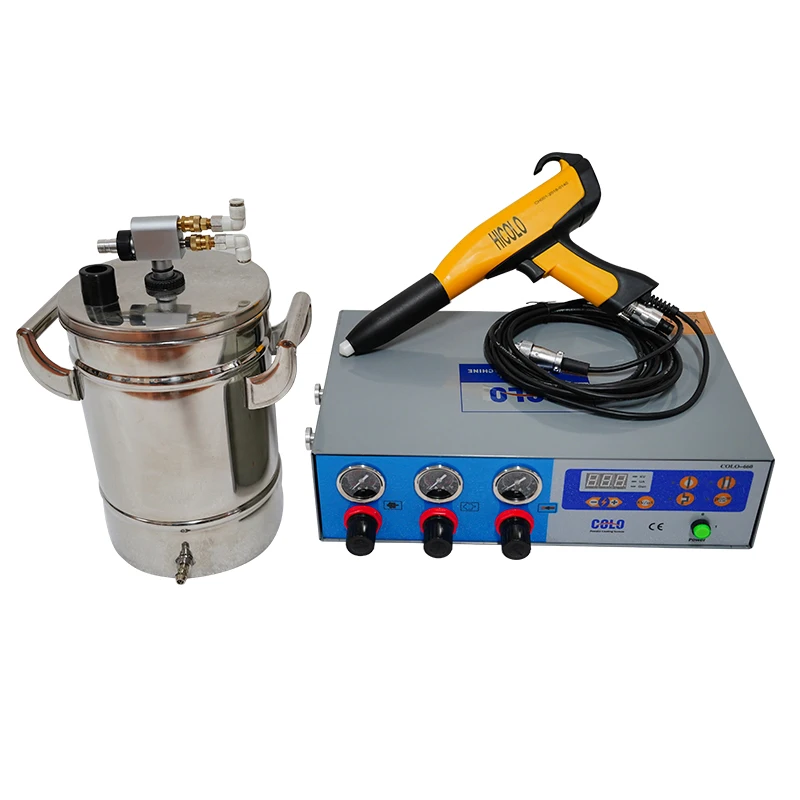

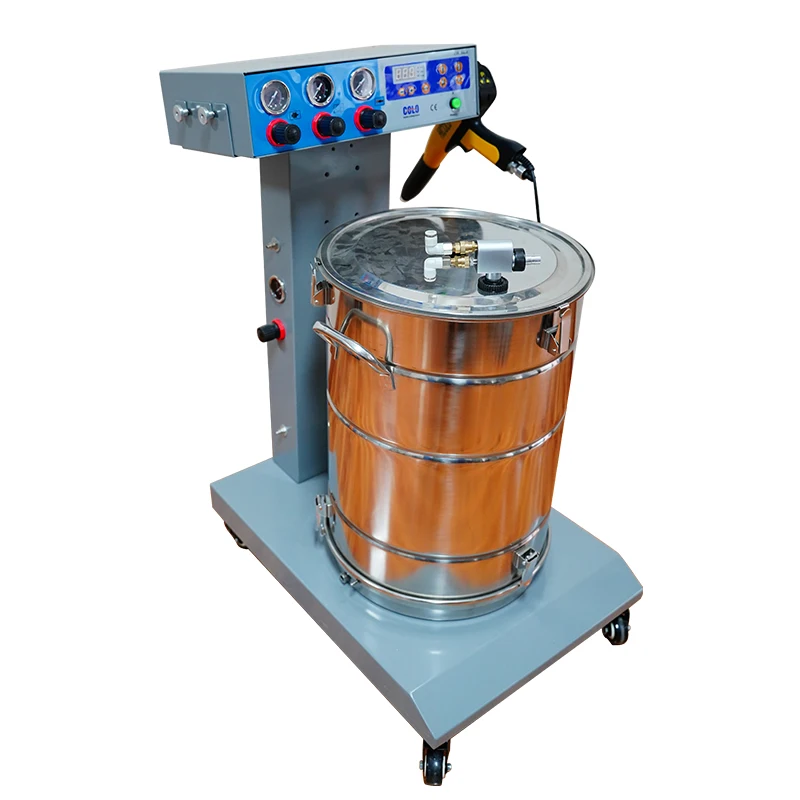

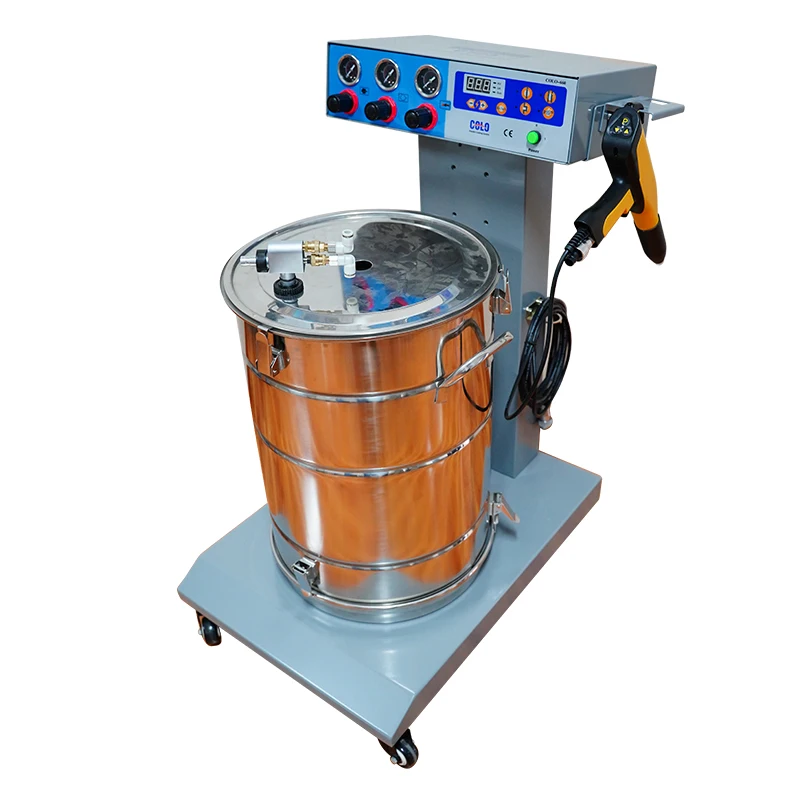

COLO-660 Electrostatic Powder Manual Coating Equipment,is designed exclusively for electrostatic coating with powder.
Typical characteristics:
1,Control unit has one-touch intelligent operation button good for flat parts, complicated parts and recoat parts.Easy to operate.
2,suitable for the coating of every workpiece. simple, flat workpieces;workpieces with complicated shapes; the over-coating of workpieces which are already coated.
SPECIFICATIONS FOR CL-191S POWDER COATING MACHINE
Power requirement
Input frequency:
HZ
50HZ / 60
Input voltage
V
Single phase 100-240
Power capacity
KW
0.05
Mechanical installation instruction:
Temperature:
℃
Max.+50 Min.-10
Travel speed (max. & min.)
°
<=50m/min
Max. KV
100
Electrostatic powder coating machine Main Features
Pulse coating system
1). Save powder by 20% compare to Electrostatic Coating ,for the average thickness of our products is 60 μm compare to 70 μm of the latter.
2). Can coat the objects' deepest corner by charging the powder continuously with low current and high voltage.
3). Can reduce orange peel effect significantly compare to common Electrostatic Coating machine .\\
Configuration:
A control unit power supply cable
- A air filter
- A air pressure regulator
- A fluidized powder hopper
- A plug-in injector
- An manual powder gun with gun cable, powder
hose, rinsing air hose and standard nozzle set.
- Pneumatic hoses for conveying air (red), supplementary
air (black) and fluidizing air (black)
powder hose
Ground wire
Certifications
other models
Lab model
is the perfect solution for laboratory powder coating applications. Designed for short runs, the Lab Unit features a Dia 20cm ,Height 30cm or 40cm fluidizing powder hopper and is easily cleaned between color changes.
box feed model
is good for quick and easy color changes,It is designed to use the powder manufacturer's original carton. An inclined vibration table allows complete emptying of the powder box via the fluidized suction tube.
Automatic powder coating model
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to install machinery overseas.
Packing & Delivery
Packaging
Size
69 (L) * 56(W) * 52 (D)
Weight
300kgs
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
