vegetablet hot air dryer/bin box drying food dehydration machines maker

Product Overview

Description





Main features of the bin dryer

The advanges of bin dryer is easy operation, wide applications, economical price level, easpecially suitable for multiple products processing, and it is normally used for the final drying section for belt dryer equipment!

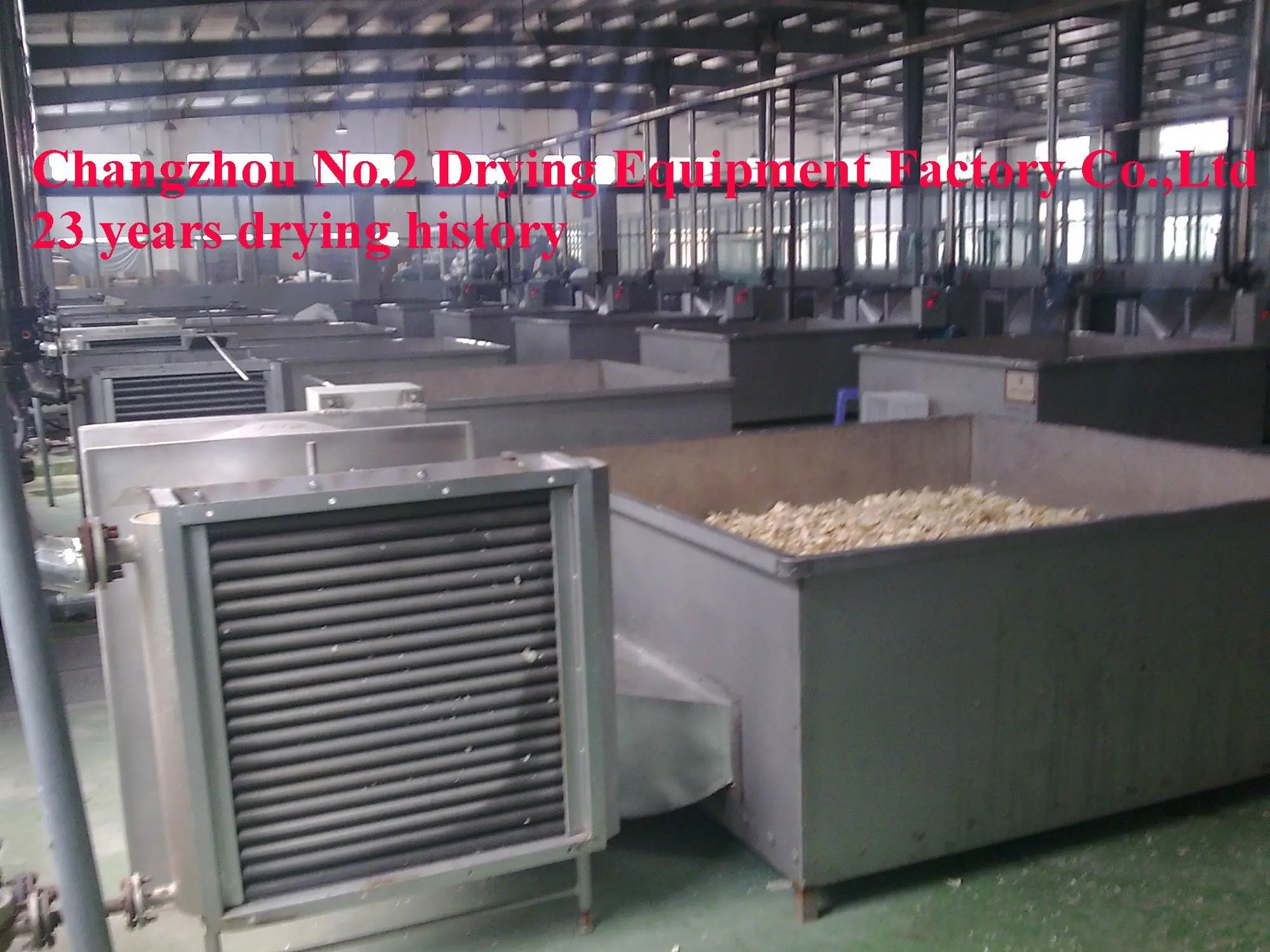

The bin dryer ca be used as single machine, also it can be installed in lines for big production.





Application

The most important characteristics of box dryer are easy operation,good flexibility and wide application.It can process in large quantity,also can be used for small capacity,and can process many varieties simultaneously.It is very suitable for drying products with high sugar content,such as glucose-add carrot cube and crushed cabbage;also suitable for viscous products such as kelp.This series dryer is very easy to clean and maintenance,and fully complies with the hygienic requirement for export.





Main technical parameter for HGX-Z Steam-consumption bin dryer

Dimenstion: 3.6*2.0*1.59(Length*width*height, meter)

Blower, 1 set, air volum: 9700M3/H, air pressure: 774Pa,

Power: 4Kw

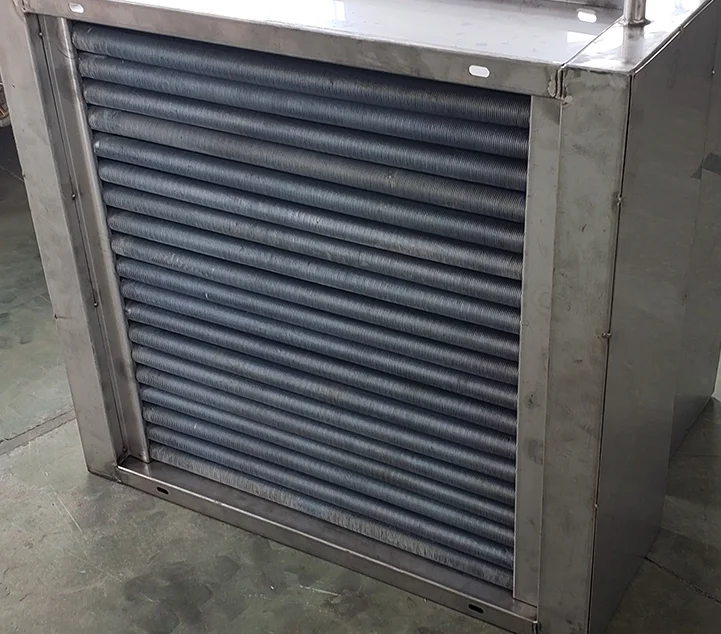

Radiator: 1 set

Steam consumption: 150~200kg/h

Drying area: 4M2

Drying capacity: 250kg /batch (wet material)



Main technical parameter for HGX-E electricity-consumption bin dryer

Dimenstion: 3.6*2.0*1.59(Length*width*height, meter)

Blower, 1 set, air volum: 9700M3/H,

Power: 60Kw

Radiator: 1 set

Heating source: electricity

Drying area: 4M2

Drying capacity: 250kg/batch (fresh material)
