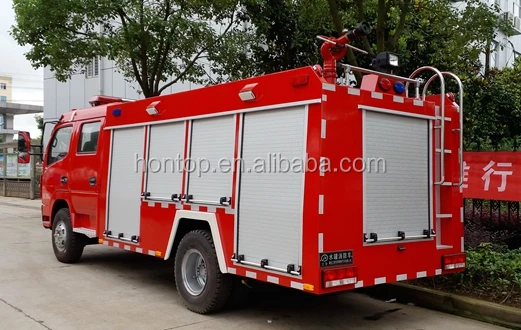

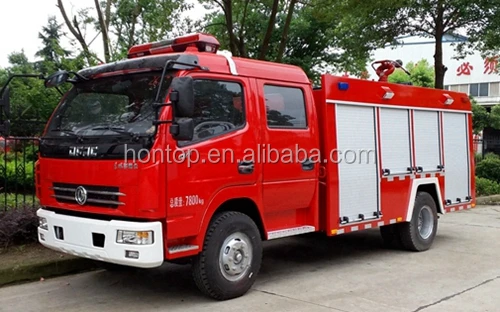

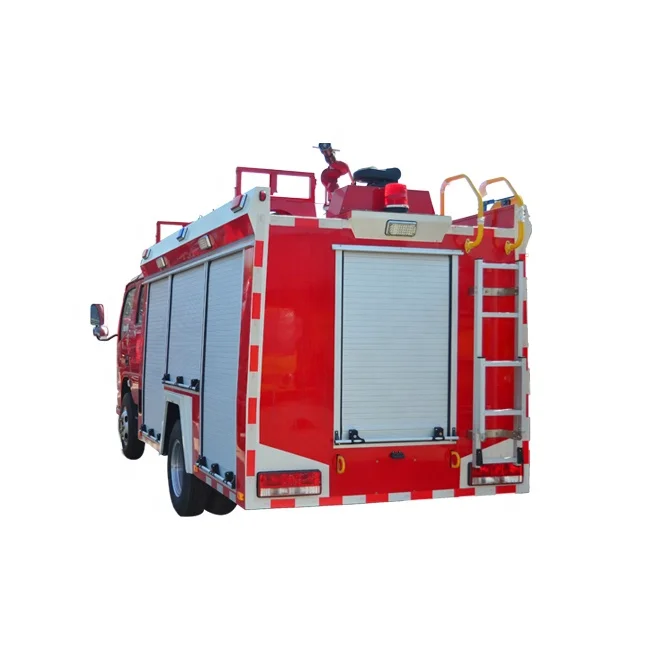

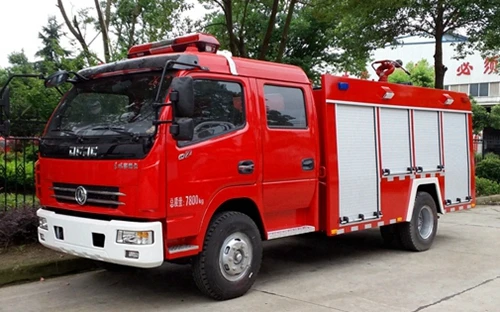

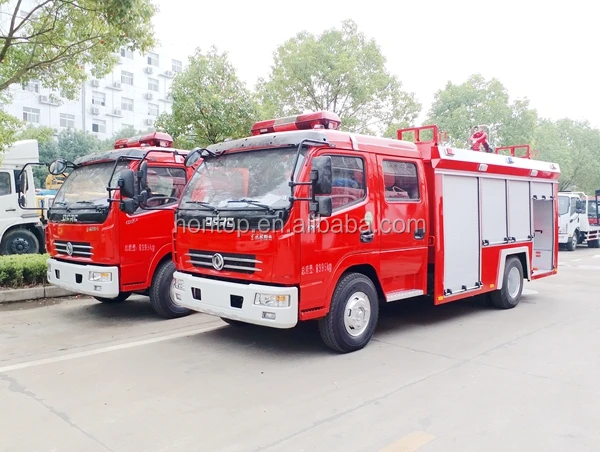

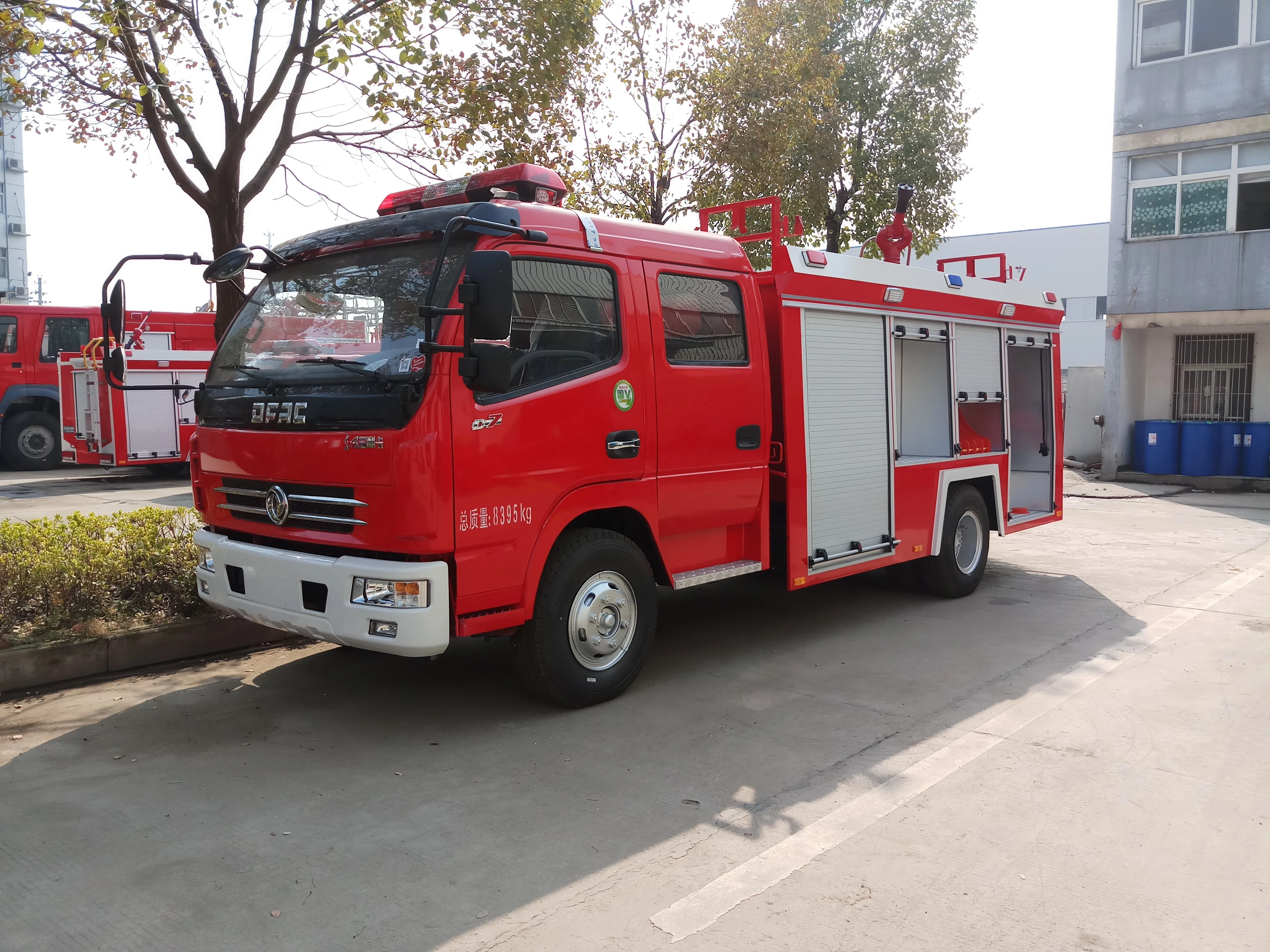

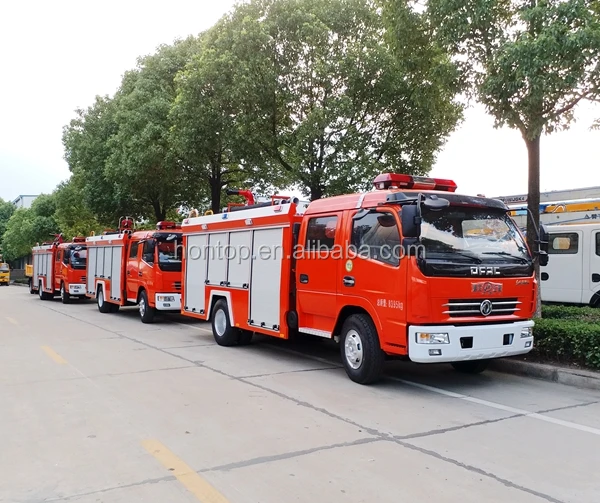

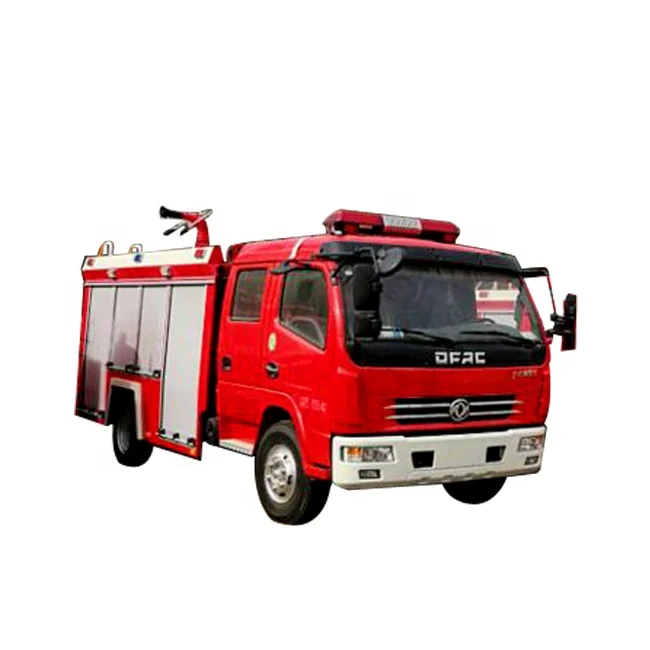

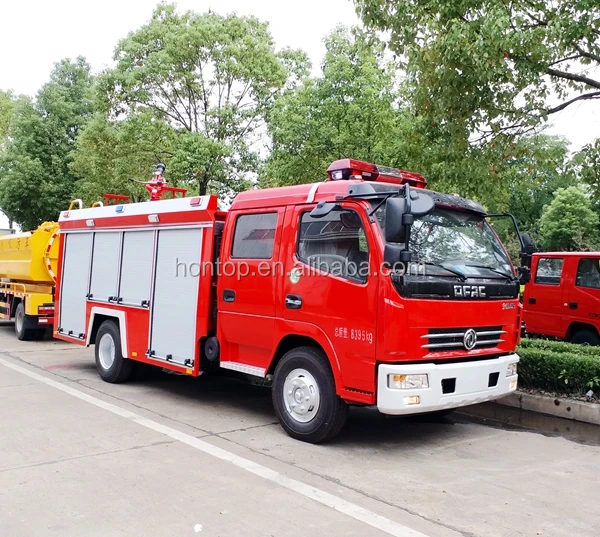

4 CBM DongFeng water tank fire truck

Share on (62201729052):


Price:$27,900.00 - $33,900.00

Quantity:


Product Overview

Description


Product Description

4X2 wheelbase 3800mm 156hp dongfeng 4000liters fire truck,Dongfeng dorica 4.0 tons of dongfeng automobile corporation share tank truck as suits the four standard second class chassis, with a powerful, chassis, solid and durable, strong maneuverability, spraying range far and other advantages and characteristics, from the natural water and fire hydrant water directly, to other fire trucks and fire water supply equipment, can also be used to water supply shortage region, suitable to put out a fire in general, is the industrial enterprises, petrochemical industry, port forest fire brigade, enterprises and institutions and the fire officers and soldiers fire fighting and rescue fire fighting vehicles.







1.Chassis

Chassis model

EQ1090T9ADJ3AC

Drive Type

4x2

Whelbase

3800mm

Top Speed

95km/h

Engine Type

CY4102-E3C(diesel)(Euro 3)

 Power

85kW



 2.Driving room

Size(L*w*H)

6840X2190X3010

Structure

Flat head, four door double row cab

Seat set

3+2(Two people in the front row (including the driver) and three in the back)

Equipment

In addition to the original vehicle equipment, it is equipped with 100W alarm, rotary warning light switch, lever control switch and indicator light



3.Volume of tank

Volume

water:3500-5000L

Material

High quality carbon steel plate

Structure

Steel plate welded type, internal anti - swash plate

Equipment

 1 population hole, with a quick locking and opening device
 1 overflow device
 1 level indicator
 2 outlet, manual control valve

Technical requirements

Comply with the relevant provisions of GA39



4.Fire pump

Model

CB10/30

Flow

30L/s

pressure

1.0Mpa

Water diversion time

≤35s

Type of installation

rear-mounted



5.fire monitor

Model

PS30W

Flow

30L/s

Range

 more than 50m.

pressure

 1.0Mpa

Turning Angle

 The level is greater than 270 degrees, and the pitch is -15 to 45 degrees.






Dongfeng 3.5 tons of tank truck by dongfeng company production of dongfeng new dolly and kay put chassis, seiko create and has the advantages of novel design, powerful, fast fuel-efficient, maneuverability is strong, the spraying range far, such outstanding advantages as strong combat effectiveness of fire extinguishing vehicles, is the city fire, factories and mines enterprises, petrochemical industry, port and forest fire officers and soldiers of choice for fire fighting and rescue fire fighting equipment.

Fire pump: atmospheric pump model: cb10/30 vehicle fire truck pump flow: 30 L/S pressure: 1.0Mpa



Fire gun: tank fire truck model: SP30 fire water gun flow rate :30L/S/ 1.0mpa water range: ≥50m

Foam fire truck model: PL24 dual-purpose fire gun flow: 24L/S/1.0Mpa water range: ≥45m foam range: ≥ 40m




Hubei Hontop Special Vehicle Co., LTD. is a leading special vehicle enterprise integrating R&D, manufacturing, sales and service of high-quality special vehicle in China.We can provide trucks and trailers with best quality and competitive price.


1. Top quality products

2. OEM support

3. Low MOQ

4. 1 year warranty

5. After-sale service

6. 24hrs online for you

7. Fast delivery
