Fastest industrial delta robot spider robot

Product Overview

Description



Fastest delta robot industrial spider robot,

delta robot, spider robot,

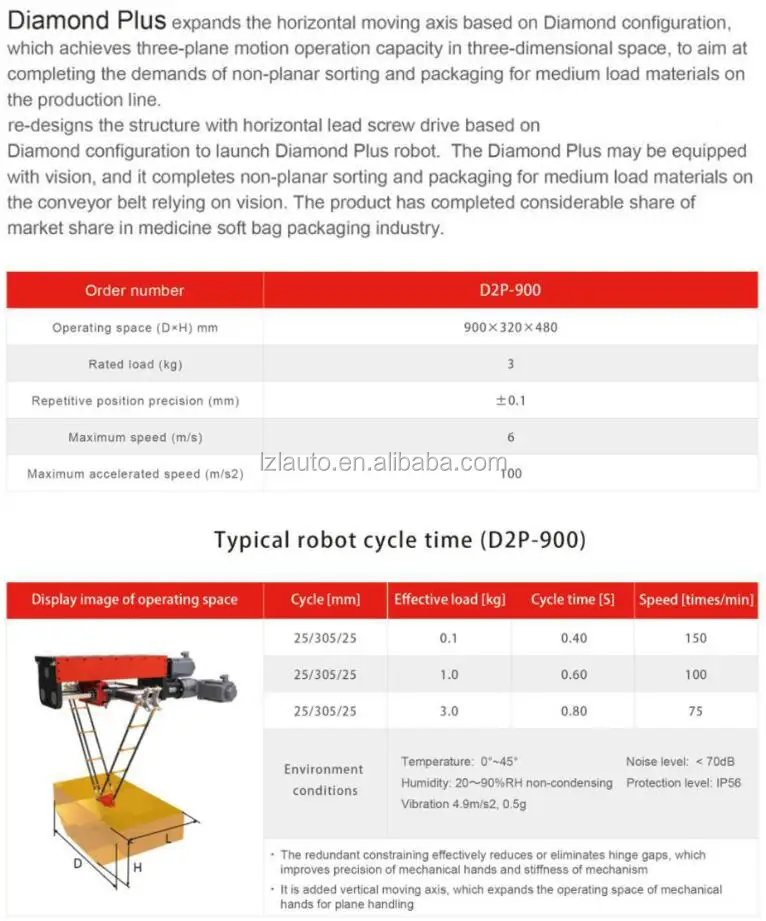

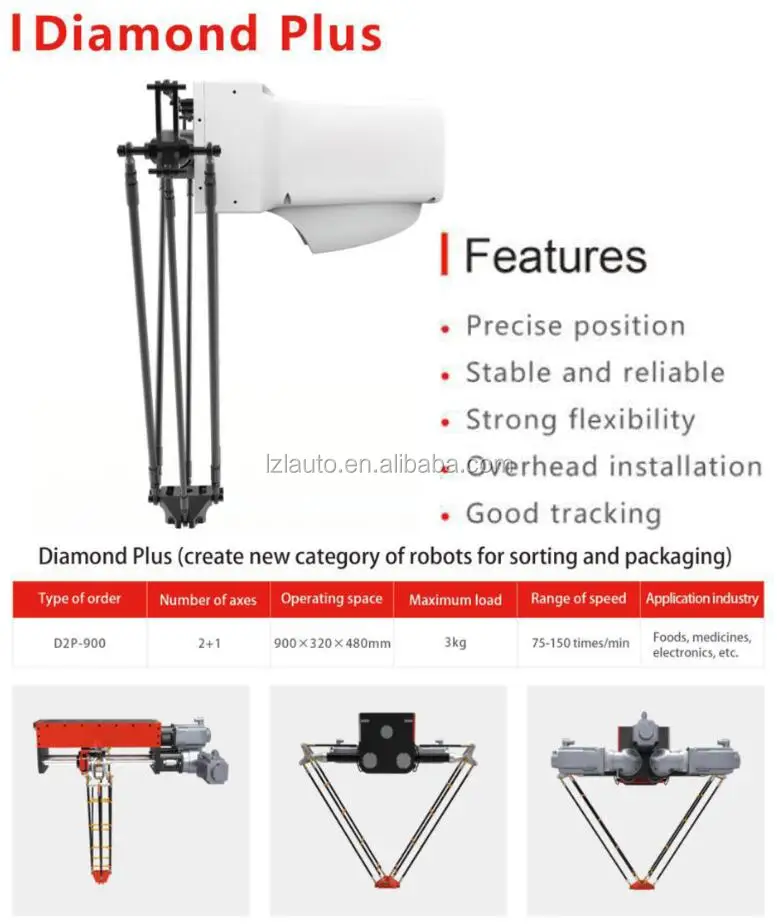

Diamond+ (Diamond Plus) expands the horizontal moving axis based on the diamond configuration to achieve three-dimensional three-level working ability, which is designed to meet the non-planar sorting packaging requirements of medium-sized load materials on the production line.

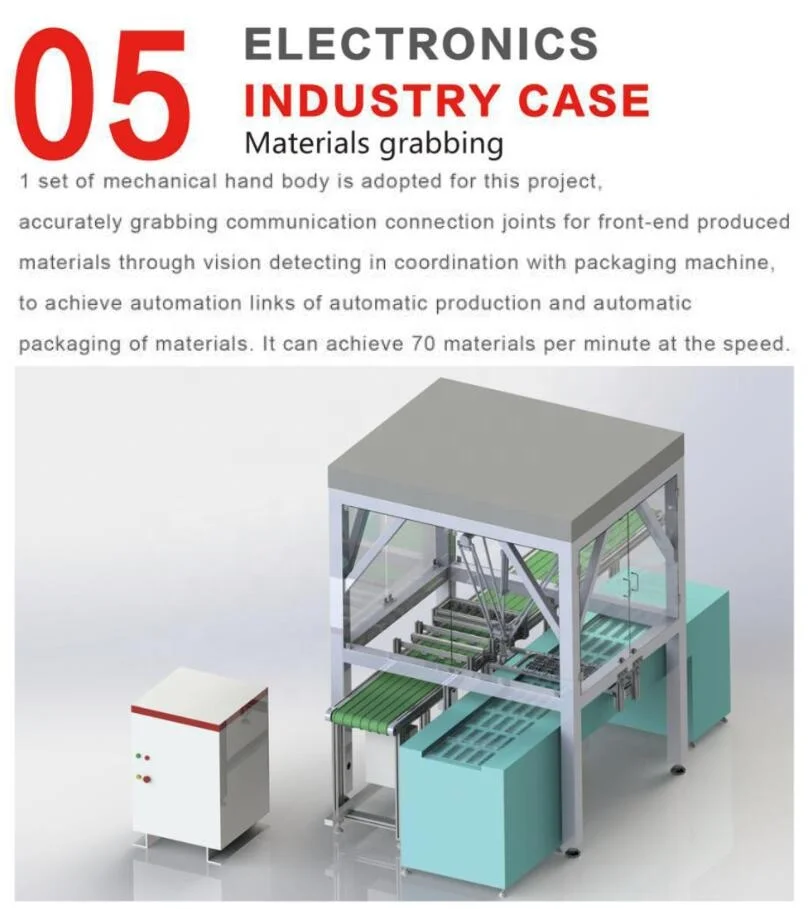

The large number, variety and fast update of electronic products enable the Diamond Plus robot to be easily integrated into mechanical equipment and production lines. The positioning is accurate, stable and reliable, and the flexibility is fully utilized.

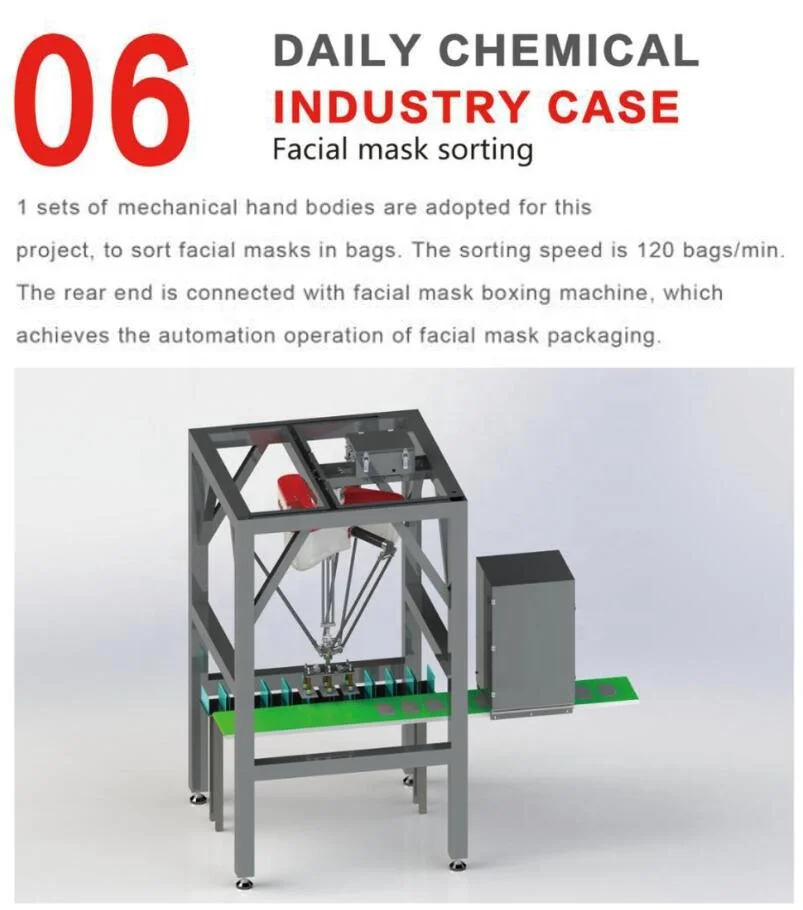

Diamond Plus robots are accurate, stable and reliable, and have excellent adaptability to modern and flexible daily chemical production. They can be easily integrated into mechanical equipment according to production requirements.

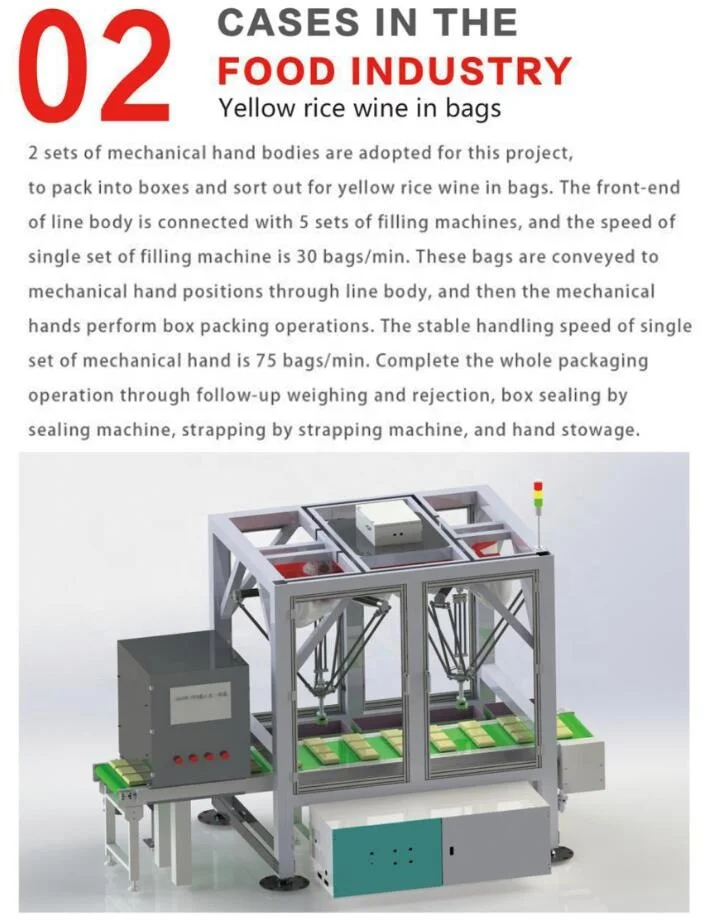

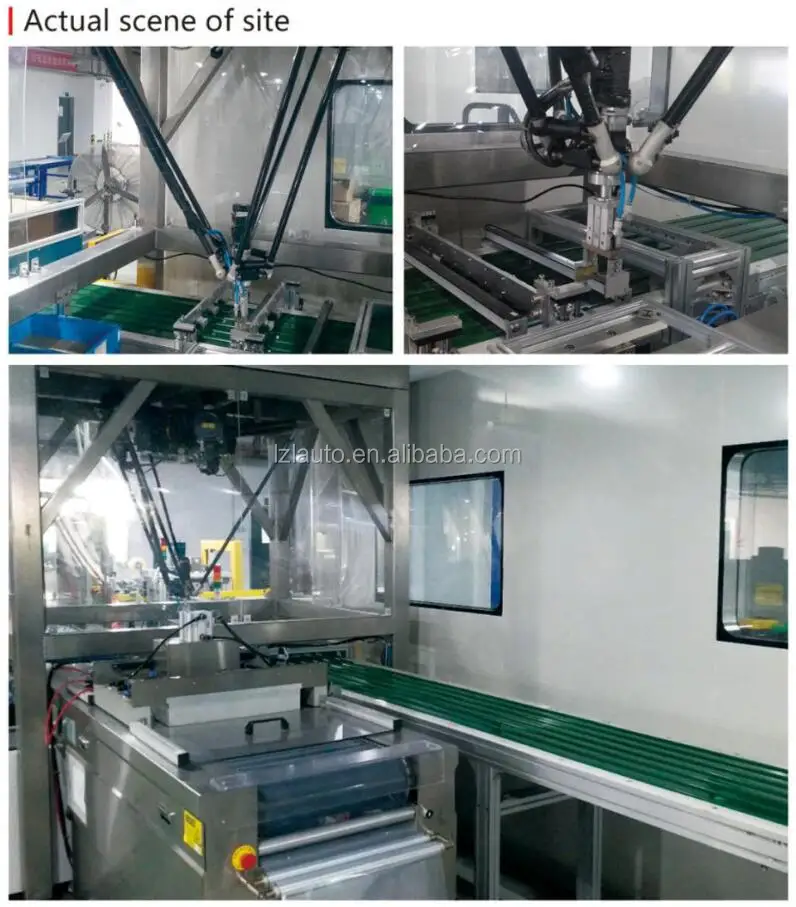

In the food industry, there are a large number of light and small materials sorting and packaging operations environment, our robot team to solve the situation, replacing the large amount of repetitive work of the field workers.

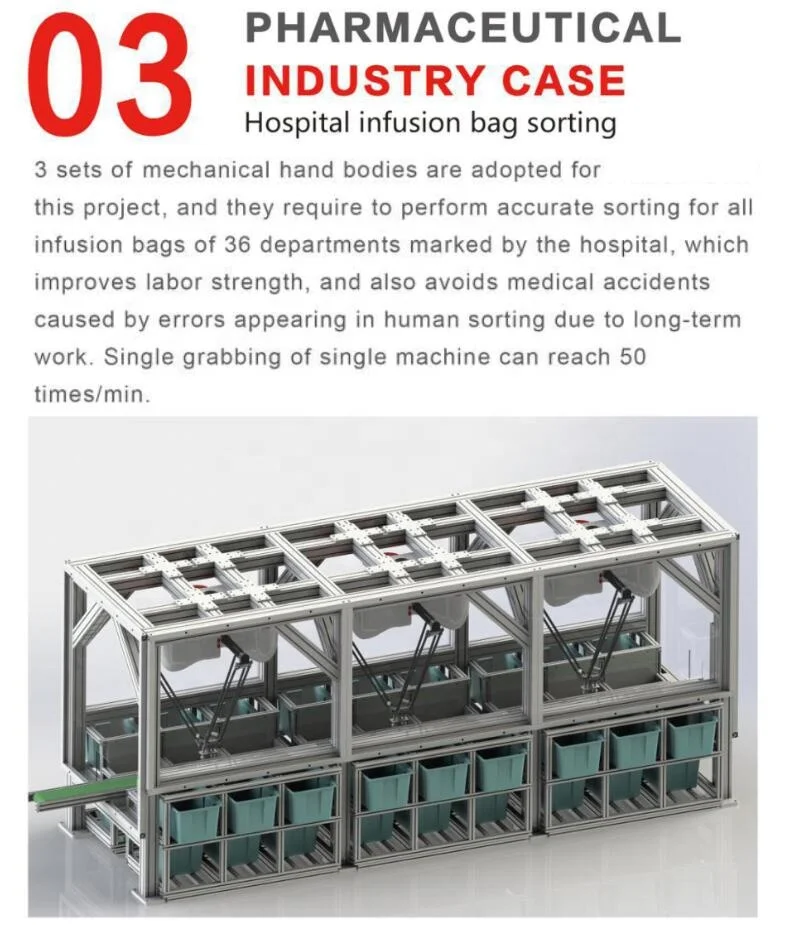

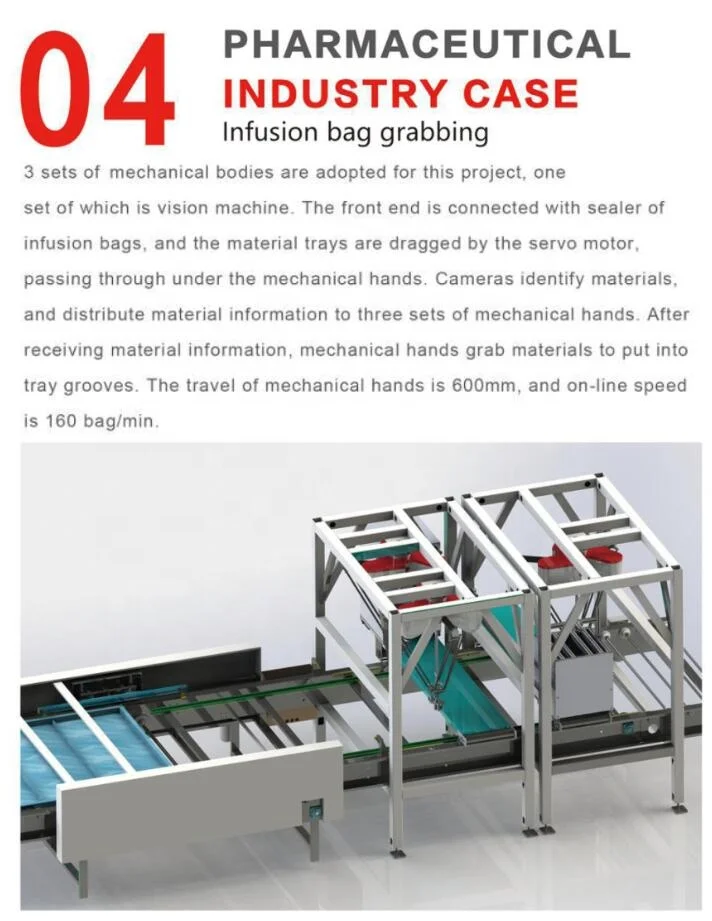

Our robotics team focuses on the packaging needs of light-loaded materials, and has achieved a significant share of manufacturing in the pharmaceutical industry. Astro Boy offers a cleaner and more efficient production option.

This kind of robot is widely used in the electronics industry, daily chemical industry, food industry, pharmaceutical industry.

Robot electrical configuration list

No.	Elements name	Model	Brand	Country
1	Servo motor (main motor)	TSM1308N	Tamagawa	Japan
2	Servo motor (intermediate motor)	TS4603N	Tamagawa	Japan
3	Servo drive (main motor)	CDR4-A15	tsino-dynatron	China
4	Servo drive (intermediate motor)	CDR4-A15	tsino-dynatron	China
5	Reducer (main motor)	VRB115	donlim	Japan
6	Reducer (middle)	HPN-11A-16	Harmonic	Japan
7	Control System	CP263A	KEBA	Austria
8	visual system	ACA1300-30GC	Basler	Germany
9	Touch screen (one machine)	L530CTM	langgesi	China



Remarks:

1. The robot has a variety of configuration options to choose from. This table only lists common specifications and is for reference only.

2. The specific configuration can be customized according to customer requirements. If there is no special requirement, the supplier will arrange the specific configuration;
