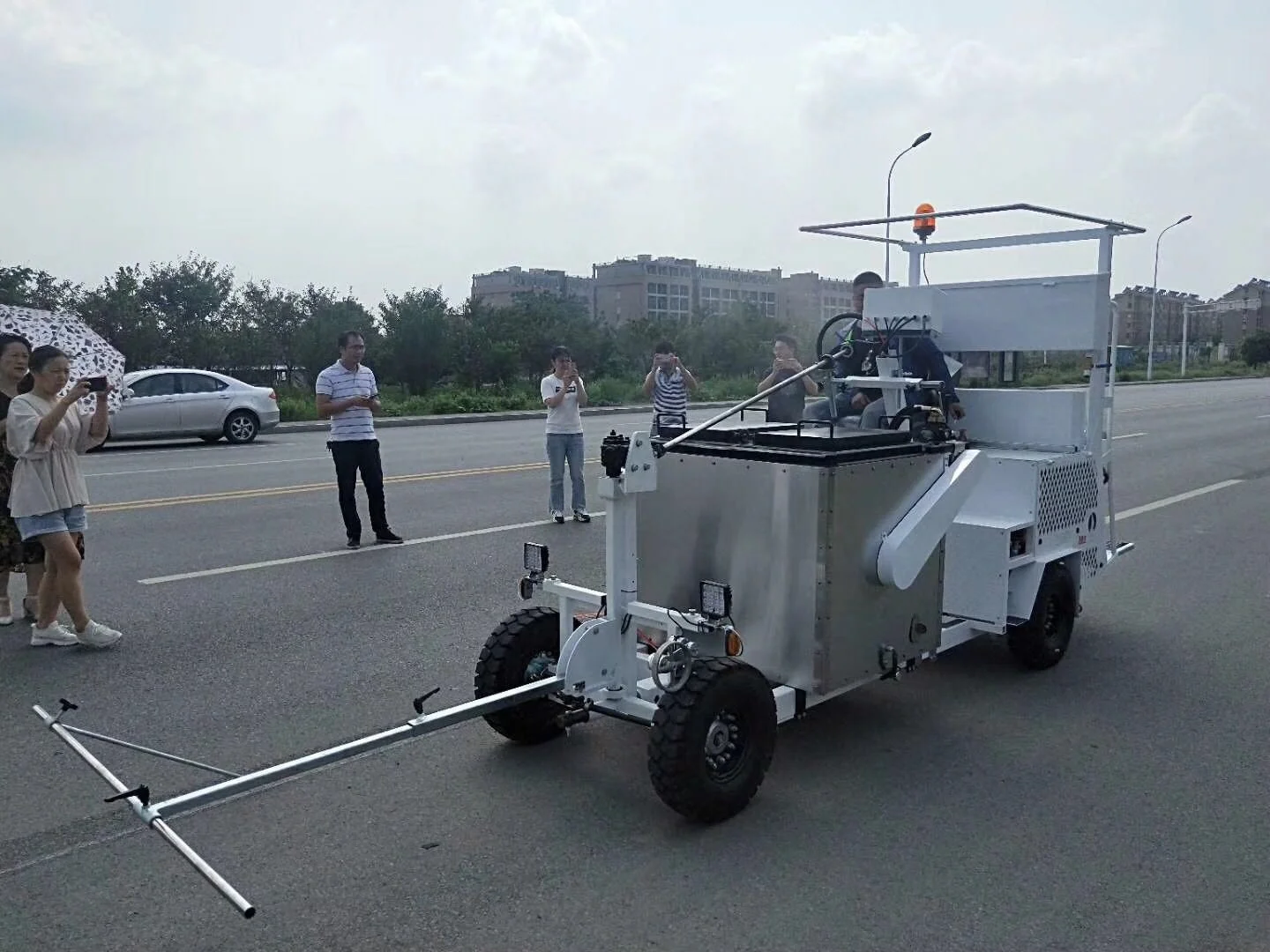

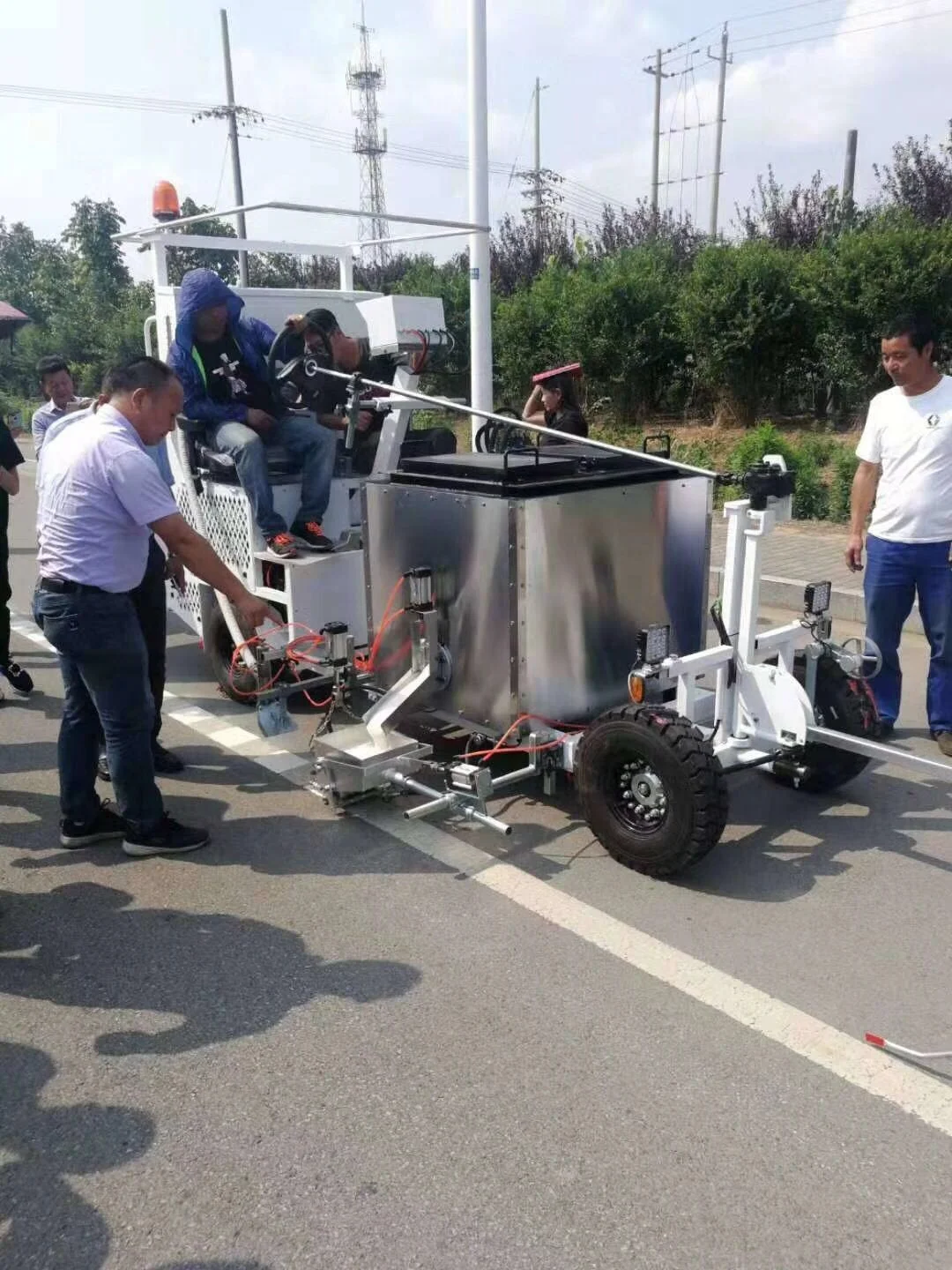

LXD-618 driving type thermoplastic road marking machine for flat line&convex line
Technical Data
Engine 25kw, speed 2600 r / min
Diesel fuel Diesel, capacity 0.054m³
Electronic system LXD electronic control system
Steering Powerful standard mechanical steering system according to the requirements mentioned
Drive / braking system Hydrostatic transmission, also used as service brake, parking brake hydraulically controlled multi-disc brake
Wheel 6.00-9NHS * 4
Compressor 0.12m³ / min
Working pressure 7bar, Silent safety valve
Power Systems 12V
Thermoplastic container 0.39m³, with hydraulic agitator
(According to customer requirements)
Heating method Gas heating
Additional equipment Available with 15.20.30.40cm scraper, oscillating bucket (customized as required)
Discharge Pneumatic Opening/closure,with pedal controls
Glass beads Equipment Spraying, adjustable pressure
Glass beads Tank Capacity: 0.07m³
Retain the right to modify Technology
