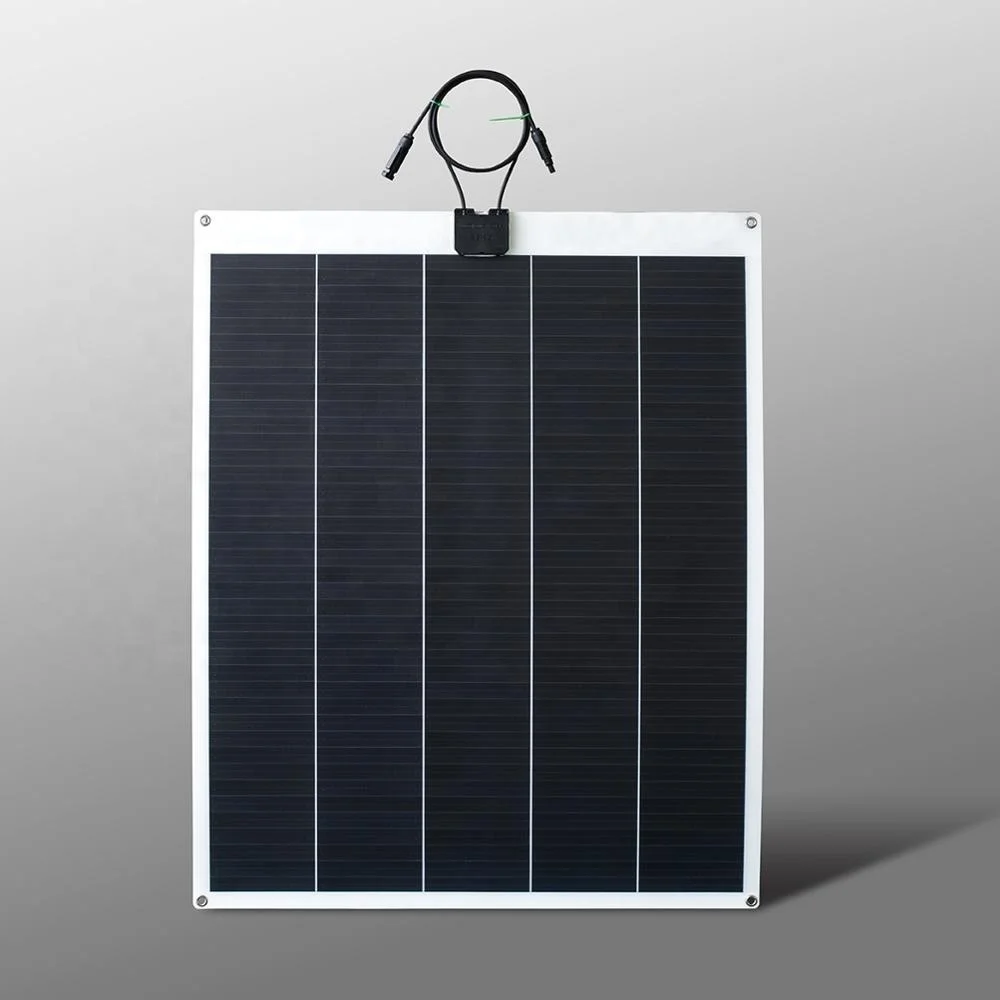

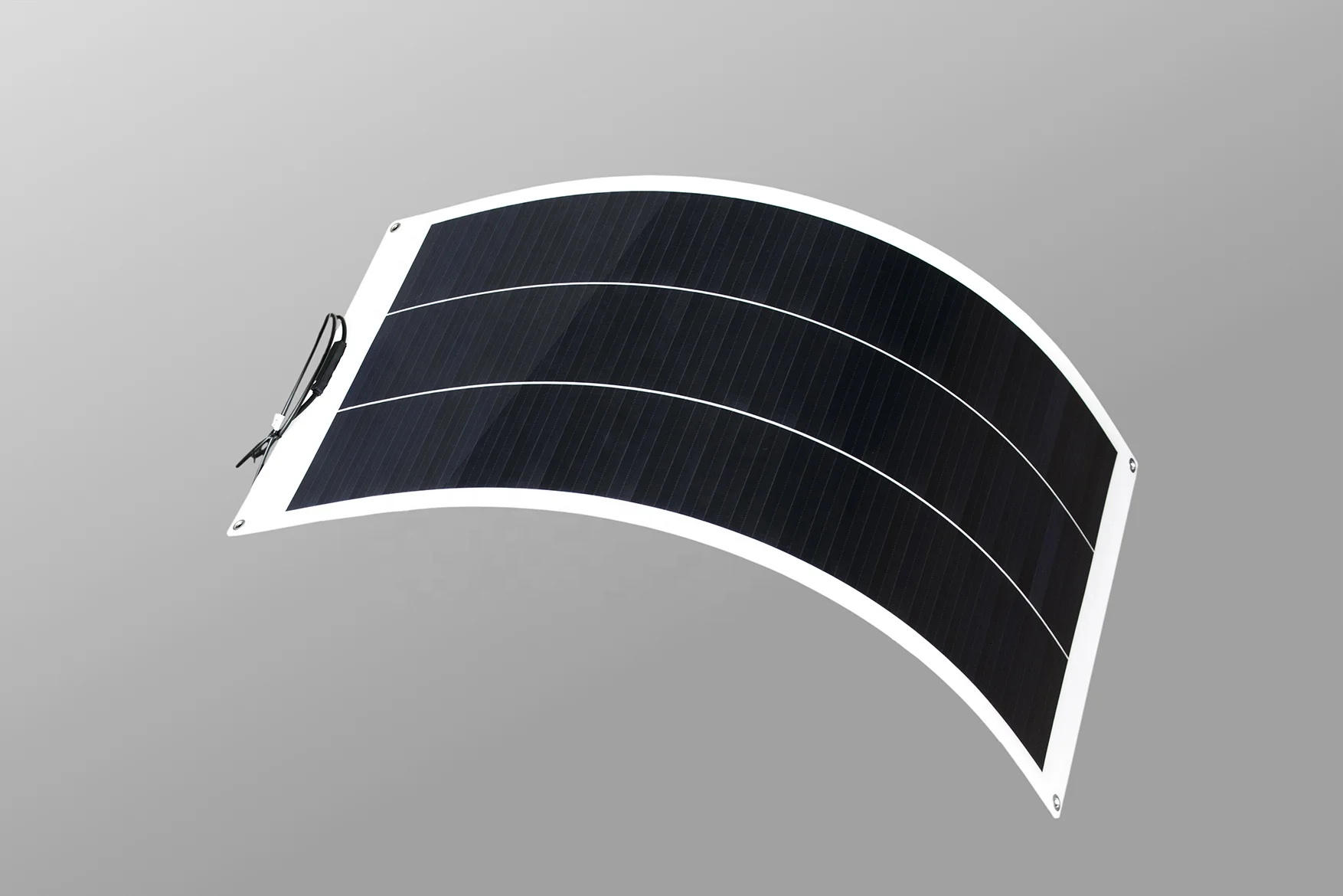

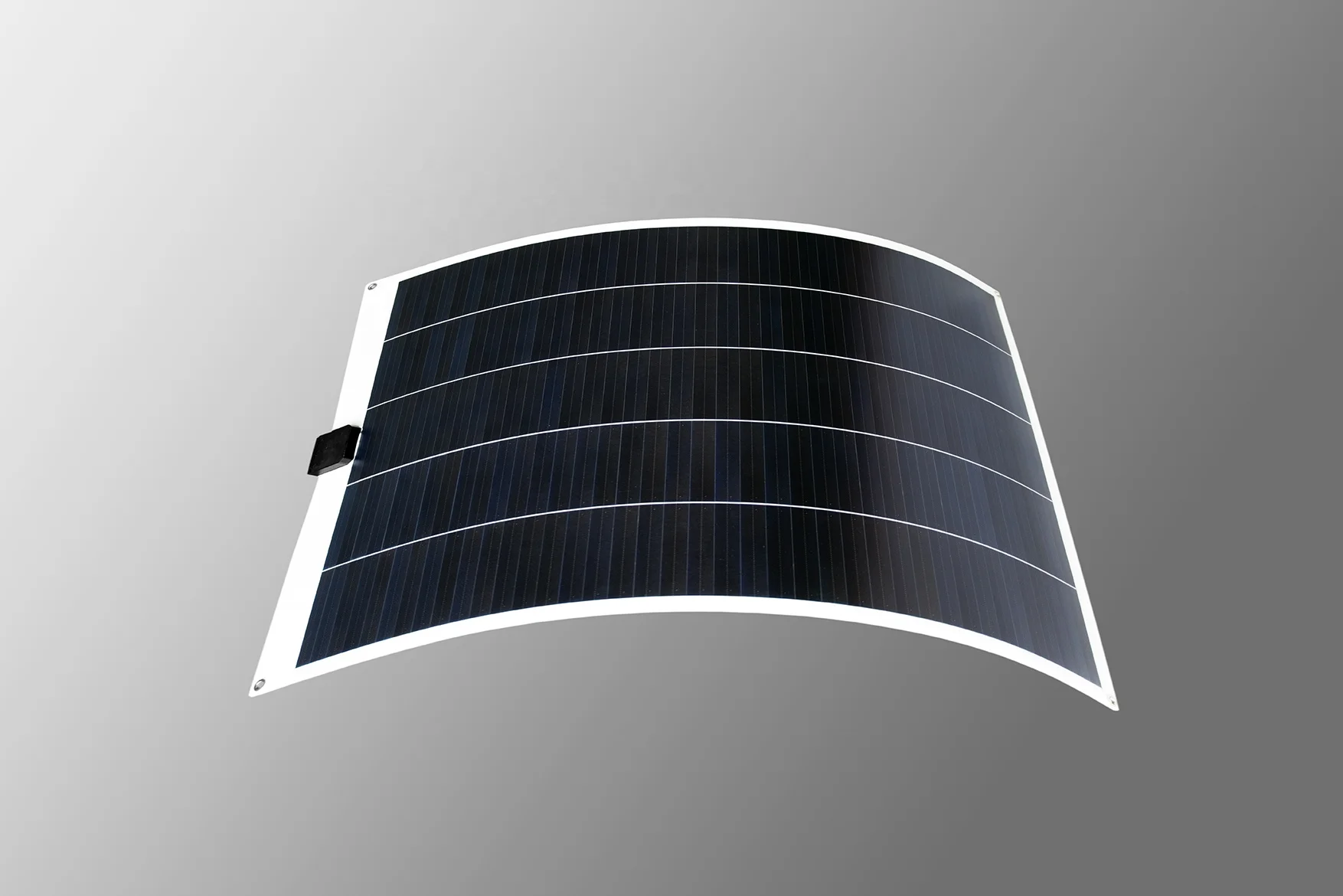

Semi flexible solar panel 300W,200W,185W for RV, boat,caravan,motorhome
- Category: >>>
- Supplier: Raygleam New Energy Technologies Co. Ltd.
Share on (62202021823):
Product Overview
Description
Products Description
Raygleam Flexible panel use unique shingled cells technology. The panel made with conducting resin paste without ribbon to
minimizes the optical and resistive losses, improve mechanical load to flexing over 30 degrees, and are able to withstand harsh
weather conditions and are almost impervious to corrosion.
minimizes the optical and resistive losses, improve mechanical load to flexing over 30 degrees, and are able to withstand harsh
weather conditions and are almost impervious to corrosion.
Key Features
★ The latest Shingled PERC solar cells technology.

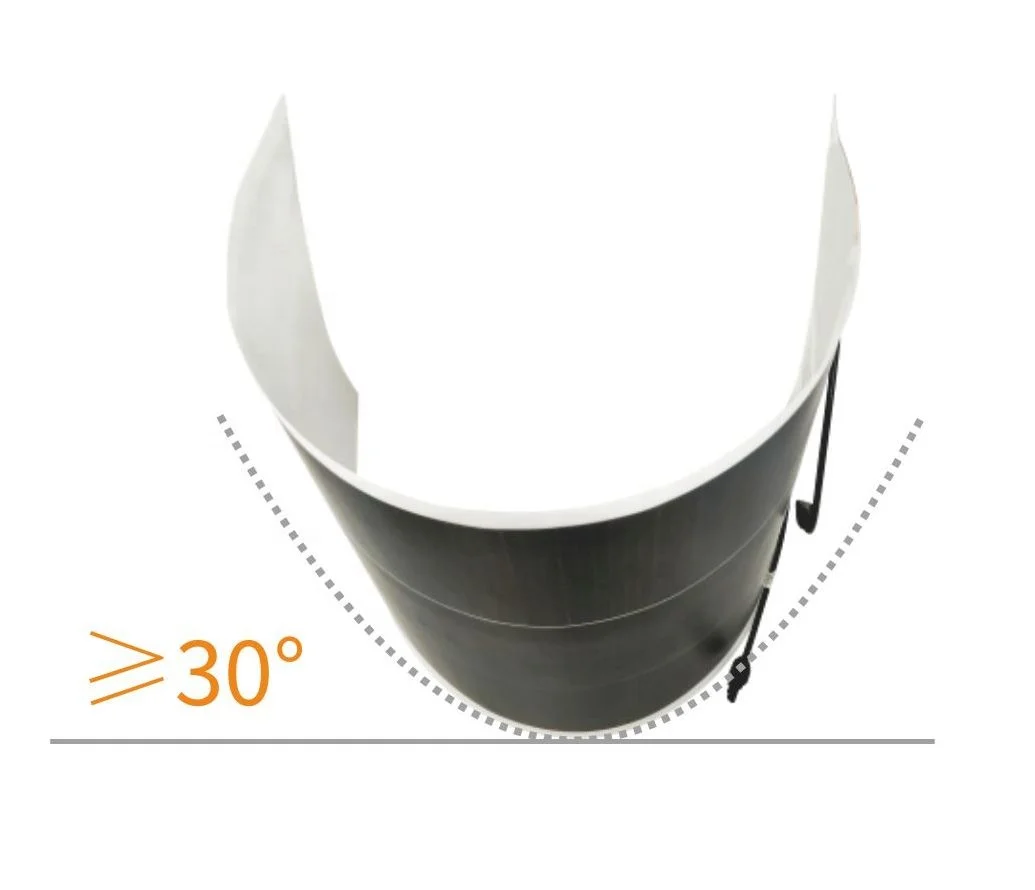

★ Over 30 degrees of ultimate bending no cells cracks.
★ Improved 15~20% power of output than the traditional panel.
★ Minimizes the optical and resistive losses.
★ 10 years workmanship and materials warranty.
★ OEM and ODM supported.
★ Improved 15~20% power of output than the traditional panel.
★ Minimizes the optical and resistive losses.
★ 10 years workmanship and materials warranty.
★ OEM and ODM supported.
Specification& Configuration
Typical Electrical Data | ||||
at STC: lrradiance 1000 W/m2 module temperature 25°C AM=1.5; | ||||
Model/ Electrical Parameters | RG-FLX180M | RG-FLX185M | ||
Pmax (W) | 180W | 185W | ||
Power Tolerance | 0 ~ +3% | |||
Vmp (V) | 17.2 | 17.33 | ||
Imp (A) | 10.47 | 10.71 | ||
Voc (V) | 20.9 | 21 | ||
Isc (A) | 11.6 | 11.27 | ||
Nominal Operating cell temperatures | 45± 2°C | |||
Temperature coefficient of Pmax | -0.4%/ °C | |||
Temperature coefficient of Voc | -0.3 %/ °C | |||
Temperature coefficient of Isc | 0.06 %/ °C | |||
Temperature coefficient of Vmpp | -0.35 %/ °C | |||
Nominal Voltage | 12V/24V | |||
Max. System Voltage | 750Vdc | |||
Max. Fusing Current | 15A | |||

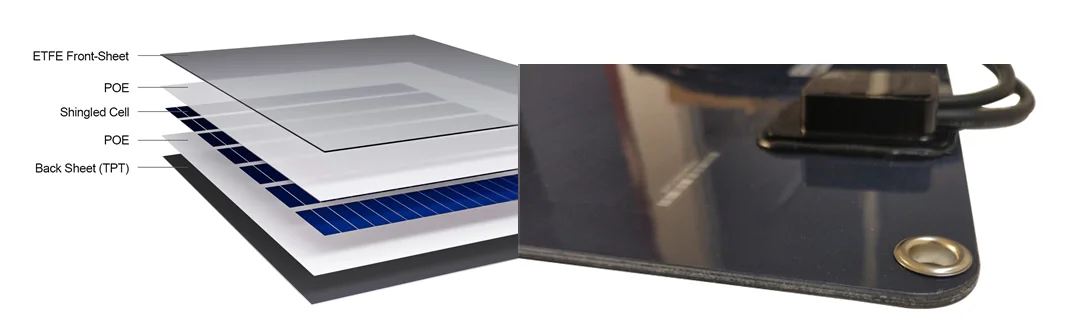

Mechanical Data | ||||
Cells Type | Prime Monocrystalline PERC solar cells | |||
Module Dimensions (L/W/H) (mm) | 1120*1005 | |||
Module weight | 2.4kg | |||
Cell's Efficiency | 21.4% | |||
Front Cover (material/ thickness) | Higher Strength TPT/ETFE/ 2.2mm | |||
Back Sheet (color) | White/ Black | |||
Bending Range | ≧30° | |||
Junction Box (protection degree) | ≧IP65/IP68 with by-pass diode | |||
Grommets | 316 stainless Steel /6 Mounting holes/Squre & Round corners | |||
Cables & Connectors | 0.5 m/2.5&4.0m㎡/MC4 compatible/IP68 | |||

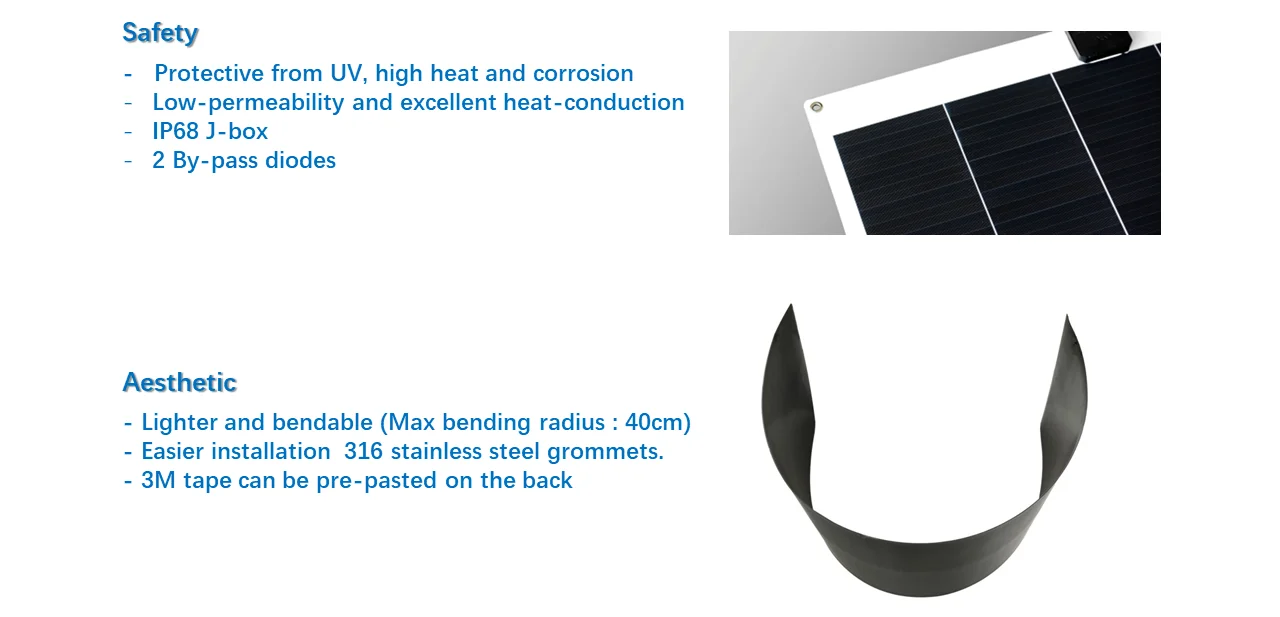

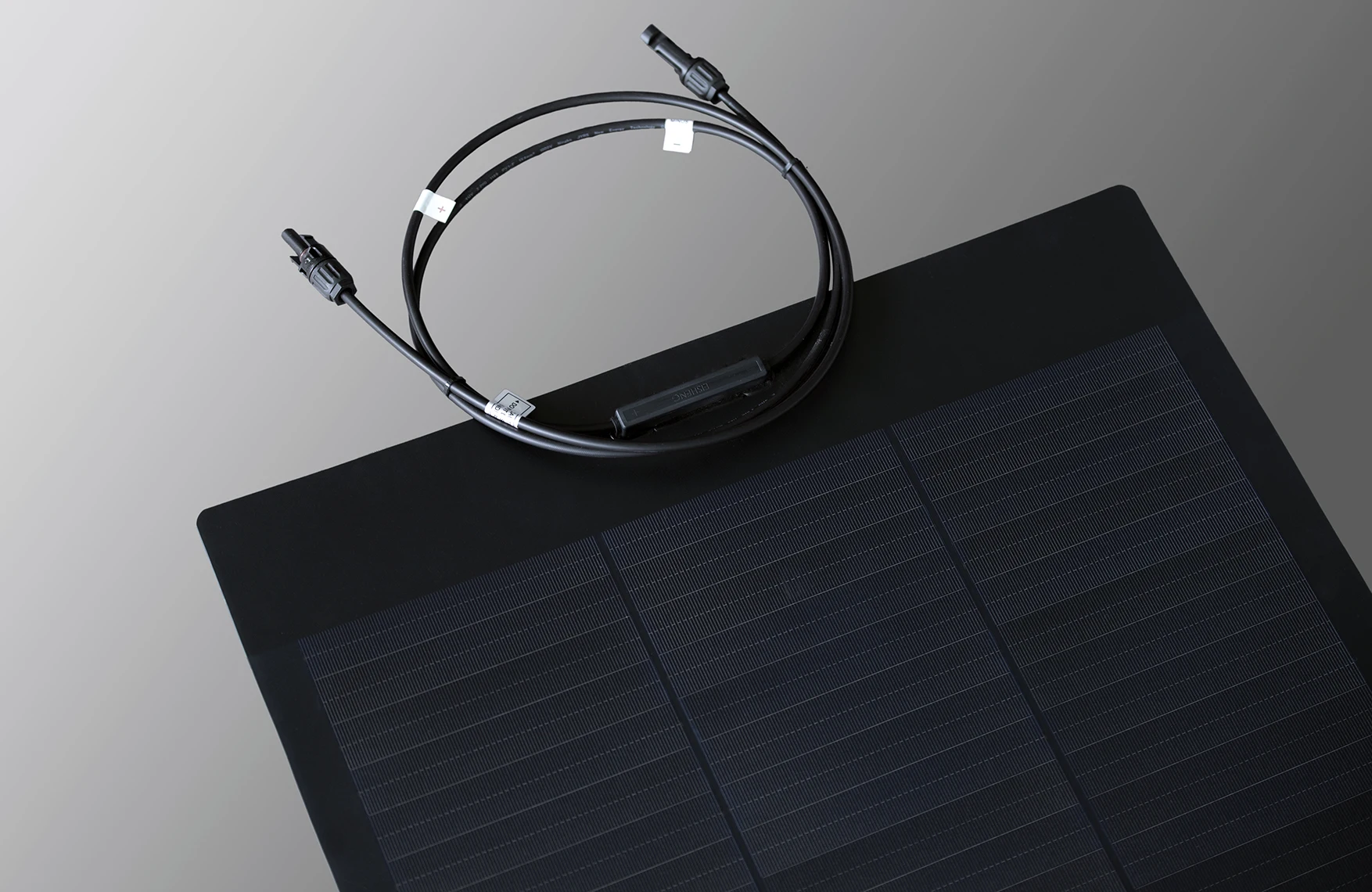

Product Details

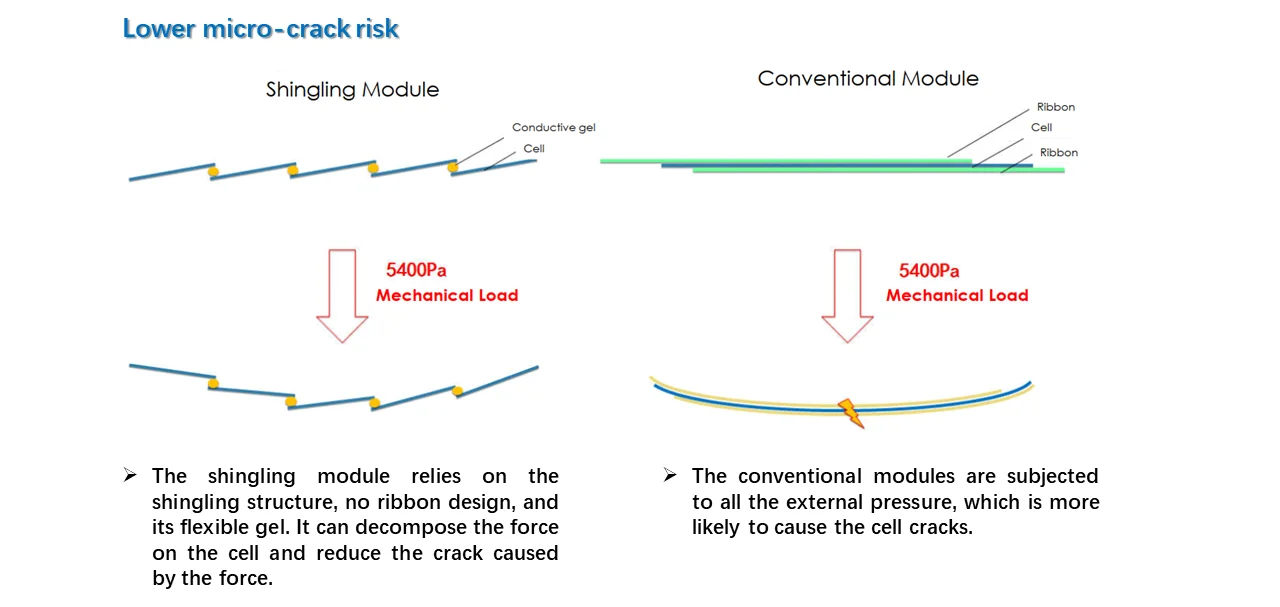

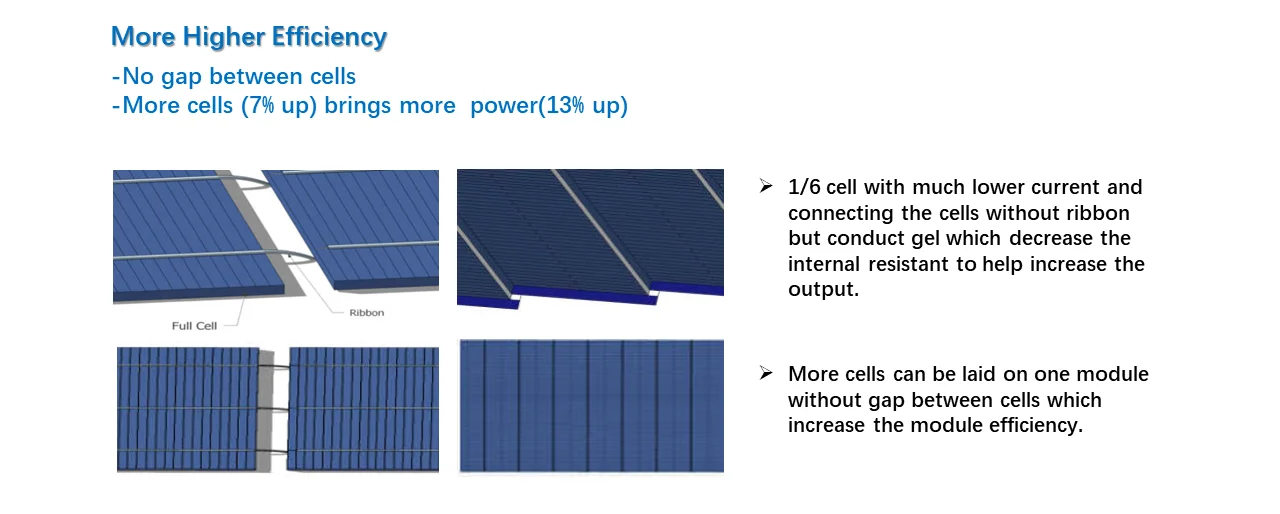

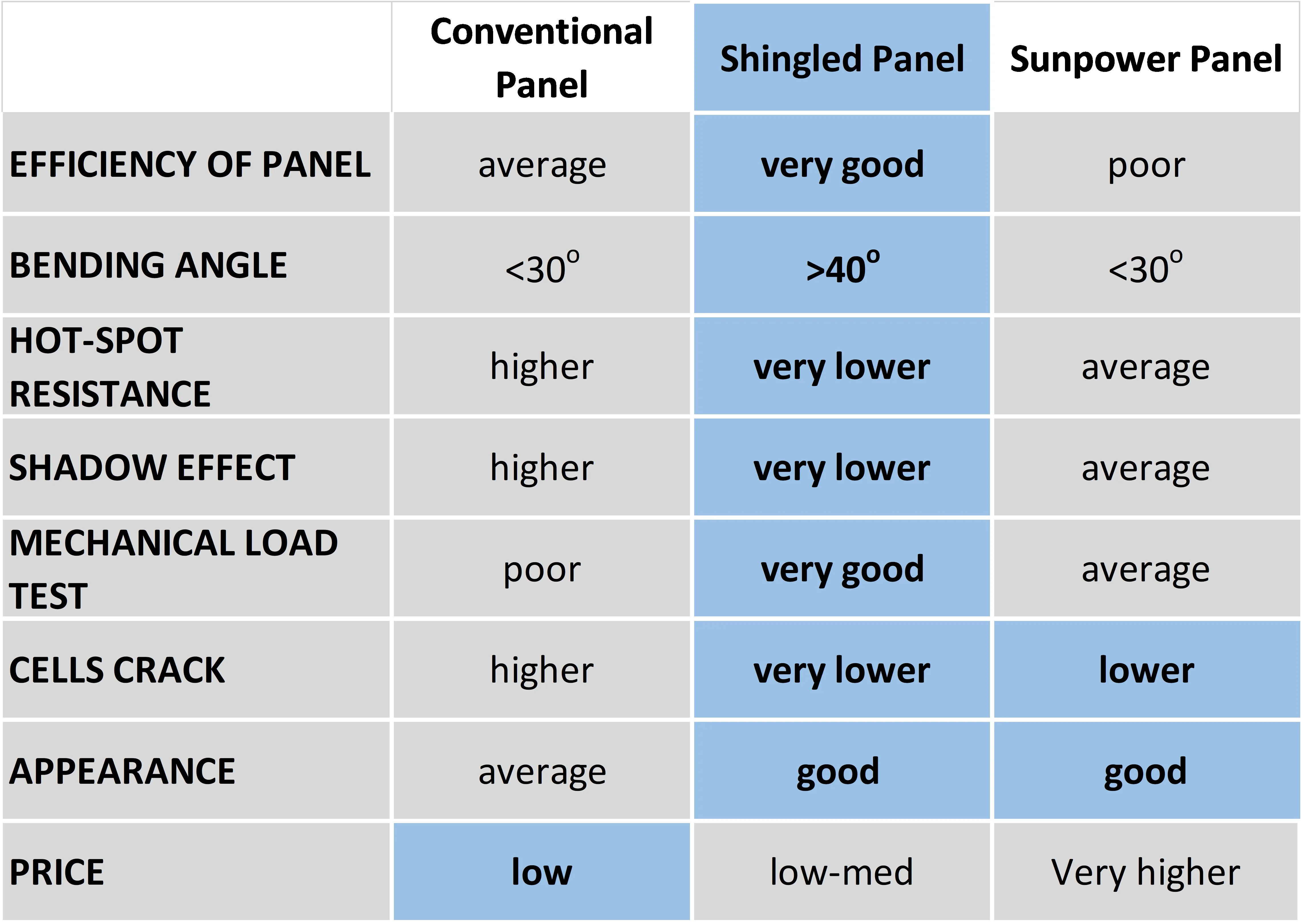

Advantages of Shingling Technology

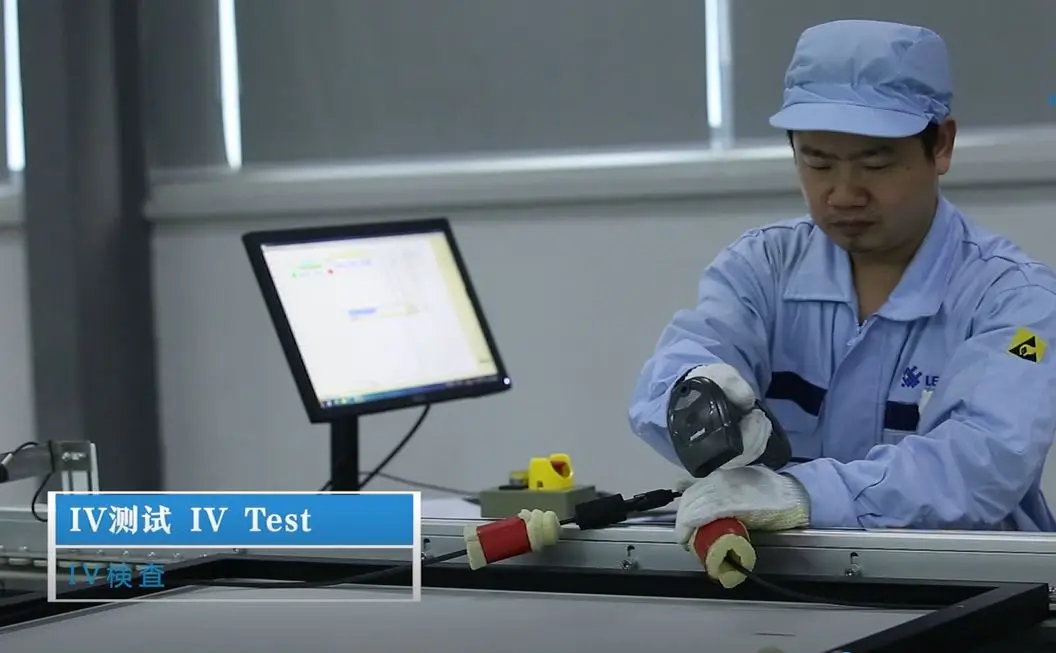

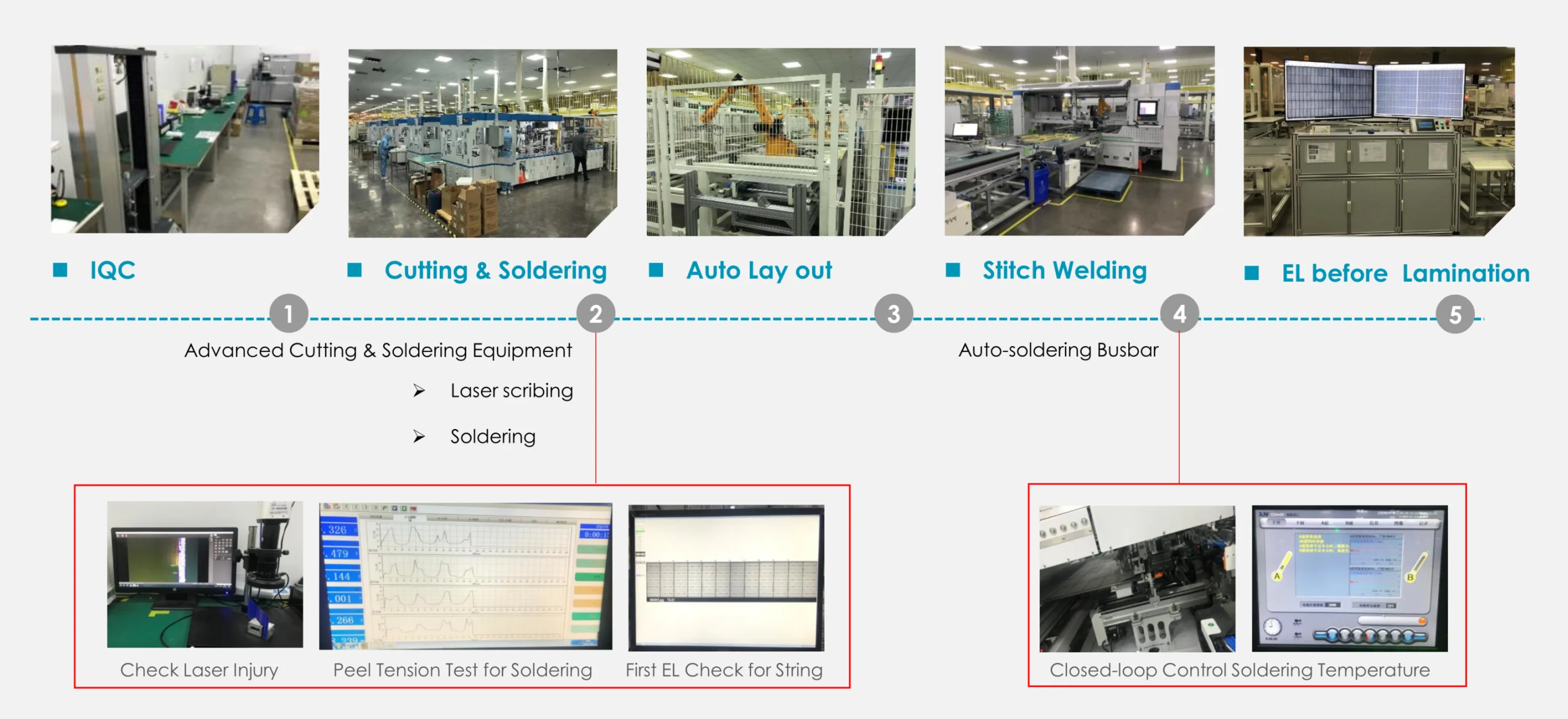

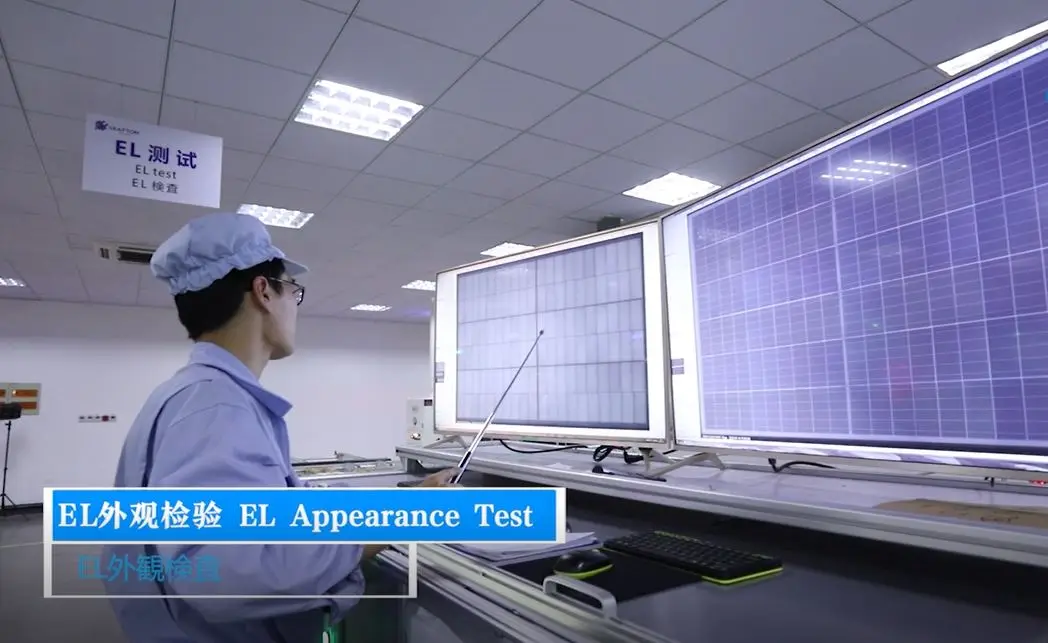

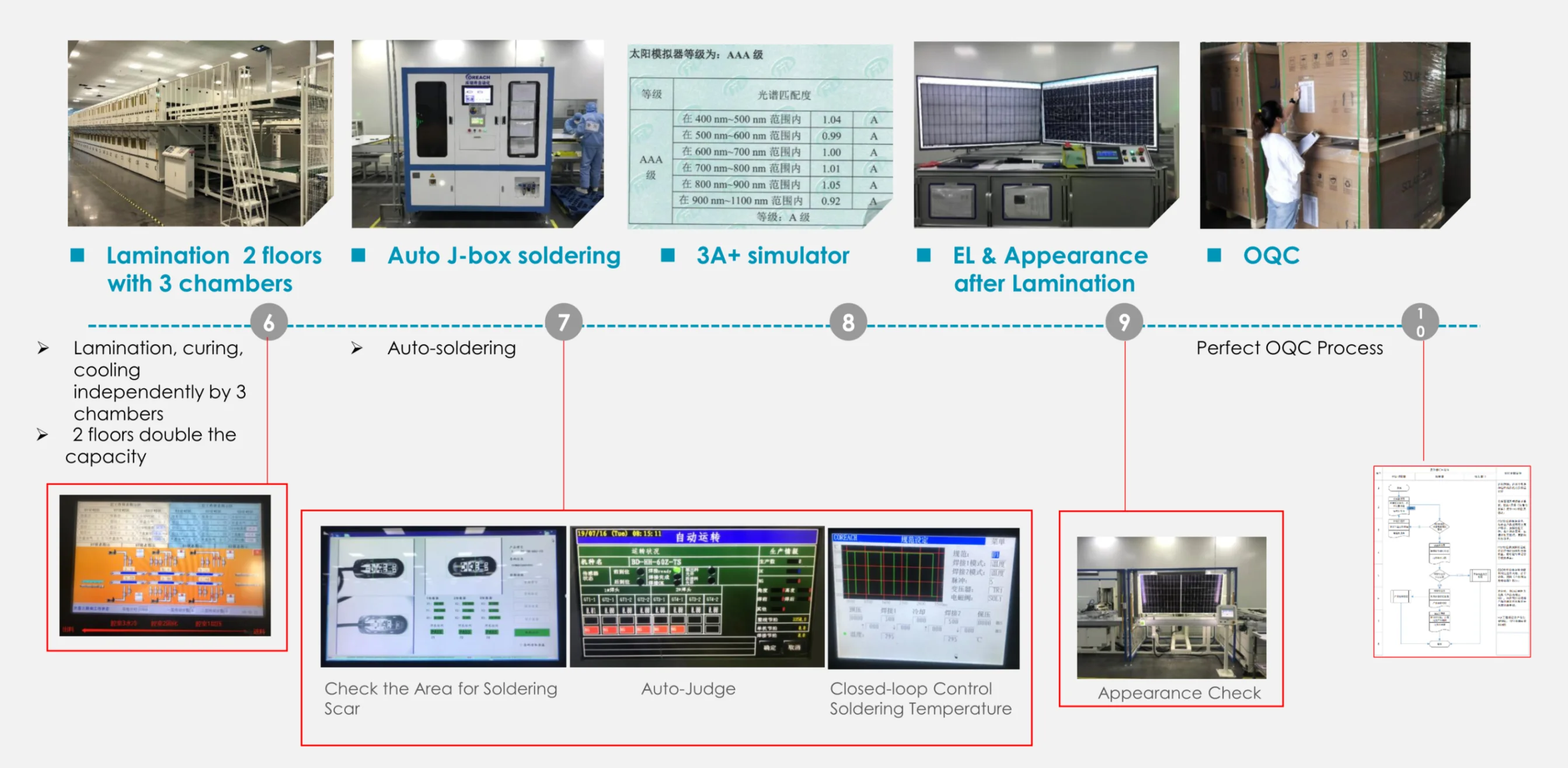

Stringent Quality Control System

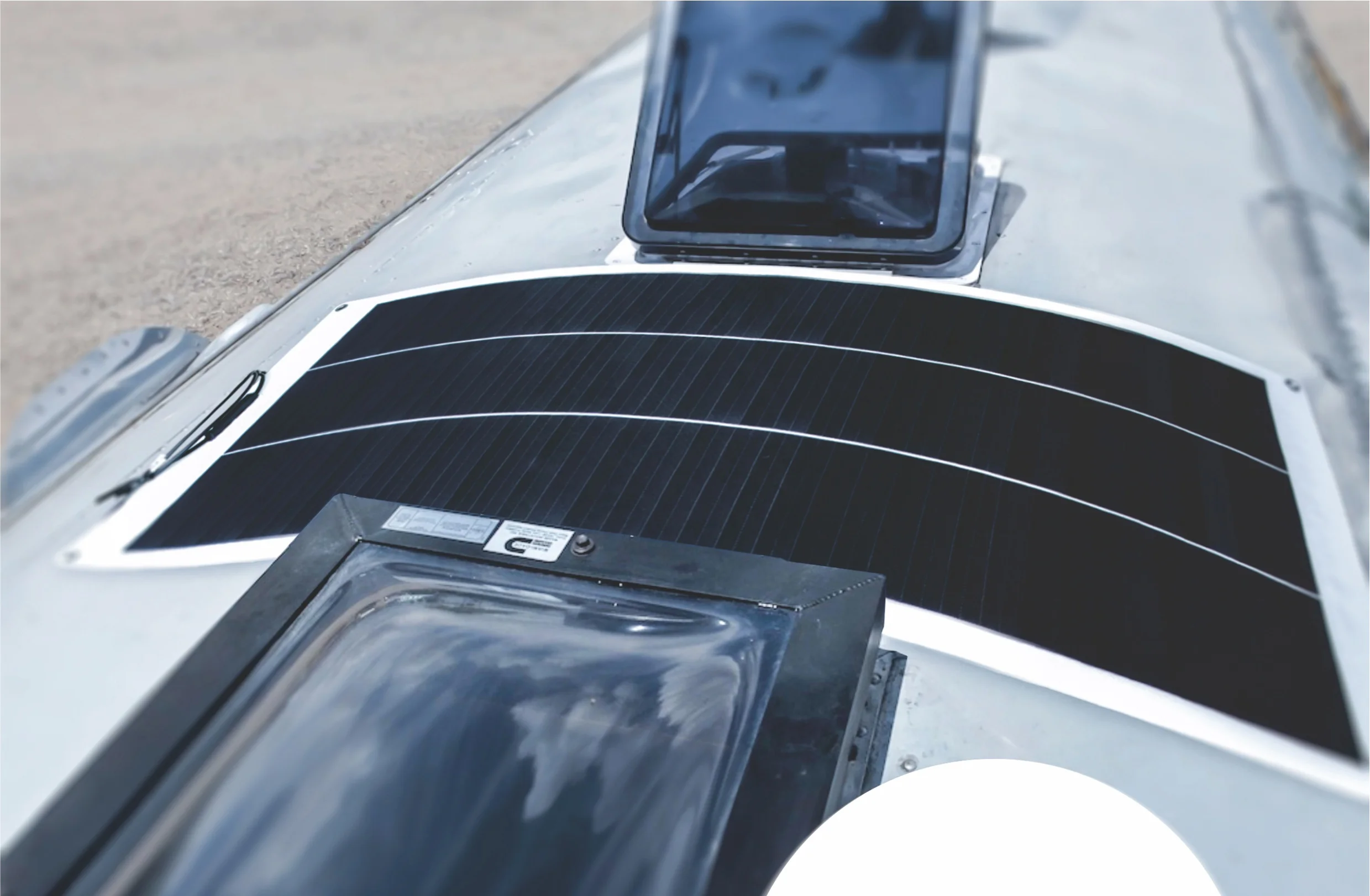

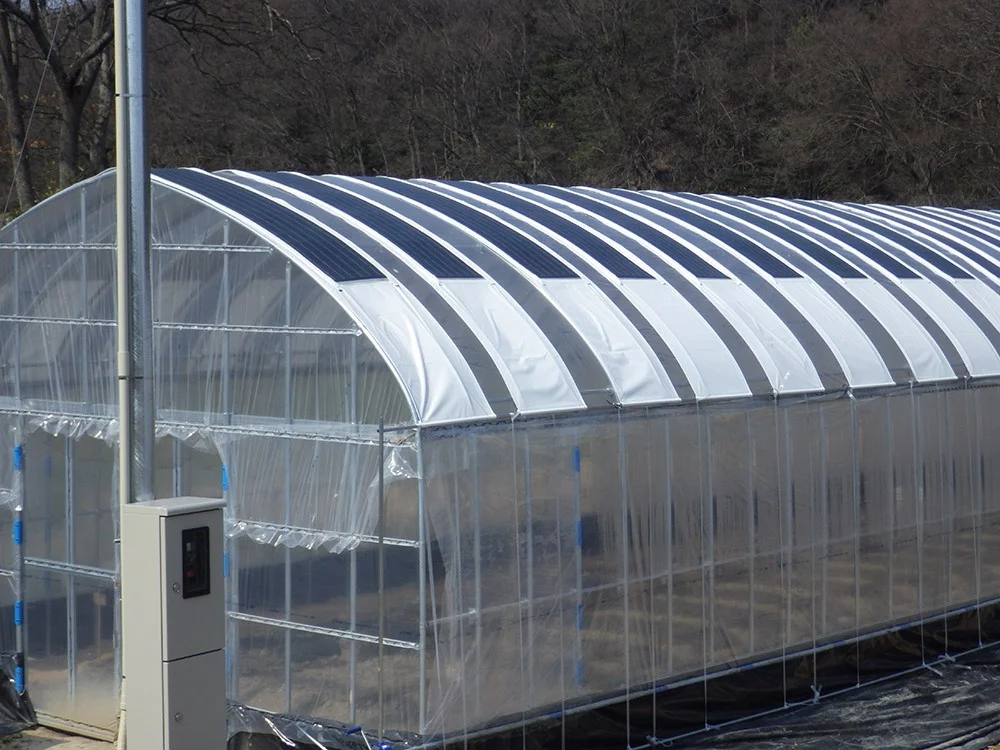

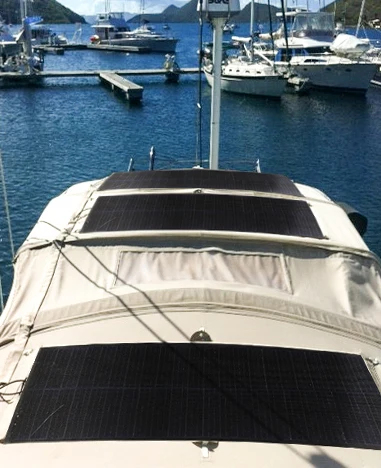

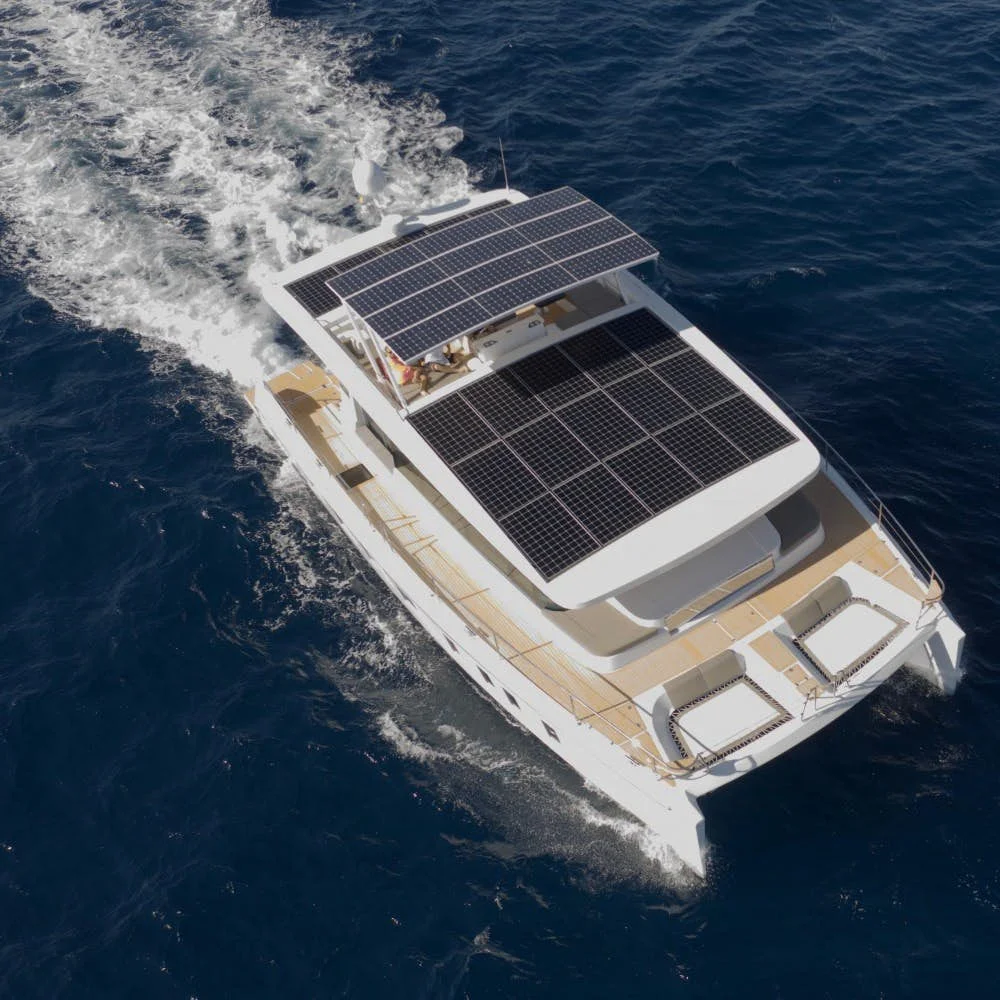

Application

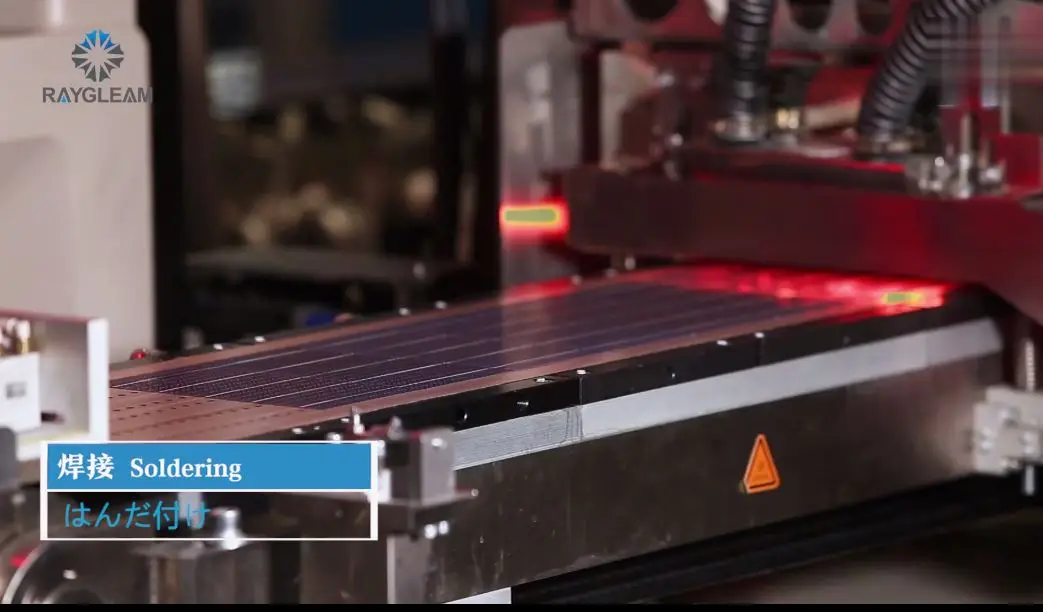

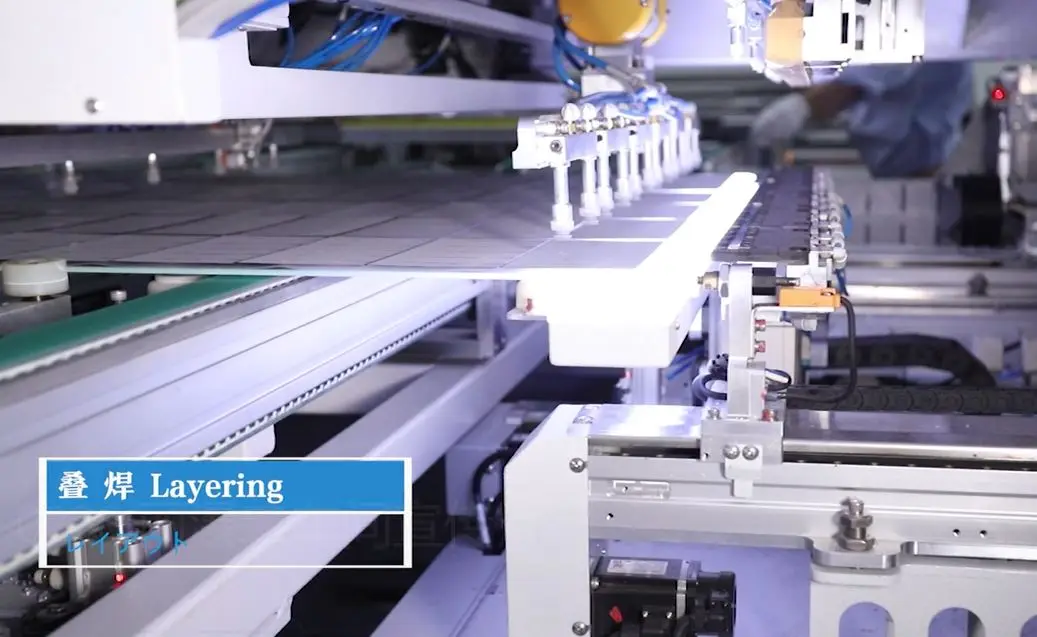

Factory Views
