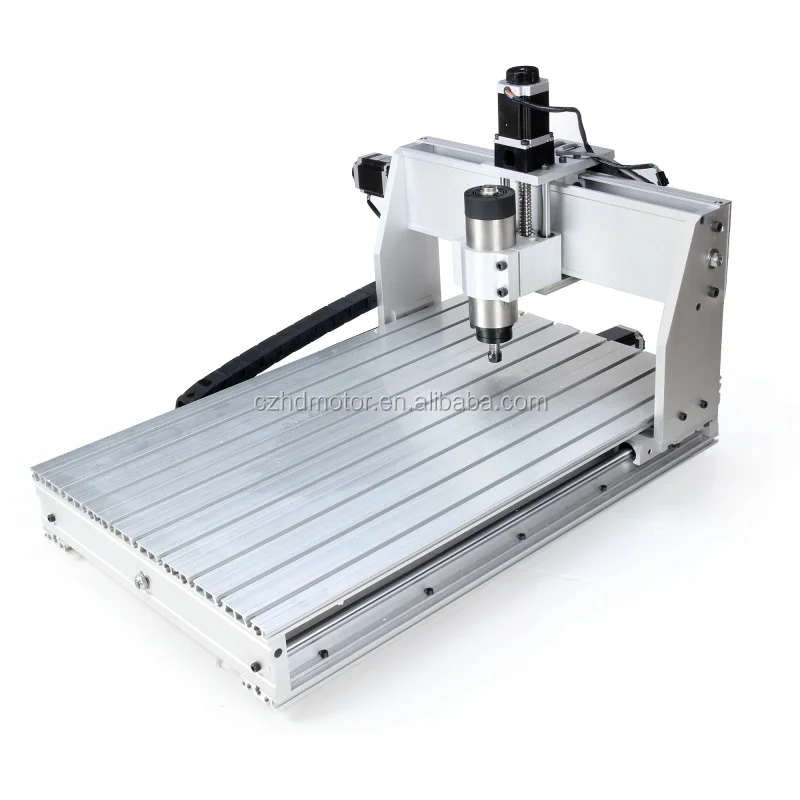

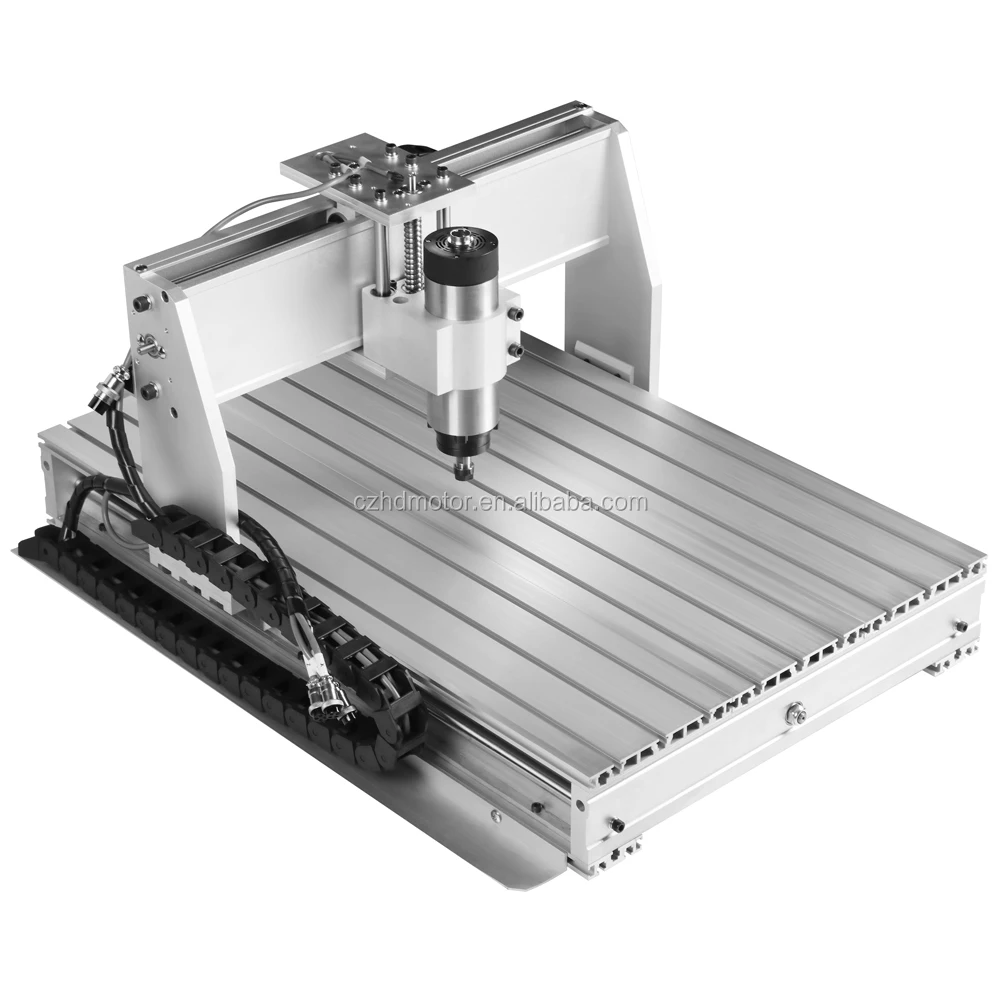

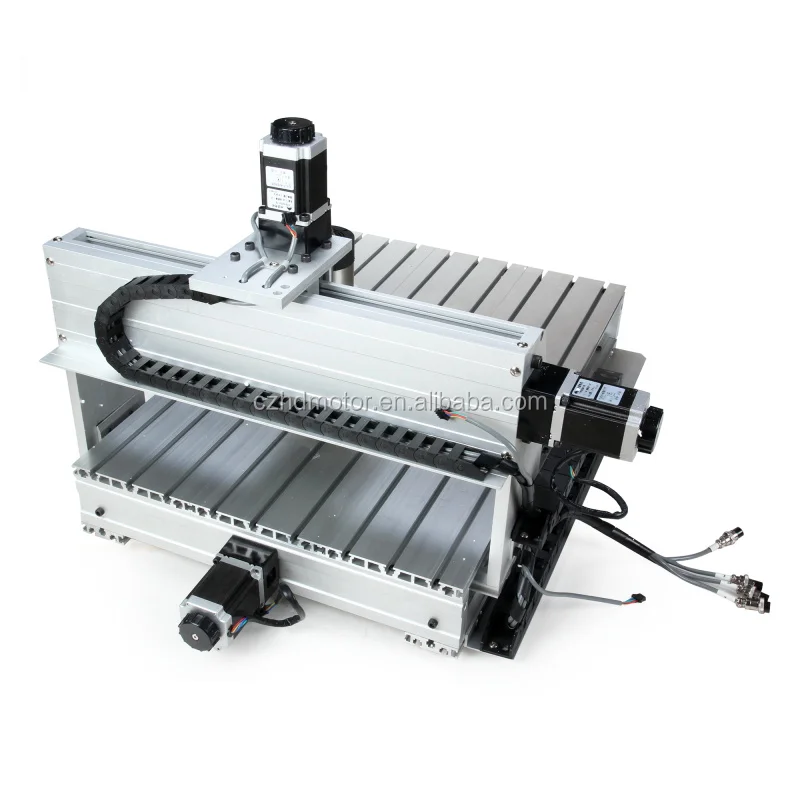

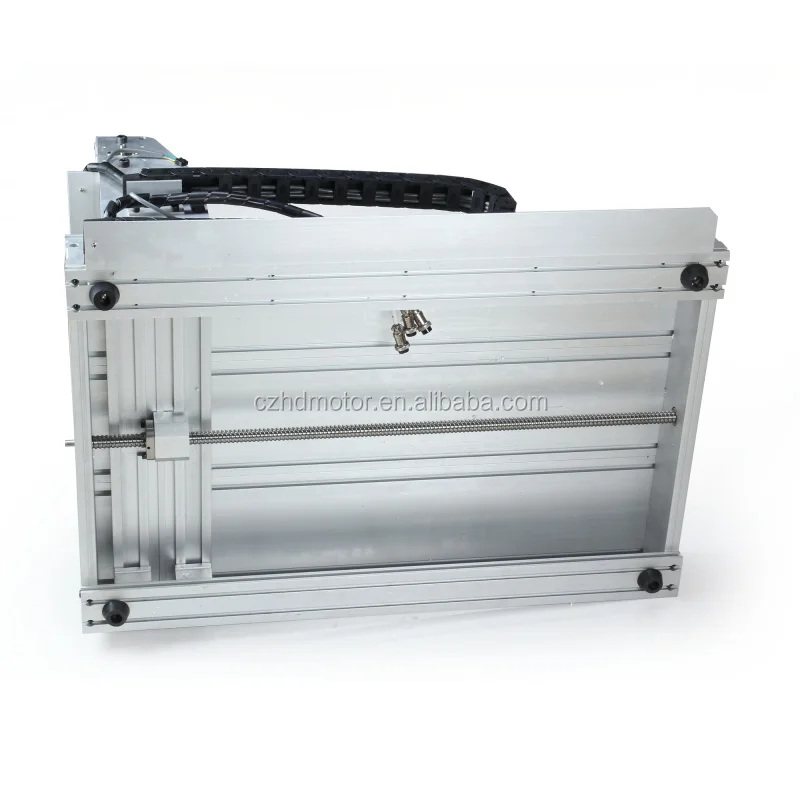

cnc 6040z 3axis small cnc router mini desktop cnc machine for wood working PCB cutting

Max. stroke

XYZ=400*570*75mm

Machinable material thickness

≤100mm

Outline dimension

750*570*390mm

Frame material

6061-T5 aluminum alloy

Rail type

Chrome plated shaft + linear bearing

Screw type

Ball screw,diameter 16mm,Thread pitch 5mm

Mechanical resolution

XYZ-shaft:0.0025mm/step

Positioning accuracy

0.05mm

Spindle motor

Frequency conversion spindle motor,0.8KW

RPM

24000rpm/min

Chuck type

ER11(3.175mm,6mm)

XYZ motor

Stepper motor JK57HS76-4204B-01AF

Stepper drive

High performance, each axis can independent drive

Feed rate

2000mm/min

Communication interface

USB2.0

System requirement

WIN-XP or WIN-7

Order code

G code/.nc/.ncc/.tab/.txt

Voltage

 Input 85V-240VAC(400HZ)

Operation environment

Temp.:5℃-40℃;Humidity:35%-80%
