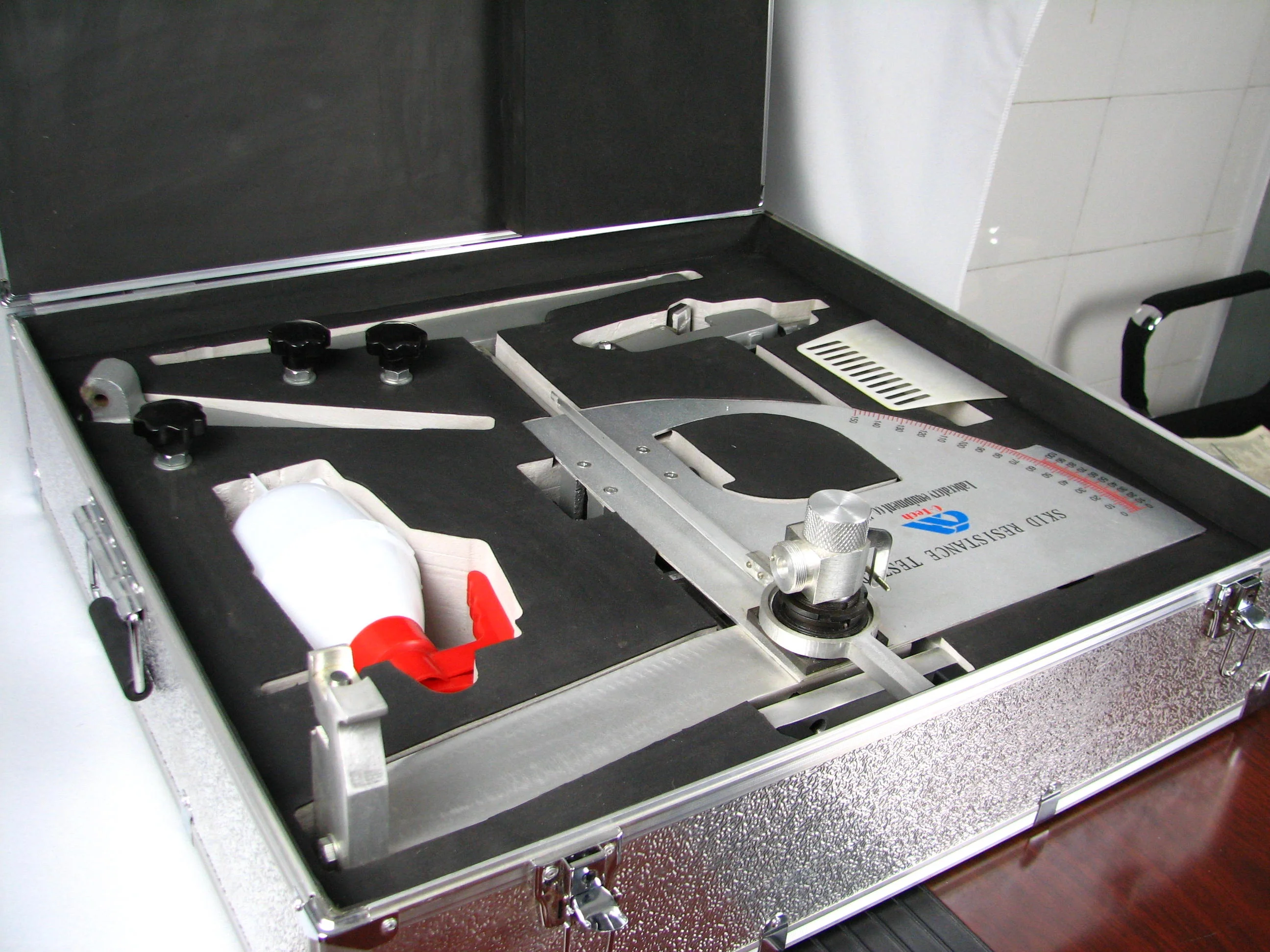

48 B0190 Portable British skid resistance and friction tester for pavement test

Product Overview

Description

Skid resistance tester and friction tester



This method provides a measure of the skid resistance properties of a surface either in the field or in the laboratory. This method measures the skid resistance of a small area of a surface (approximately 0.01 m²) and this should be considered when deciding its applicability to a pavement surface which may have variable surface characteristics, e.g. block paving.
This apparatus is used for the skid resistance measurement of asphalt pavement and concrete pavement, in order to evaluate the skid resistance of pavement in moist condition.

Specifications:

Model	48-B0190
Rocker weight	1500±30g
Distance between rocking centre and center of gravity	410±5mm
Positive static pressure on pavement	22.2±0.5kN

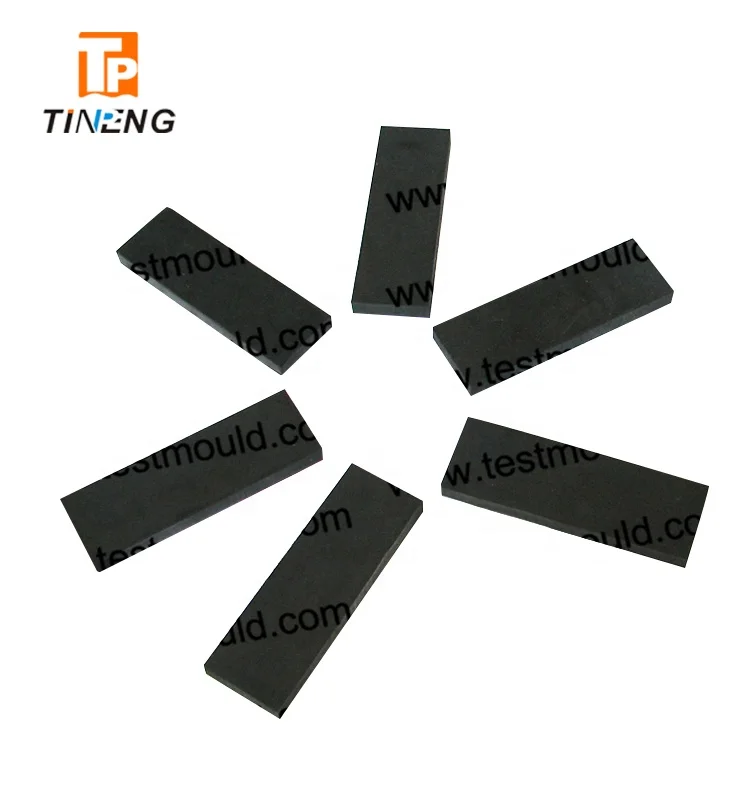

Size of rubber slier(Length*Width*Thickness)	75*25*7mm
Weight of rubber slider	16g
