Электрический мотоцикл Z6 дроссельная заслонка с комбинированным переключателем

Product Overview

Description

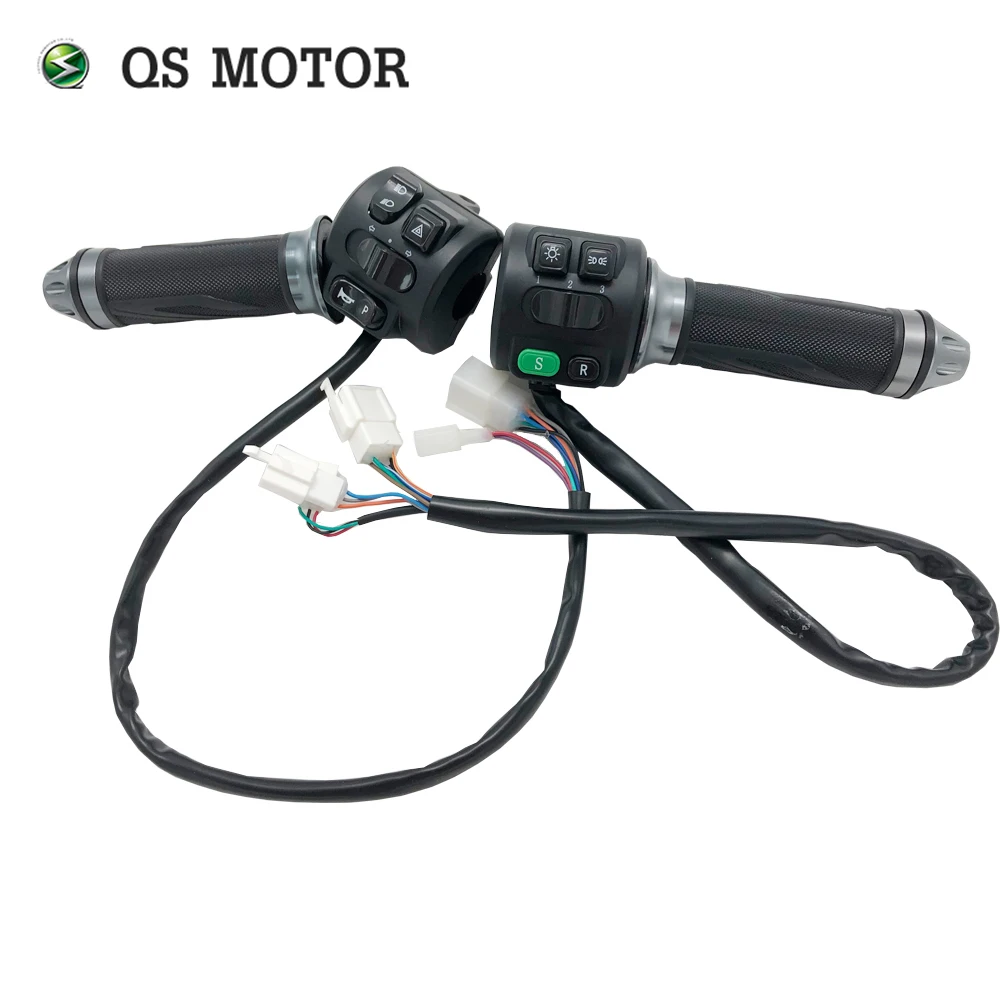

Z6 throttle with combination switch



SPEC:

Basic parameters:

Color:black

Rated operating voltage: DC+5V

Current: DC 10mA

Main material: ABS PVC

Right throttle pull force/ left handle pull pull force: ≥200N / ≥200N

Torsional strength: ≥9N.m

Output voltage: 0.8 ~ 4.2V

Service life: ≥100,000 times

Waterproof rating: IPX6

Number of core cable:5

Type of switch: half twist, with meter and key

Net weight:0.31kg

Inner diameter of throttle: 22mm





Function



With Reverse, Parking button(throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with VOTOL controller well.

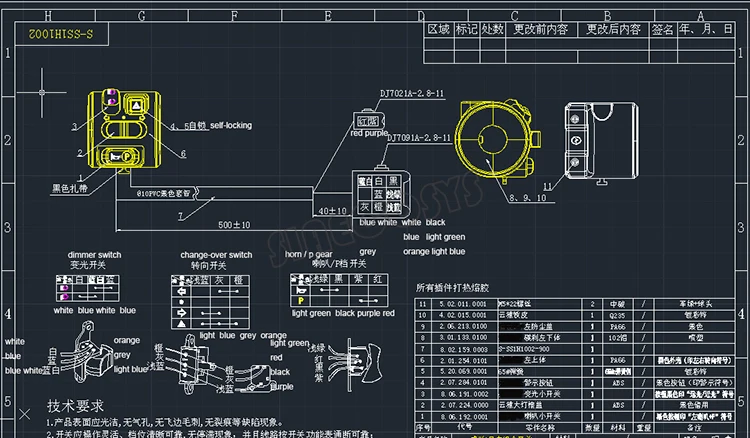

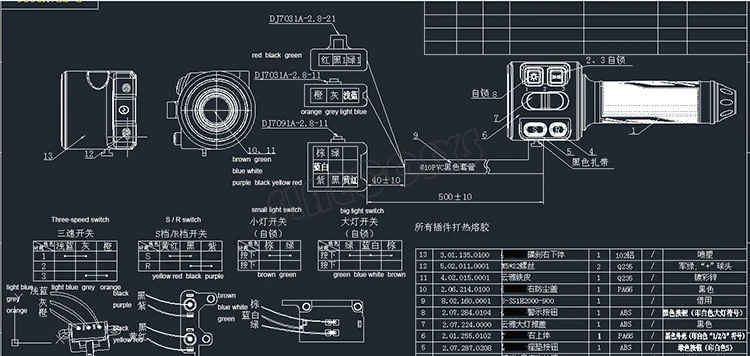

Drawing:





A note to client:

1. Please contact seller confirm the parameter, otherwise we will produce as default.

2. Please extended 15 days more at least for order prepare when motor no in stock. (Most of motor is customized based on application, without in stock).

3. When place order please leave email address, for seller provide manuel.

4. Please read manuel careful before woring motor and controller, and if meet problem please contact seller in time, and don't disassembly cargo without seller permit, otherwise there will be no warranty
