Dtg small tunnel dryer machine for screen printing

Share on:

Price:RUB 140,263.30
Price in USD:Details


Product Overview


Industrial microwave tunnel drying dryer machine

Product Description



Belt Length(L*W)3000*750mm8000*1000mm
Length of Heating Area2000mm6000mm
Belt Speed2-16m/min.2-16m/min.
Voltage/Power380V/ 15KW380V/ 40KW
Machine Dimensions(mm)3000*1000*13508000*1260*1350
Packing Sizes(mm)1500*1440*14202620*1440*1920


1. The far-infrared lamp has a strong radiation penetration force, so that the processed object is evenly dried from the inside to the outside.
2, room temperature ~ 200 degrees Celsius arbitrary setting
3. The hot air circulation system makes the internal heat even.
4. The segmentation self-controls the curing temperature, and the intelligent digital display temperature controller automatically controls the constant temperature.
5, stepless frequency control system, can set the optimal temperature according to the needs of the work.
6, mesh belt material: high temperature Teflon mesh belt / rubber roller drive / pvc conveyor belt.
7. The discharge port is provided with a cooling device.
8, mesh belt width, total power, length customization.

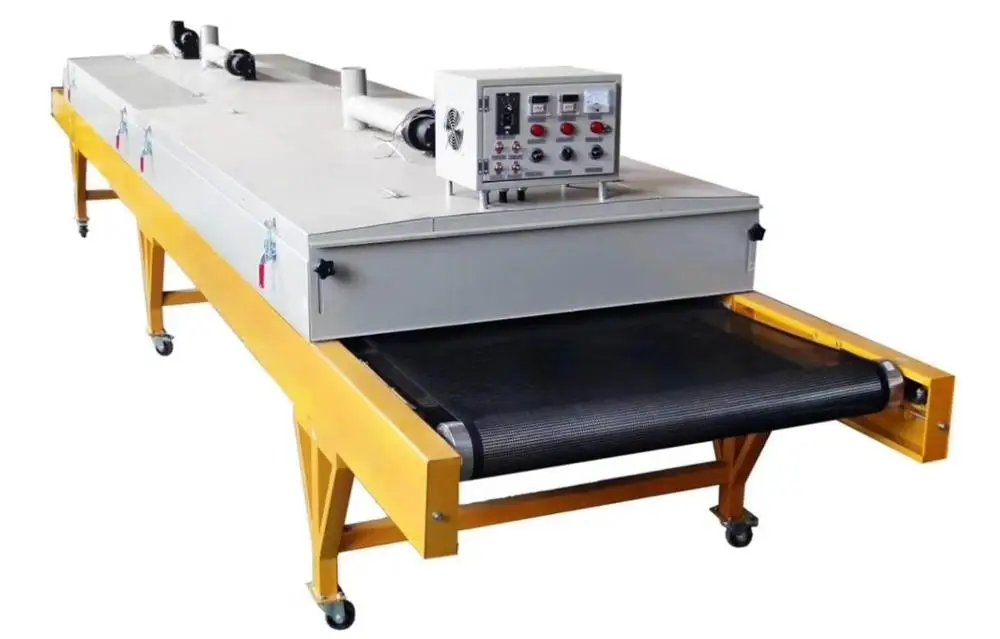

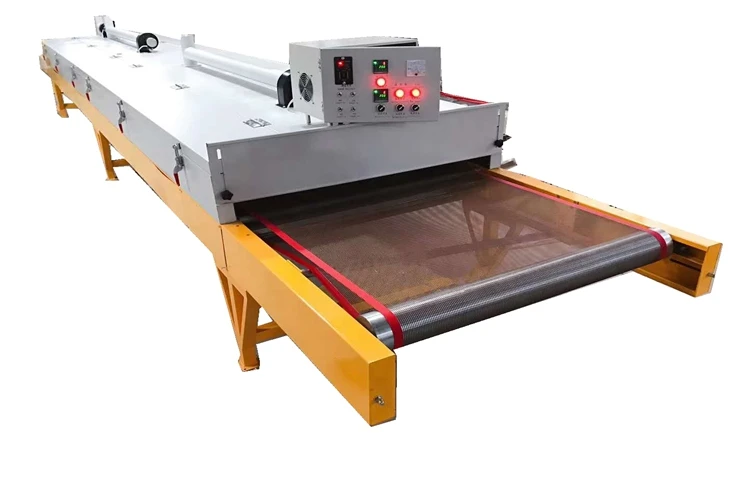

Machine Pictures:


Company Information

timg.jpgQingdao Pingte Equipment Machinery Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing and sales. The company specializes in the production of screen printing equipment, screen printing table, drying machine and other printing equipment. We continue to develop and research new technologies, and strive to combine the perfection and practicality of the products.
The company's main products are:
Printing equipment - automatic screen printing machine, high-precision large screen printing machine, oblique arm semi-automatic screen printing machine, manual screen printing machine,

Heat press machine- roller heat transfer machine, automatic heat press machine and ;arge formate heat press machine.

Digital Printing Machine-- Roll to roll digital machine and flatbed digital machine.




1: Do you accept customize machine?
A: Please communicate with us salesperson at first, we can customize machine on us developing ablity.
2: What's the payment item?
A: We usuallly do 30% T/T as deposit, 70% balance paymet before shipment. Cash payment, L/C also can accpet on old customer.
3: Do you have any certificate?
A:  We have CE certificate and original certificate if you need.
4: What's your warrenty?
A: We supply one-year warrenty and full time spare parts supplying after warrenty.


You can contact---
