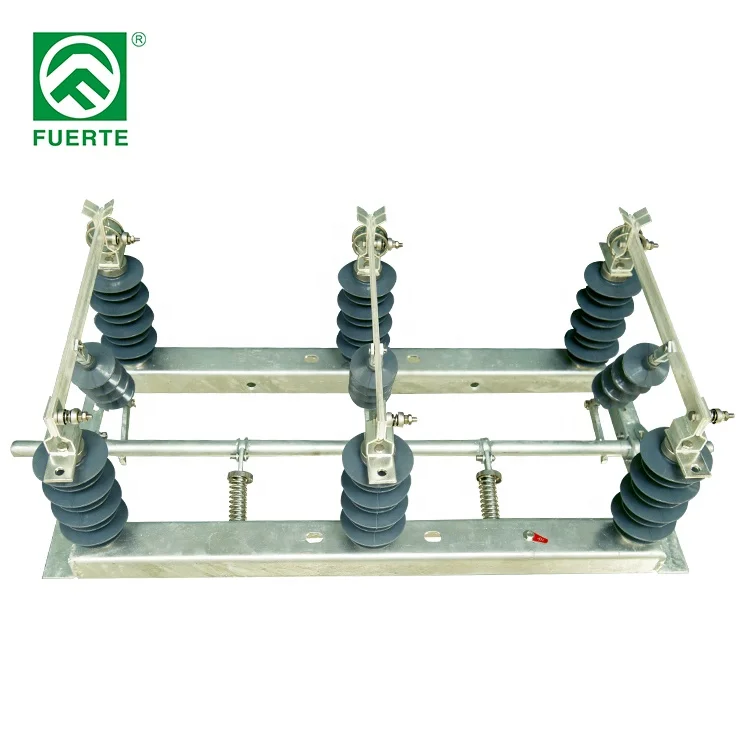

15kV 630A three pole type isolating switch

Product Overview

Description

15kV 630A three-pole type isolating switch

Main Technical Specifications
Type		FGW11-12/630
Rated Voltage	kV	15
Rated Current	A	630
Rated Frequency	Hz	50
Rated Short-time Withstand Current and Duration Time	kA/s	20/2
Rated Peak withstand Current	kA	50
Main Circuit Resistance	μΩ	100 max.
Insulation Creepage Distance	mm	800
Power-frequency Withstand Voltage	kV	42
Impulse Withstand Voltage	kV	110
Mechanical Operation	Times	3000
Standard		IEC62271
