JY 280/DXD 280 Pillow Pasta Or Spaghetti Stick Noodles Packing Machine

Product Overview

Description



Applicable Range Of Pillow Pasta Or Spaghetti Stick Noodles Packing Machine:

 The machine is suitable to pack slice biscuit, chocolate, ice cream, card, bread and commodities, and other similar product.

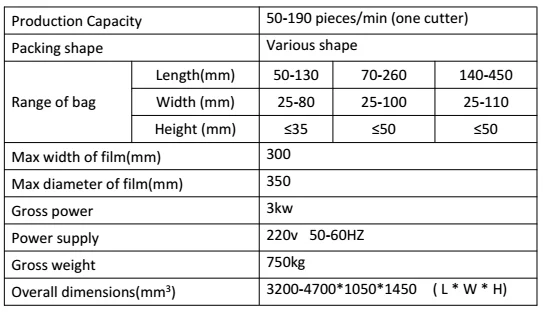

Parameters Of Pillow Pasta Or Spaghetti Stick Noodles Packing Machine:



Production Capacity		50-190 pcs/min (one cutter)
Packing shape		Various shape
Packing range	The length of the bags	50-130mm	70-260mm		140-450mm
	Width (mm)	25-80mm	25-100mm		25-110mm
	Height (mm)	≤35mm	≤50mm	≤50mm
Max. Width of film		300mm
Max. Dia of film		350mm
Gross power		3kw
Power supply		220v  50-60HZ
Gross weight		750kg
Overall diamensions(mm)		3200-4700*1050*1450 mm ( L * W * H)

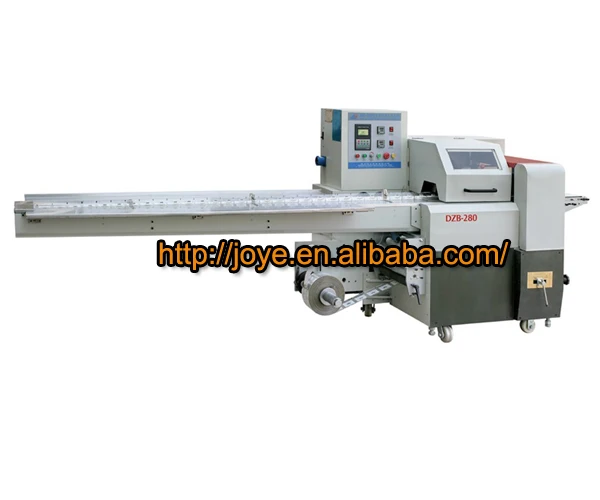

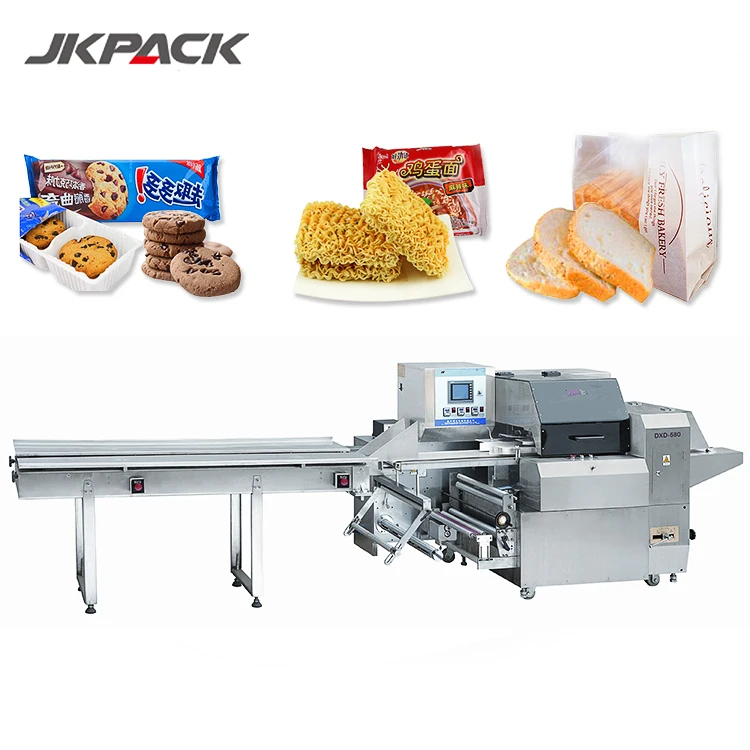

Machine Picture:





The sample picture:



Thickness of the film: 0.045-0.05mm



Option:



Body of the machine: Stainless steel body or Cast Iron.

  Main electric component:

  PLC:  SIEMENSE (Germany, made in CHINA)

  Touch Screen:  SIEMENSE (Germany, made in CHINA)

 Photo sensor: SICK (Germany)

 Temperature controller: OMRON (Japan)





 OUR  FACTORY:

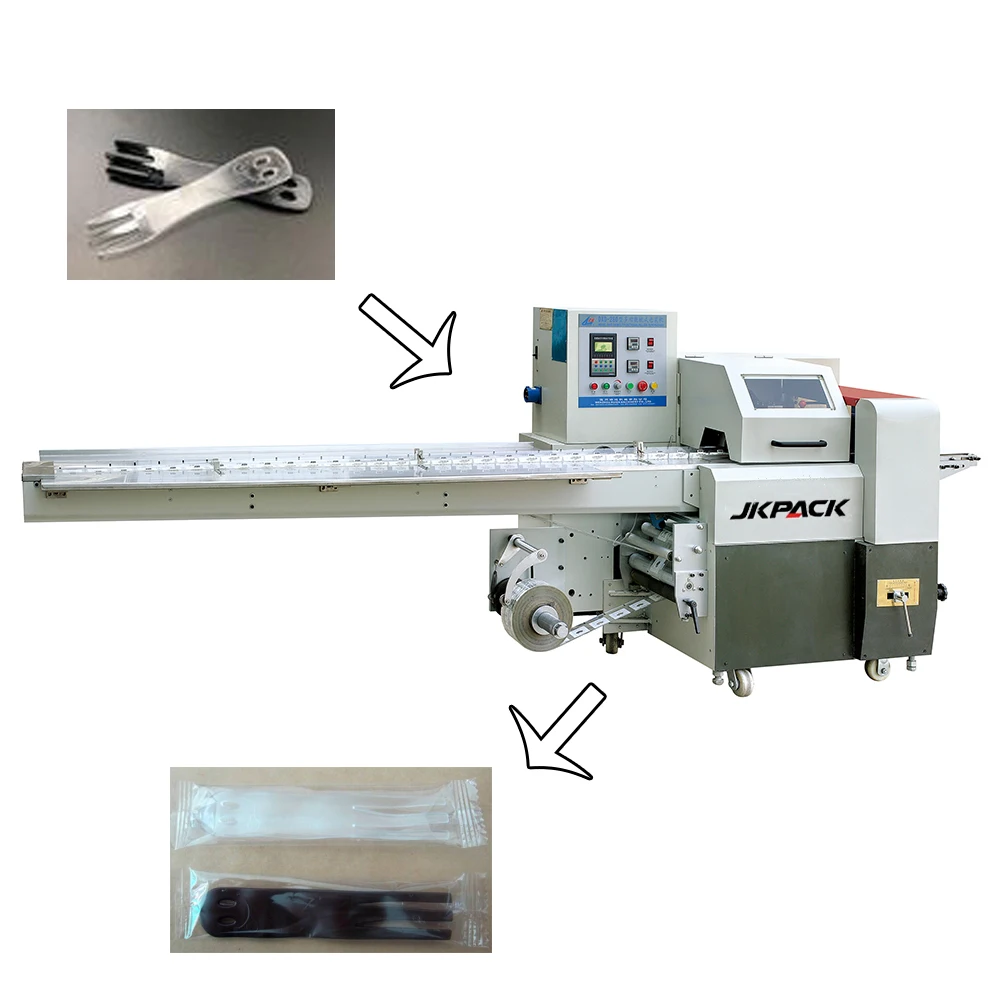

Packing Process:





...
