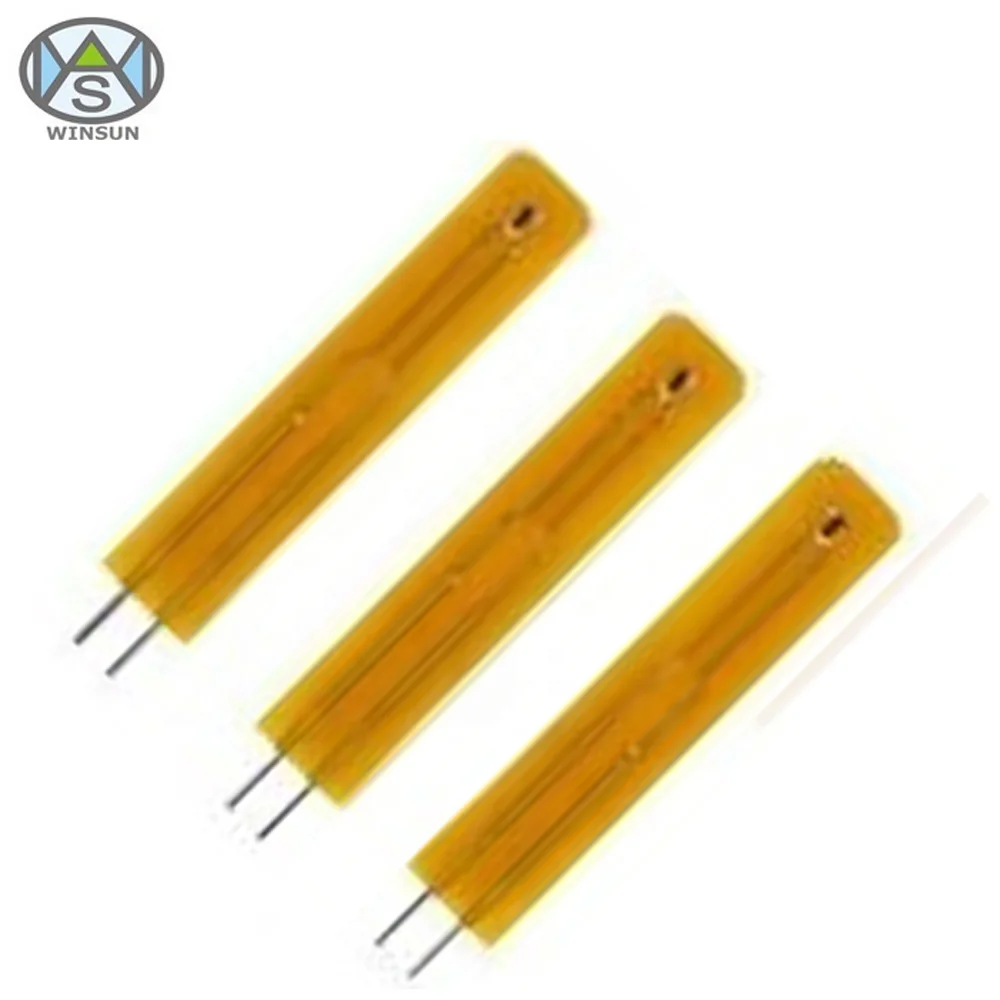

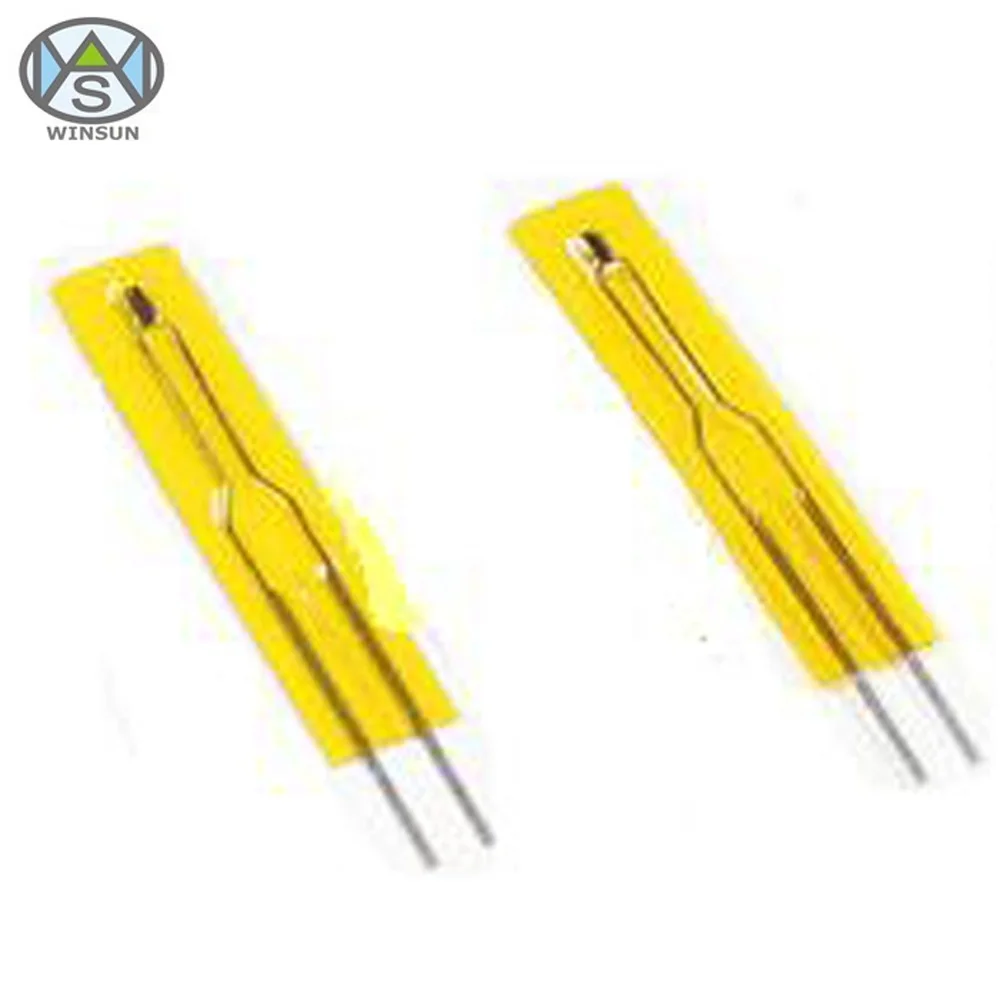

MFEP Series 10K 30K 47K 50K 100K Ohm Thin Film NTC Thermistor For Computers and Printers home appliances

Product Overview

Description

MFEP Series 10K 30K 47K 50K 100K Ohm Thin Film NTC Thermistor For Computers and Printers home appliances


Features

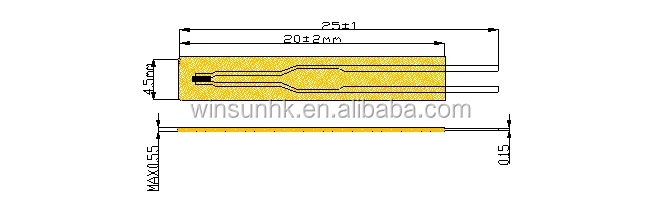

1. Body size: 4.5X25mm,4.5X50mm,4.5X75mm
2. resistance range:10K OHM~100k OHM
3. B value range:3380~3950K
4. -30 ~ +120°Coperating temperature range
5. RoHS compliant



Characteristics

MFEC-1002-3950	10	1,2,3,  5,10	25/50	3950	1,2,3,5	10	≥2	≤3	-30~+120
MFEC-1002-3435	10		25/85	3435
MFEC-1002-3470	10		25/85	3470
MFEC-1002-3975	10		25/85	3975
MFEC-3002-3950	30		25/50	3950
MFEC-4702-3950	47		25/50	3950
MFEC-5002-3950	50		25/50	3950
MFEC-1003-3950	100		25/50	3950

operating currentIn order to make the test more accurate, the running current should be as less as possible. The following formula is suggested:
Ps.:can be tailored according to clients’ demand

I=sqrt(0.005δT^2/(B*R))
PS.:1.sqrt is for square root
2. δ is for dissipation constant in mW/°C
3. T is for temperature in Kelvins
4.B is for the index of the thermal sensitivity
5.R is for zero-power resistance in KOHM
6.final current is in mA



Storage conditions
1. storage temperature: -10°C~+40°C
2.relative humidity:≤75%RH
Period of Storage:one year
