"Great Wall Make Great Machine"

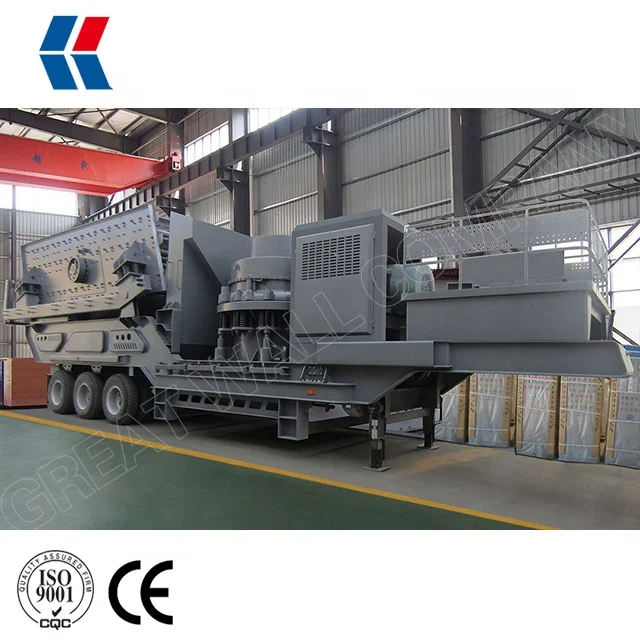

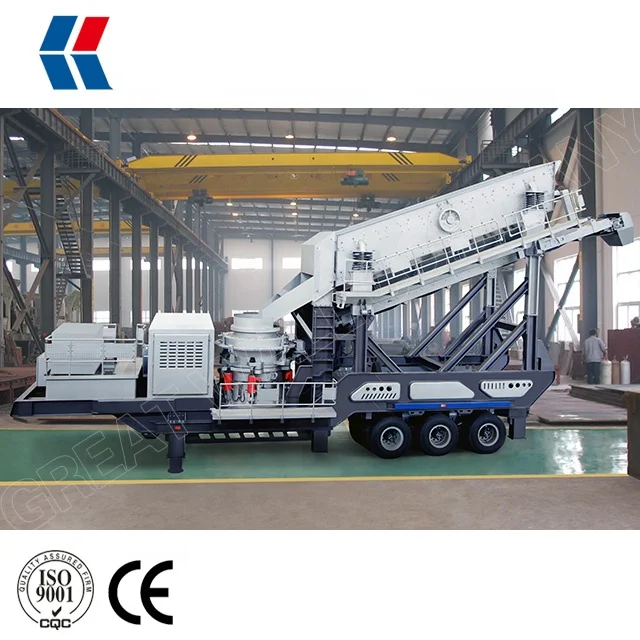

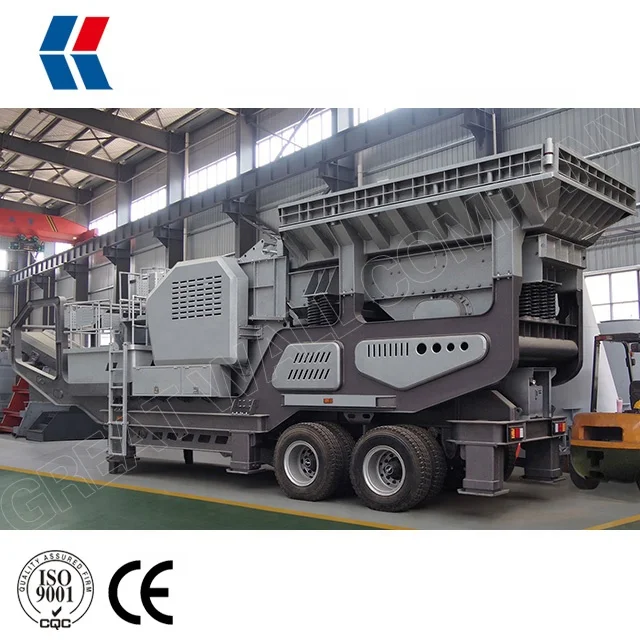

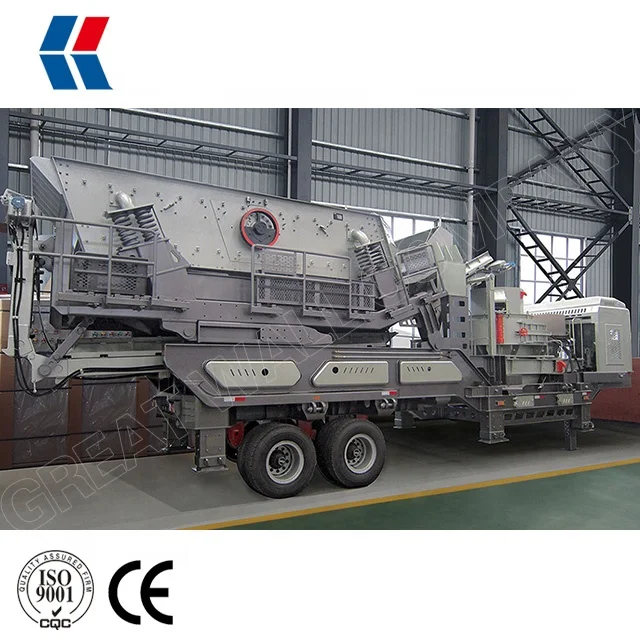

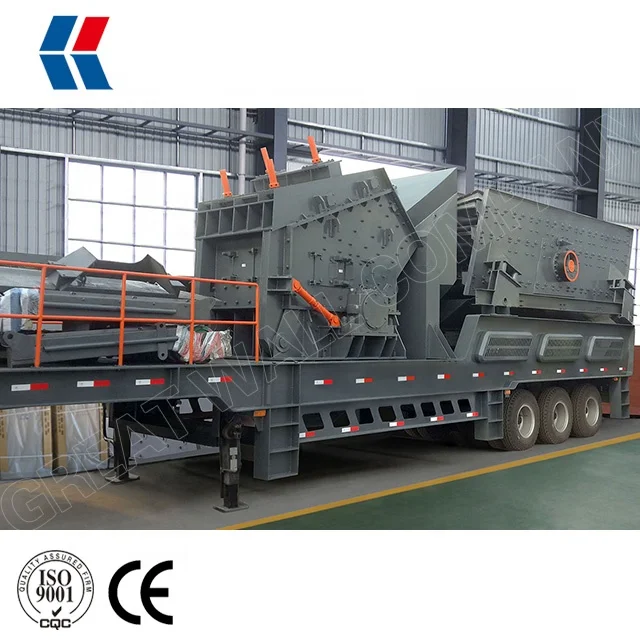

Large 40 - 200 TPH Mobile Rock Crusher, Mobile Rock Crushing Plant

| Usage and Application of Large 40 - 200 TPH Mobile Rock Crusher, Mobile Rock Crushing Plant |
Mobile rock crusher, also called mobile crusher plant, mobile stone crusher, mobile crushing plant or mobile stone crusher.This mobile crusher is an integrated machine of vibrating feeder, stone crusher, vibrating screen and other auxiliary equipments. So mobile crusher is a mobile stone crushing plant in fact. The mobility of mobile crusher can overcome the limited by the crushing place, and reduces high material transportation cost meanwhile.
Mobile rock crushing plant has several types. In terms of the stone crusher types, mobile crusher plant can be divided into three types: mobile jaw crusher, mobile cone crusher and mobile impact crusher. Mibile jaw crusher is used for primary crushing and the other two are used for fine crushing. Each mobile crusher plant can work as a whole complete individual. But there are some special mobile crushers, which a machine body inculdes a complete crushing plant. A mobile crusher plant like this can offord the whole complete crushing plant.
| Technical Features of Large 40 - 200 TPH Mobile Rock Crusher, Mobile Rock Crushing Plant |
1. Move easily.
2. Compact structure and simple operation.
3. Save the cost.
4. Wide applicability.
5. Stable performance and convenient maintenance.
6. Flexible configuration.


| Model | Corollary Equipment | Feeding Size (mm) | Capacity (t/h) | Main Equipment Power (kw) | |
| Crushing Equipment | Feeding Equipment | ||||
| YCZ-E80 | PE500×750 | GZD850×3000 | <425 | 40-120 | 62.5 |
| YCZ-E120 | PE600×900 | GZD960×3800 | <500 | 60-160 | 86 |
| YCZ-E180 | PE750×1060 | GZD1100×4200 | <630 | 110-270 | 125 |
| YCZ-E260 | PE900×1200 | GZD1300×4900 | <750 | 150-380 | 154 |
| YCZ-EW60 | PEW400×600 | GZD850×3000 | <350 | 15-75 | 44.5 |
| YCZ-EW220 | PEW760×1100 | GZD1100×4200 | <640 | 150-330 | 125 |
| Model | Corollary Equipment | Feeding Size (mm) | Capacity (t/h) | Main Equipment Power (kw) | |
| Crushing Equipment | Screening Equipment | ||||
| YCZ-F70 | PF1010 | 3YZS1548 | <300 | 50-90 | 90 |
| YCZ-F120 | PF1214 | 3YZS1860 | <300 | 90-180 | 154 |
| YCZ-F175 | PF1315 | 3YZS2160 | <350 | 120-250 | 190 |
| YCZ-FW125 | PFW1214Ⅲ | 3YZS1860 | <250 | 90-190 | 154 |
| YCZ-FW200 | PFW1315Ⅲ | 3YZS2160 | <300 | 150-270 | 190 |
| YCZ-Y-B70 | PYB900 | 3YZS1548 | <115 | 50-90 | 70 |
| YCZ-Y-B120 | PYB1200 | 3YZS1860 | <145 | 110-170 | 132 |
| YCZ-CS-B90 | CZS36B | 3YZS1848 | <152 | 45-165 | 93.5 |
| YCZ-CS-B180 | CZS51B | 3YZS2160 | <220 | 109-360 | 190 |
| YCZ-HP-C160 | HPC200C1 | 3YZS1860 | <185 | 150-250 | 182 |
| YCZ-HP-C240 | HPC300C2 | 3YZS2160 | <230 | 220-440 | 280 |
| YCZ-HS-C130 | HSC100C2 | 3YZS1860 | <240 | 85-170 | 112 |







| Zhengzhou Great Wall Heavy Industry Machinery Co., Ltd |
![]() |
Tel: 0086-371-63769782 Fax: 0086-371-63769781 |
