SINCR 2.2kw 220v dc ac single phase solar water pump inverter for irrigation
- Category: Solar Pump Inverter >>>
- Supplier: Shenzhen Sincrea Electrical Technology Co. Ltd.
Share on (62202597793):
Product Overview
Description
SINCR 2.2kw 220v dc ac single phase solar water pump inverter for irrigation
Product Overviews

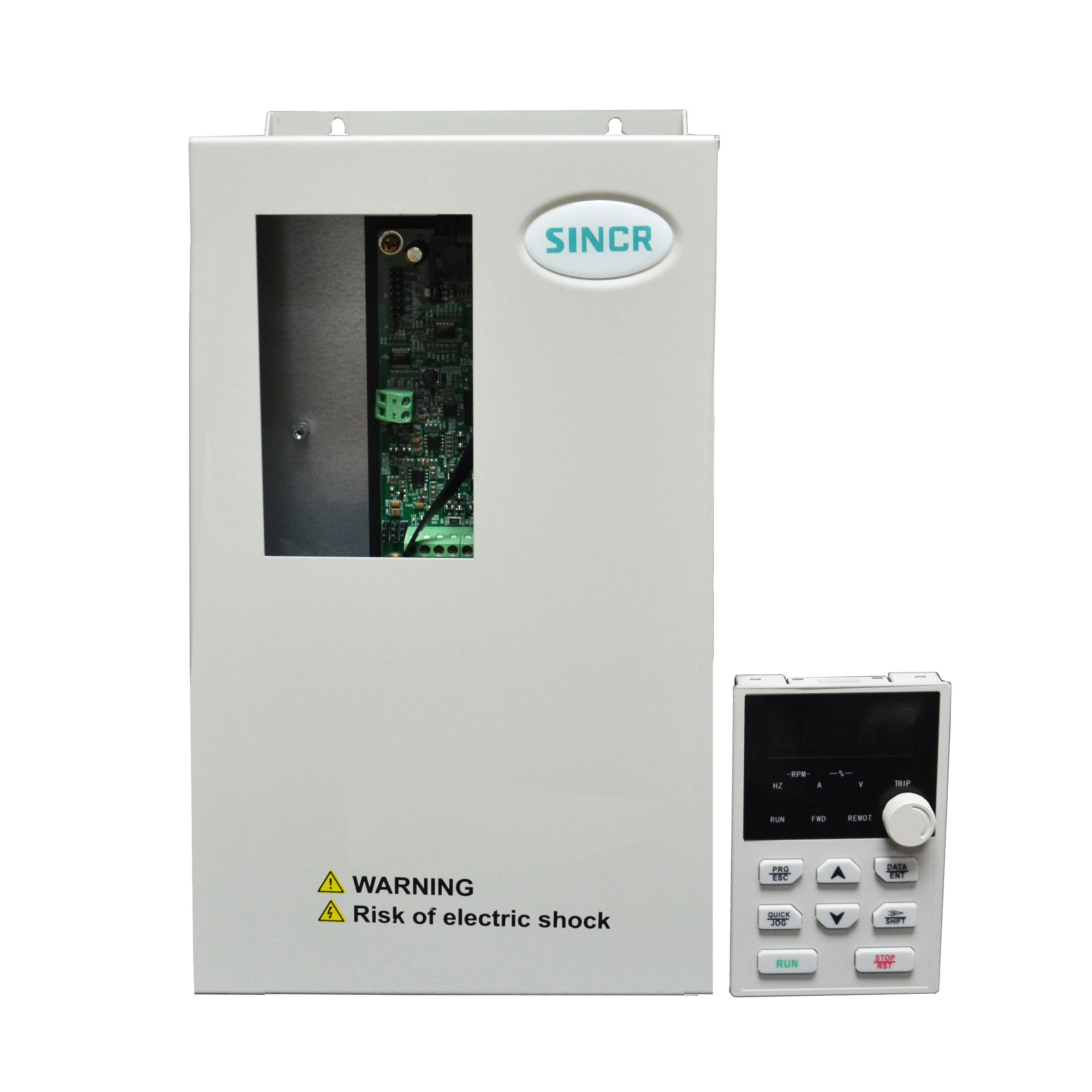

SINCR Solar Pump Inverter 11-15KW

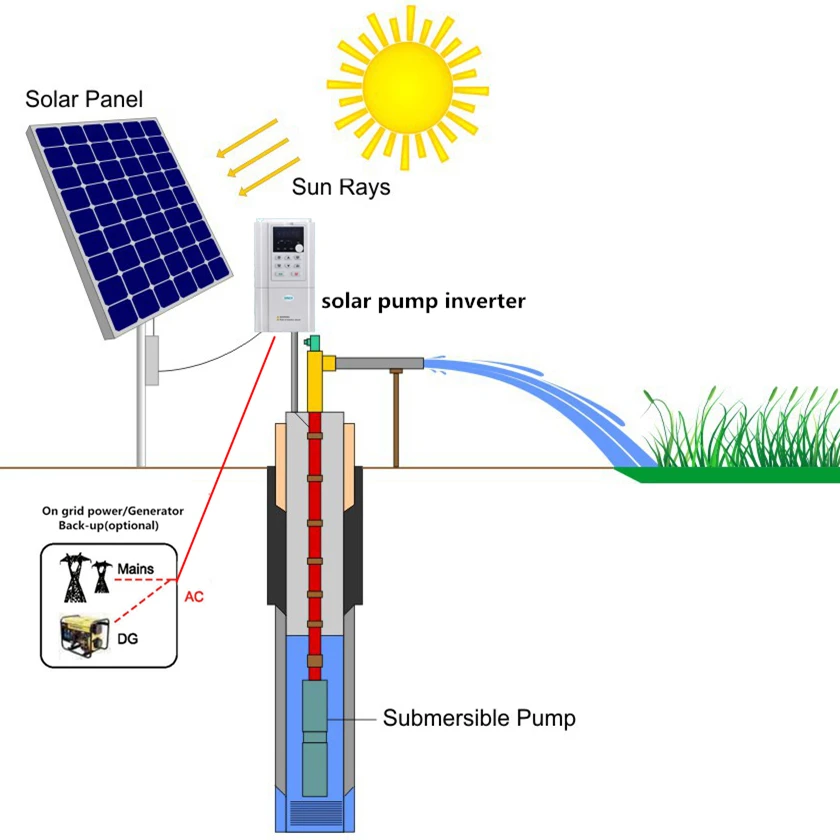

Transfer the solar DC to be AC, drivers the water pump to supply water, with the functions of MPPT, water level control, AC/DC switching, fully automatic operation, etc., to control and adjust the whole solar pump system operation.
Techniacl Features
♦ Built-in high-precision MPPT function, with accuracy reach up to 99%, make full use of solar energy.
♦ Automatic shutdown and restart, fully automatic control, unattended. (bulit-in water level sensor and light sensor) .
♦ Compatible with solar and mains power (or generator) input.

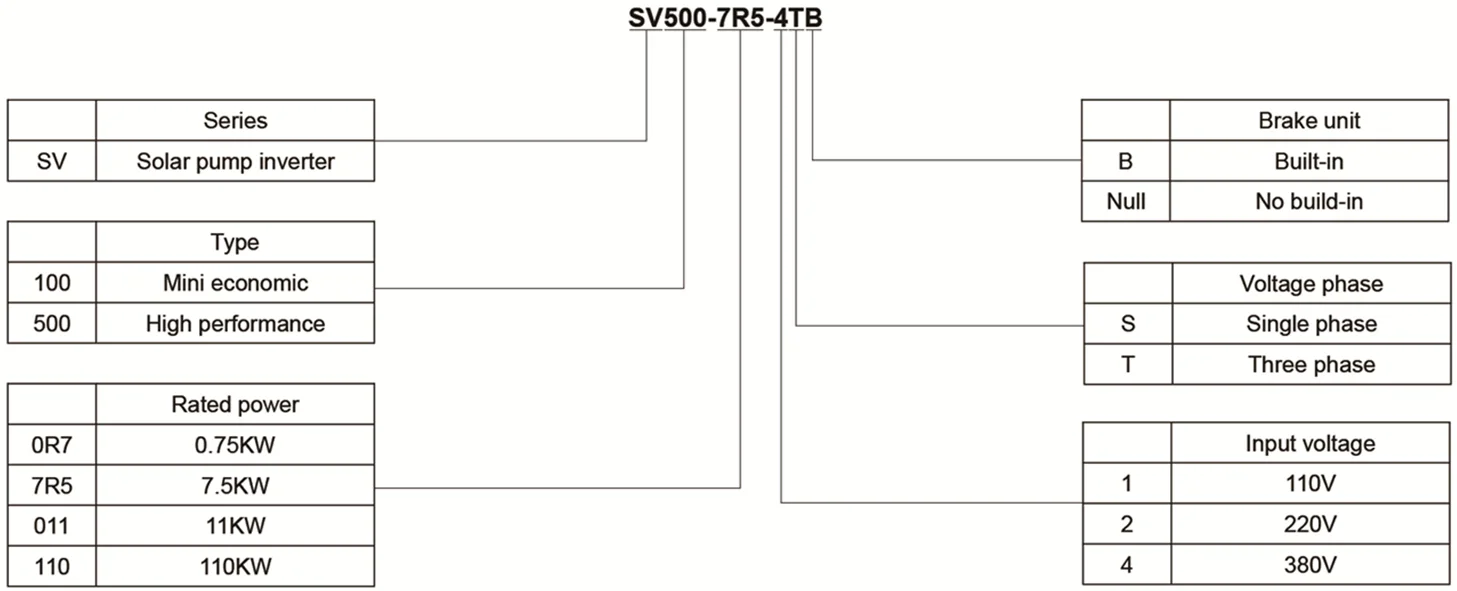

Product Model No.
| Model No. | AC input voltage (V) | MPPT voltage range (Vmp) | Output power (KW) | Input current (A) | Output current (A) |
| SV100-0R7-2SB | Single phase 220~240V AC | 250~350V DC | 0.75 | 8.2 | 4.5 |
| SV100-1R5-2SB | 1.5 | 14.2 | 7 | ||
| SV100-2R2-2SB | 2.2 | 23 | 10 | ||
| SV100-0R7-2TB | 3 phase 220~240V AC | 250~350V DC | 0.75 | 5 | 4.5 |
| SV100-1R5-2TB | 1.5 | 7.7 | 7 | ||
| SV100-2R2-2TB | 2.2 | 11 | 10 | ||
| SV100-0R7-4TB | 3 phase 380~480V AC | 500~700V DC | 0.75 | 3.4 | 2.5 |
| SV100-1R5-4TB | 1.5 | 5 | 3.7 | ||
| SV100-2R2-4TB | 2.2 | 5.8 | 5 | ||
| SV100-004-4TB | 4 | 10 | 9 |
| input DC votlage range(VOC) | Single phase: 220V~240V | ||||
| Input Max open circuit voltage (VOC) | 2S:450V DC | ||||
| MPPT efficiency | >99% | ||||
| Over-load capacity | 150%:60S;180%:10S;200%:1S | ||||
| Ouput frequency | 0~600HZ(Default:50/60HZ) | ||||
| On grid/Generator input | Yes | ||||
| Automatic switch between on grid/generator | Yes | ||||
| Working temperature | -10℃~+40℃; when 40~50℃ or altitude above 1000m, derating as required | ||||
| Cooling Method | Fan Cooling | ||||
| Communication port | Standard isolater RS-485, Modbus protocol | ||||
| IP grade | Standard:IP20(can customized IP54 or IP65) | ||||
| Built-in protection | shortage of water protection for deep well,full of water protection for tank, light weak sleep, light intensity wake-up, lightning protection, overvoltage protection, undervoltage protection, overcurrent protection, dry pumping protection, overload protection, phase loss protection, short circuit protection, overheat protection | ||||
Solar pump inverter Display
Product Application
Pakistan 3KW solar agriculture irrigation system
| Location | Sindh-Pakistan | |
| Purpose | Agriculture irrigation | |
| Water source | River. water depth 8-10m, 2m from river to tank | |
| Requiredments | Pakistan is a large country with traditional agricultural production. Due to the shortage of electricity, when agricultural irrigation requires water, it often loses power, which will have a great impact and loss on the cultivation of local farmers. In order to solve the actual pumping difficulties, SINCREA solar pump irrigation system was introduced to meet the needs of agricultural irrigation. | |
| Solutions | Water pump | 3KW AISI304 submersible pump,3phase,380V Rated water flow:20 m³/h;Rated lift head:10m |
| Solar panel | 4.8KW,15pcs 320W Mono solar panel in series | |
| Solar pump inverter | SINCREA,Model:SV500-004-4TB 4KW Solar pump inverter,3phase 380V | |
| Mounting bracket | Ground fixed Q235 hot galvanizing steel mounting bracket | |
| Accessoires | DC/AC cables,MC4 connector,water level sensor,DC/AC multi-meter,installation tool.etc | |
| Benefits | Adopting SINREA 3KW solar pump system, the 4.8KW solar panel drive the 3KW pump by the 4KW solar pump inverter. The system pump water from the 8m depth river to the tank, and then flows to each farmland through the channel, working 6-8 hours a day, 100~150 cubic meters of water can be pumped for farmland irrigation, solving the water shortage due to power outage and water shortage, fully automatic operation, and no manual operation. | |
