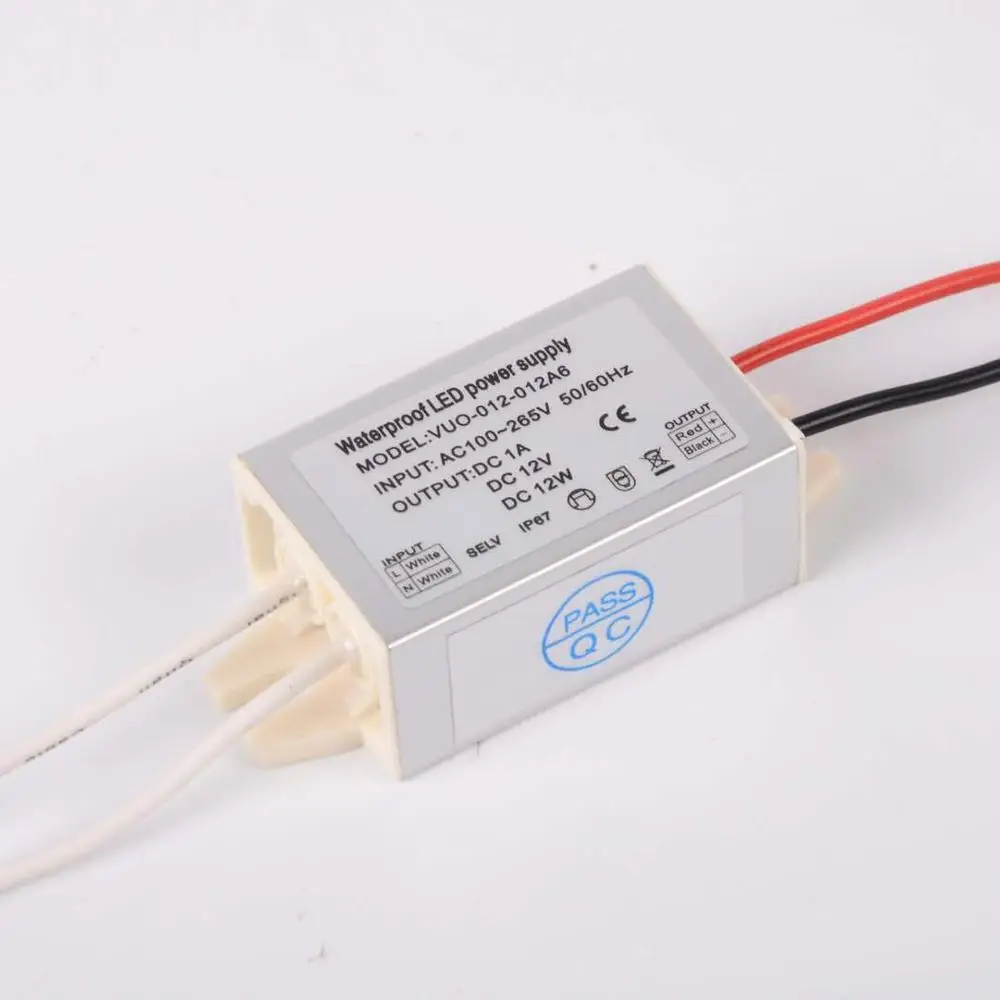

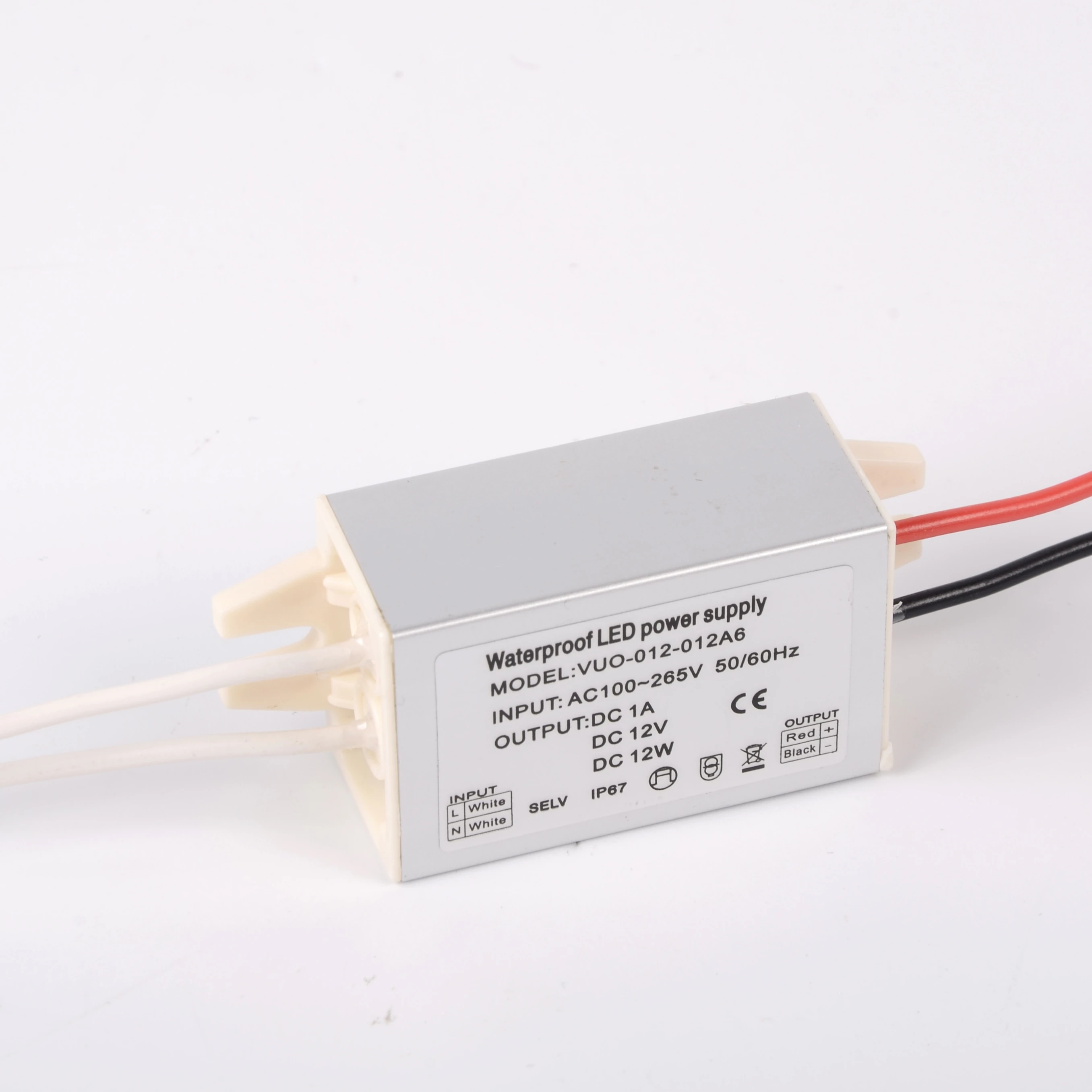

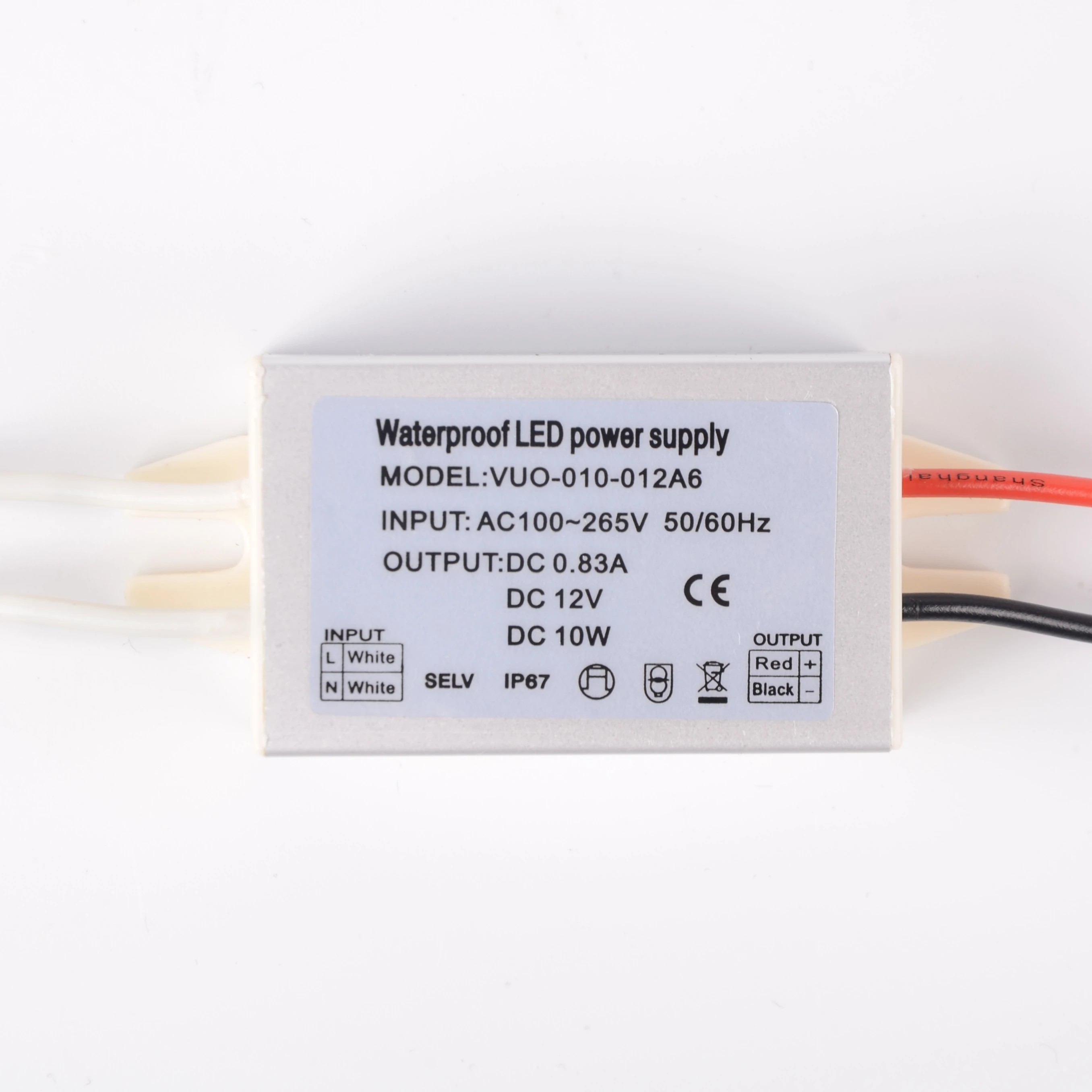

IP67 waterproof constant current 320ma 6 12w led driver for Led light
- Category: LED Driver >>>
- Supplier: Zhuhai Hengqin District Huawei New Energy Co. Ltd.
Share on (62202667945):
Product Overview
Description
Professional supplier IP67 waterproof constant current 320ma 6-12w led driver for Led light
Product Description
| Model | CUO-320-042A6 | |
| Output | DC voltage | 25-42V |
| Rated current | 320mA | |
| rated power | 13.44W | |
| Ripple & Noise (peak to peak) | <500mV | |
| No-load voltage | <49V | |
| Input | voltage range | 100~265VAC |
| Current | 47~63Hz | |
| Power factor | 0.5-0.7 | |
| effectiveness(Typ.) | 0.85 | |
| Alternating current(Typ.) | 0.12A/220VAC | |
| Protection | Short circuit | Protection mode: hiccup mode, abnormal conditions can be automatically restored after removal |
| overload | constant current | |
| environment | Operating temperature | -30~+50℃ (Please refer to the load reduction curve) |
| Protection class | IP67 Suitable for indoor and outdoor use | |
| Storage temperature | -40~+80℃ | |
| Safety&EMC | Safety standards | Suitable for EN61347-1;EN61347-2-13;SELV;IP67 |
| Pressure | Input - Output: 2KVAC Input - Enclosure, Ground: 2KVAC Output - Enclosure, Ground: 0.5KVAC | |
| Tips | 1.If without specia explanation, all specifications are measured at an input of 220VAC, rated load, ambient temperature of 25 ° C . 2.Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals are connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth. | |
"Click here" or "Send inquiry" to get the latest price and product details!
Main Products
Company Profile
Certifications
Exhibition
Our Services
FAQ
Q1.What’s your payment term?
A. We cccept T/T,L/C,Paypal.
Q2.How ‘s the delivery time?
A. It rests with the quantity you meed,2-15 days usually.
Q3.What’s your standard of package?
A. Normally are cartons,but also we can pack it according to your requirement.
Q4.Would you accept to use our own logo?
A. Yes,we can do OEM,if the quantity can reach MOQ.
Q5.Where is your shipping port?
A. Zhuhai port & Shenzhen port,as it is near to our factory,other port is also no problem.
Q6.How about the quality?
A. We have the best professional engineer and strict QA and QC system.
Q7.Can we be your distributor?
A.We are looking for distributor and agent all over the world for switching power supply.
