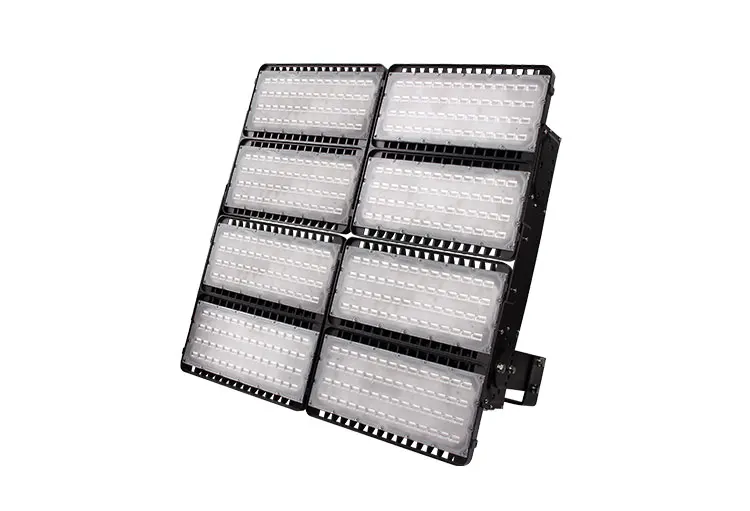

1200W 1600W Golf Course Light for commercial high pole high mast flood lighting
- Category: >>>
- Supplier: Zhejiang Boshang Optoelectronic Co. Ltd.
Share on (62202840314):
Product Overview
Description
High lumens chips realize excellent
luminance, low brightness decline.
IP68 waterproof Connectors.
Meanwell driver provides excellent performance and lifespan,driver efficiency
up to 95%.

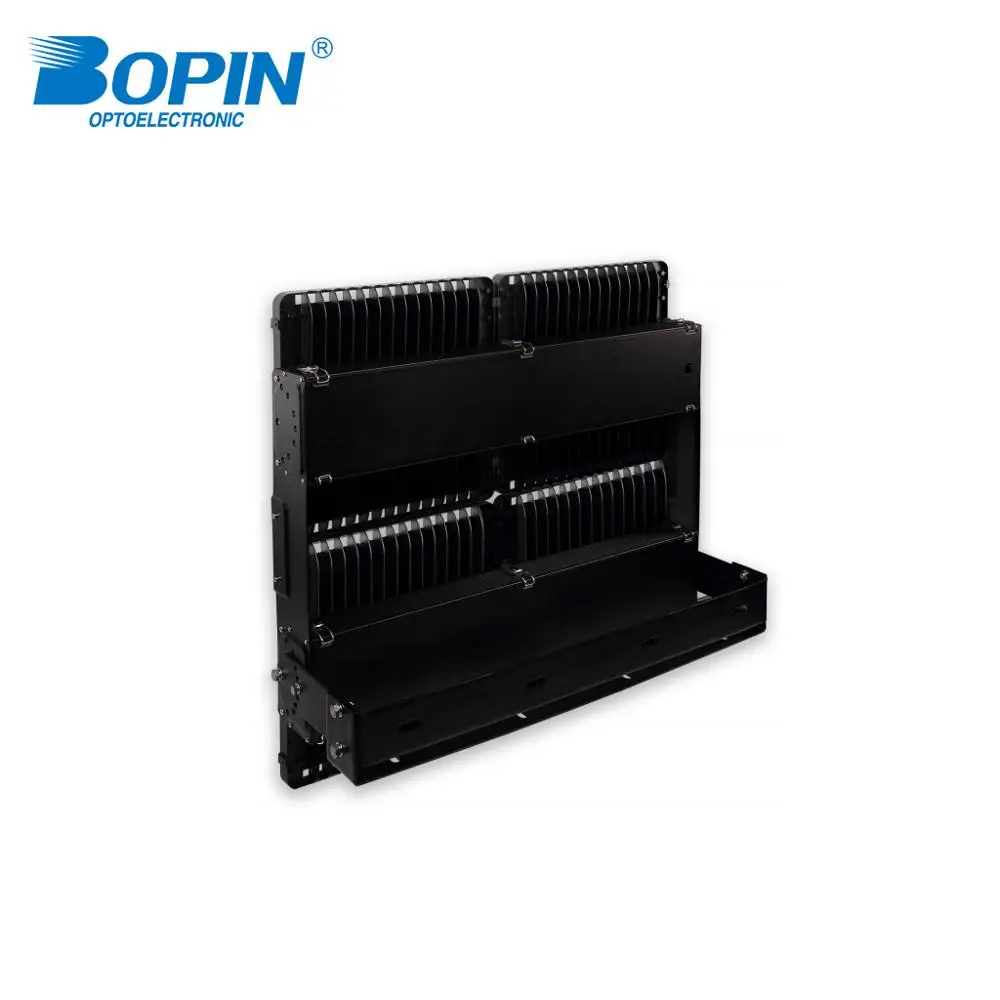

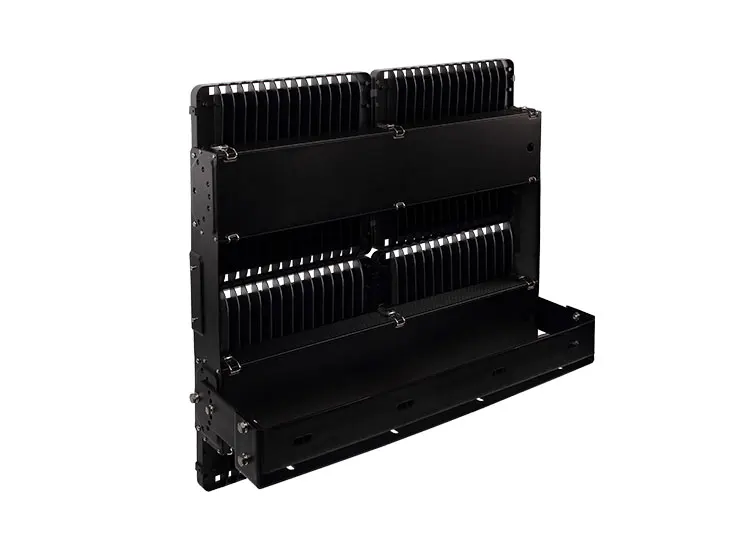

Fin style heatsink design makes the heat dissipation perfect and extend lamp's lifespan.

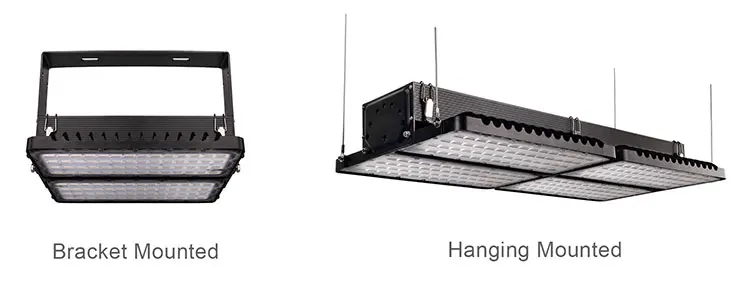

The adjustable bracket, 180°adjustable,
adjust as you want.
Technical Parameters
Model No. | BSG400Z-F8Y | BSG800Z-F8Y | BSG1200Z-F8Y | BSG1600Z-F8Y | |||
Nominal Wattage | 400W | 800W | 1200W | 1600W | |||
Input Voltage | AC100-270V 50/60Hz | AC100-270V 50/60Hz | AC100-270V 50/60Hz | AC100-270V 50/60Hz | |||
CCT | 3000K / 4000K / 5000K / 5700K / 6500K | ||||||
CRI | 75±5 | 75±5 | 75±5 | 75±5 | |||
PF | >0.95 | >0.95 | >0.95 | >0.95 | |||
Operating Temperature | -40℃ ~ 50℃ | -40℃ ~ 50℃ | -40℃ ~ 50℃ | -40℃ ~ 50℃ | |||
Light Efficacy | >110lm/W(3030) / >140lm/W(5050) | >110lm/W(3030) / >140lm/W(5050) | >110lm/W(3030) / >140lm/W(5050) | >110lm/W(3030) / >140lm/W(5050) | |||

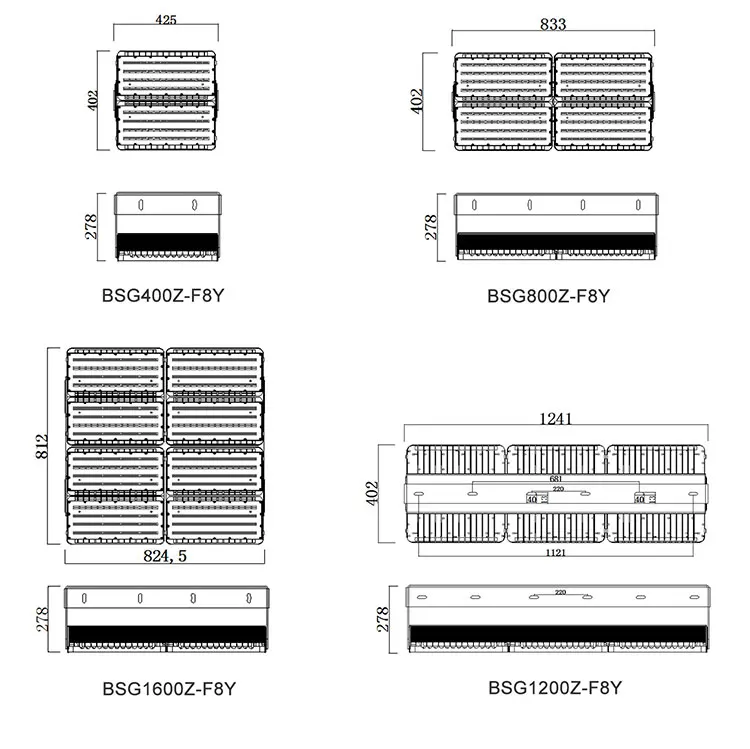

Model | Product Size | Packing Size | N.W | G.W |
BSG400Z-F8Y | 425*402*278mm | 530*490*225mm | 14Kg | 16Kg |
BSG800Z-F8Y | 833*402*278mm | 530*900*225mm | 25Kg | 28Kg |
BSG1200Z-F8Y | 1241*402*278mm | 530*1310*225mm | 38Kg | 42Kg |

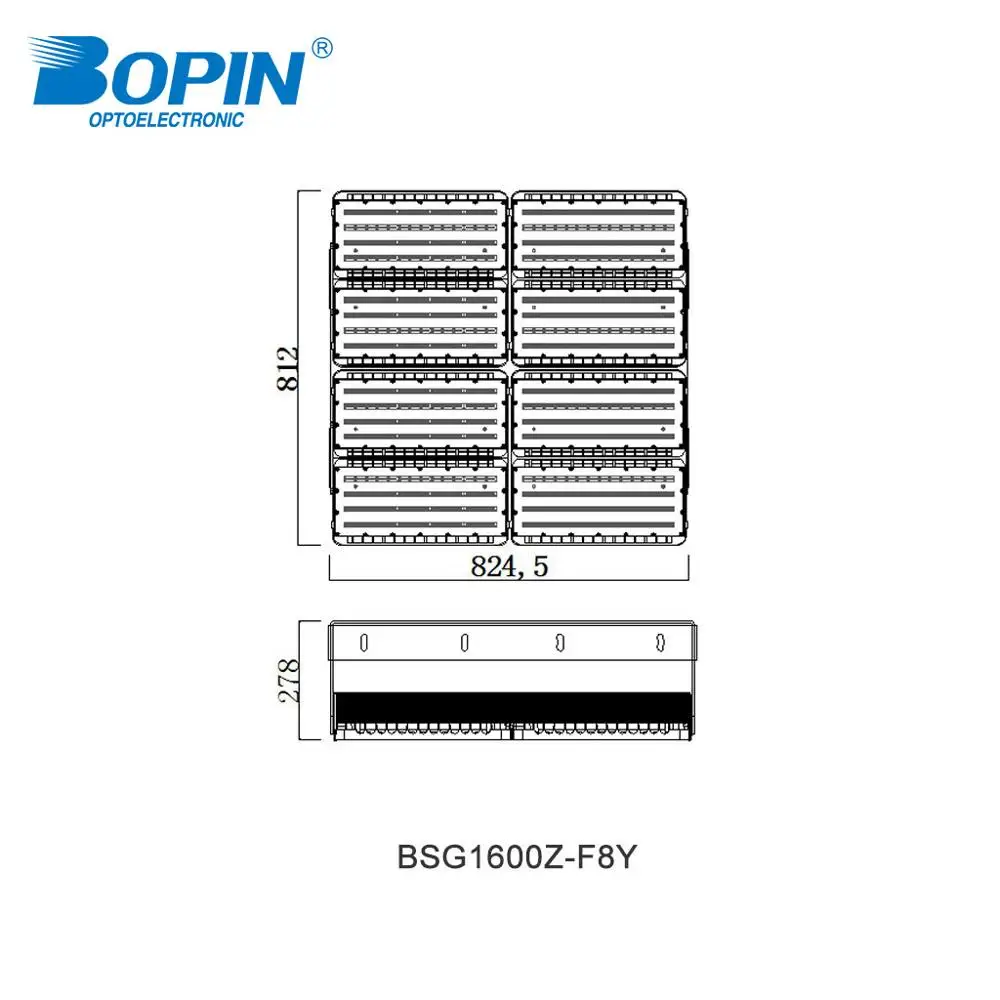

BSG1600Z-F8Y | 812*681*278mm | 940*910*225mm | 48Kg | 53Kg |
Applications
General lighting for football field, golf course, tennis court, park, square, road interchange, crossroad, airport, train station, bus station and other high pole lighting.
Our Company

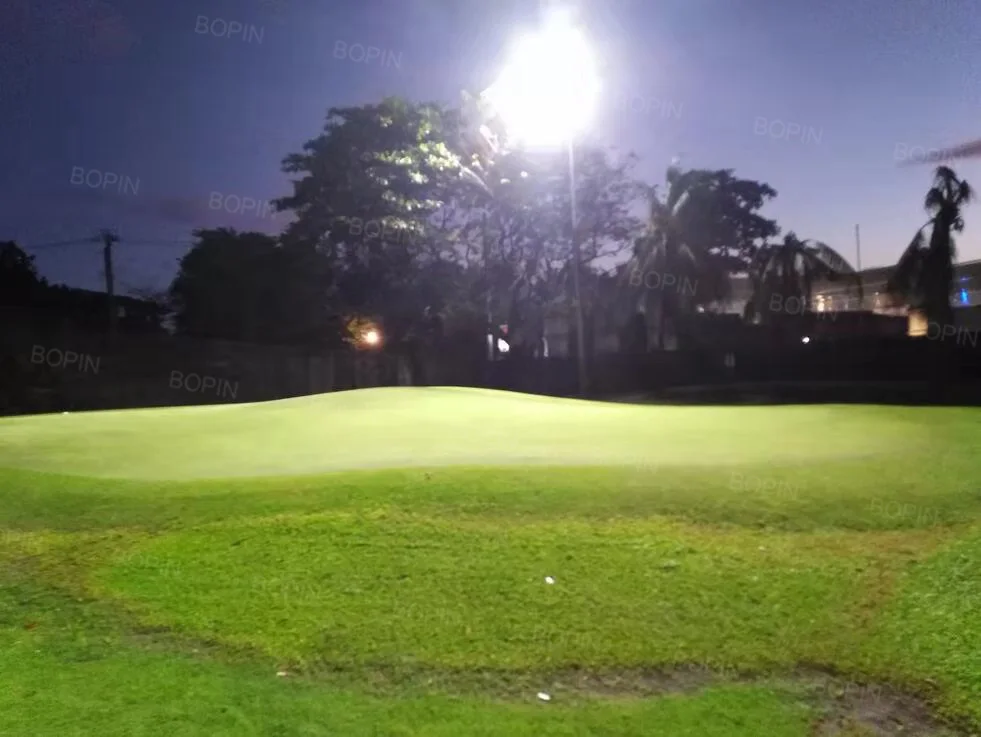

Customer Photos

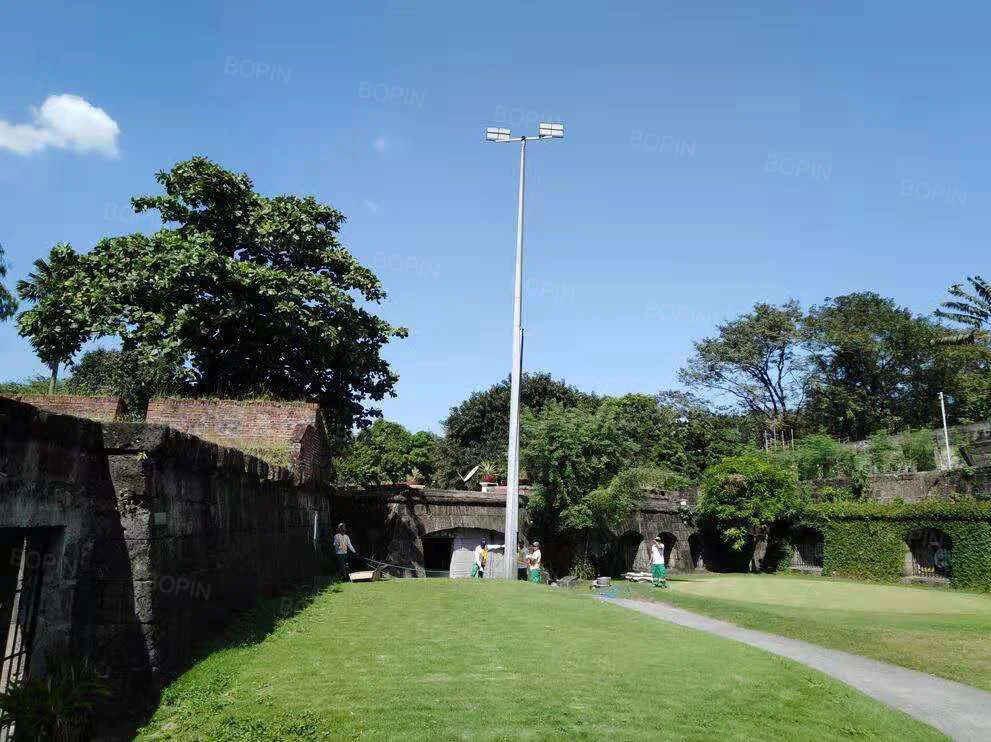

Our Projects
FAQ
Q: How about MOQ?
A: 2pcs for MOQ for testing
Q: Shipping & how long for sample ?
A: Fedex/ UPS/ TNT/ EMS etc., 5-7 working days generally.

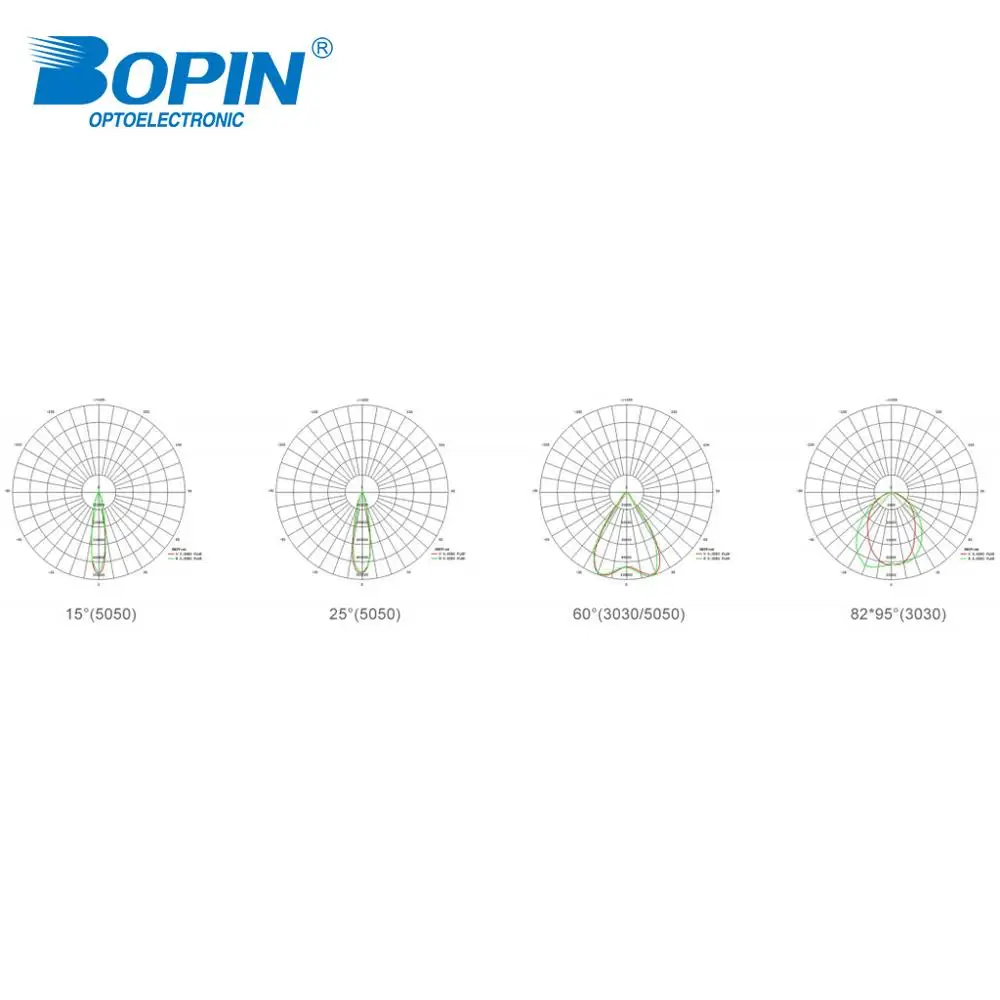

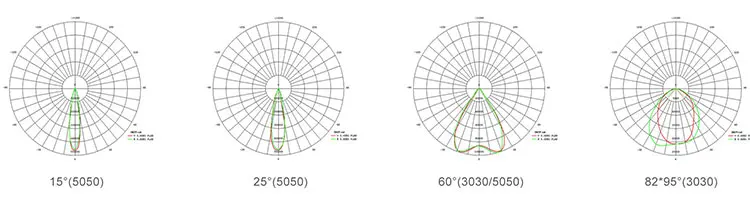

Q: What abou the project beam angle?
A: Sir, according to your project application, we'd love to suggest you then.
15°/ 25°/ 60°/ 82*95° is available currently.
Q: What's the warranty time of high mast light?
A: Usually 5 years (from goods received) , It depends on different driver, we have Inventornics/ MeanWell for optionals. We are responsible for the quality issues (except the man-made sabotage or other damages made by customer-self).
Q: Where's Bopin location ?
A: You are always welcomed to visit our factory in Hangzhou, China at you convenient time.
