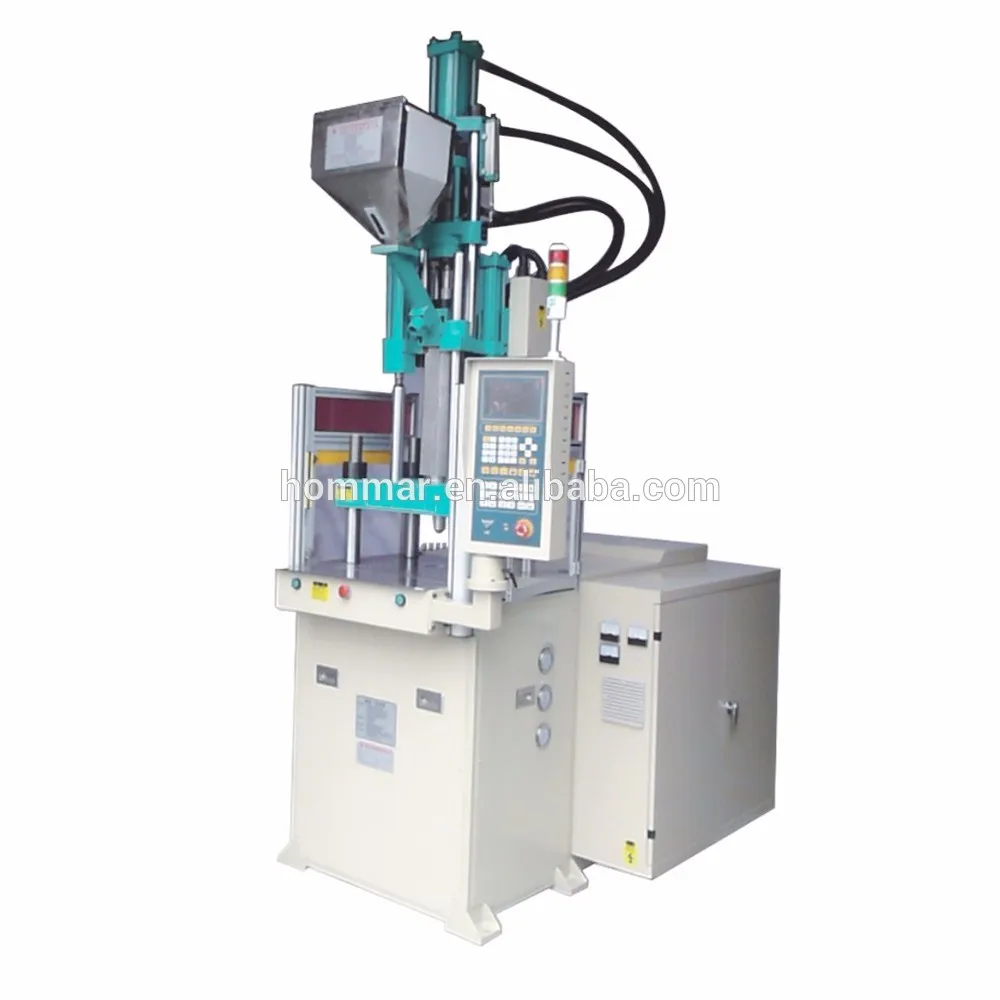

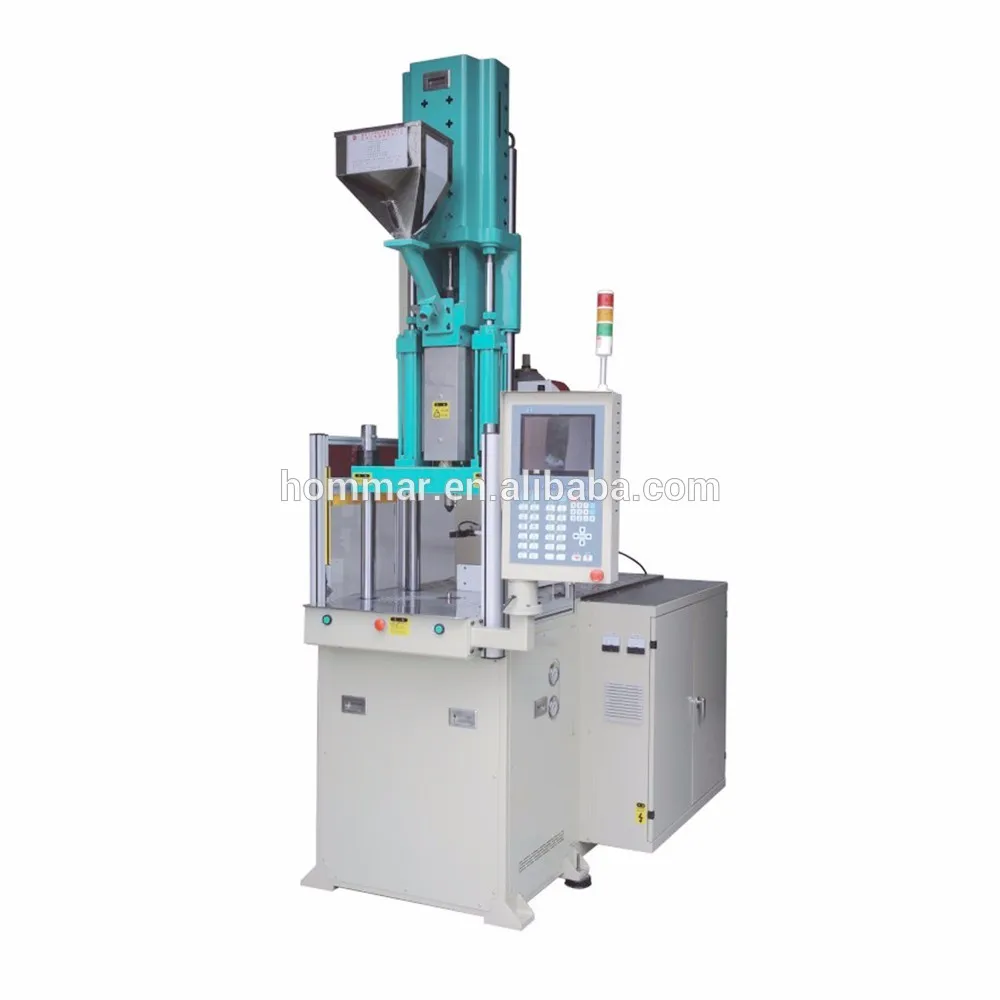

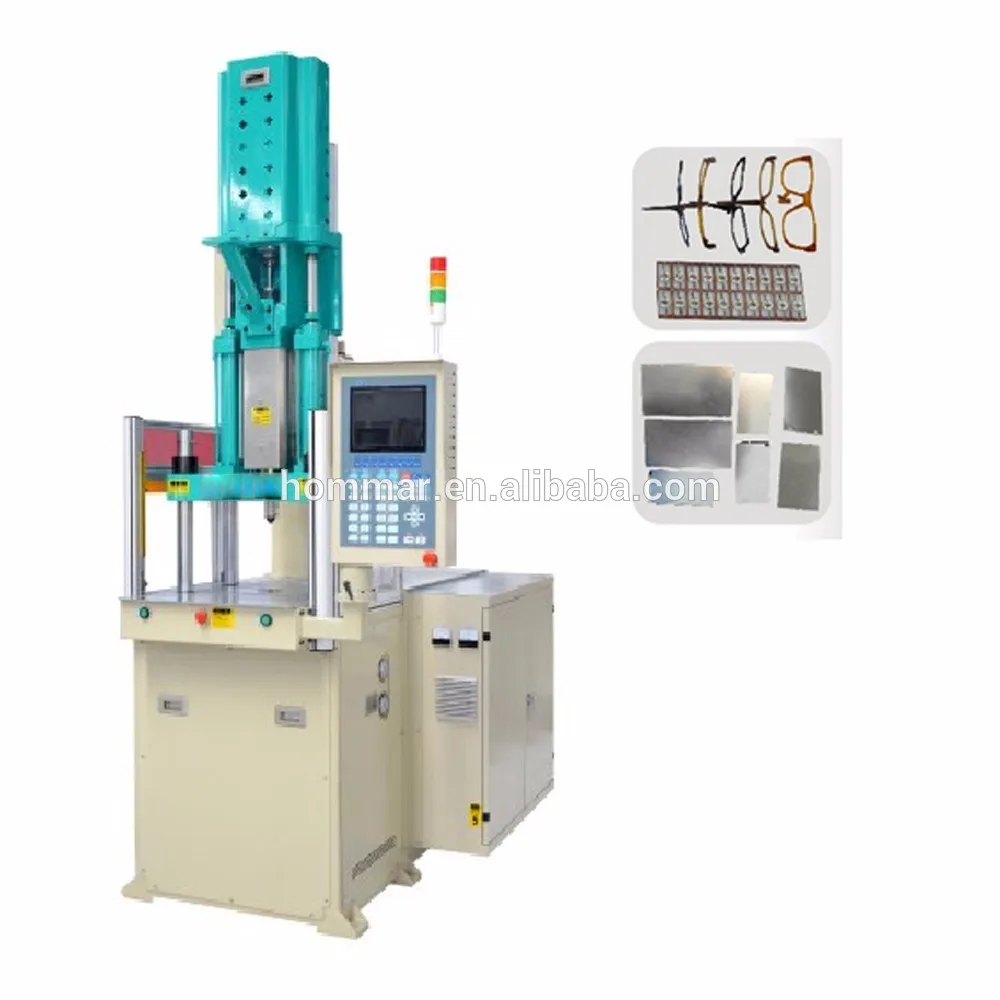

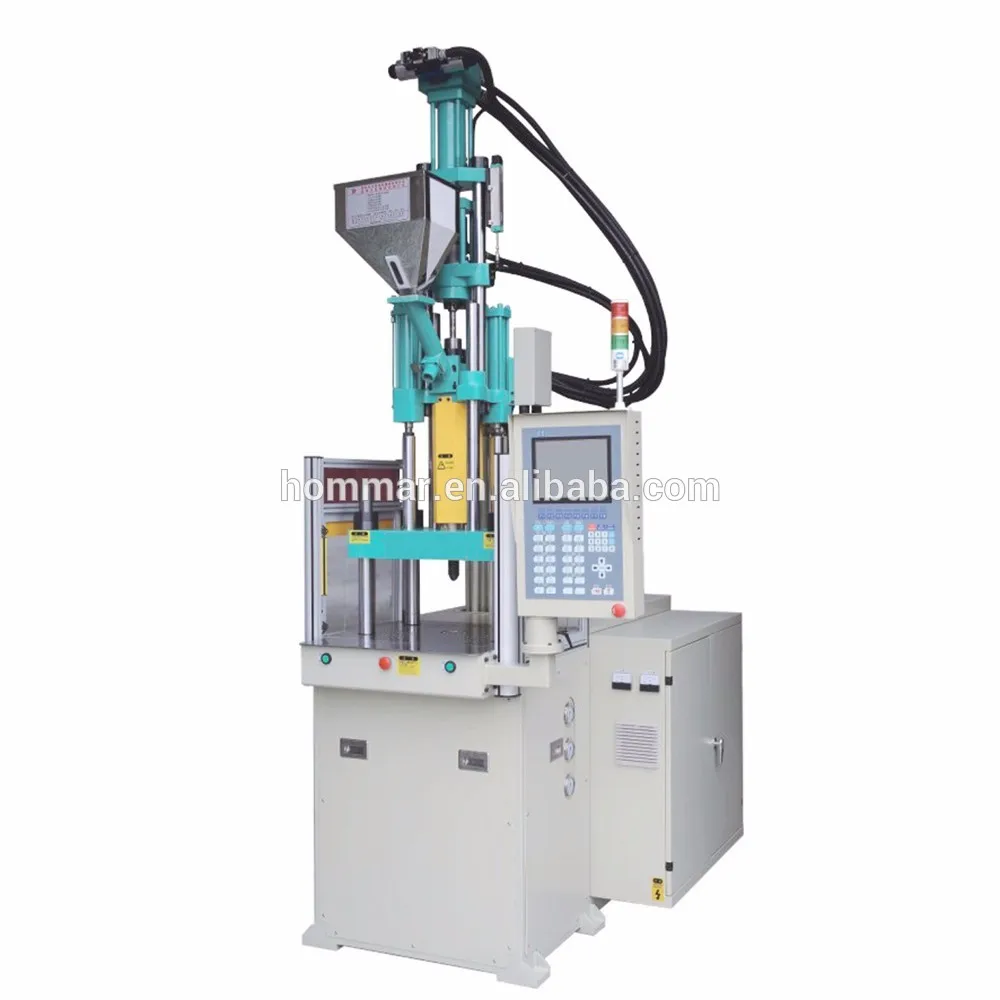

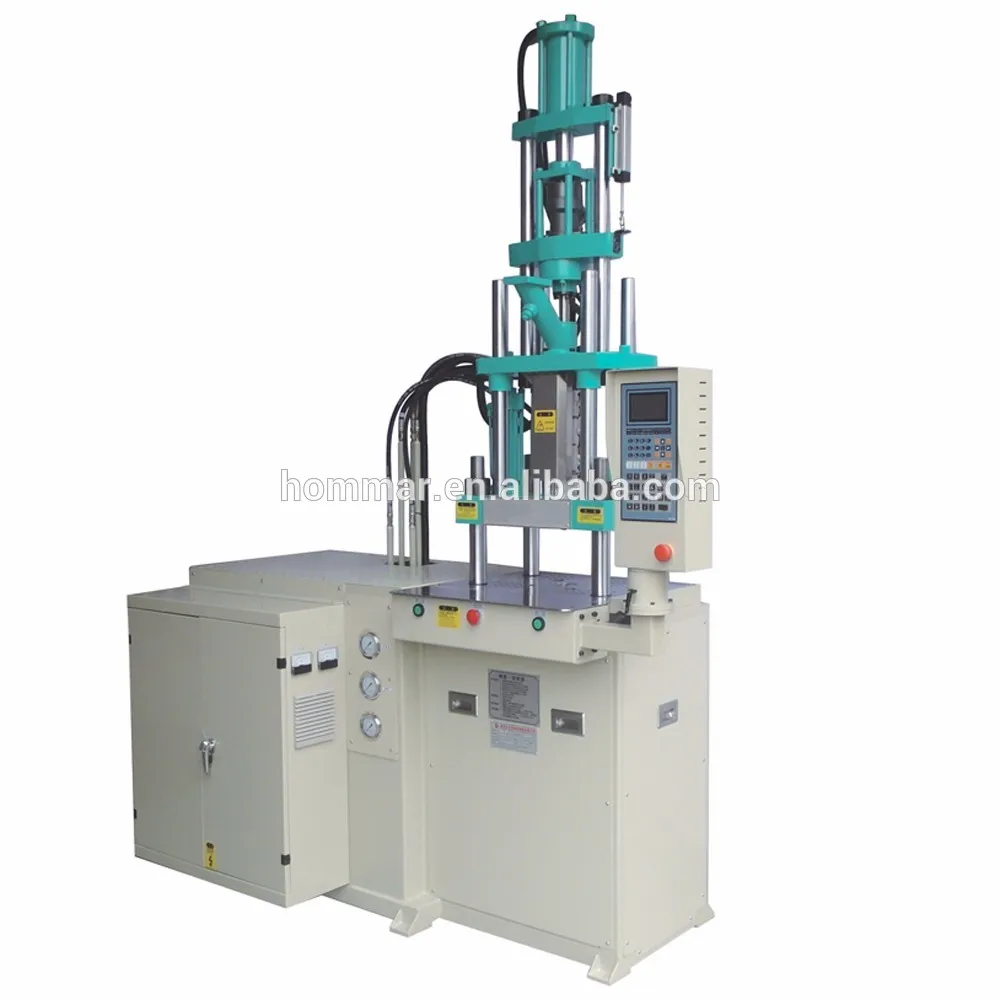

35T Vertical alumina ceramic roller plastic Injection molding machine HM0152 27
- Category: >>>
- Supplier: Dongguan Hommar Hardware Co. Ltd.
Share on (62202890457):
Product Overview
Description
35T Vertical alumina ceramic roller plastic Injection molding machine HM0152-27
Product Description
| Spec | ||||
| Model | HM-35T-HS | |||
| Injection unit | Screw Diameter | mm | 26 | 32 |
| Injection Pressure | Kgf/cm3 | 2071 | 1367 | |
| Injection Capacity | cm3 | 64 | 96 | |
| Injection Weight | gr | 57 | 87 | |
| oz | 2 | 3 | ||
| Injection Rate | cc/s | 44 | 67 | |
| Screw Speed | r.p.m | 0-180 | ||
| Screw Stroke | mm | 120 | ||
| Nozzle Stroke | mm | 150 | ||
| Nozzle Contact Force | tf | 2.4 | ||
| Clamping unit | Clamping System | |||
| Clamping Force | tf | 35-40 | ||
| Clamping Stroke | mm | 215 | ||
| Max.Mould Space | mm | 360 | ||
| Min.Mould Height | mm | 145 | ||
| Space between columns | 450*190 | |||
| Hydraulic Ejector Force | tf | 1.7 | ||
| Ejector Stroke | mm | 40 | ||
| Slidable Stroke | ° | 350 | ||
| Tableda | Overall Size of Slipform | mm | 360*430 | |
| Number of Molds | set | 1 | ||
| Drive Motor | kw | 5.5(7.5HP) | ||
| Electrical Parts | Heater | kw | 4.1 | |
| Oil Tank Capacity | L | 160 | ||
| Cooling Water | L/hr | 600-800 | ||
| Dimension of Machine | M | 1.6*1.2*3.1 | ||
| Packing | Weight of Machine | T | 1.9 | |
| Shipping size | M | 1.8*1.4*2.5 | ||
| Shipping weight | T | 2.4 | ||
| Key Parts List | |||
| Part Name | Brand | Original of Country | Features |
| Computer | Star Denshi | Japan | High Precise Control, High sensitive response, TFT Color display |
| Servo Motor | YASKAWA | Japan | Energy Saving |
| Electromagnetic valve/ solenoid valve | Yuken | Japan | High sensitive response |
| hydraulic valve | HSUTIEN | Taiwan | Longer span life |
| Material Cylinder | Tan Star | Taiwan | Antia brasive corrosion resistance Longer span life |
| Electronic parts | Schneider Fuji Fotek | France/Japan/Taiwan | Stable High sensitive |
| hydraulic Motor | White | USA | Low noise |
| Servo Pump | Eckerle | Germany | Low noise |
| Electrical Ruler | Gefran | Italy | High Precise Control |
| Tiebar | Genaral | Taiwan | High hardness |
| Seal | HALLITE | UK | Longer span life |
| Proportional rejection valve | Yuken | Japan | High Precise Control Longer span life |
| Oil Cylinder | Lianhuei | Taiwan | Antia brasive |
Product Overviews
Here are some sample cases we have done in past years.
This is only very small part of successful cases we have done.They are typically used in relevant industry or some OEM cases we design for customers specially.
If there is a sample you are looking for, please feel free to contact us for more details and price.
If there is no sample you are looking for,please feel free to contact us for OEM case.We will try our best to provide a practical solution for you in 24 hrs- 48hrs.
