Sophia видно далеко водонепроницаемый сигнальная башня свет лампа аварийной сигнализации

Product Overview

Description

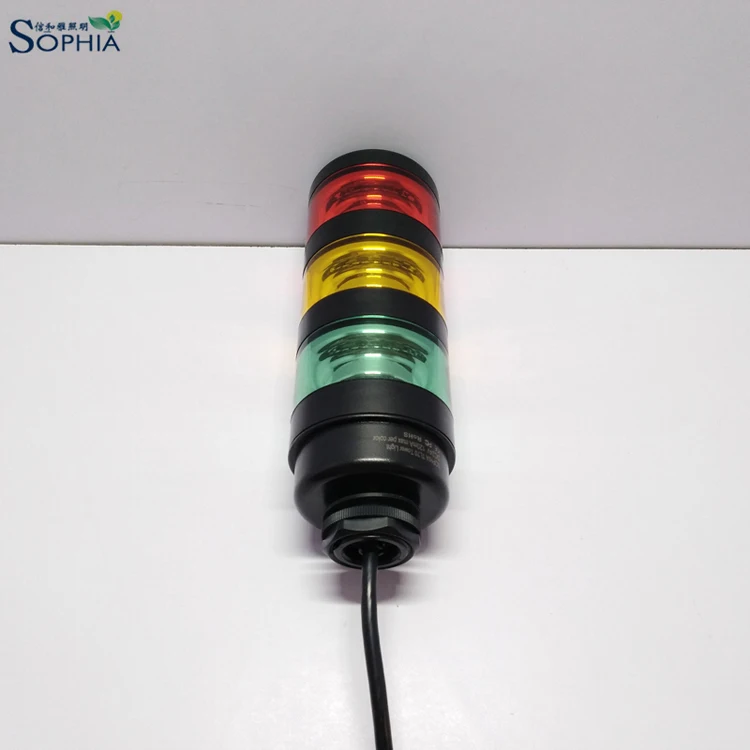

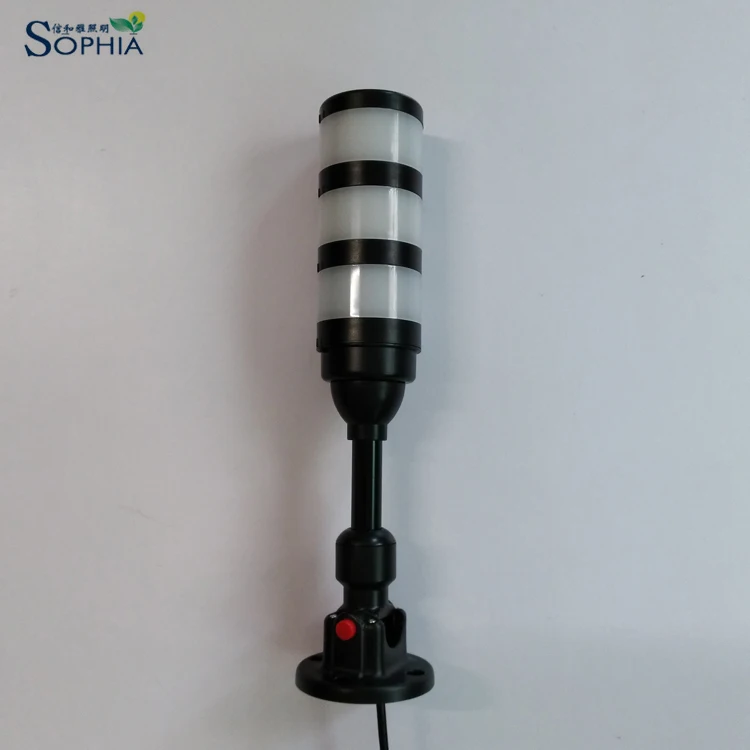

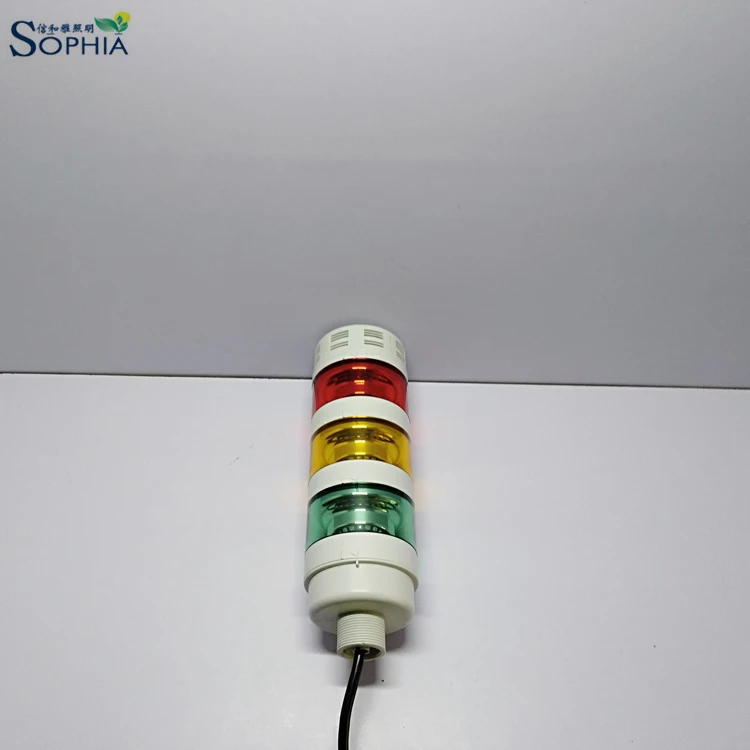

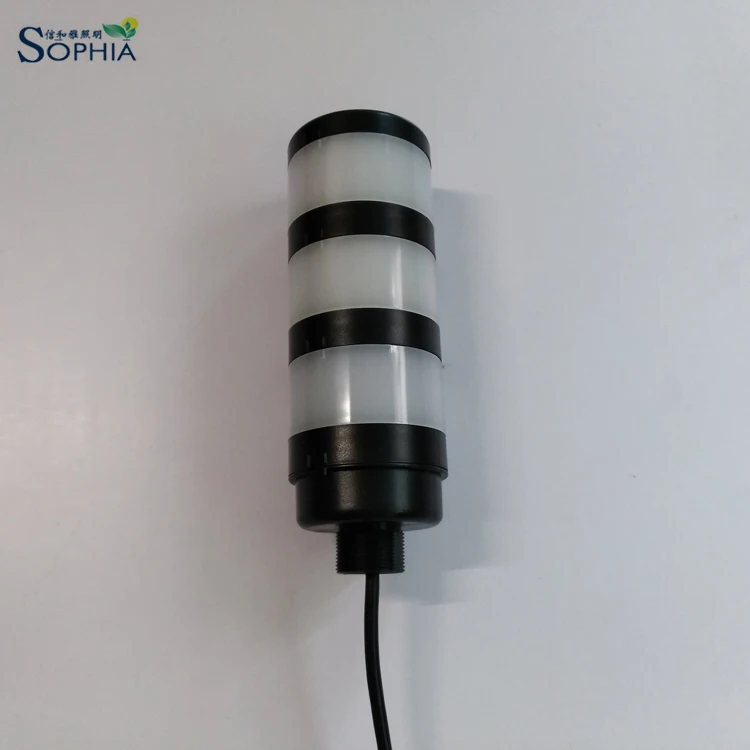

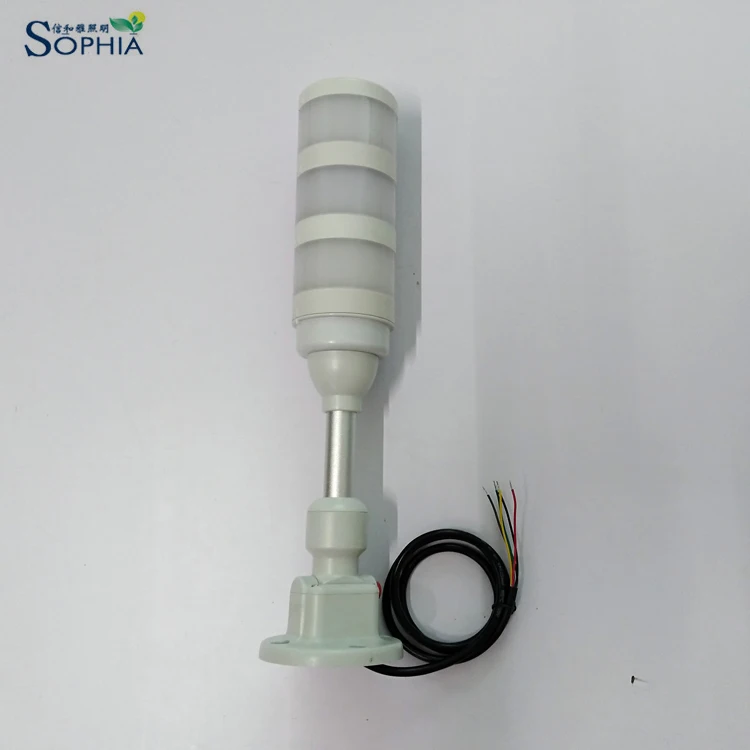

 TL70, Red, Amber, Green, 24V, continue on, with or without Buzzer, with 90mm aluminum tube, swivel base













Six different mounting styles



Comparison



Wiring and diagram

Item No.	TL70 series
Stack	From one to five
Input	12V/24VDC
Current	12VDC 240mA; 24VDC 120mA
Buzzer	30mA
Color	Red/Orange/Yellow/Green/Blue/White, random combination
Performance	a Revolving; b flash; c jump; d constant color
Electric protection	Protected again reverse polarity
Response time	<10milli seconds
Buzzer frequency	2.5KHz+/-500Hz, 95db
Working temperature (ºC)	-40ºC~50ºC(no buzzer);-20ºC~50ºC(with buzzer)
IP rating	IP53
LED life span (H)	100000 hours
Installation accessory	Foldable base/ fixed plate/ pole with plate/nut
Material	Powerful SMD LED, high transmittance and reinforced ABS and polycarbonate housing, Surface very smooth and flat, high transmittance, unique designed driver, can recognize various performance and maximum five stacks
Feature	Compact and patented design, waterproof. Corrosion proof, oil proof. Housing and surface is different from normal one in market, very smooth and flat, increase the brightness. Excellent driver, can make maximum five stacks with various performance. Module design, easy to maintain. Base with 30mm thread, very easy and convenient to install.
Approval	CE, FCC
