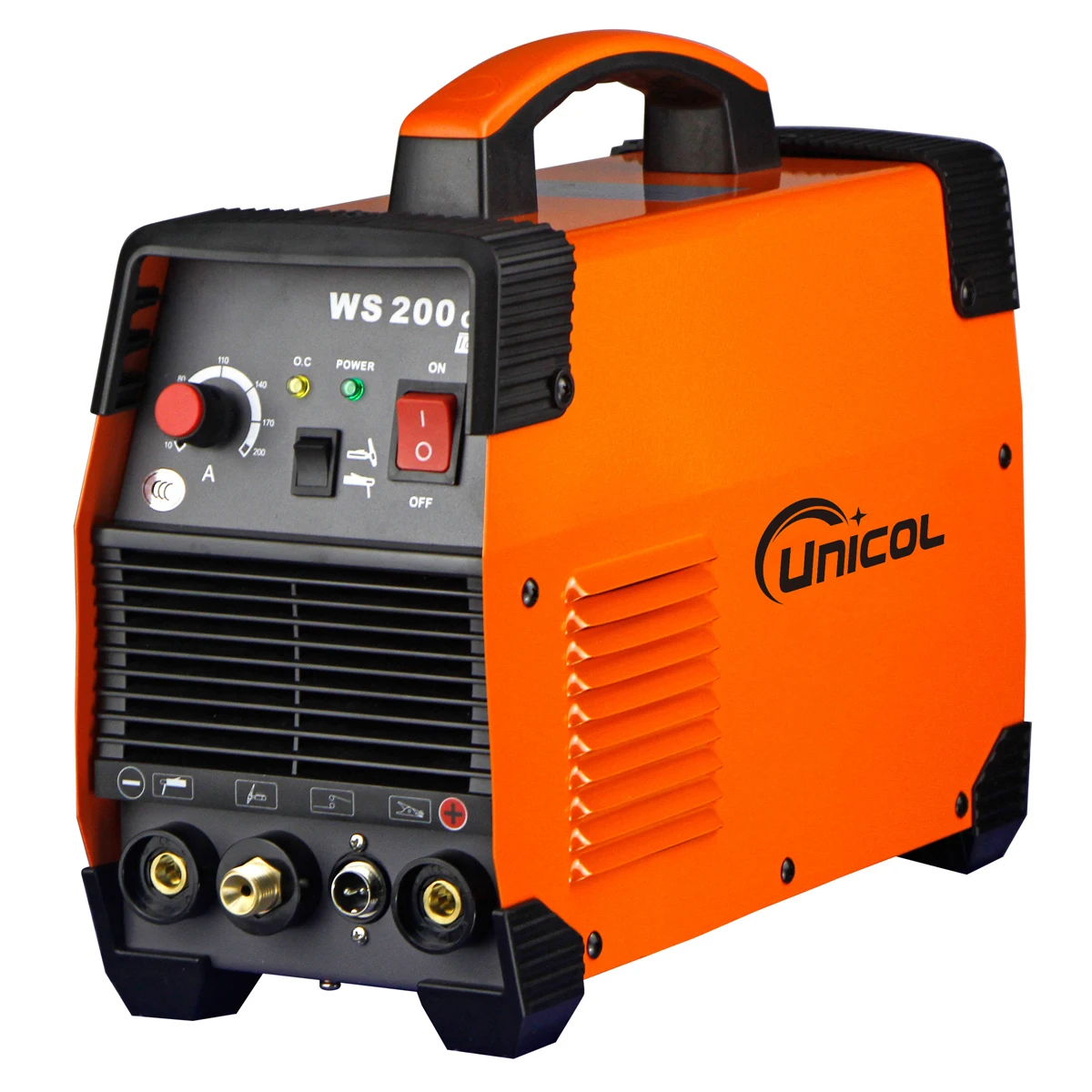

TIG 200GA Normal Welding Portable Electric Small Tig Welder

Share on (62203128737):


Price:RUB 8,263.11

Quantity:


Product Overview

Description

Product Description


1.Applying the inverter technology to reach high working frequency, small dimension and weight. Very convenient for taking around.

2. With the design of HF and pulse hot start to  realize outstanding arc start. The welding current is powerful enough and the cost performance ratio is high.

3. Having the function of auto-protection against over voltage and over current.

4. With special design for output features. More suitable for wire-feeding welding to make welding seam beautiful

5. Designed for wide range of input voltage. The high duty cycle makes the machine very suitable for continuous operation in the factories

6. Simple in designing, wonderful in structure, easy in maintenance, reliable and endurable

7. Very suitable for the welding of stainless steel, carbon steel, copper, etc

Parameters
Model/Parameters TIG 200GA Arcing Way  Transfer
power supply voltage(V)  AC220V±15% Efficiency(%)  80
Fre.(HZ)  50/60 Power Factor  0.73
Rated Input Current(A)  43.6/28 Insulation Grade  F
No-load Voltage(V)  56 Housing Protection Grade  IP21
Output Current Range(A)  10-200 Net Weight(kg)  9
Rated Output Voltage(V)  28/18 Dimension(mm)  440x260x340
Duty Cycle(%)  60 Inverter Technology  IGBT
No-load Loss(W) 40
