X 9300 wholesale USB auto trigger 1D laser bar code scanner handheld barcode read data collector
- Category: >>>
- Supplier: Foshan Xincode Electronics Technology Co. Ltd.
Share on (62203819682):
Product Overview
Description
HOT SELLING
Wired Laser Barcode Scanner
Technical Parameter
| Technical Parameter | |||||||
| Model | X-9300 | ||||||
| Item | Wired Laser Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PVC+PC | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Current | 50mA(working);30mA(standby);100mA(maximum) | ||||||
| Maximum Power Consumption | 0.5W | ||||||
| Weight | 120±5g(With cable) | ||||||

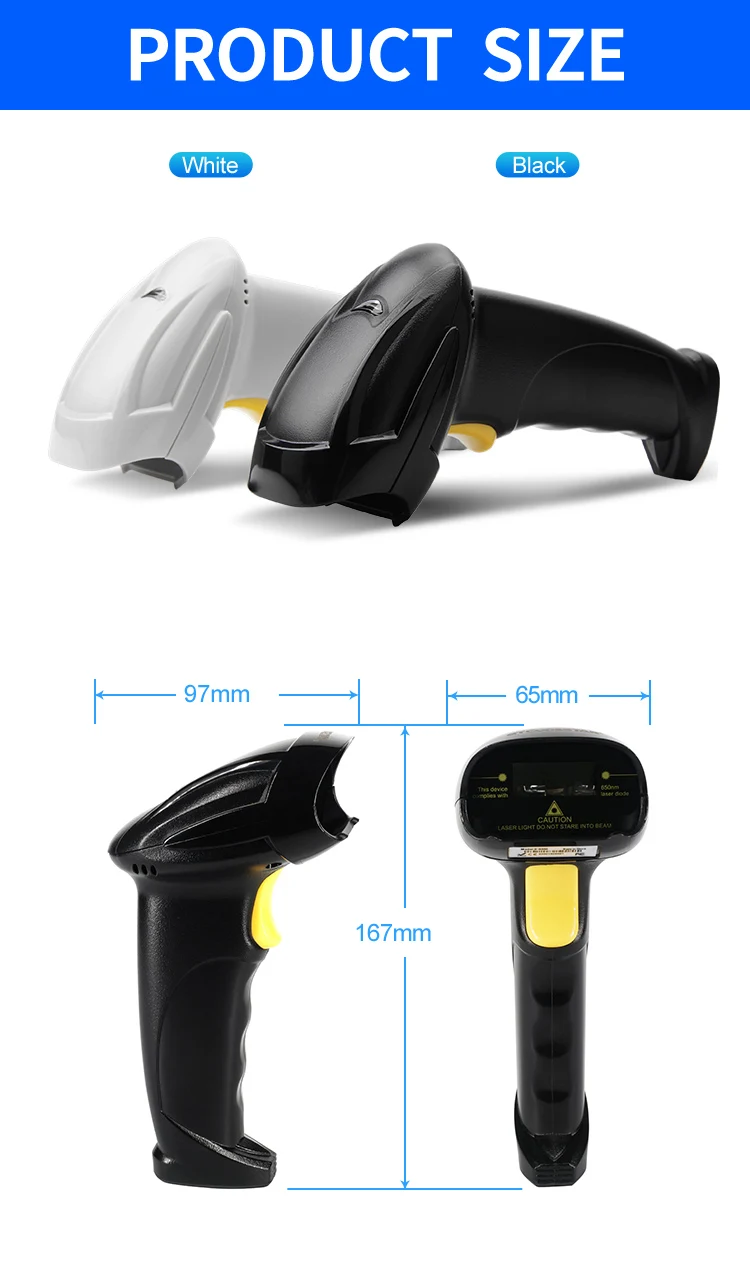

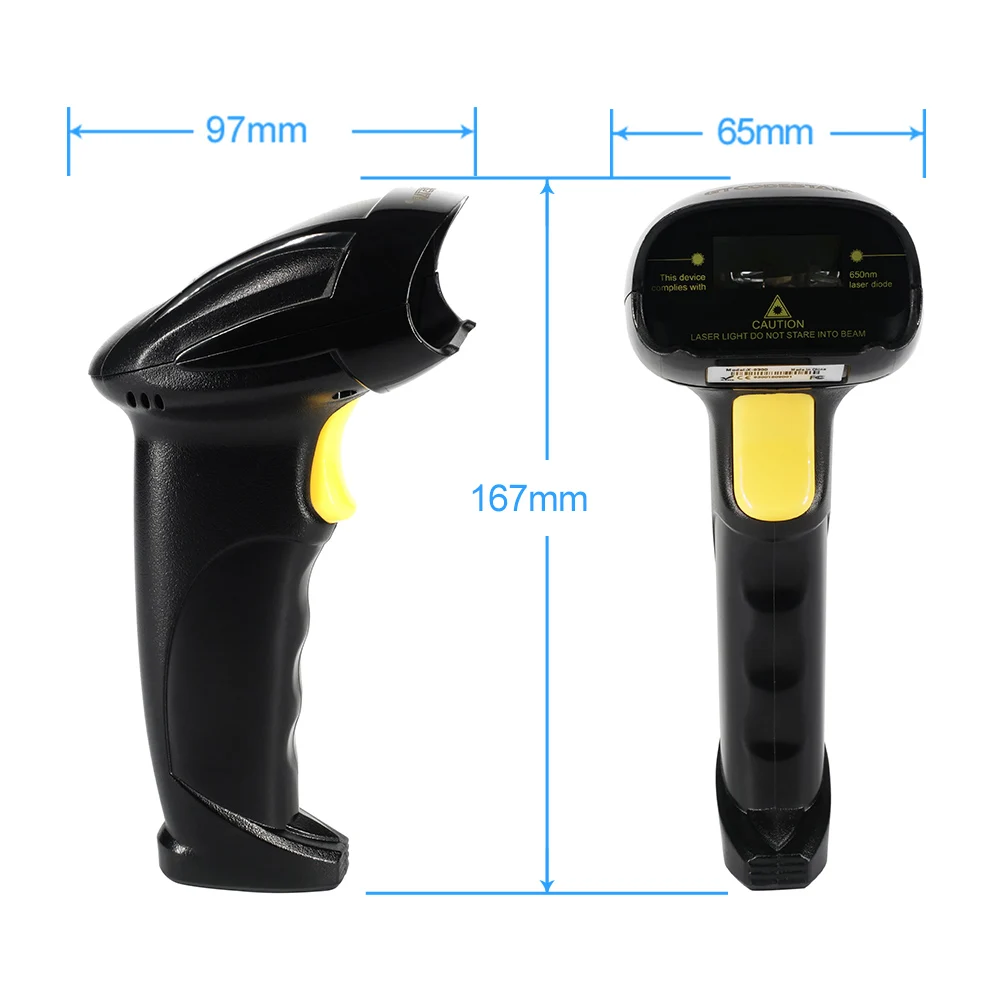

| Size | L*W*H:162 * 76.0 *96.0(unit:mm) | ||||||
| Color | Black;Grayish white | ||||||
| Button Lifespan | >100000times | ||||||
| Performance Parameter | |||||||
| Interface | USB cable;(RS232 can be customized) | ||||||
| System Supported | Linux,Android,Windows XP,7,8,10,MAC | ||||||
| Language Supported | English; French; German (Language can be customized) | ||||||
| Light Source | Visable laser 650nm | ||||||
| Resolution | 4mil | ||||||
| Bit Error Rate | 1/5000000 | ||||||
| Scanning speed | 200times/sec | ||||||
| Reading Mode | laser | ||||||
| Trigger Mode | Manual ;Continuous scanning | ||||||
| Scanning Distance | 10mm-600mm | ||||||
| Prompt Mode | Buzzer, Indicator Light(LED) | ||||||
| Print Contrast | 30% | ||||||

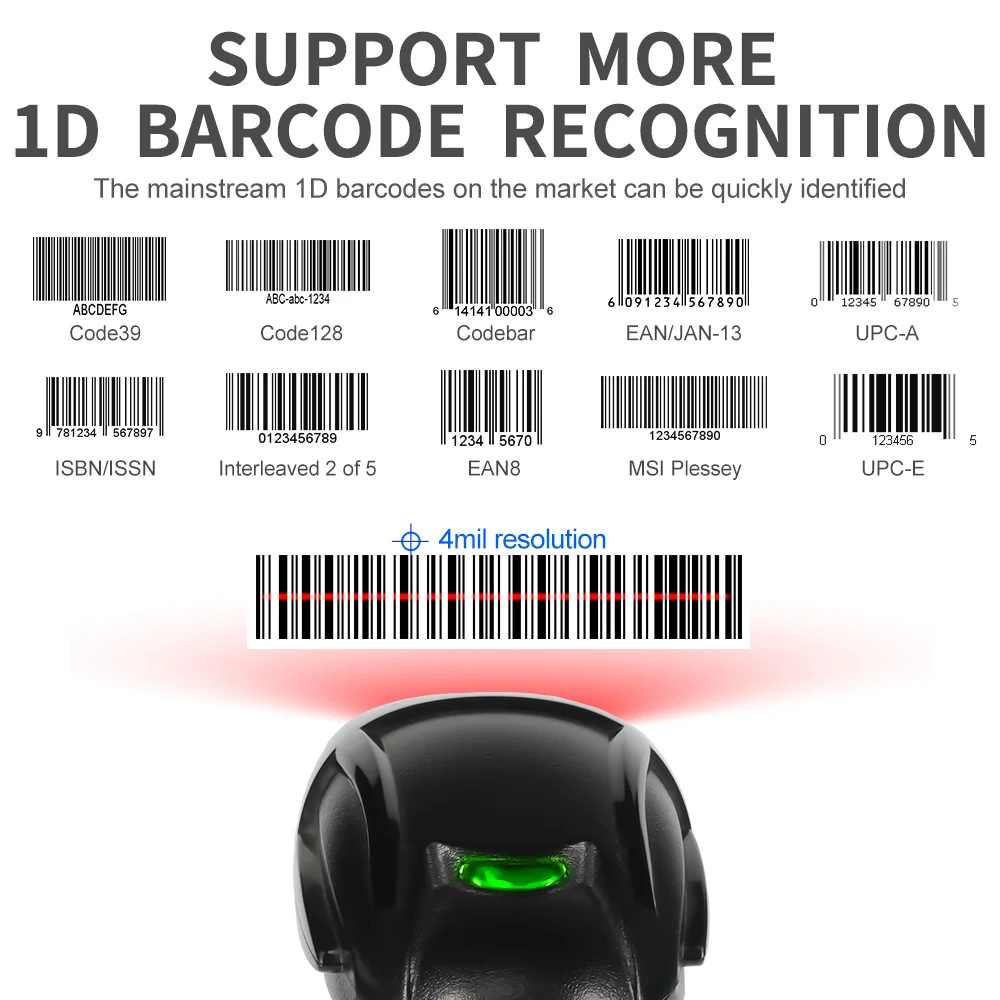

| Decoding Capability | Code25-Interleaved Code25-Standard Code25-Matri Code39-Regular Code39-FullASCII Code32 Code93-Regular Code93-FullASCII Code128 EAN/GSL/UCC-128Auto Codabar MSI EAN/JAN-13 UPC-A JAN-8 Code11 UPCE0 | ||||||
| Scanning Angel | Roll30°,Pitch75°,Yew75° | ||||||
| Scanning Depth | Code39(4mil):4 - 6 cm Code39(10mil):6 - 16 cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%(No Condensation) | ||||||
| Storage Humidity | 20% to 85%(No Condensation) | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | 1.5m free fall on concrete surface | ||||||
Company Information
FAQ
1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire bending machine,switch life testing,shock resistance testing).All the products pass CE,FCC,ROSH,etc.
2. Why so competitive?
With almost 10 years experience,we owned a large domestic market in China.We are the best seller in China.So large quantity will reduce our raw material cost directly.What's more,we have mature technology to save cost.
3. How to control the performance stable?
We take the flow line production in the whole processing.Every product will test 4 times at least before it delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
5. Why customer choose us?
ISO9001&ISO14001 factory with strictly quality control system.Prompt after-sales service.
6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
