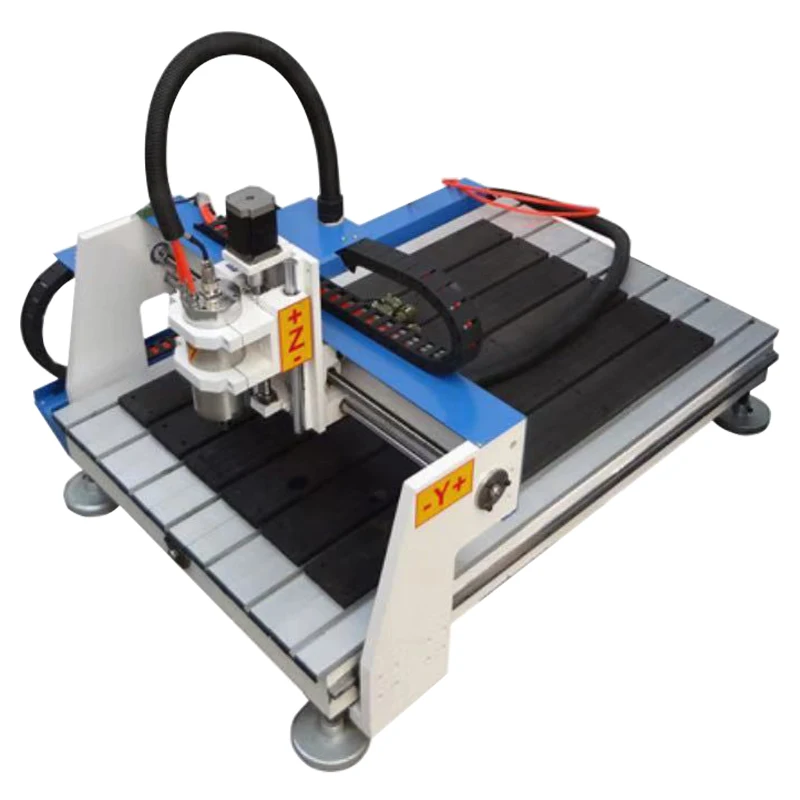

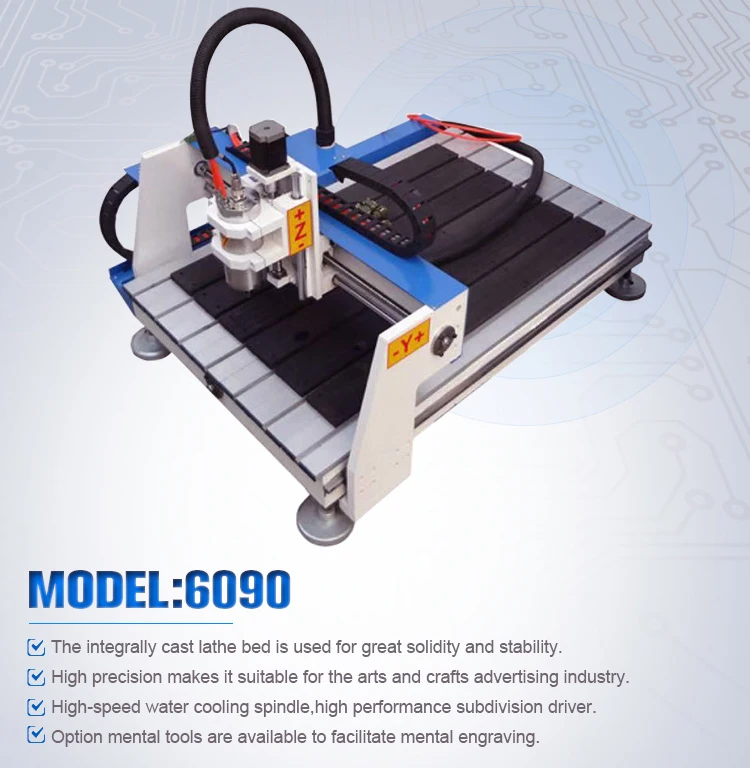

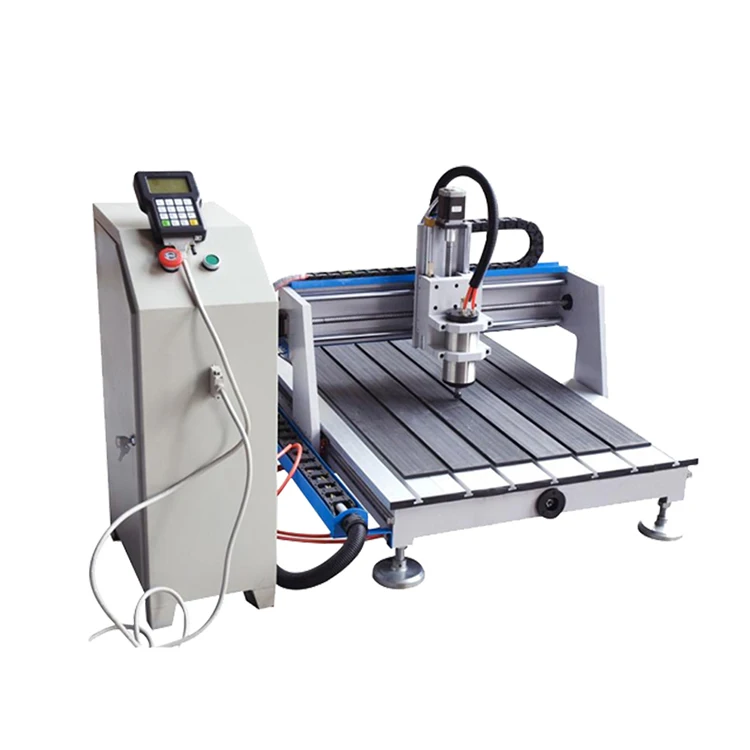

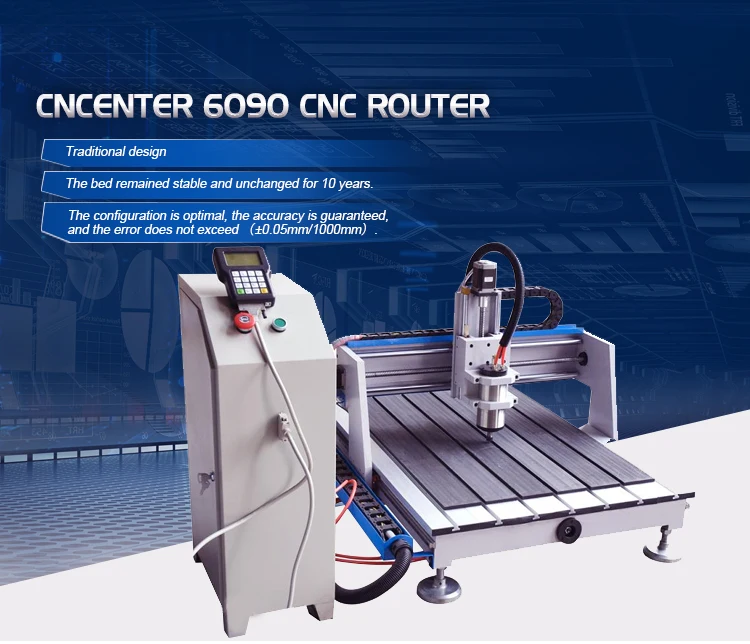

3d mini woodworking router 6090 cnc cutting engraving machine price
Feature&Details
NO.
Discription
Parameter
1
X,Y,Z Working Area
600x900x250mm
2
Table Size
700x1000mm
3
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
4
X,Y,Z repositioning Positioning Accuracy
±0.05mm
5
Lathe Structure
Cast Aluminum
6
X, Y Structure
Shaft Linear Bearings and Ball Screw
7
Z Structure
Ball Screw
8
Max.Consume power
3.0Kw
9
Max.Speed
0-6000mm/min
10
Max.Working Speed
0-3000mm/min
11
Spindle Power Motor
1.5Kw self-coolant spindle
12
Spindle Speed
0-24000RPM
13
Working Mode
Stepper
14
Working Voltage
AC220V/50/60Hz
15
Command
G code, *uoo, *mmg, *plt
16
Operating System
Mach3 /Nc-studio/DSP
17
Interface
USB
18
Flash Memory
128M
19
Collet
ER18
20
X,Y Working Delicacy
<0.01mm
21
Software
Type3 software, Wentai software, Artcam software
22
Running circumstance
Temperature: 0°C~45°C Relative humidity: 30%~75%
23
Packing Size
133x101x1.11m 0.75CBM without wooden case
24
Net Weight
220KG
25
Gross Weight
250KG
All parameters above subject to change without prior notice

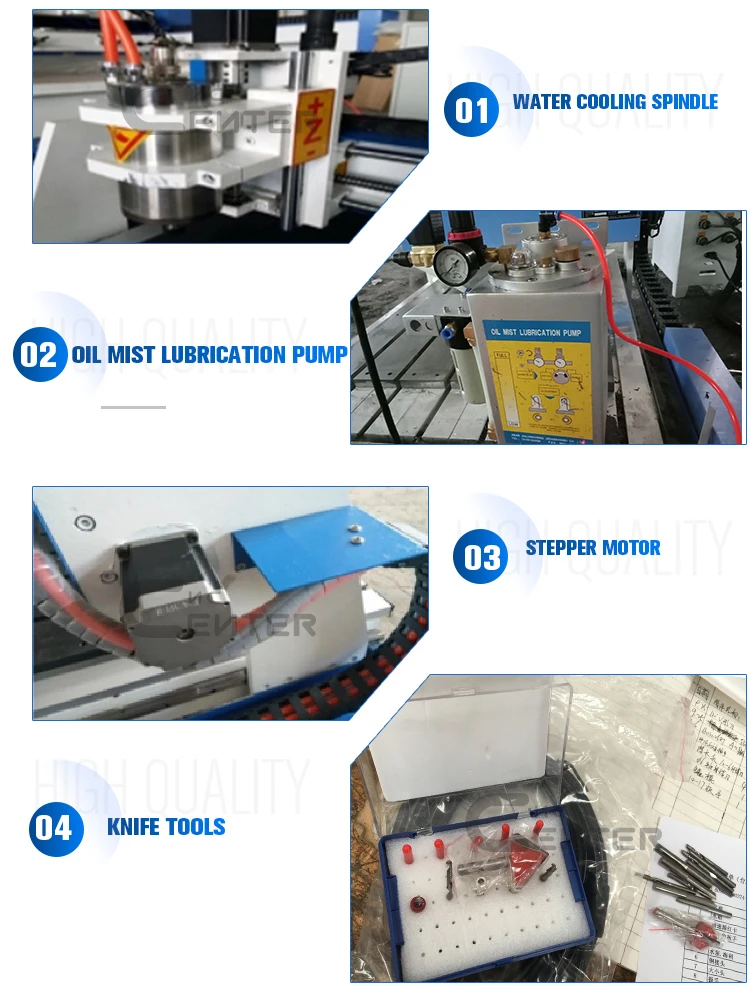

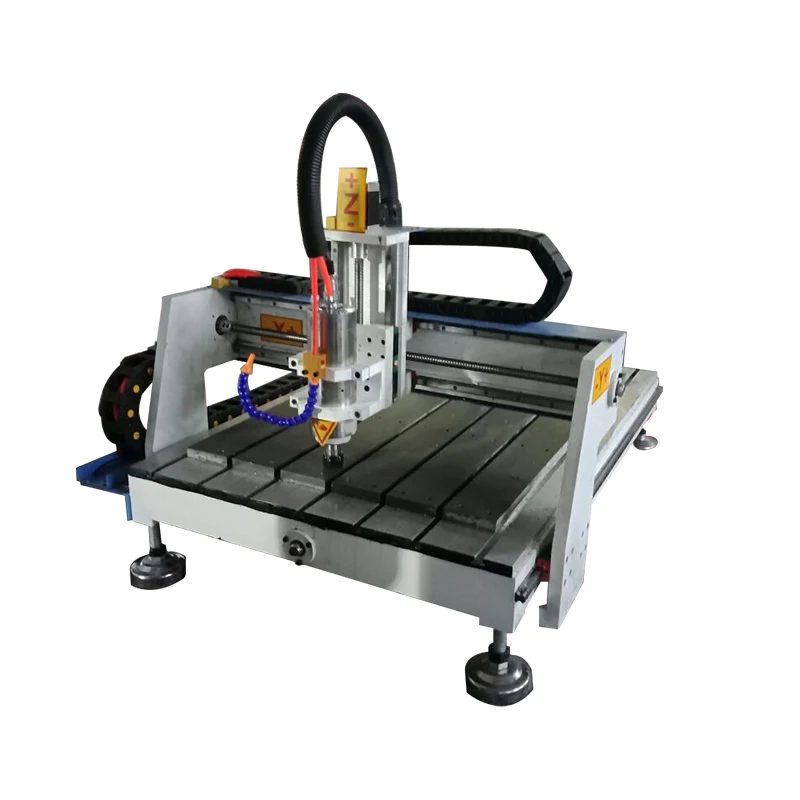

Product Details

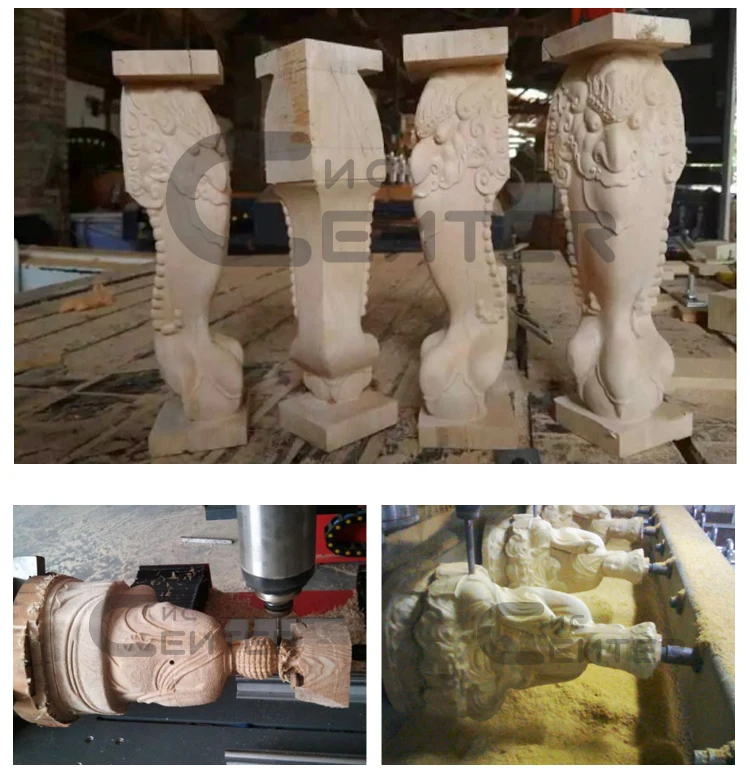

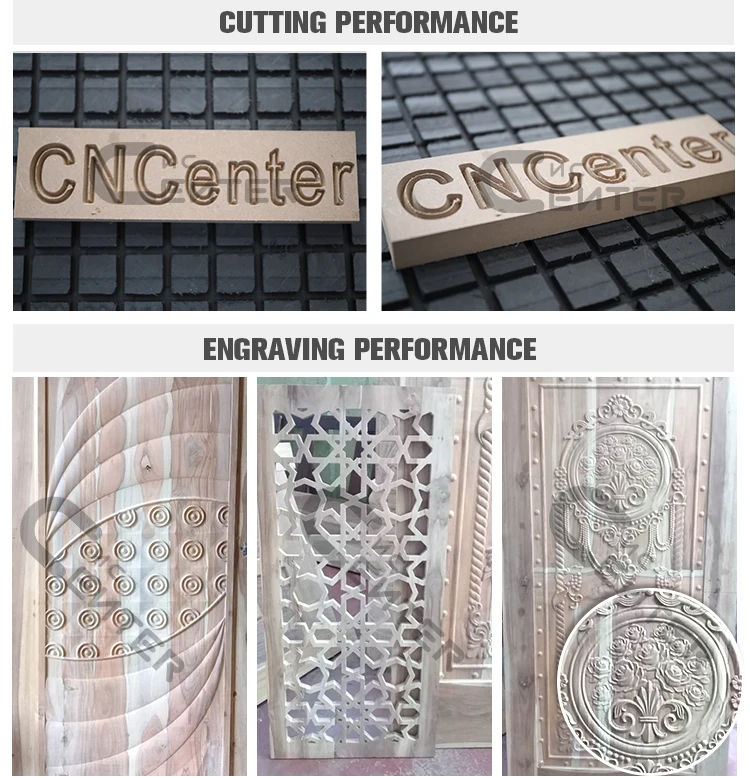

Application&Sample
Used for panel furniture cutting, punching, slotting, wardrobe, cabinet door engraving and milling, hollowing out, modeling, creative furniture production, craft cutting, carving and so on.
