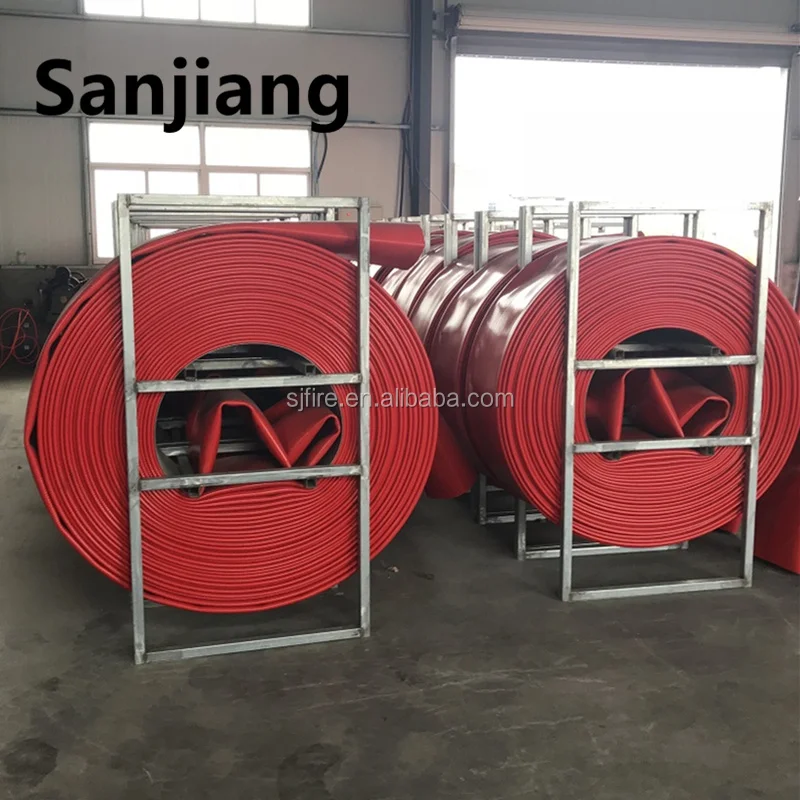

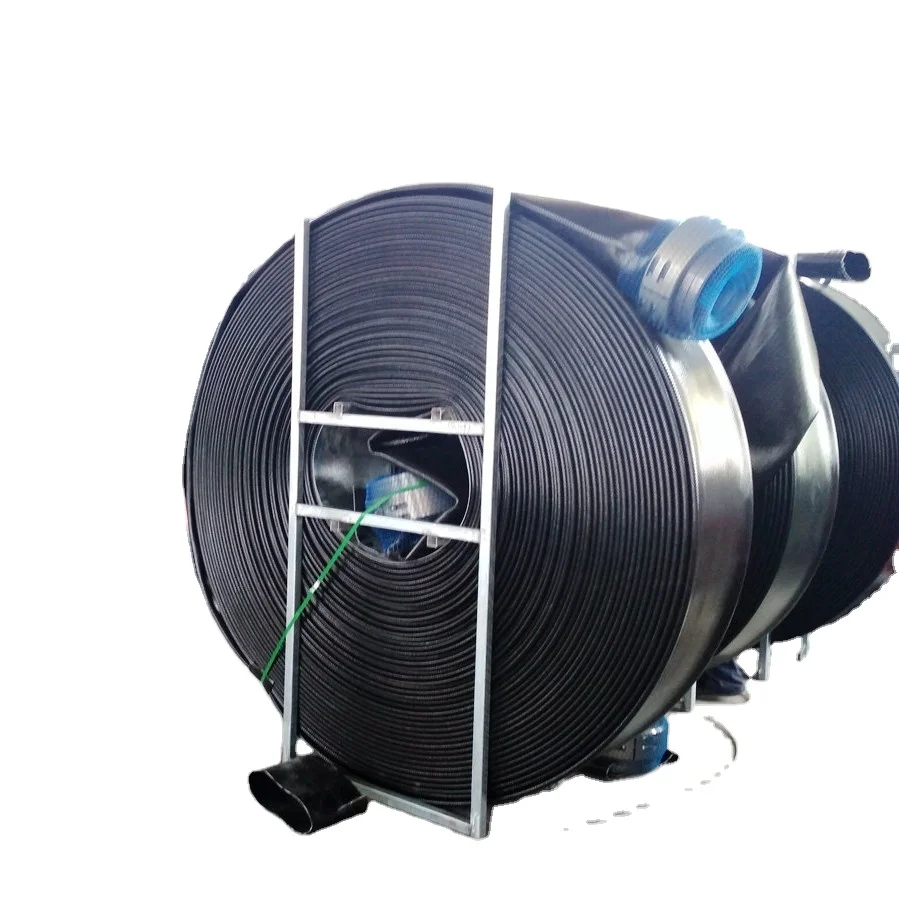

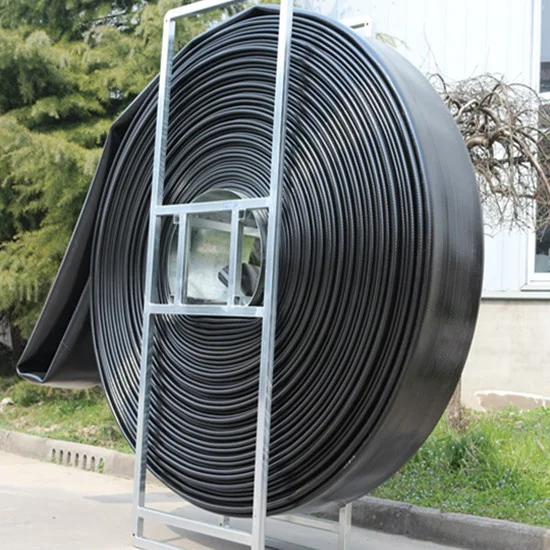

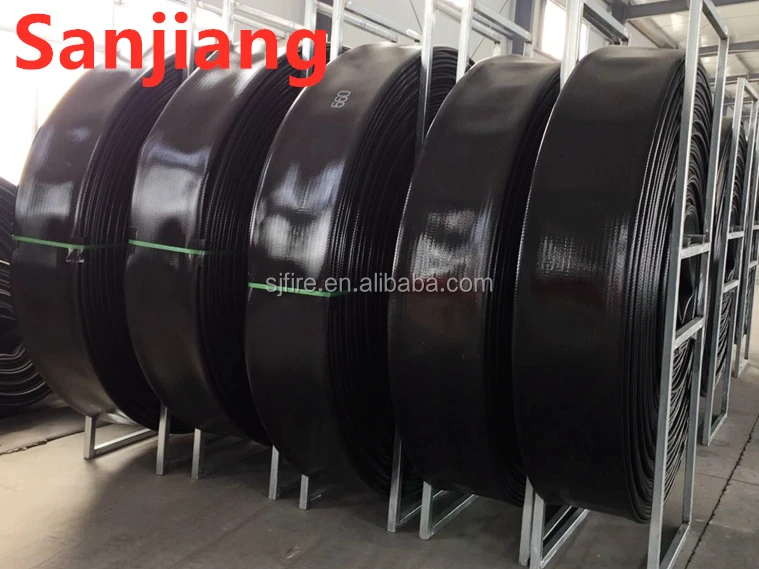

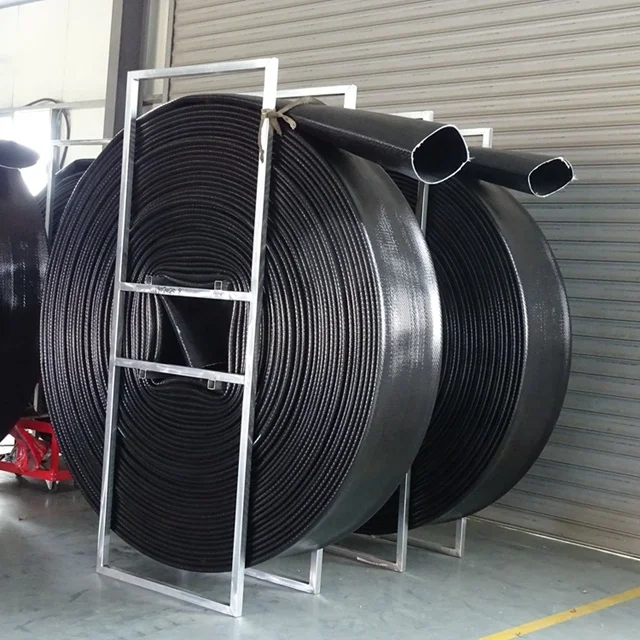

12 inch high pressure 300mm layflat hose

Product Overview

Description

1.Construction

This hose is made from extruded thermoplastic polyether based polyurethane (TPU)  with excellent wear & tear properties. The reinforcement is made from circular woven filament polyester yarn.Production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.

2. Features

Easy to repair, Lightweight and easy to handle, High Pressure rating, Good resistance to fuel and chemicals

Compact storage, UV Stabilised hard wearing, Supplied with copper anti-static wire for electrical continuity

Available in different colors

3. Application

Frac water transfer

Manure Transfer

Irrigation

Temporary Oil Transfer

Long Distance Water Supply

Water well rising

Mining dewatering

Concrete Placement

Slurry/Dredging

4.Working Temperature

-50C deg to 65C deg(-58 F deg to +85 F deg)

5. Length of per roll

Standard lengths up to 660ft (200 meters). Longer lengths available on request.

6.Specification

Diameter	Inner Diameter	Thickness		WP	BP	Weight		Tensile Strength
inch	mm	inch	mm	psi	psi	Lb/ft	Kg/m	lbs	kg
4	102+2.5	0.138	3.5	200	600	0.89	1.34	27503	12500
4	102+2.5	0.118	3	150	450	0.76	1.14	19802	9000
6	152+3.0	0.157	4	200	600	1.5	2.25	48405	22000
6	152+3.0	0.118	3	150	450	1.12	1.68	37404	17000
8	203+3.0	0.165	4.2	200	600	2.15	3.2	77000	35000
8	203+3.0	0.146	3.7	150	450	1.81	2.7	52900	24000
10	254+4.0	0.177	4.5	200	600	2.88	4.3	99200	45000
10	254+4.0	0.165	4.2	150	450	2.55	3.8	66100	30000
12	305+5.0	0.173	4.4	150	450	3.20	4.8	92600	42000
