Customized supplier various type magnetic separation equipment
product presention

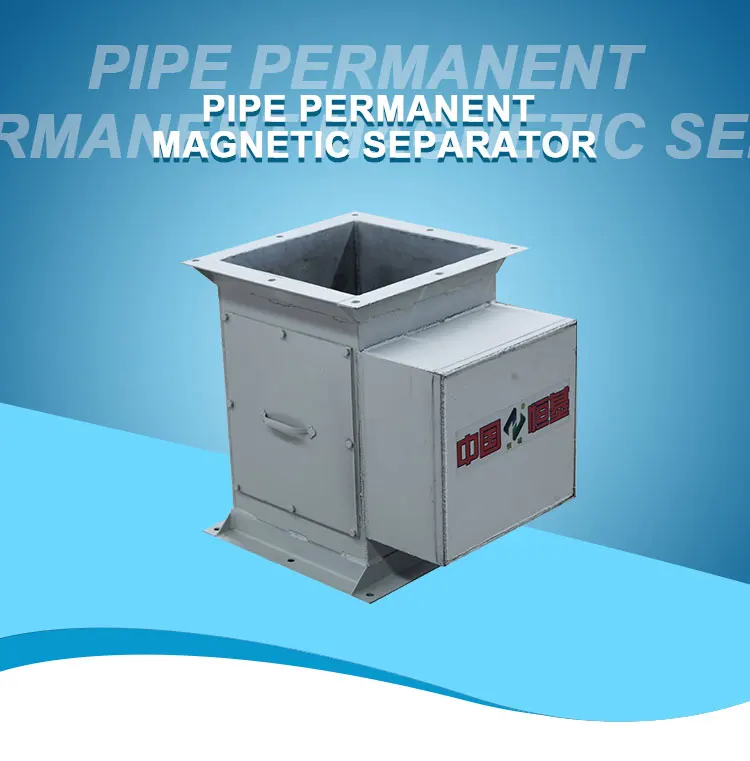

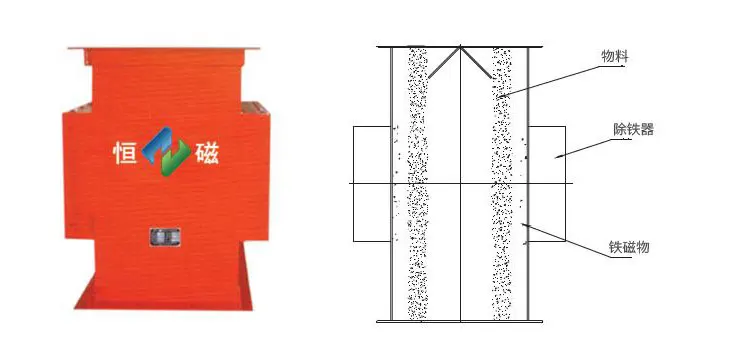

RCYF type vertical pipe permanent magnet iron remover is suitable for the removal of iron in cement, building materials, chemical industry, grain, plastic, coal, refractory and other industries, which can be connected with transportation pipeline and installed vertically.
Main technical param
model
Adaptive yield
Overall dimensions of the pipe
Permanent magnet shape size
Flange interface size
Installation mode
weight
T/h
L*W*H
L*W*H
L*W
KG
mm
mm
mm
RCYF-15
15
300*300*600
300*250*80
360*360
Suitable for vertical 90 degree installation of pipeline
105
RCYF-30
30
400*400*700
400*300*85
460*460
195
RCYF-50
50
500*500*800
500*400*85
600*600
310
RCYF-100
100
600*600*1000
600*450*180
700*700
470
RCYF-200
200
700*700*1200
700*500*210
840*840
680
RCYF-300
300
800*800*1400
800*700*210
940*940
890
RCYF-500
500
900*900*1500
900*800*250
1040*1040
1100
RCYF-600
600
1000*1000*1600
1000*800*250
1140*1140
1310
RCYF-800
800
1100*1100*1700
1100*900*250
1240*1240
1560
RCYF-1000
1000
1200*1200*1800
1200*1000*300
1340*1340
1820
RCYF-1500
1500
1300*1300*2000
1300*1100*300
1440*1440
2060
