1.We can manufacture strictly accordingto your drawings and request.
2.We can design ourself to supply you a most suitable proposal to you.

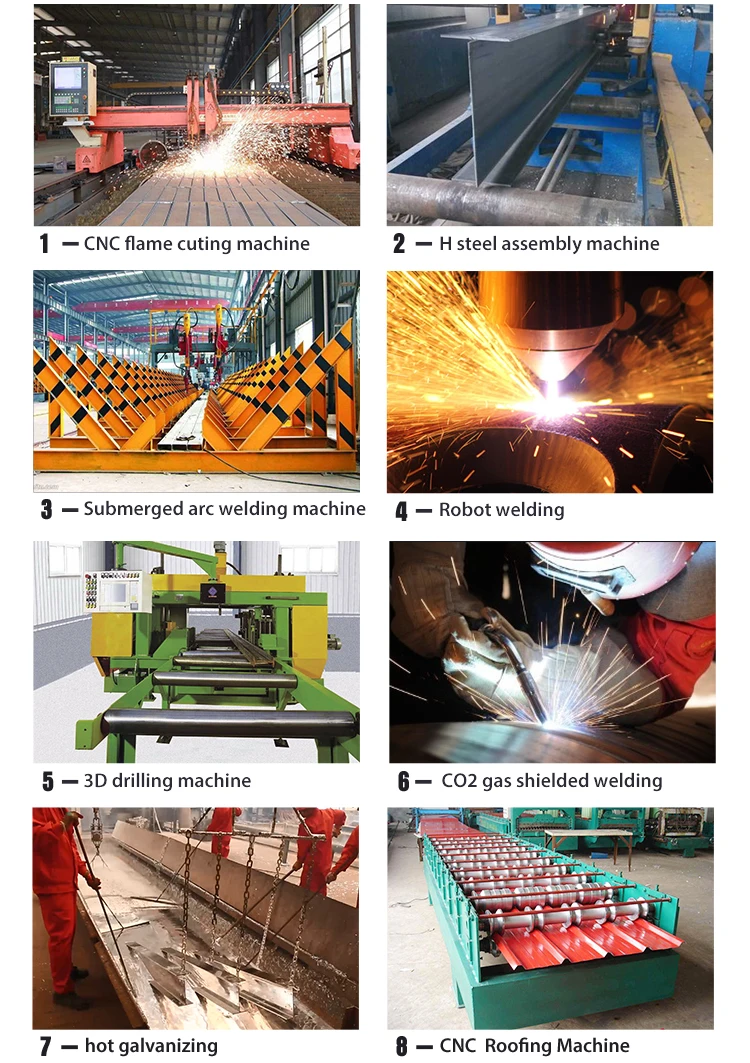

1.The industry's leading plasma slitting machine solves the defects of traditional flame cutting burrs;
|2.Brand new high-strength steel plate with the material of certificate from first class steel mill , never use rusted stock;|
|3.Flexible design of welded H-beam, can process various models, fully save costs, 0 waste;|
|4.Welded H-beam double-sided for continuous full penetration submerged arc welding, which is as strong as hot-rolled H beam and the design is diversified;|
5.The 3D drilling machine drill the web and flange hole in one time, which greatly improves the accuracy of the hole making compared with the magnetic drill;
|7.Our own hot-dip galvanizing zinc pot size 12.5*1.8*1.5m, annual productivity 100,000 tons.|
Our new type steel structure is more convenient to install, 2,000 square meters can be completed within 1 week by 5 workers.
(1) The main steel frames(structure) are all connected by high-strength bolts, no need on-site welding. Its’ installation is similar to building blocks.
(2) Totally 2 types of purlins will be used on roof and the walls of our Steel Structure.
(3) The combination of Chemical bolt and chemical glue bans the complex steel cage foundation structure in traditional steel structures, making on-site construction more convenient. The columns are easier to align so that the steel structures are at the same level.
(4) The architectural installation drawings are easier to understand and can be installed in conjunction with the installation video, reducing the cost of assignments.
All our steel-structured houses can be extended on the original frame.
(1) The holes are reserved on the column of our steel structures, and the way of bolt connection makes the expansion more convenient in future.
(2) The installation and location of the our roofing purlins make expansion and construction easier in future.
|1||Load of your building:|
|1) live load on roof(KN/M2)|
|2) wind speed(KM/H)|
|3) snow load (KG/M2) if have|
|4) earthquake load if have|
|5) crane (if have)|
|crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!|
|*width X length X eave height, roof slope|
|* windows and door information ,such size,type,quantity,material and location etc|
|*any brick wall at the bottom?|
|*single slope, double slope, muti slope ,|
|*single span,double-span ,Multi-span,|
|*single floor,double floors!|
|The distance between column to column|
|cement and steel foundation bolts|
|6||Column and beam:|
|*material Q345(S355JR)or Q235(S235JR) steel, all bolts connection !|
|*straight cross-section or Variable cross-section!|
|*hot rolled H beam or weld H beam|
|*Surface treatmentPaint or hot dip galvanize!|
|7||C or Zpurlin,|
|*size from C120~C320,Z100~Z200|
|*Paint or hot dip galvanize!|
|*X or V or other type bracing made from angle , round pipe etc|
|*Surface treatment:Paint or hot dip galvanize!|
|9||Roof and wall panel:|
|*single colorfull corrugated steel sheet0.3~0.8mm thick ,YX25-210-840(840mm effective width) etc,|
|*sandwich panel with EPS, ROCK WOOL , PU etc insulation thickness around 50mm~150mm,|
|width 950mm ,1000mm etc!|
|semi-transparent skylight belts, Ventilators, down pipe, out gutter etc|
|main steel frame load in 40'OT,roof and wall panel load in 40'HQ!|
|Around 20 ton per container!|
