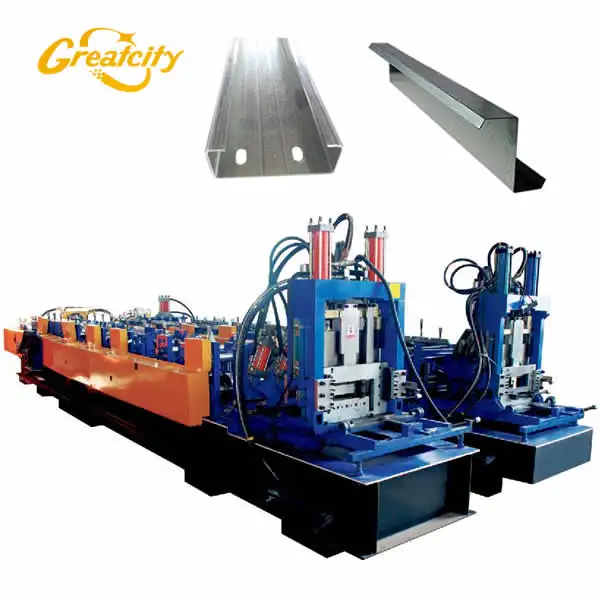

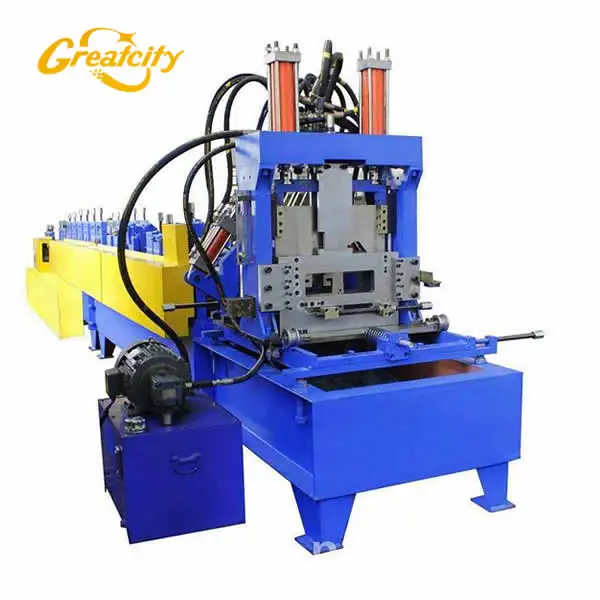

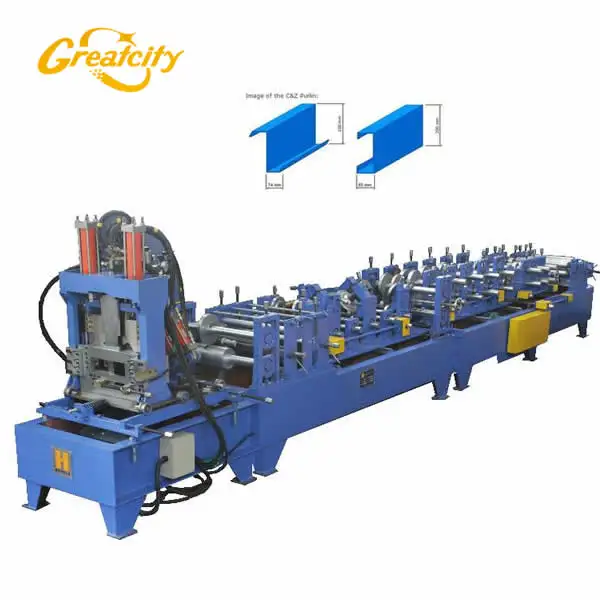

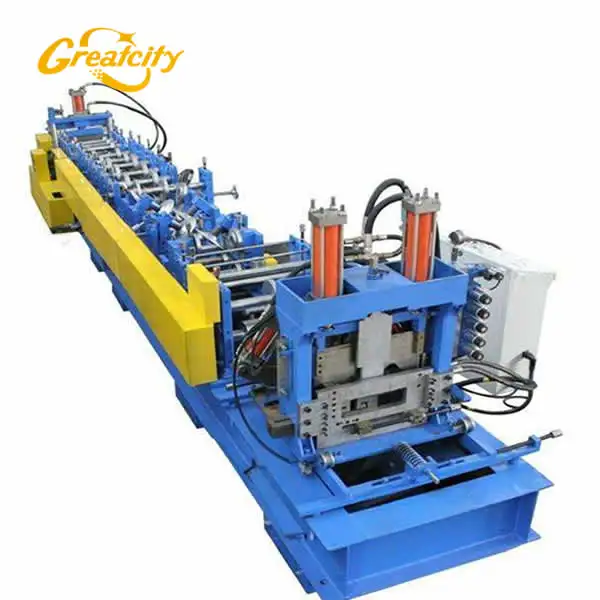

Factory Fully automatic 60 300type c z purlin roll forming machine U shape C channel forming machine

c z  purlin roll forming machine has now become an indispensable equipment for construction of I-beam and channel steel in tunnels, subway, hydropower stations, underground caverns, etc

c z purlin roll forming machine features:

1.Upgraded version of CZ integrator, fast transformation; 1-2 minutes transformation of 2.specifications and CZ

3.Realization of Automatic Conversion of CZ Specification

4.Realize CZ automatic flip 180 degrees

c z  purlin roll forming machine  technical parameters:

1. Spindle material: 45# steel quenching and tempering treatment, outer diameter Φ80mm

2, roll material:

1) Cr12 chrome steel quenching treatment HRC60-62 ° (optional)

2) GCR15 bearing steel quenching treatment HRC58-60°

3, the number of leveling rolls: 5 roll leveling

4, the number of main rolls: 15 rows (3 rows of leveling 12 rows of molding)

5, the main motor power: 11KW

6, rolling speed: 8-12 m / min

7. Cutting system: It adopts advanced hydraulic drive and automatically cuts the length after forming. Invariable, no waste, high safety factor. (The host stops cutting)

8. Punching: hole type drawing, can be adjusted freely before and after any setting

9, blade, punch material: Cr12, quenching treatment 60-62 °

10, electronic control system: the whole machine uses PLC, inverter control, rotation straightening

11, the size of the host: about 10.5M × 1.7M wide × 1.2M high

c z interchangeable purlin roll forming machine charging:

1) Manual discharge rack, inner tension type, loading inner diameter 450mm--600mm, width ≤600mm, maximum loading weight 4000KG

2) Automatic inner tensioning and discharging rack width ≤600mm, Width <= 600mm, maximum loading weight: 7000KG

Hydraulic power: 3KW

Cylinder diameter: 120mm, working pressure: 10Mpa

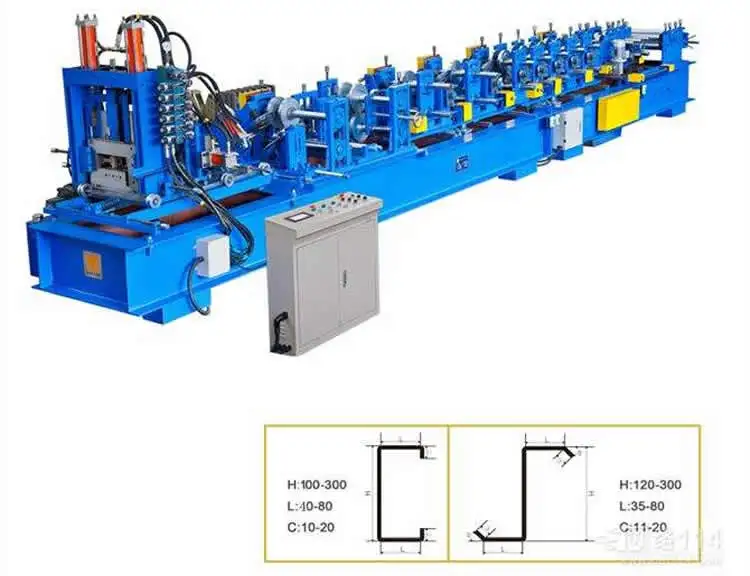

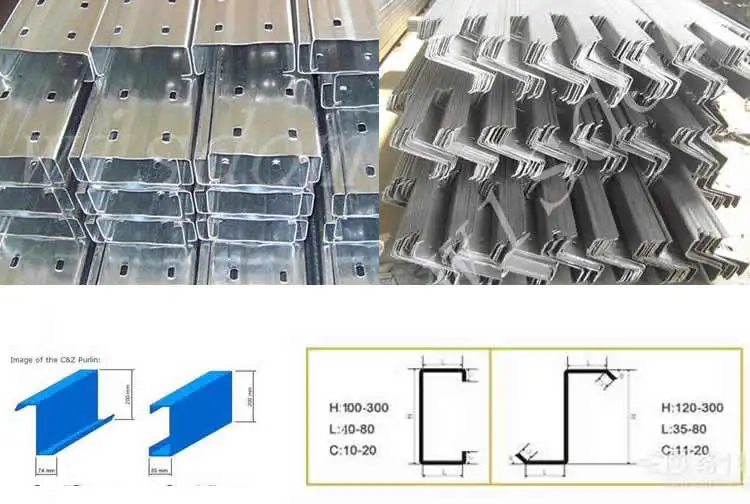

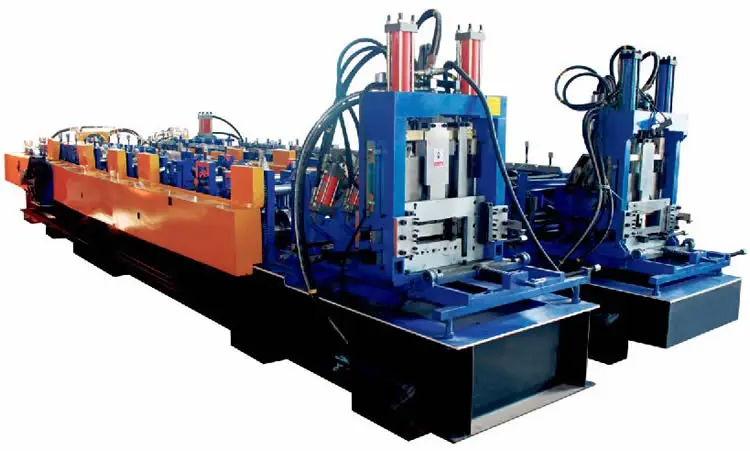

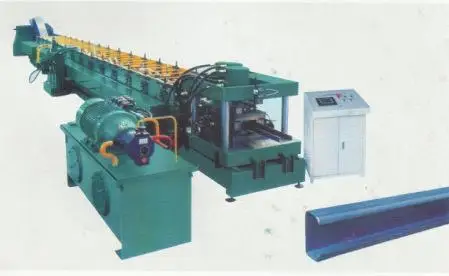

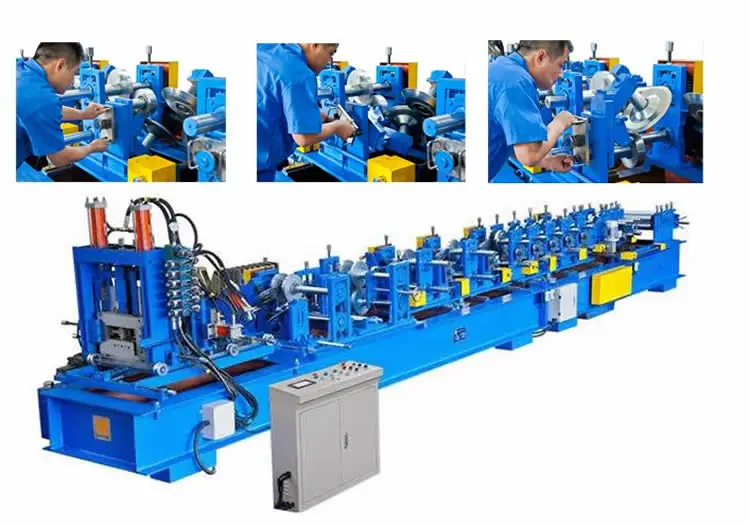

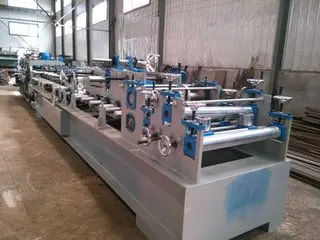

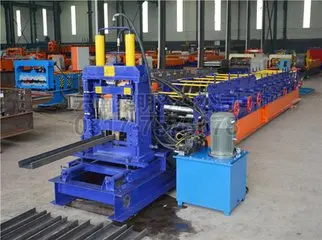

c z purlin roll forming machine detailed show:

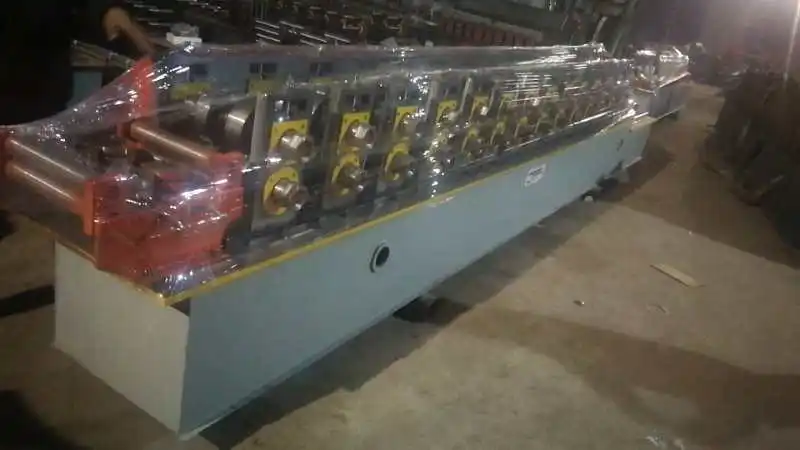

packaging information: standard export seaworthy packing by sea. We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him ASAP.

Delivery time: about 12-15 days after receiving the deposit for c z purlin roll forming machine

 Xingtai Judu Technology Co.,LTD was founded in 1990,Specialized in machinery  production & export of c z  purlin roll forming machine,has been in this field for more than 10 years.The Hydro construction machines,such as c, z,  cz, cu , are our advantages machine. These machines now export to all over the world such as Asia,Africa,South America,Australia and so on.

1. Help you choose the most suitable model machine.

2. Seriouly Making the machine according to your request.

3. Give you machine’s details for help you use the machine more better.

4. One year warranty

5. Free repair whole using life without extra charge.

1. What is the Lead time of goods ?

Goods can be sent within 30-45 Days according to our production arrangement .

2. What kinds of payment terms are acceptable to you ?

We usually accept T/T ( 50% in advance and 50% before shipment ) and sight L/C.

3. Can you train our engineer ?

It's OK . We can provide a free training within 7 days . Teach your engineer how to operate our machine and how to maintain the machine , etc .

4. Can you offer work-piece machinine ?

We can recommend work-piece lathe metal machines as per your sample pictures and drawings .

Any questions or requirements for c z  purlin roll forming machine  ,welcome to contact me at any time!
