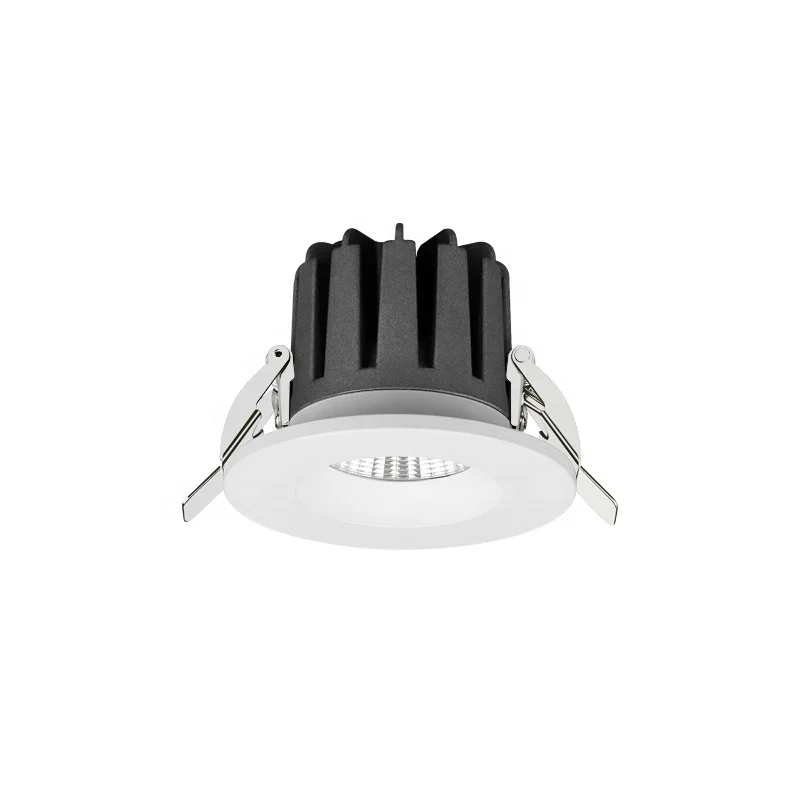

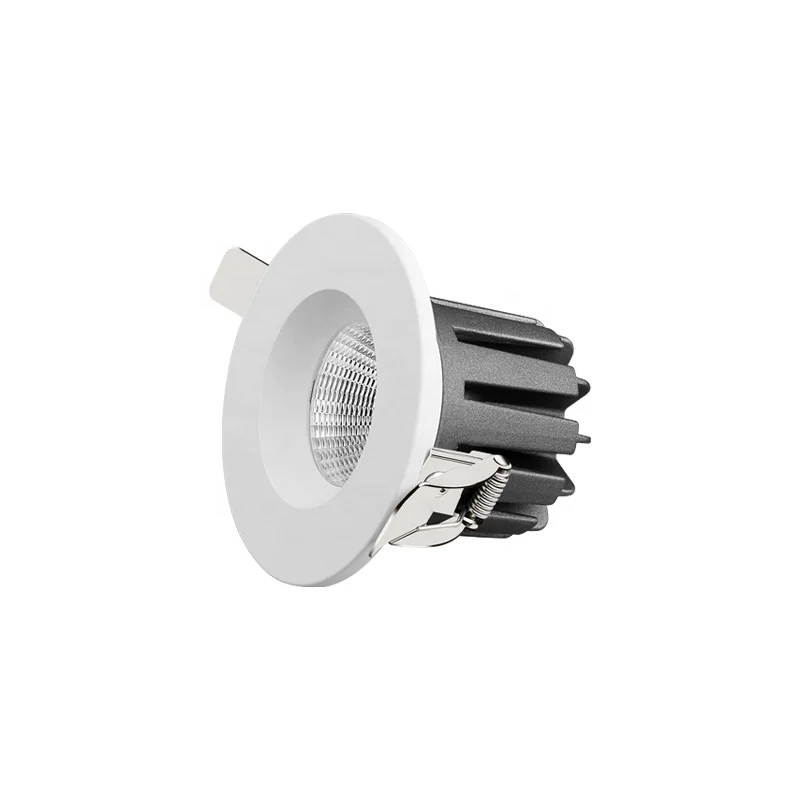

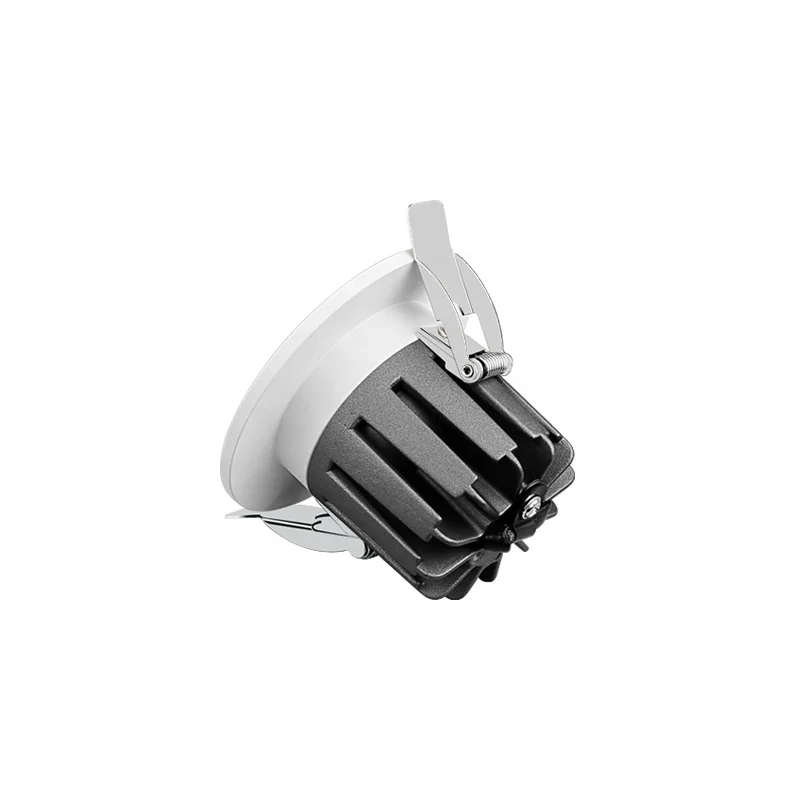

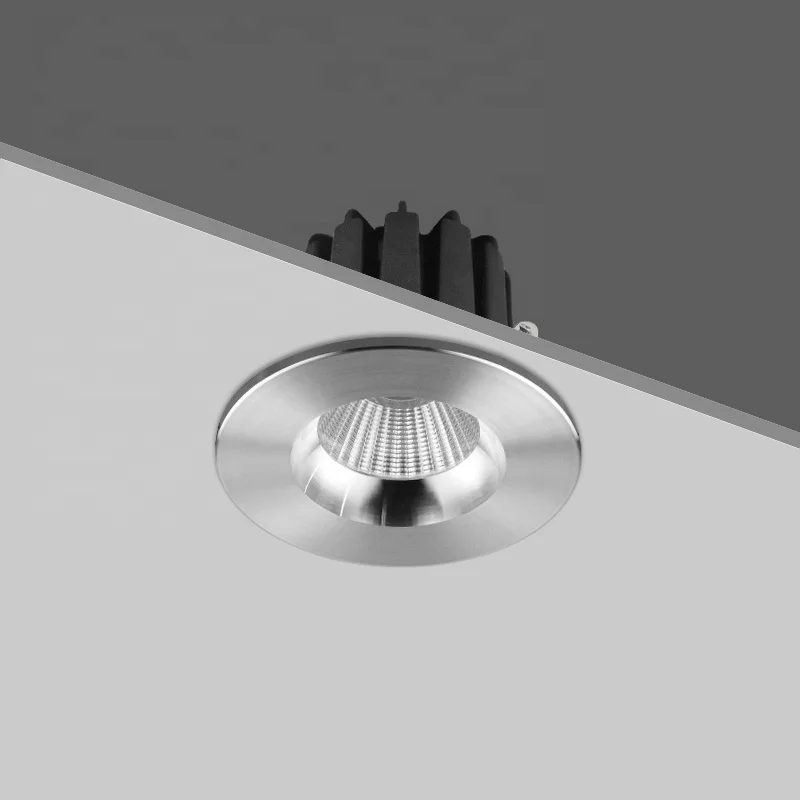

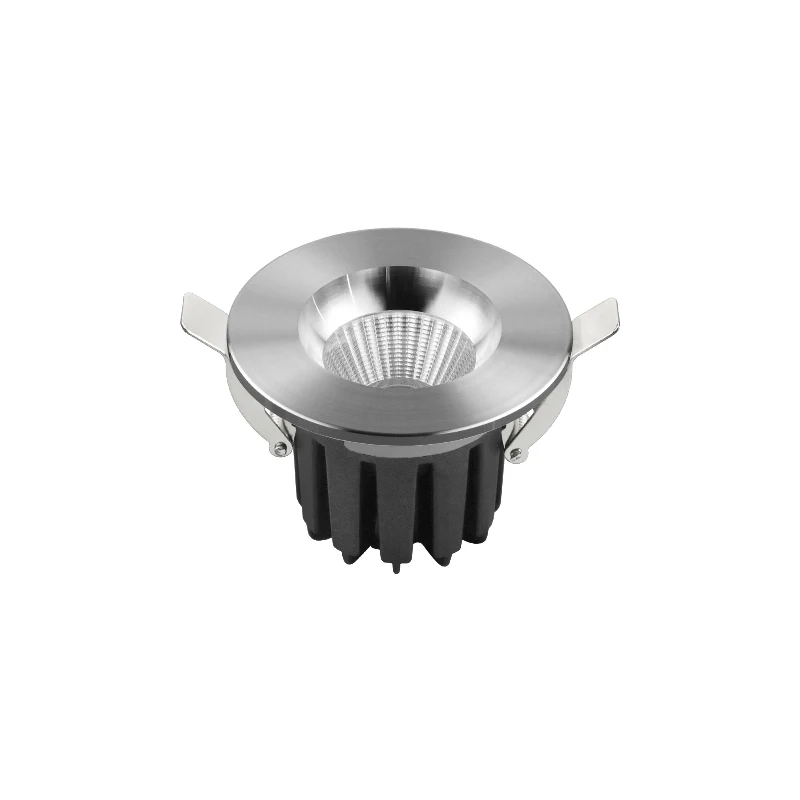

0 10V Dimmable LED downlight 10W 12W Cob Led Ceiling Down Light

Model:

CT0401-A2

THD(total):

<20%

Lamp Power:

9W/12W

Power Factor:

>0.9

LED Chip Brand:

CREE/CITIZEN

Current:

180mA/230mA

LED Chip Luminous Efficacy:

134lm/W

IP Rating:

IP 20

Life Time:

50,000hrs

Warranty:

3 years

Lamp Luminous Flux:

810lm/1080lm

Dimension:

φ85*H68mm

Lamp Luminous Efficiency:

90lm/W

Cut out:

72mm

Color Rendering Index:

Ra≥80/90

Energy Efficiency class:

A+

Color Temperature:

2700K/3000K/4000K/5000K

Net Weight:

320g

Beam Angle:

15/24/38/60 degree

Package:

1pc

Input Voltage:

100-240VAC

Packaging Type:

Box

Output Voltage:

DC27-42V

Frequency:

50/60Hz

Dimming:

Triac/DALI/0-10V
