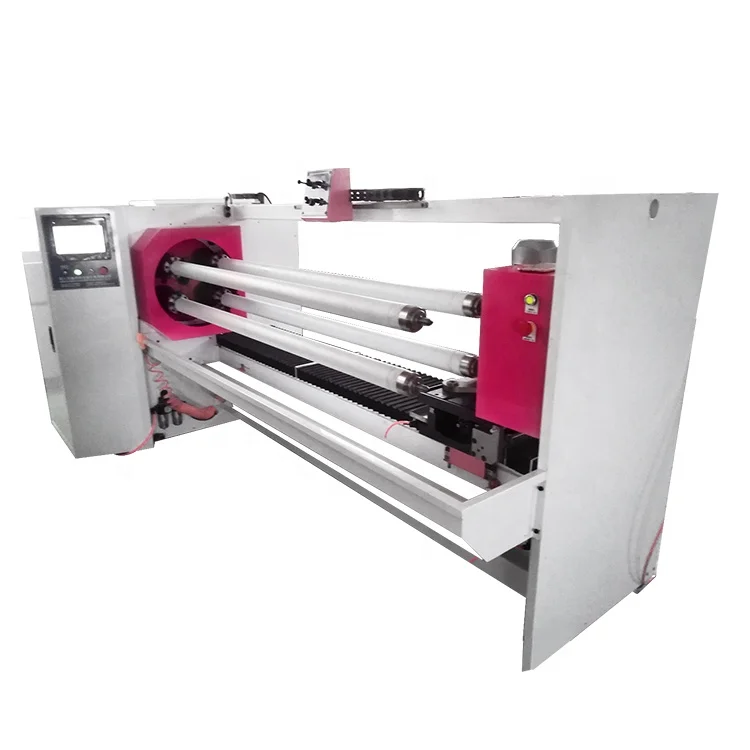

Fully Automatic PLC Controlled machine to manufacture adhesive tapes

Product Overview

Description

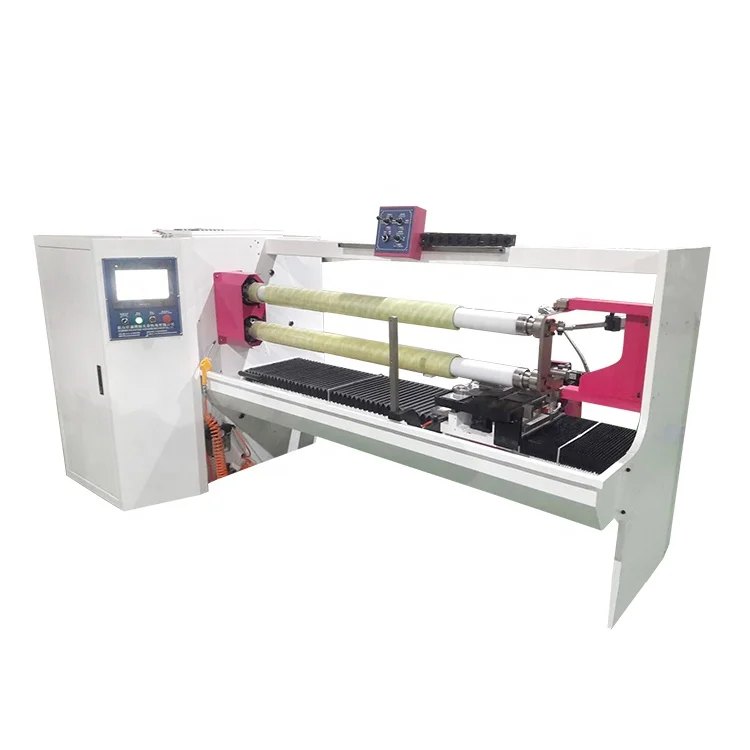

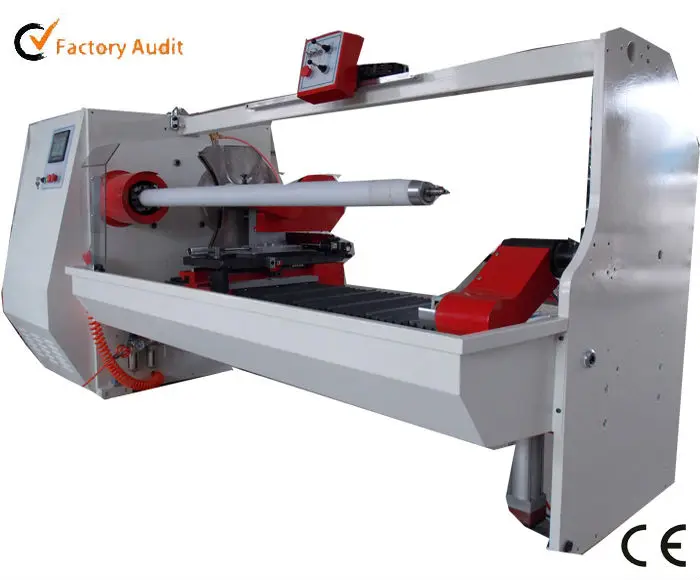

XMY001 Fully Automatic PLC Controlled machine to manufacture adhesive tapes



Feature

1. Main driving part: Taiwan AC motor with inverter is employed.

2. Central control unit: programmable central control is used and 20 sizes can be set on the same shaft for auto transfer and cutting.

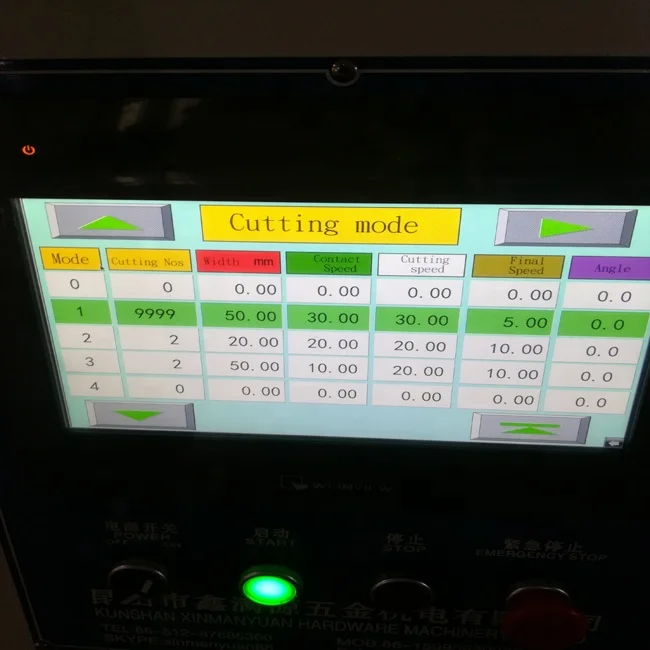

3. Operating panel: all functions are operated on the 10.4" Taiwan EVIEW LCD touch panel.

4. Motor control system: the central control system is PLC programmable controller.

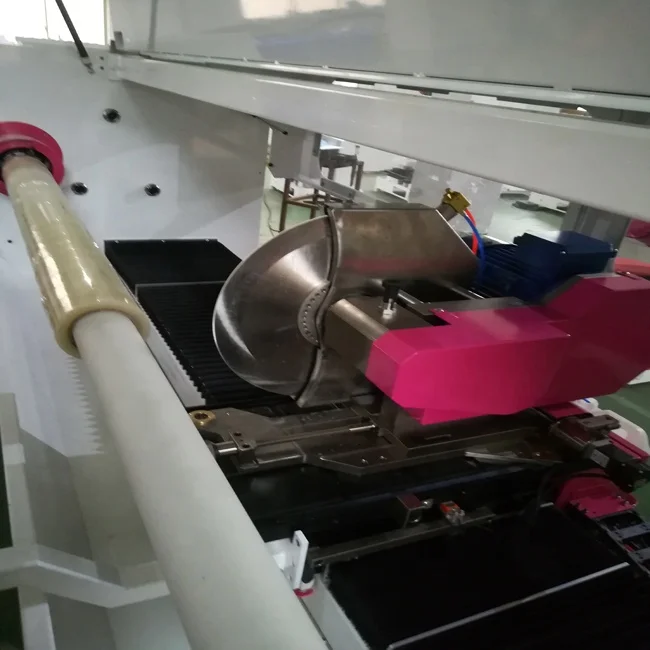

5. Cutting positioning system: cutting positioning is controlled by Mitsubishi servo motor. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.

6. Blade feeding positioning system: blade feeding is controlled by Mitsubishi servo motor, and the cutting speed is adjustable in three stages.

7. Auto angle adjustment of circular blade: Mitsubishi servo motor is used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°).

8. Quick shaft change system: three kinds of shafts are available and quick change of shafts is applied for different materials.

Optional Parts

1. Other size cutting shaft: It can be made as per the required core I.D.
2. Cutting supporter: For supporting log roll when cutting core below 38mm.
3. Auto blade grinder: It can keep the blade sharp for easy operation.

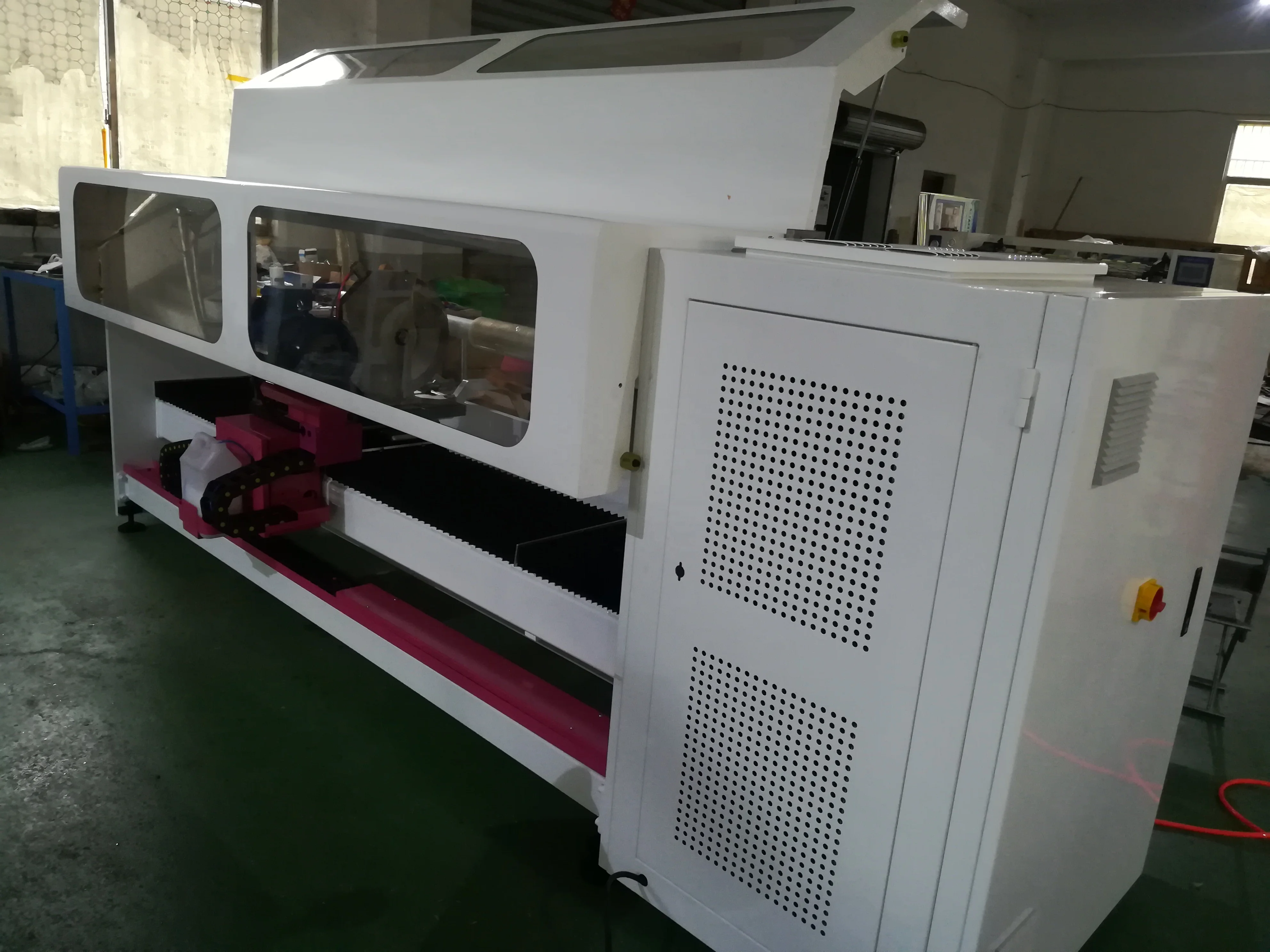

4. Safety cover: To protect operator during the production which is compliant to the CE regulation.



Main Technical Parameters

cutting width	1.3M 1.6M
min. cutting width	2mm
max. cutting O.D	300mm
cutting core O.D	1"- 3"
cutting precision	±0.1mm

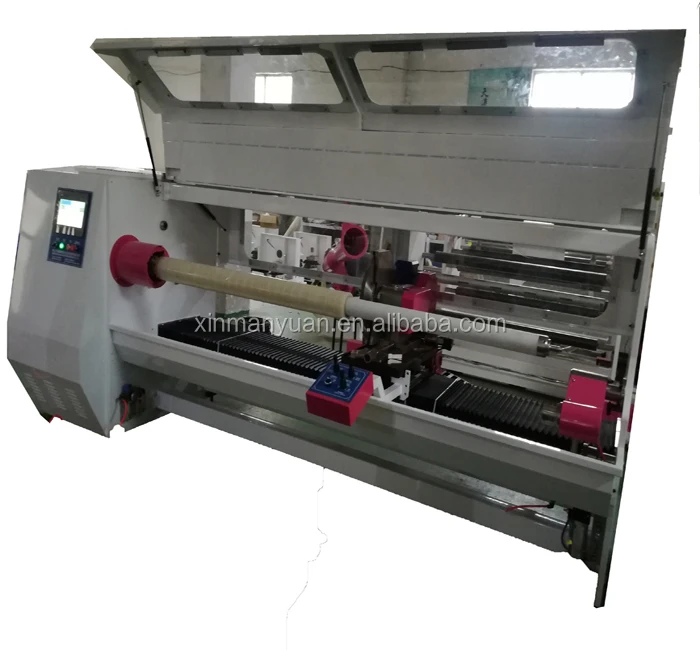

More photos









Policy&Gurantee:

A.One year gurantee for key parts of machine.

B.Free technical support.

C.Free industry information consulting.

D.Material support.



F&Q:

Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.

Q.:How does your factory do regarding qaulity control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.

Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Kunsha,China.You can fly to shanghai air port directly .We will arrange to pick you up from airport.

Q.:What’s service or guarantee can you offer?
A.: One year guarantee for key parts of machine;Machine installing and worker training service;Free technical support whole life;Material support
